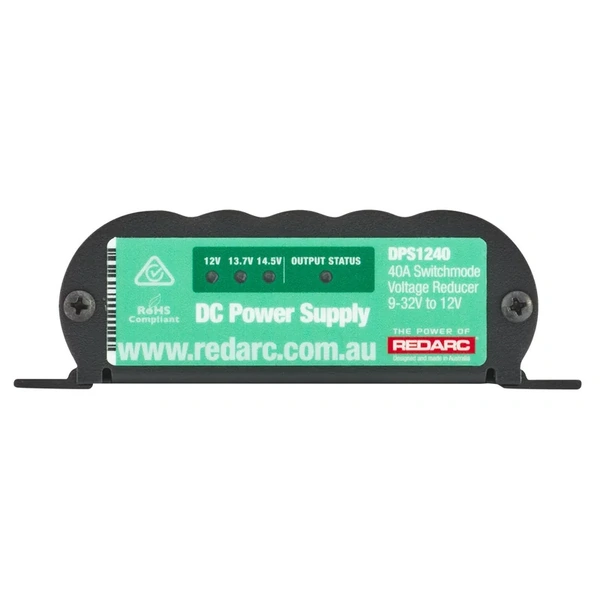

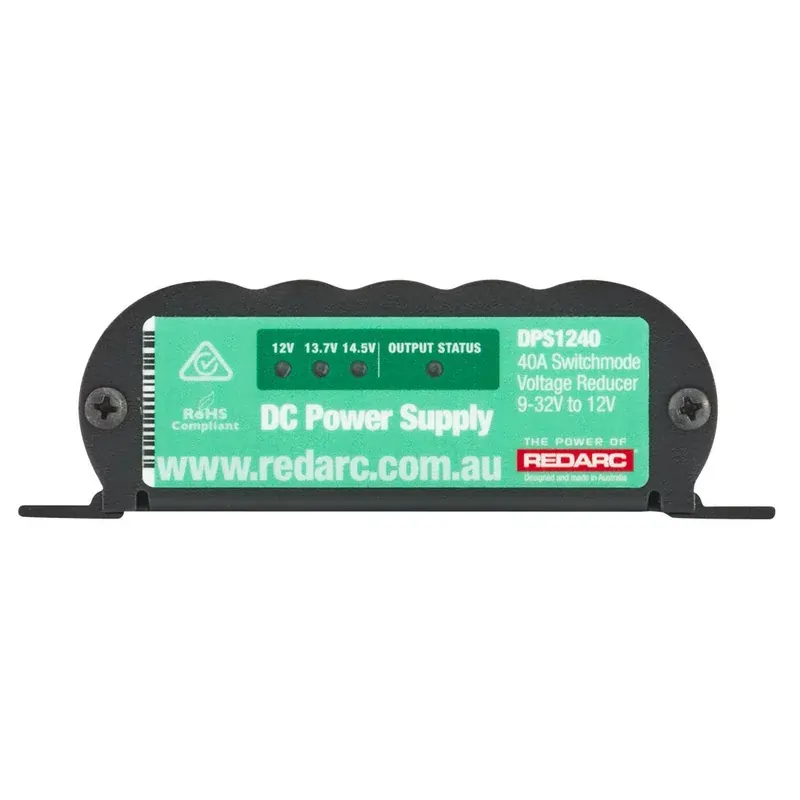

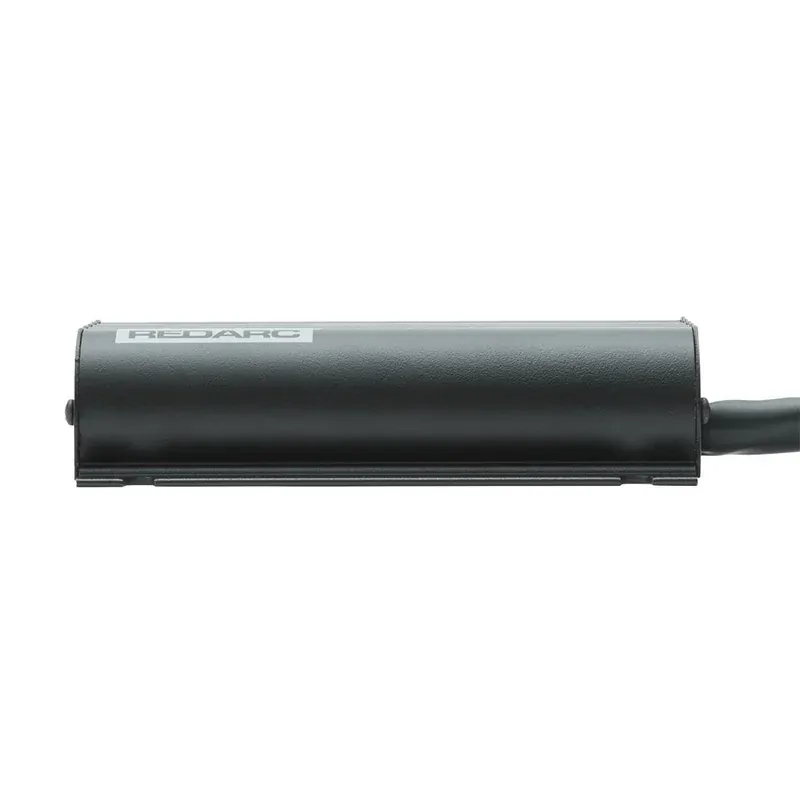

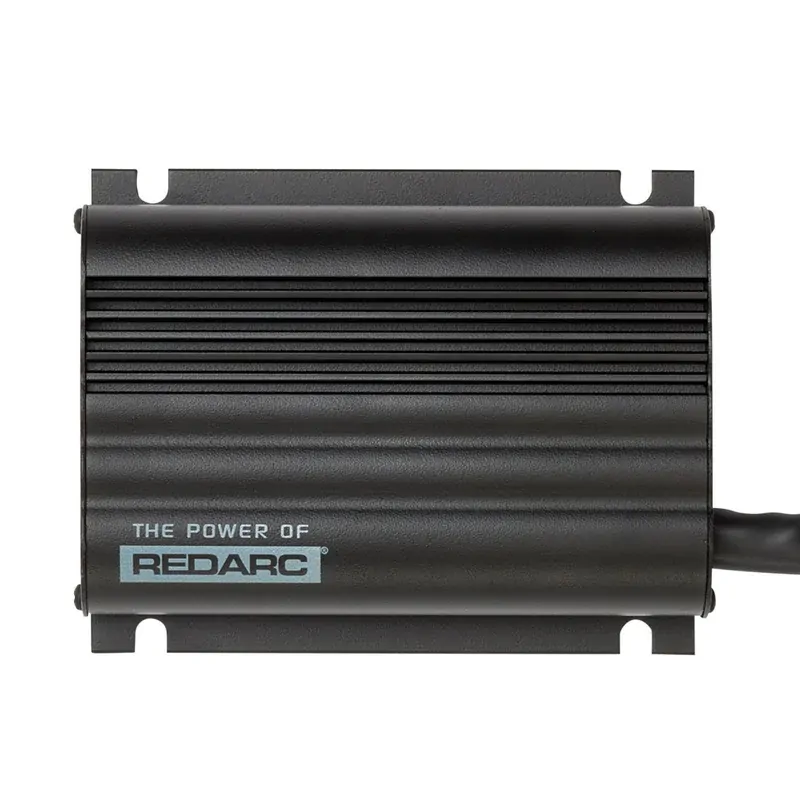

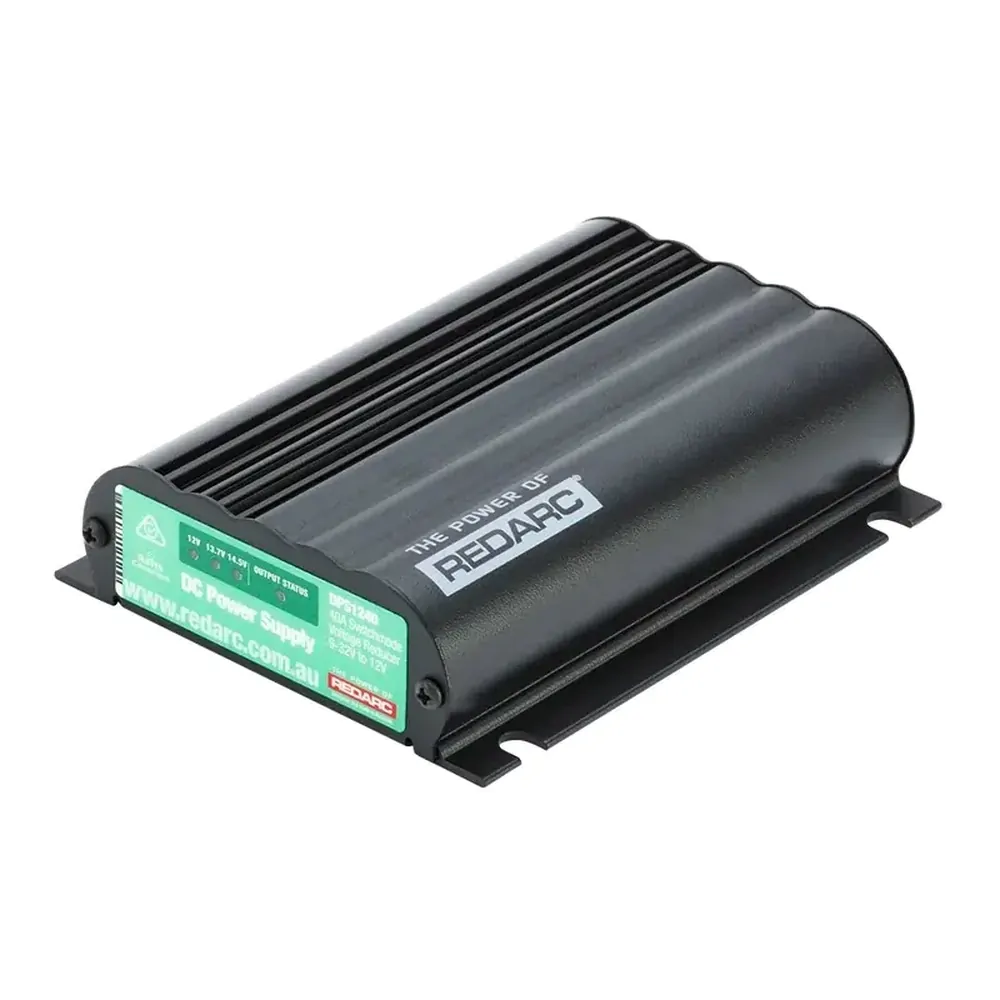

Redarc 12V 40A In-Vehicle DC Power Supply DPS1240

SKU:DPS1240

$994.00


Calculate Shipping

The REDARC DPS1240 is a 12V 40 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 12V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARCs silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications.

The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

BenefitsMore efficient with regulated output powerImproved functionality and reduced installation complexityProtects against surges/spikes and incorrect connections FeaturesFully encapsulatedIgnition controlledNo fan for reduced noiseHighly efficient designWide input voltage rangeUser selectable output voltage

brand REDARC
No Load Current <100mA
Standby Current <5mA
Conversion Efficiency >94%
Operating Temperature -50C to 50C
Weight 680 g
height 37 mm
width 120 mm
depth | length 150 mm
Warranty 2 Years
Input Voltage 9 - 32V
Output Voltage 12V DC
Max. Rated Output Current 40A
Input Fuse Rating 60A
Output Fuse Rating 60A
SKU DPS1240
Barcode # 9338628003815
Brand REDARC
