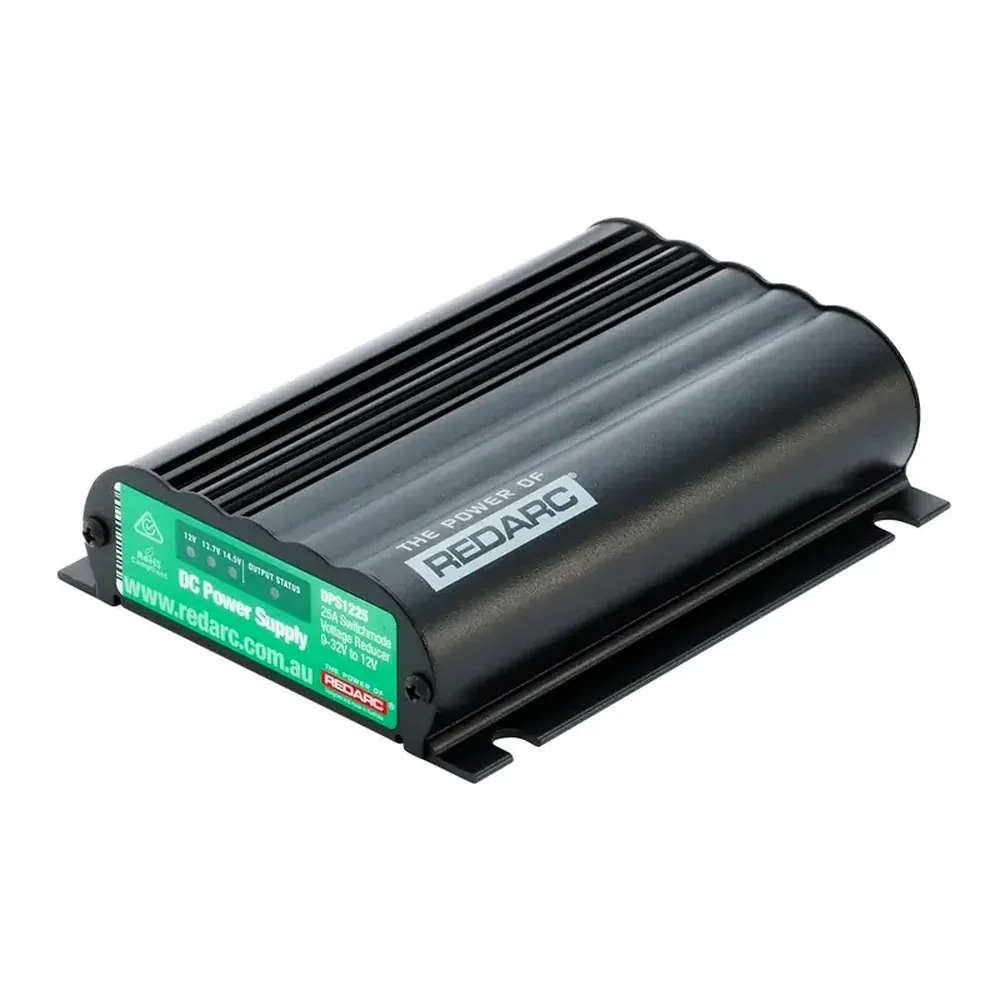

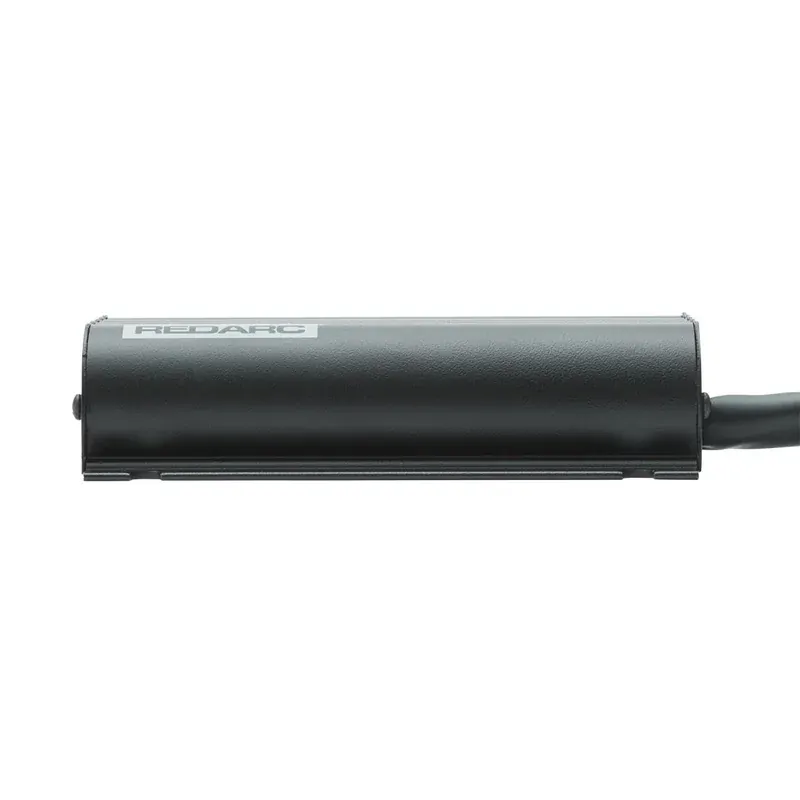

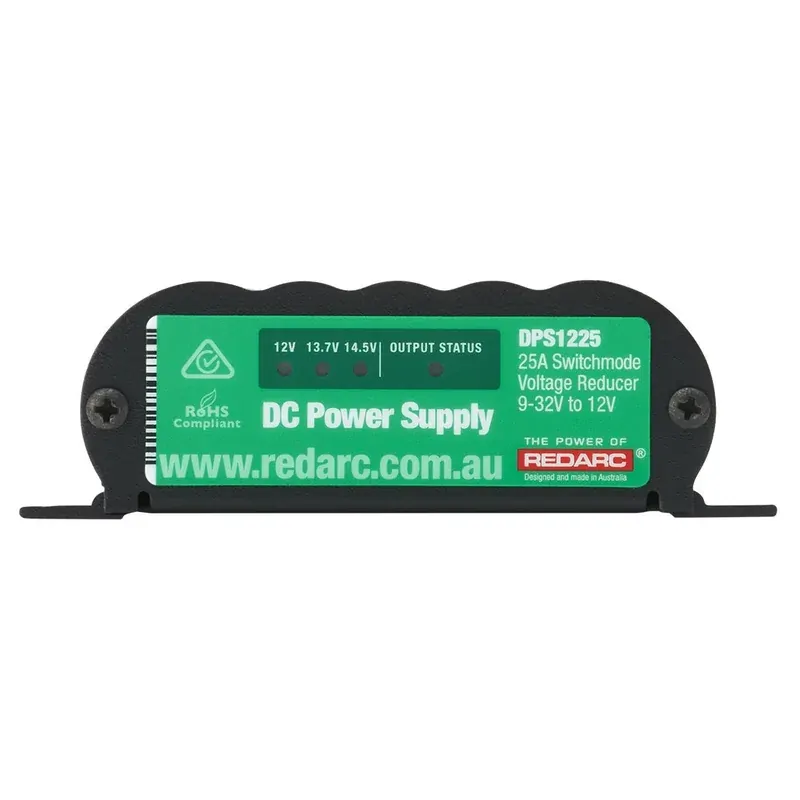

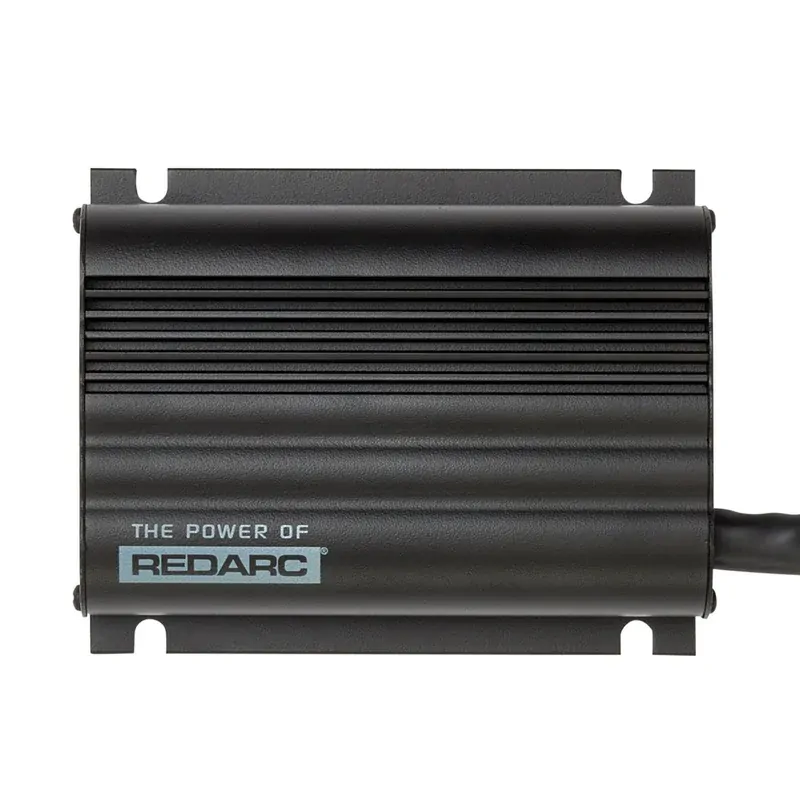

Redarc 12V 25A In-Vehicle DC Power Supply DPS1225

SKU:DPS1225

$778.00


Calculate Shipping

The REDARC DPS1225 is a 12V 25 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 12V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARCs silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications.

The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

BenefitsMore efficient with regulated output powerImproved functionality and reduced installation complexityProtects against surges/spikes and incorrect connections Features Fully encapsulatedIgnition controlledNo fan for reduced noiseHighly efficient designWide input voltage rangeUser selectable output voltage

brandREDARC
No Load Current<100mA
Standby Current<5mA
Conversion Efficiency>94%
Operating Temperature-50C to 50C
Weight680 g
height37 mm
width120 mm
depth | length150 mm
Warranty2 Years
Input Voltage9 - 32V
Output Voltage12V DC
Max. Rated Output Current25A
Input Fuse Rating40A
Output Fuse Rating40A
SKU DPS1225
Barcode # 9338628003808
Brand REDARC
