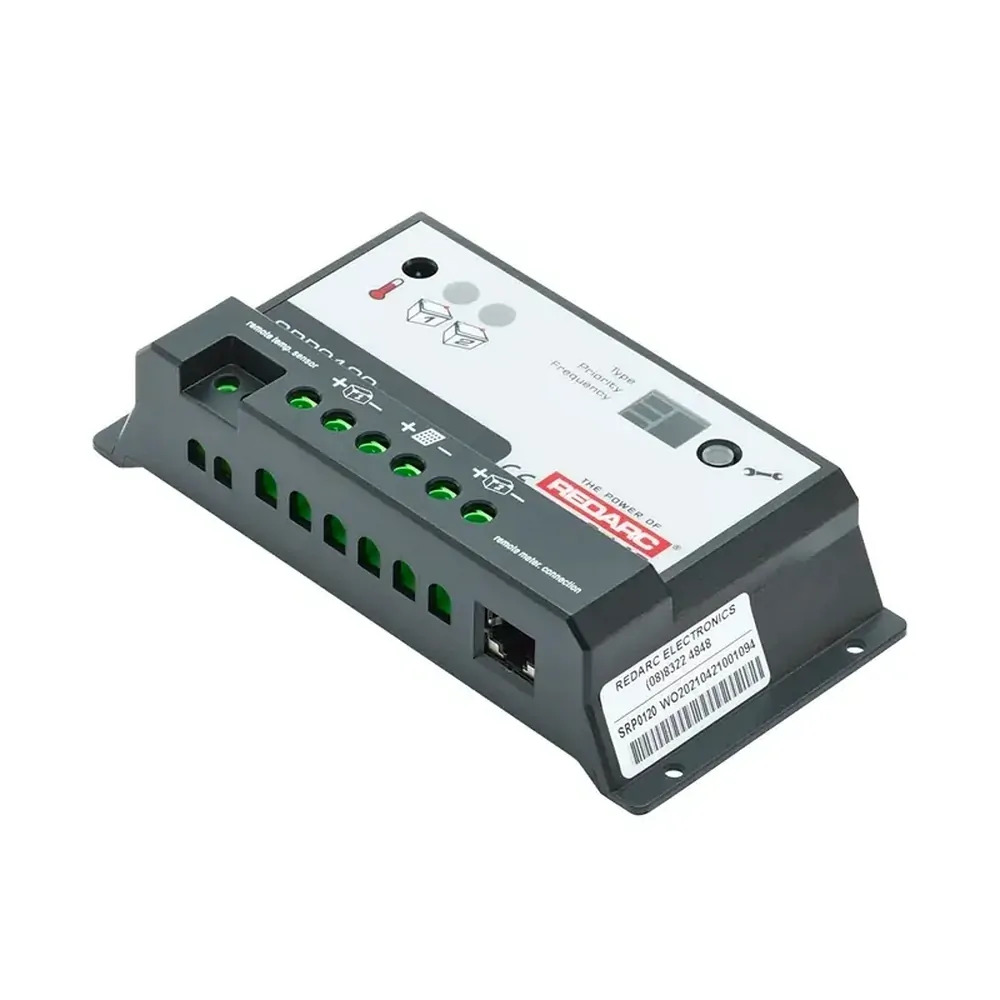

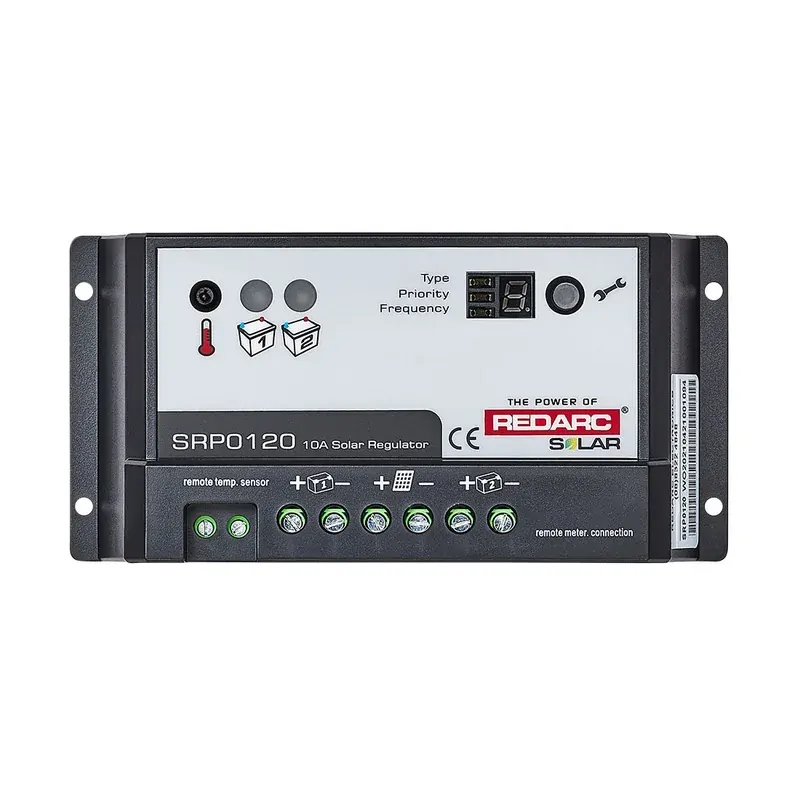

Redarc 10A Solar Regulator SRP0120

SKU:SRP0120

$102.00


Calculate Shipping

REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.

Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.

FeaturesMulti-stage chargingDual battery outputsLED indicationRemote monitor (optional)Remote temperature sensor (optional)2 year warranty The SRP regulators are primarily used with the SMR range of solar panels.

And when the Anderson to bare wire connector cable (SRC0016) is purchased, the solar blankets and folding solar panels can use the SRP range of solar regulators.

*Battery default setting is AGM.

REDARC recommends the purchase of the REDARC Solar Remote Monitor (SRP0240-RM) to change battery types and configuration settings.

*Not compatible with Lithium (LiFePO4) batteries.

brandREDARC
Current Rating10A
Standby Current<4mA
Weight240 g
height37 mm
width76 mm
depth | length153 mm
Warranty2 Years
System Voltage12V / 24V DC
Input Voltage12V / 24V
Max. Charging Voltage14.8V / 29.6V
Max. Rated Output Current10A
SKU SRP0120
Barcode # 9338628002696
Brand REDARC
