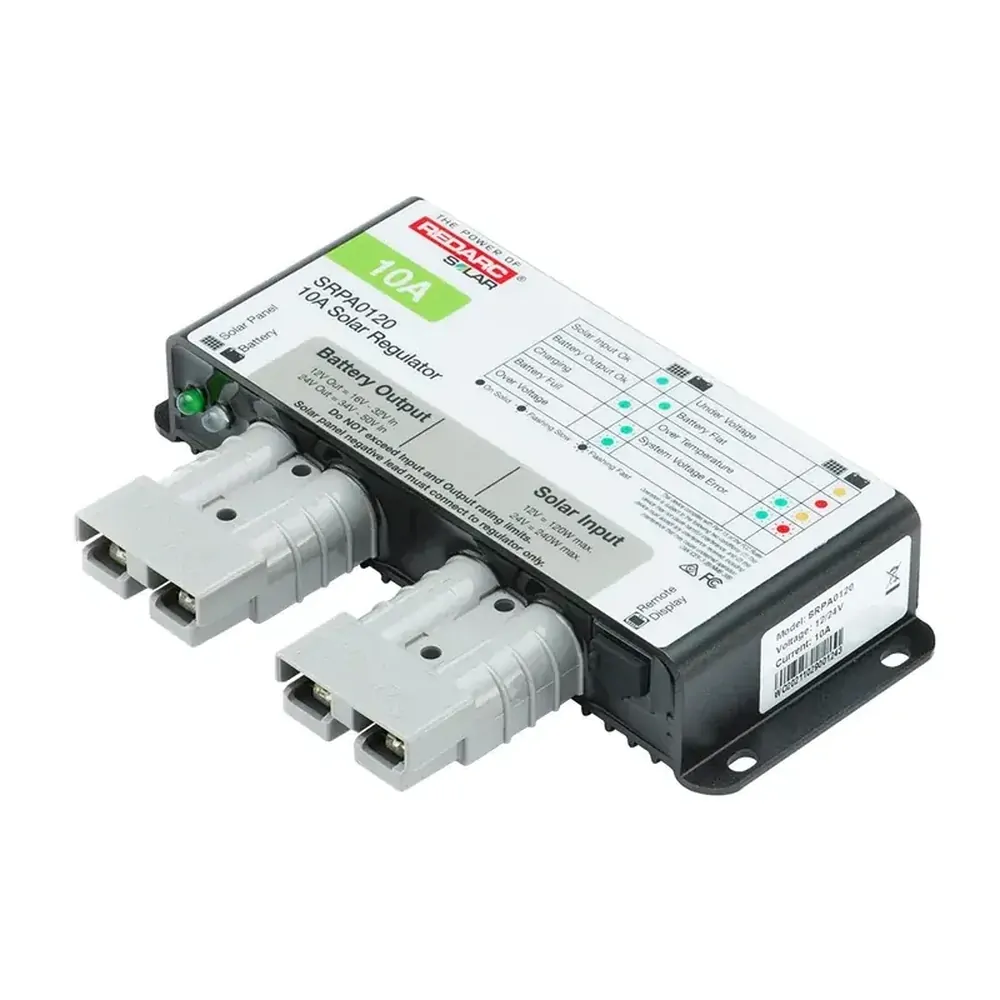

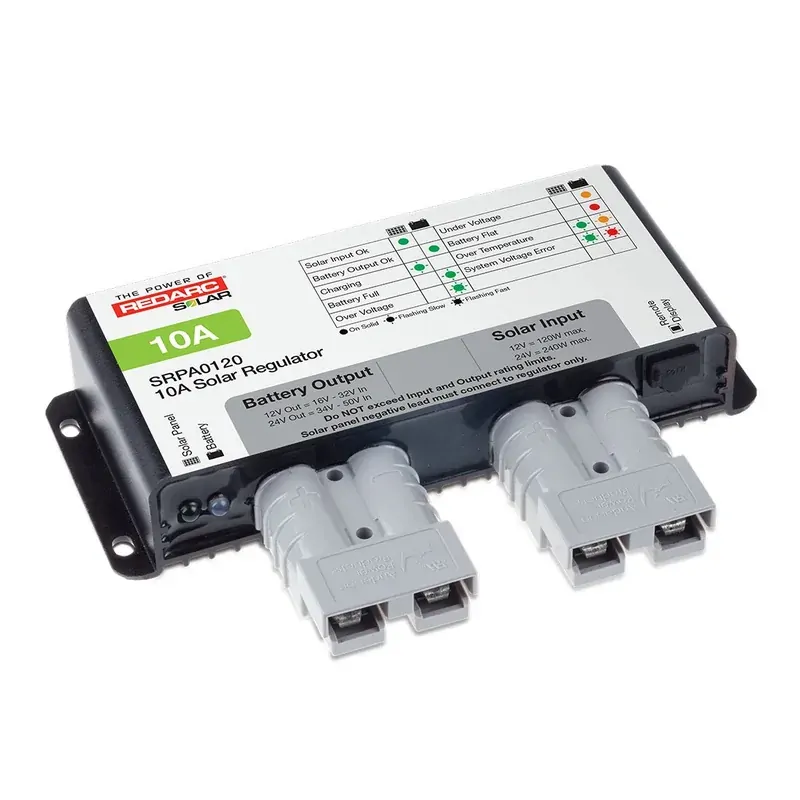

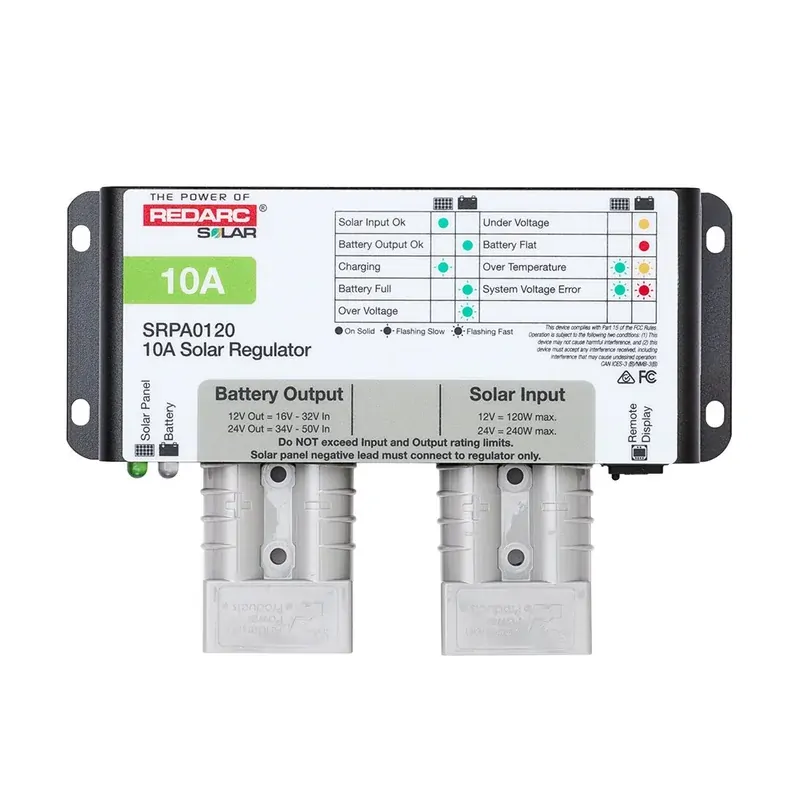

Redarc 10 Amp Solar Regulator SRPA0120

SKU:SRPA0120

$143.00


Calculate Shipping

REDARCS newly designed 10 Amp Solar Regulator comes with the Anderson SB50 connectors and works our monocrystalline portable solar panel and solar blanket range.

REDARCs 10 Amp Solar Regulator acts as the go between to transfer power generated from the panels to the battery.

Featuring multistage charging; boost, absorption and float, REDARCs 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.

It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and is ideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.

FeaturesMulti-stage charging- boost, absorption, and floatWorks with multiple battery types (REDARC Solar Remote Monitor required)Ideal for permanent installation or portable systemsMultiple levels of protection over temperature, over charge, reverse polarityGenuine Industry Standard Anderson SB50 plug connection*Battery default setting is AGM.

REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.

*Not compatible with Lithium (LiFePO4) batteries.

brandREDARC
Max. Power Voltage120/240W
Operating Temperature35C to 55C
Weight480 g
height28 mm
width153 mm
depth | length98 mm
Warranty2 Years
Connector TypeAnderson SB 50
Input Voltage12V / 24V
Max. Rated Output Current10A
SKU SRPA0120
Barcode # 9338628004164
Brand REDARC
