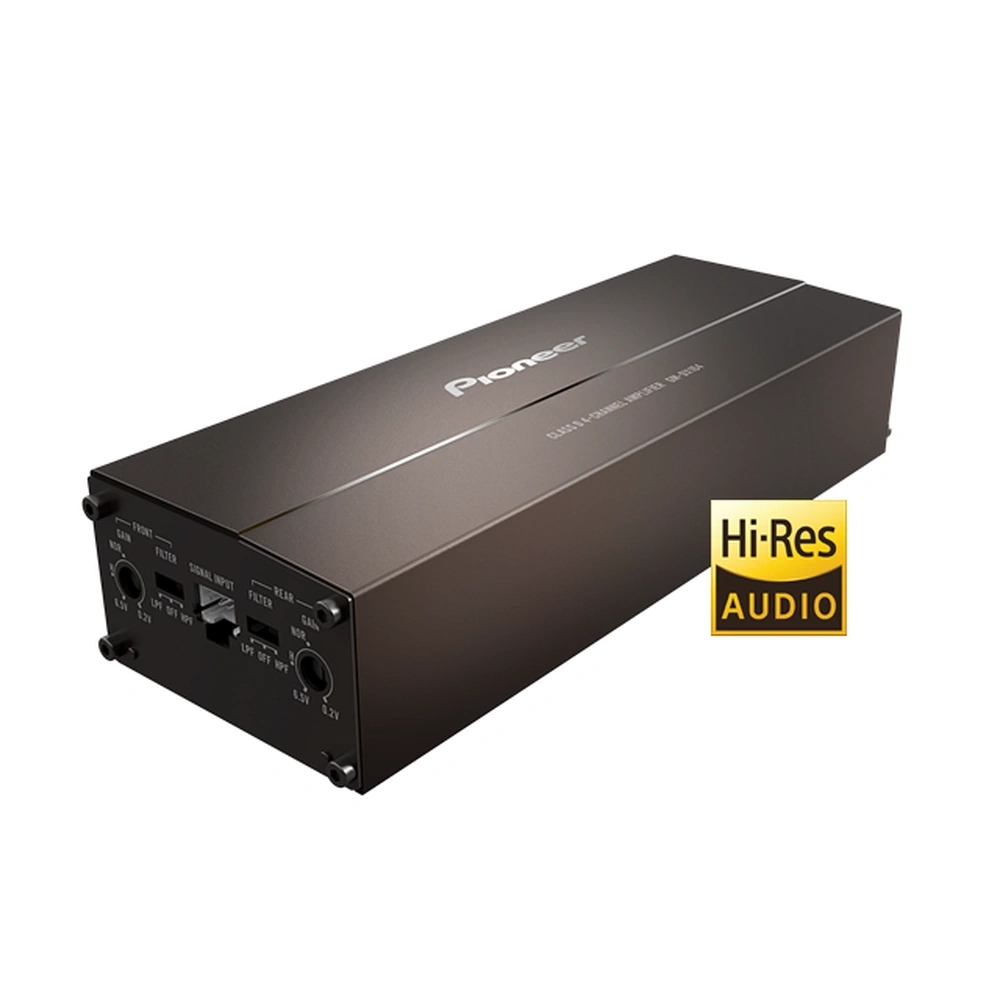

Pioneer GM-DX104 Ultra-Compact Class D 4-Channel Amplifier

SKU:GM-DX104

RRP $299.00
$255.00
SAVE $44.00 (15%)


Calculate Shipping

When your in the need of a ultra-compact, premium quality amplifier, look no further!

The Pioneer GM-DX104 is Hi-Res Audio certified, has a LPF/HPF built-in, high-level and low-level inputs and has a 4 x 45W Nom. output. The perfect way to upgrade your factory audio system partnered with some premium speakers!

General
RCA Inputs 4-CH
Amplifier Class Class-D
Hi-Res Certified Yes
Bridgeable Yes
Warranty 12 Month
Speaker Level Input Yes
Fuse Rating 15A
Bass Boost Remote No
Automatic Signal Sensing and Turn-On Yes
Hi-Volt Input Level Control Yes
Terminal Type Removable Harness
Load Impedance Allowance (Ohms) 2Ω to 8Ω
Protection Control System Yes
Dimensions 181mm(W) x 38mm(H) x 64mm(D)
Power
Continuous Power (RMS) Output @ 1Ω N/A
Continuous Power (RMS) Output @ 2Ω 45W x 4
Continuous Power (RMS) Output @ 4Ω 45W x 4
Continuous Power (RMS) Output - Bridged @ 4Ω 90W x 1 (3ch)
Audio Adjustments
Low-Pass Crossover Frequency 80 Hz
Low-Pass Slope (dB/octave) -12 dB/oct
High-Pass Crossover Frequency 80 Hz
Bass Boost Frequency N/A
Bass Boost Level N/A
Audio Specifications
Frequency Response 10 Hz to 40 kHz
Total Harmonic Distortion (THD) 0.05%
Signal-to-Noise (SN) Ratio 93 dB
SKU GM-DX104
Brand PIONEER
