Pioneer DMH-Z6350BT + Aerpro FP9550GK - Head Unit Upgrade Kit Fits Holden Commodore 2011-2012 VE Series II (Headunit Dependant)

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP9550GK

RRP $1,530.00
$1,224.00
SAVE $306.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

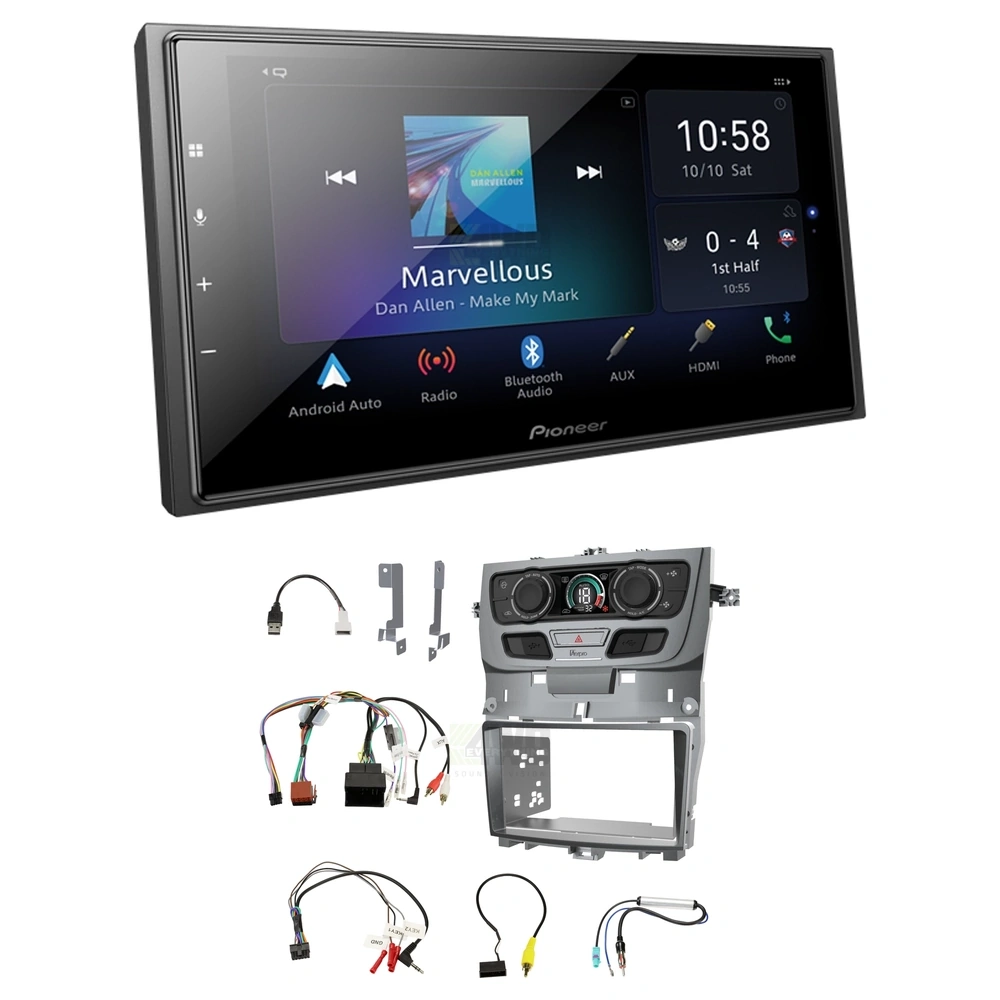

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP9550GK install kit Fits Holden ve series 2 gunmetal - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

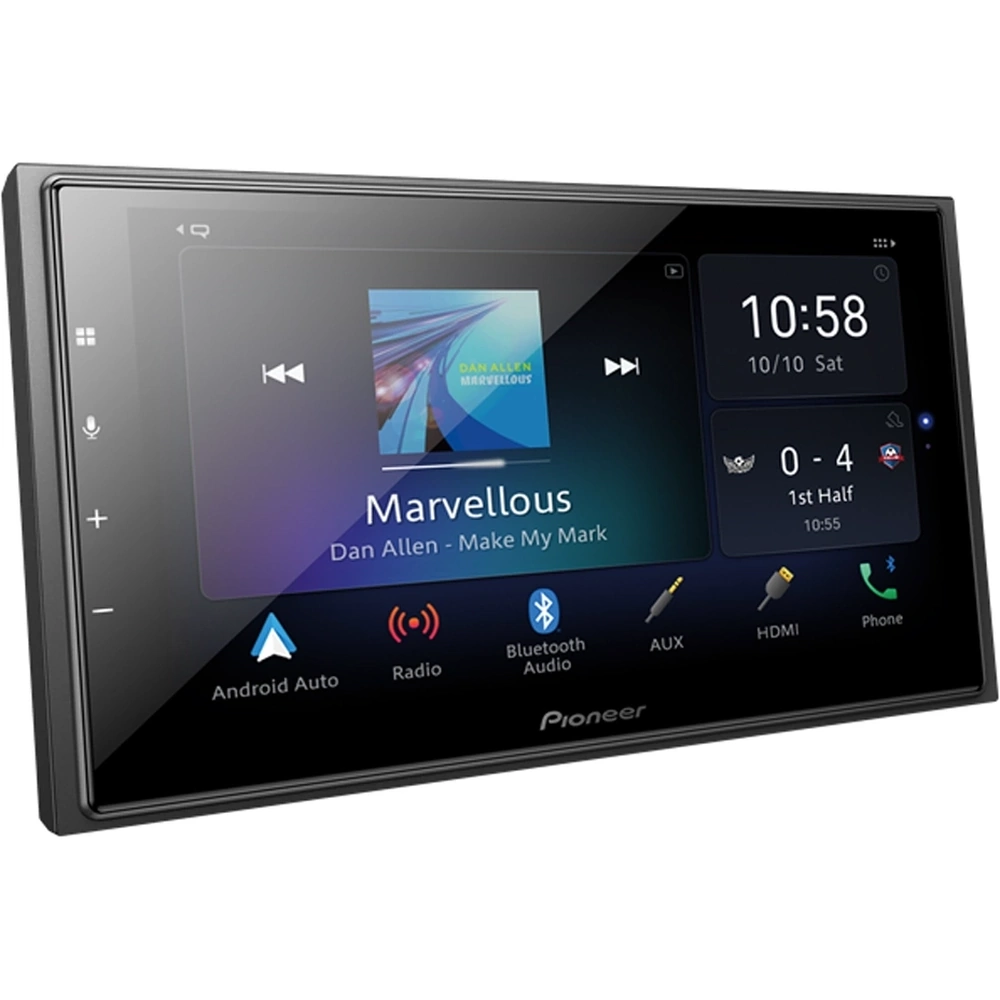

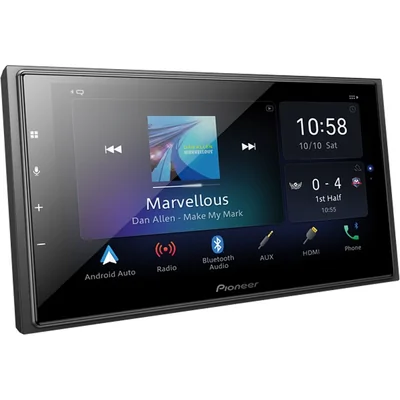

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

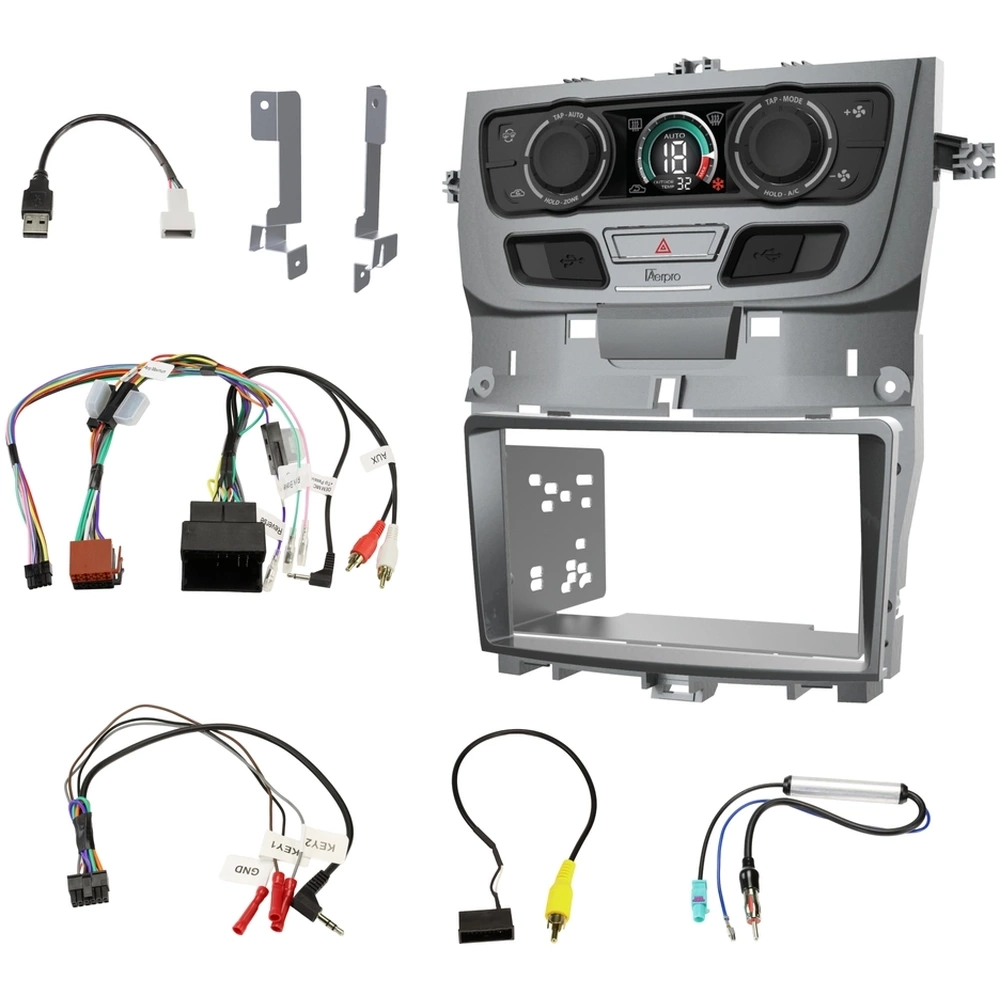

Fascia Kit Features:

  • Allows for the installation of an aftermarket double din head unit into Holden VE Series 2 vehicles
  • High quality gunmetal finish to suit the vehicle interior
  • Compatible with Berlina, Calais and Commodore (Omega and Equipe) variants that have silver/grey trim around the factory display and climate control unit
  • Retains important factory features including steering wheel controls, reverse camera, AUX input, USB input and microphone
  • Integrated IPS display shows outside temperature, climate control and factory parking sensor visualisation
  • Dual USB pass through ports for connecting to the rear USB inputs on the aftermarket head unit
  • Hand brake, reverse gear and speed pulse outputs
  • Designed and engineered in Australia

Fascia Kit Specs:

  • Application: Double Din
  • Colour: Gunmetal
  • Inclusions:
    • Double din facia kit
    • Gunmetal trim panel
    • Built-in HVAC and SWC unit
    • Universal SWC patch lead
    • USB retention lead
    • Camera retention lead
    • Antenna adaptor
    • Mounting kit
    • Support brackets
    • Installation / User manual
  • Important Information:
    • Install Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
    • This kit is designed for Berlina, Calais and Commodore (Omega and Equipe) variants that have silver/grey trim around the factory display and climate control unit. For vehicles with black use FP9550BK.
    • For steering wheel control retention the aftermarket head unit must be SWC compatible.
    • For reverse camera retention the aftermarket head unit requires a reverse camera input.
    • For USB retention the aftermarket head unit requires a rear USB input.
    • For AUX retention the aftermarket head unit requires a rear RCA AUX input.
    • For microphone retention the aftermarket head unit requires a 3.5mm external microphone input (models with 2.5mm connection will require an adaptor, not included).
    • The dual USB ports are pass through only, the aftermarket head unit requires rear USB inputs for connection.
    • Nav button on steering wheel controls does not function with this kit.

Vehicle Compatibility:

  • Holden Commodore 2011-2012 VE Series II (Headunit Dependant)
SKU DMH-Z6350BT_FP9550GK
Brand PIONEER
