Pioneer DMH-Z6350BT + Aerpro FP9353K - Head Unit Upgrade Kit Fits Holden Commodore 2013-2017 VF

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP9353K

RRP $1,530.00
$1,224.00
SAVE $306.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

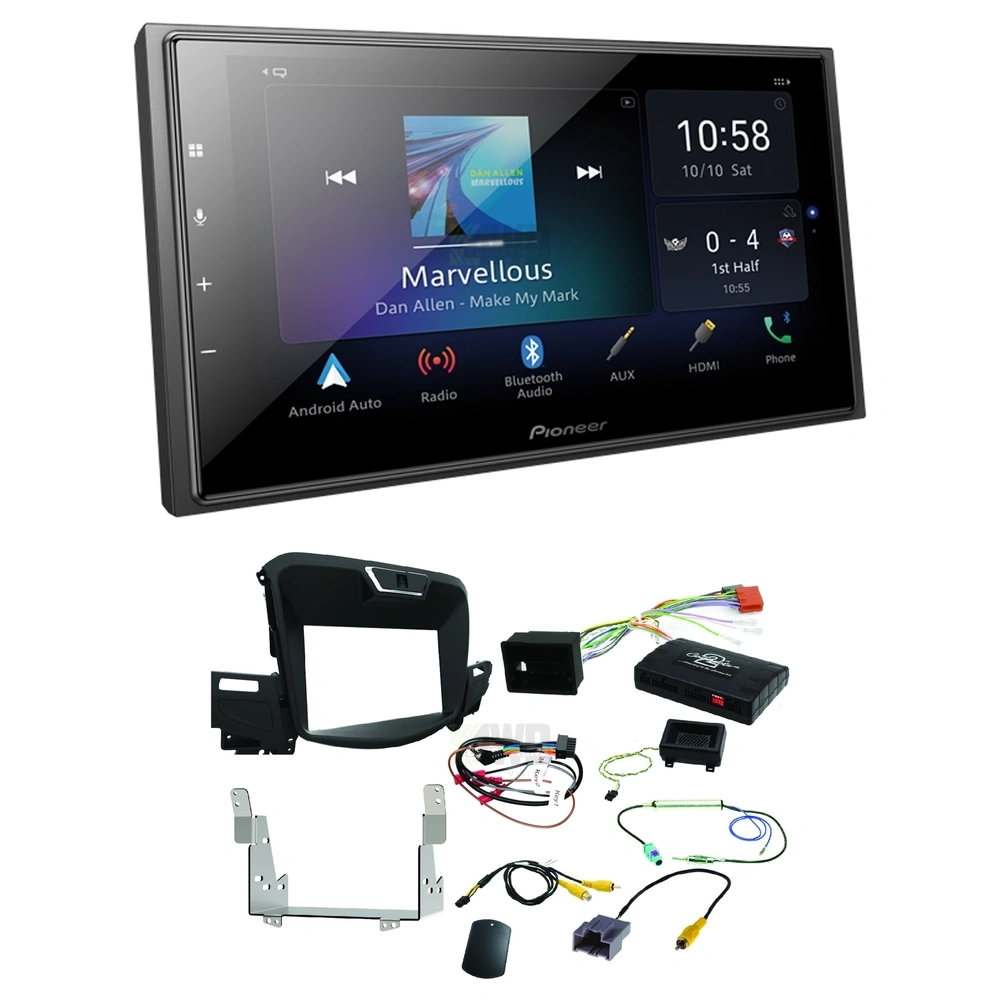

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner

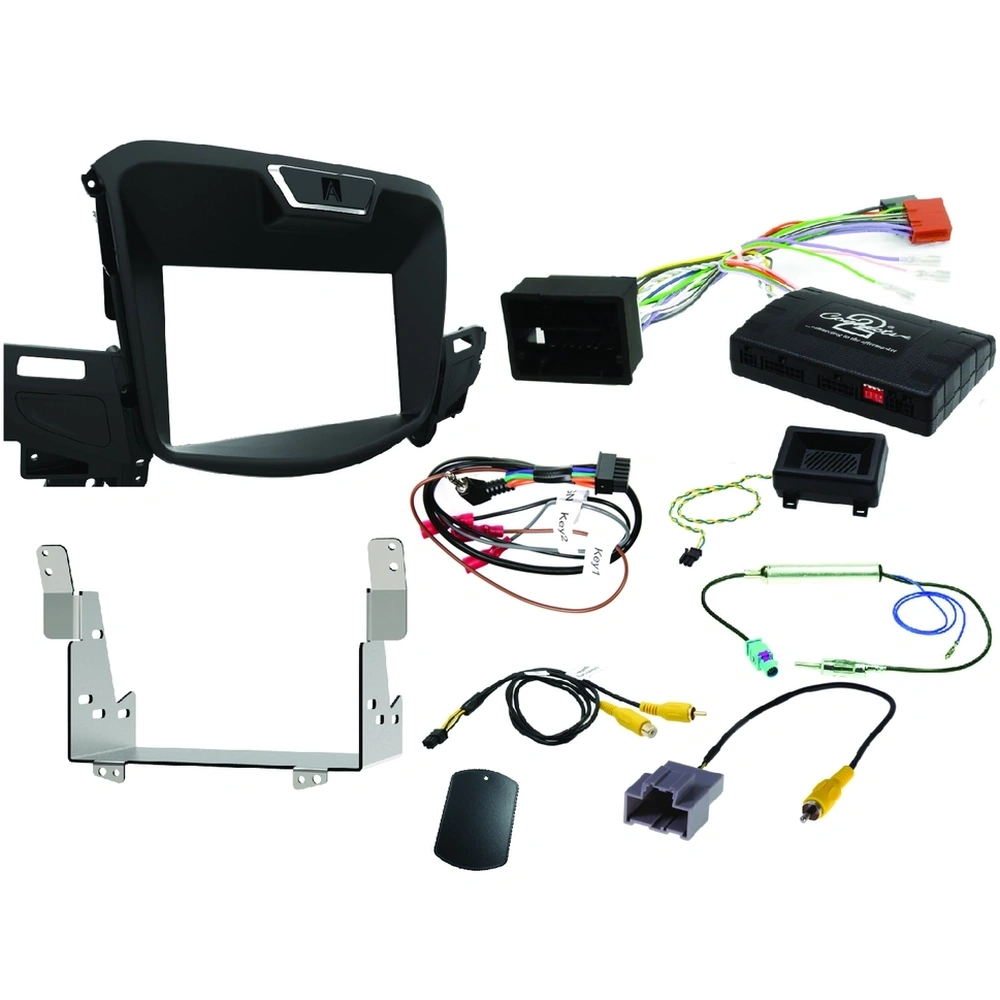

  • Aerpro FP9353K Install kit Fits Holden commodore vf black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

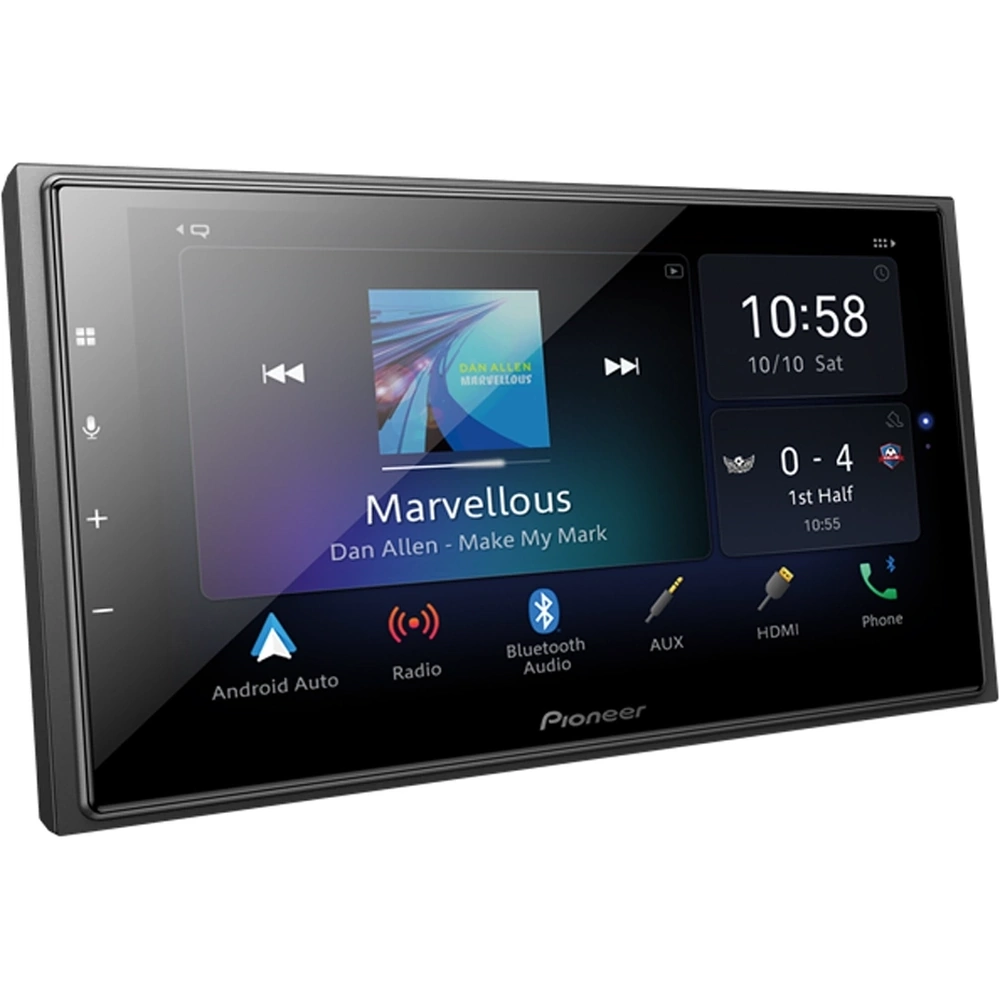

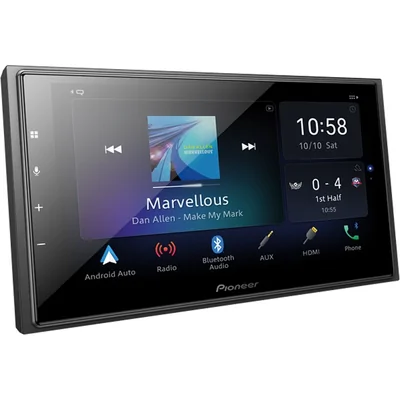

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Magnetic phone holder built into facia kit for convenient phone mounting, 2 metal plates included for smartphones as well
  • Retains steering wheel control functionality including phone button
  • Maintains the original features of the vehicle such as: date, time, vehicle settings, parking sensors, factory reverse camera & audible warnings
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse and reverse gear

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: XXmm (W) x XXmm (H)
  • EXTERNAL DIMENSIONS: XXmm (W) TOP / XXmm (W) BASE x XXmm (H)
  • INCLUSIONS:
    • FACIA KIT
    • METAL BRACKETS
    • INFODAPTER INTERFACE
    • CHIME SPEAKER
    • UNIVERSAL PATCH LEAD
    • ANTENNA ADAPTER
    • 2 X MATEPLATES (METAL PLATES FOR PHONE HOLDER)
    • CAMERA RETENTION HARNESS
  • NOTES:
    • Modification required behind dash to fit metal mounting bracket
    • Aftermarket headunit requires a rear camera input.
    • To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
    • Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
  • The following OEM features in the vehicle will not be retained:
    • 90 degree side (180 degree total) detection camera
    • Adaptive reverse camera lines
    • Auto detect front sensors
    • Heated seats
    • Sport functions for laps and timing
    • OEM Cross Traffic Alert feature
    • Ambient temperature

Vehicle Compatibility:

  • Holden Commodore 2013-2017 VF
SKU DMH-Z6350BT_FP9353K
Brand PIONEER
