Pioneer DMH-Z6350BT + Aerpro FP8573K - matte black Head Unit Upgrade Kit Fits Audi Q5 2009-2016 (8R)

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP8573K

RRP $1,740.00
$1,392.00
SAVE $348.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

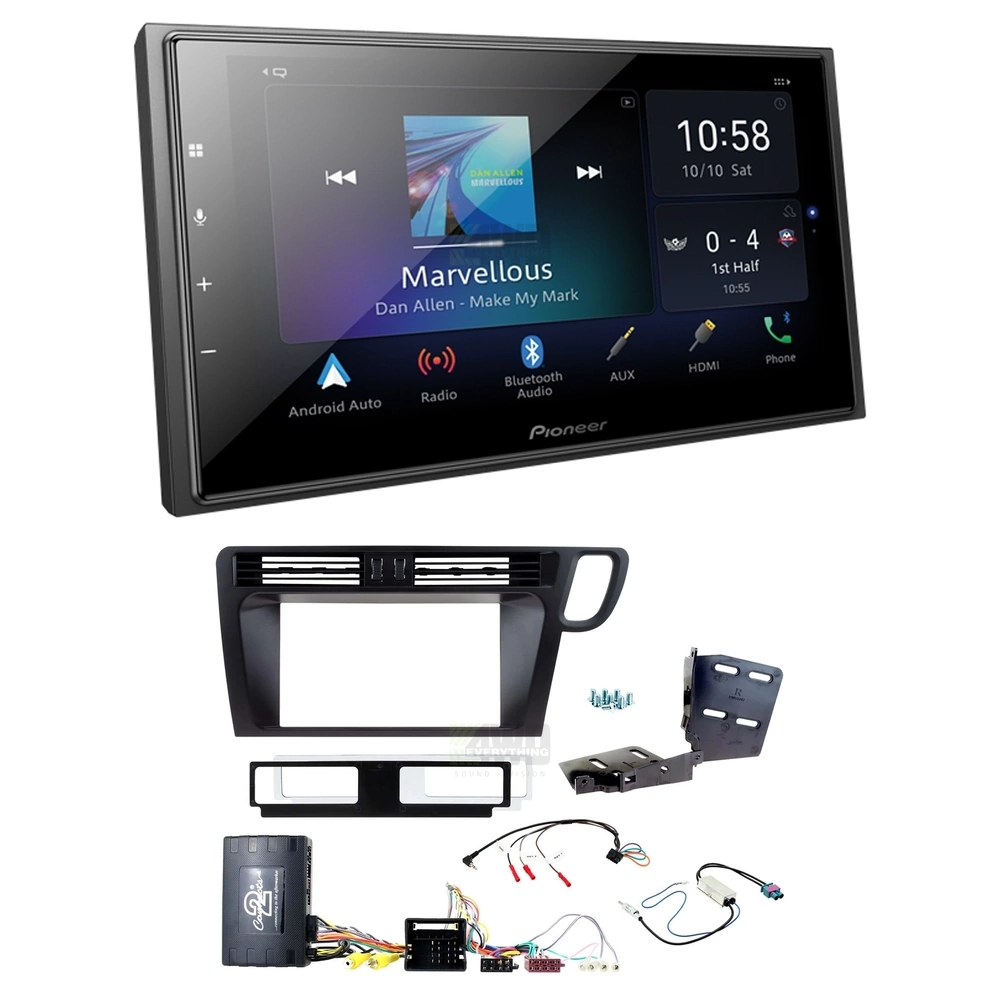

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8573K matte black install kit Fits Audi - q5 non mmi, amplified - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

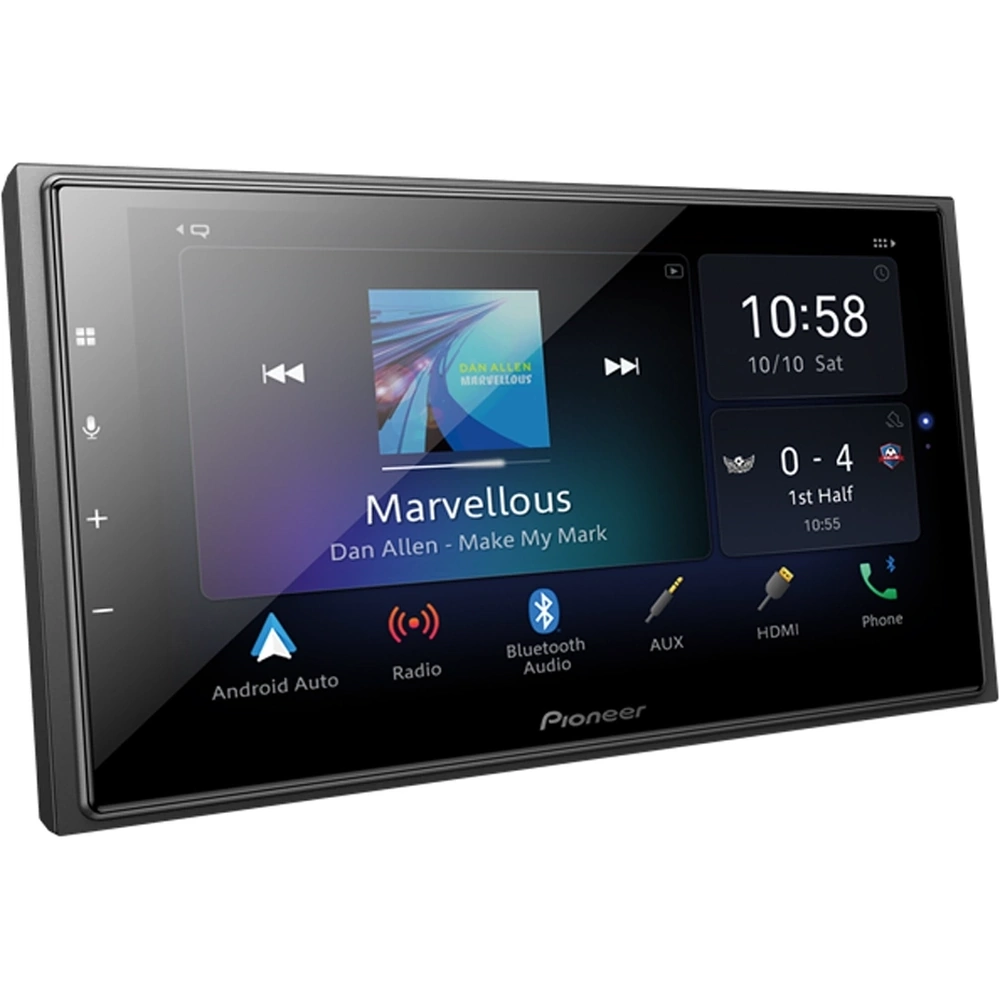

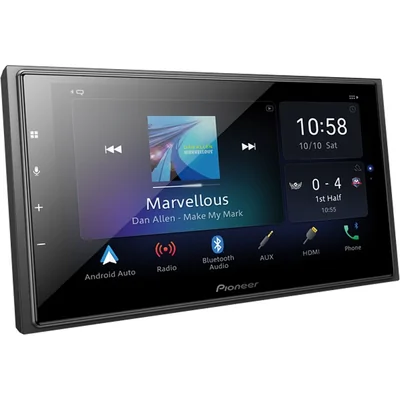

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

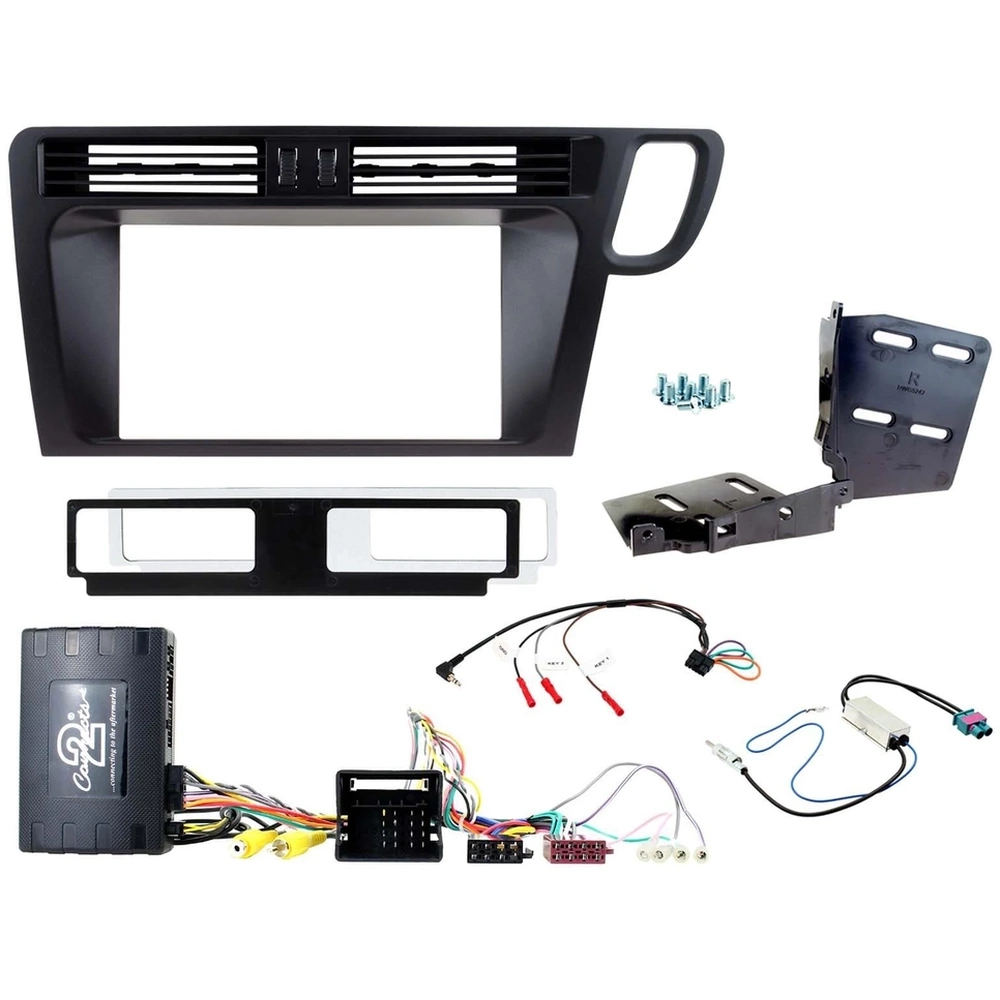

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket head unit conveniently in one box
  • Suitable for double din aftermarket head unit installation
  • High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
  • Suitable for non-MMI vehicles with a factory amplified system only
  • Retains steering wheel control functionality including phone button
  • Park assist visualisation (if equipped)
  • Retains access to vehicle settings, menus and controls
  • CAN-BUS integration compatible
  • Provides output feeds for park brake, speed pulse and reverse gear

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: MATTE BLACK
  • FACIA INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
  • FACIA EXTERNAL DIMENSIONS: 310mm TOP / 239mm BASE (W) x 141mm (H)
  • INCLUSIONS:
    • DOUBLE DIN FACIA KIT
    • MOUNTING BRACKETS
    • AIR VENT BRACKET AND MOUNT
    • MOUNTING HARDWARE
    • STEERING WHEEL CONTROL INTERFACE
    • MAIN WIRING HARNESS
    • ANTENNA ADAPTER
    • UNIVERSAL SWC PATCH LEAD
  • IMPORTANT INFORMATION:
    • Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
    • This kit is intended for non-MMI vehicles with a factory amplified system only.
    • This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC compatible.
    • To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).

Vehicle Compatibility:

  • Audi Q5 2009-2016 (8R)
SKU DMH-Z6350BT_FP8573K
Brand PIONEER
