Pioneer DMH-Z6350BT + Aerpro FP8572K - matte black Head Unit Upgrade Kit Fits Audi Q5 2009-2016 (8R)

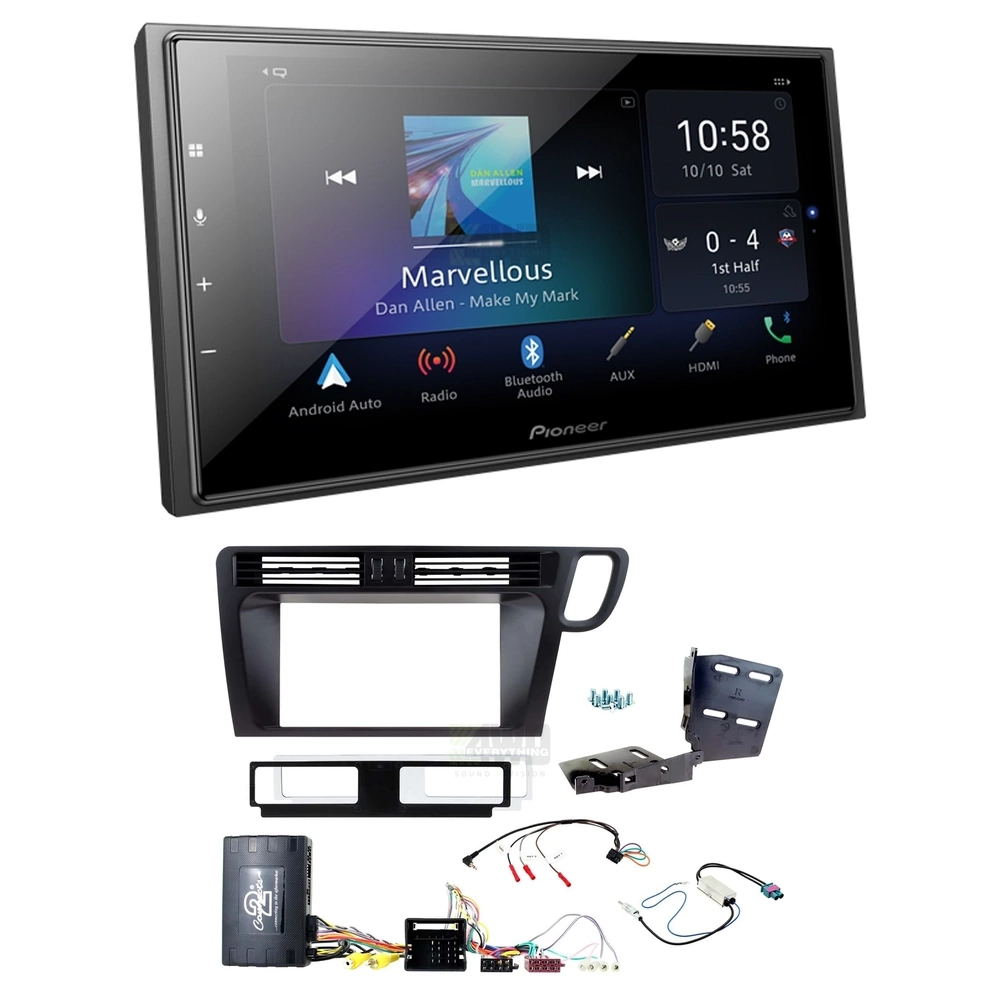

Complete Double-DIN Upgrade Kit
SKU:DMH-Z6350BT_FP8572K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.
Bundle Includes:
- Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8572K matte black install kit Fits Audi - q5 non mmi, non amplified - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

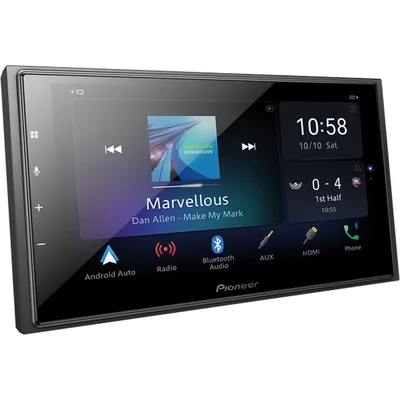

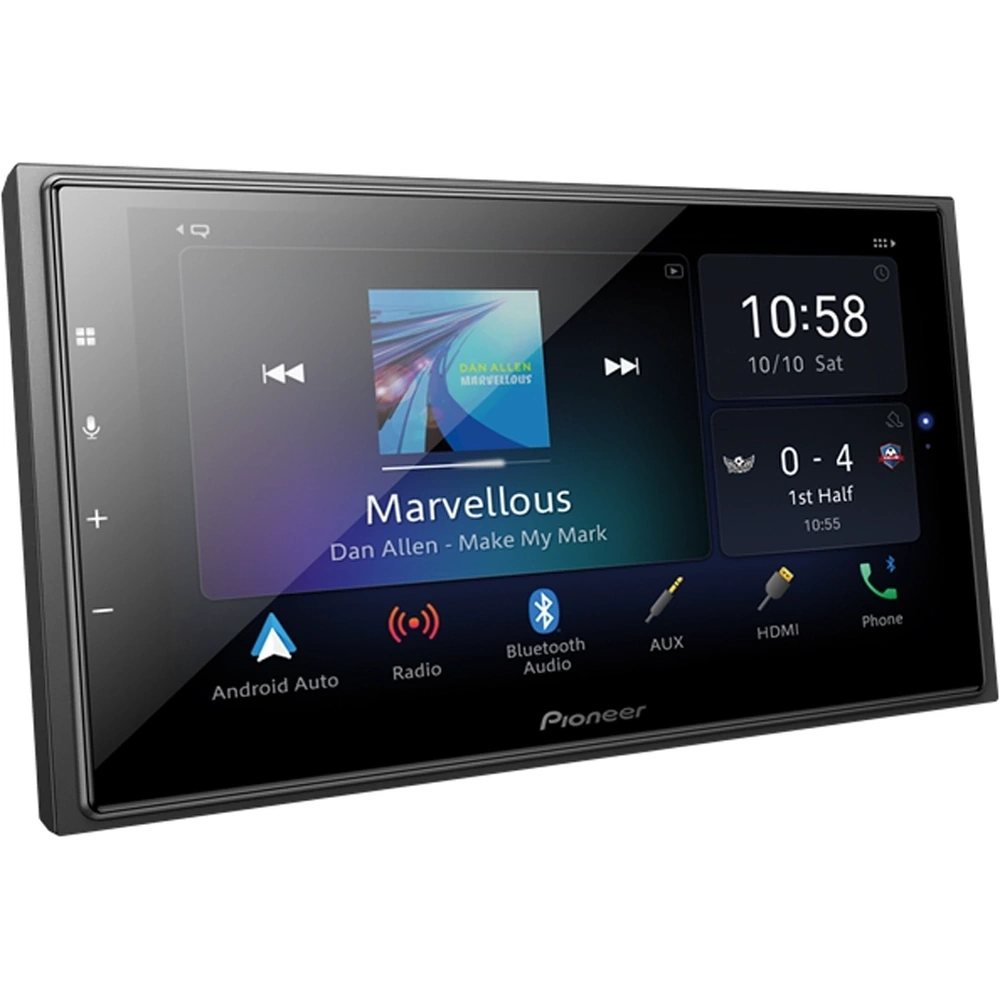

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver
The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.
- 6.8-inch capacitive touchscreen display
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Alexa Built-In for voice control
- Built-in Bluetooth with dual phone connection
- Hi-Res Audio playback via USB
- AM/FM tuner with station presets
- MOSFET 4 x 50W built-in amplifier
- 13-band graphic equalizer and time alignment
- 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
- Dual camera inputs with parking assist guidelines
- Rear USB Type-C connection with included adaptor
- HDMI input and rear audio/video AUX input
- Short 87mm chassis for easier installation
- Screen size: 6.8 inches
- Resolution: WVGA 800 x 480
- Touchscreen: Capacitive
- Bluetooth pairing memory: 5 devices
- USB: Single rear Type-C
- RCA pre-outs: 3 pair, 4V
- Amplifier: MOSFET 4 x 50W
- Chassis size: 2 DIN short chassis, 87mm deep
- Warranty: 1 year

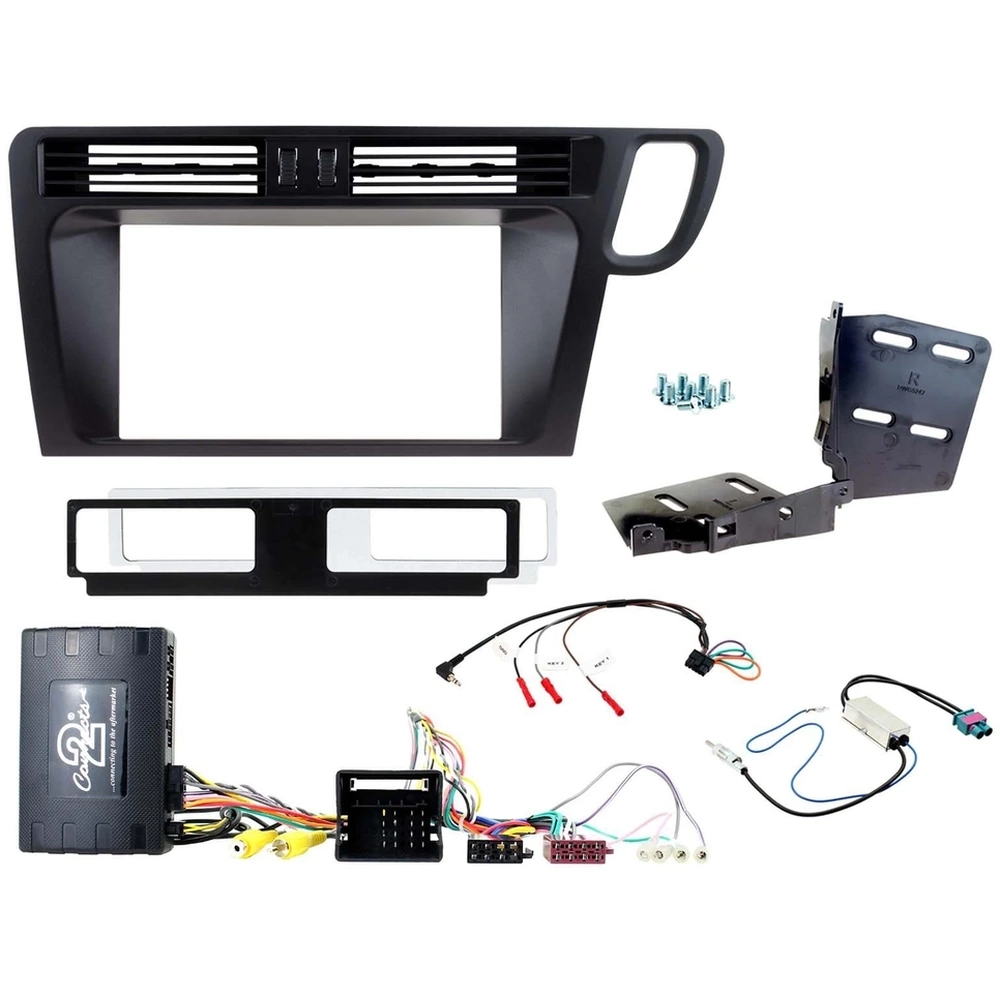

Fascia Kit Features:
- Kit includes all the parts required to complete an installation of an aftermarket head unit conveniently in one box
- Suitable for double din aftermarket head unit installation
- High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
- Suitable for non-MMI vehicles without a factory amplified system only
- Retains steering wheel control functionality including phone button
- Park assist visualisation (if equipped)
- Retains access to vehicle settings, menus and controls
- CAN-BUS integration compatible
- Provides output feeds for park brake, speed pulse and reverse gear
Fascia Kit Specs:
- APPLICATION: DOUBLE DIN
- COLOUR: MATTE BLACK
- FACIA INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
- FACIA EXTERNAL DIMENSIONS: 310mm TOP / 239mm BASE (W) x 141mm (H)
- INCLUSIONS:
- DOUBLE DIN FACIA KIT
- MOUNTING BRACKETS
- AIR VENT BRACKET AND MOUNT
- MOUNTING HARDWARE
- STEERING WHEEL CONTROL INTERFACE
- MAIN WIRING HARNESS
- ANTENNA ADAPTER
- UNIVERSAL SWC PATCH LEAD
- IMPORTANT INFORMATION:
- Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- This kit is intended for non-MMI vehicles without a factory amplified system only.
- This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC compatible.
- To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
Vehicle Compatibility:
- Audi Q5 2009-2016 (8R)
| SKU | DMH-Z6350BT_FP8572K |
| Brand | PIONEER |
