Pioneer DMH-Z6350BT + Aerpro FP8533K - Single / matte black Head Unit Upgrade Kit Fits Various Dodge Vehicles

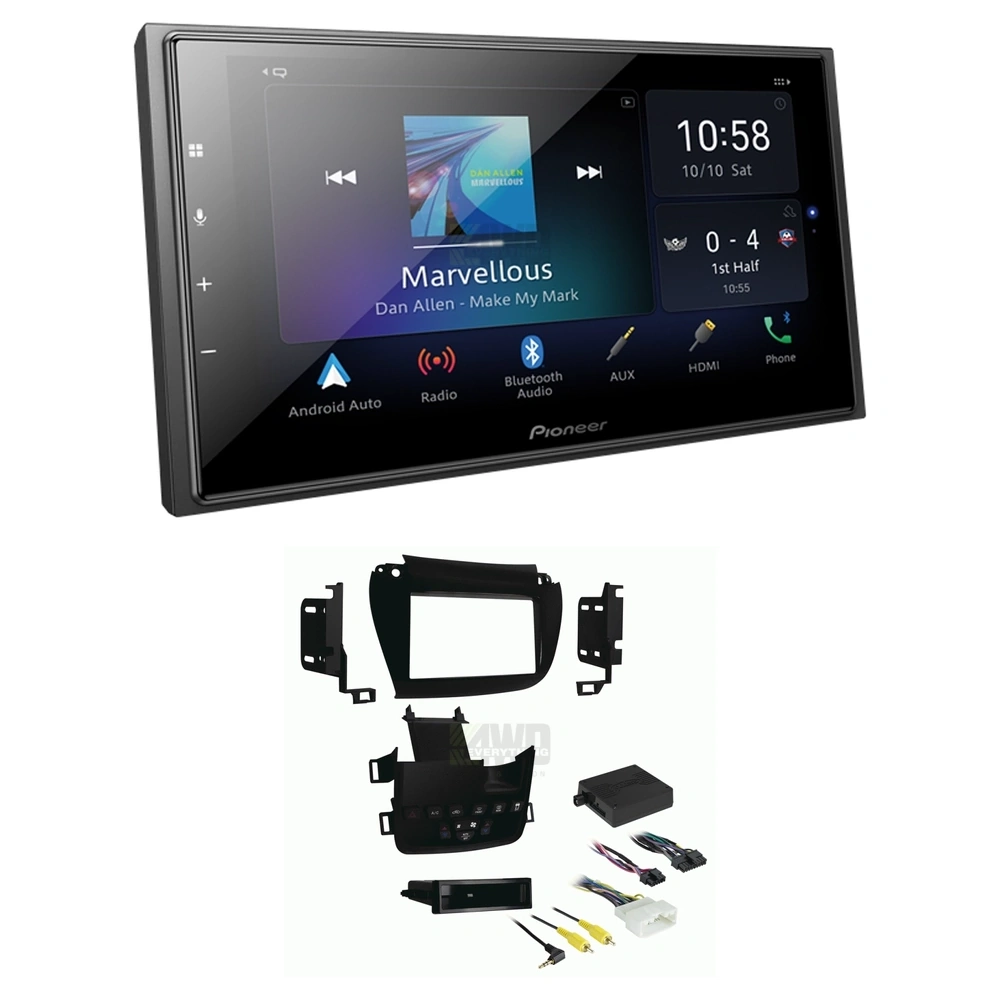

Complete Double-DIN Upgrade Kit
SKU:DMH-Z6350BT_FP8533K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.
Bundle Includes:
- Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8533K Single / matte black install kit Fits Dodge & Fiat - various models - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

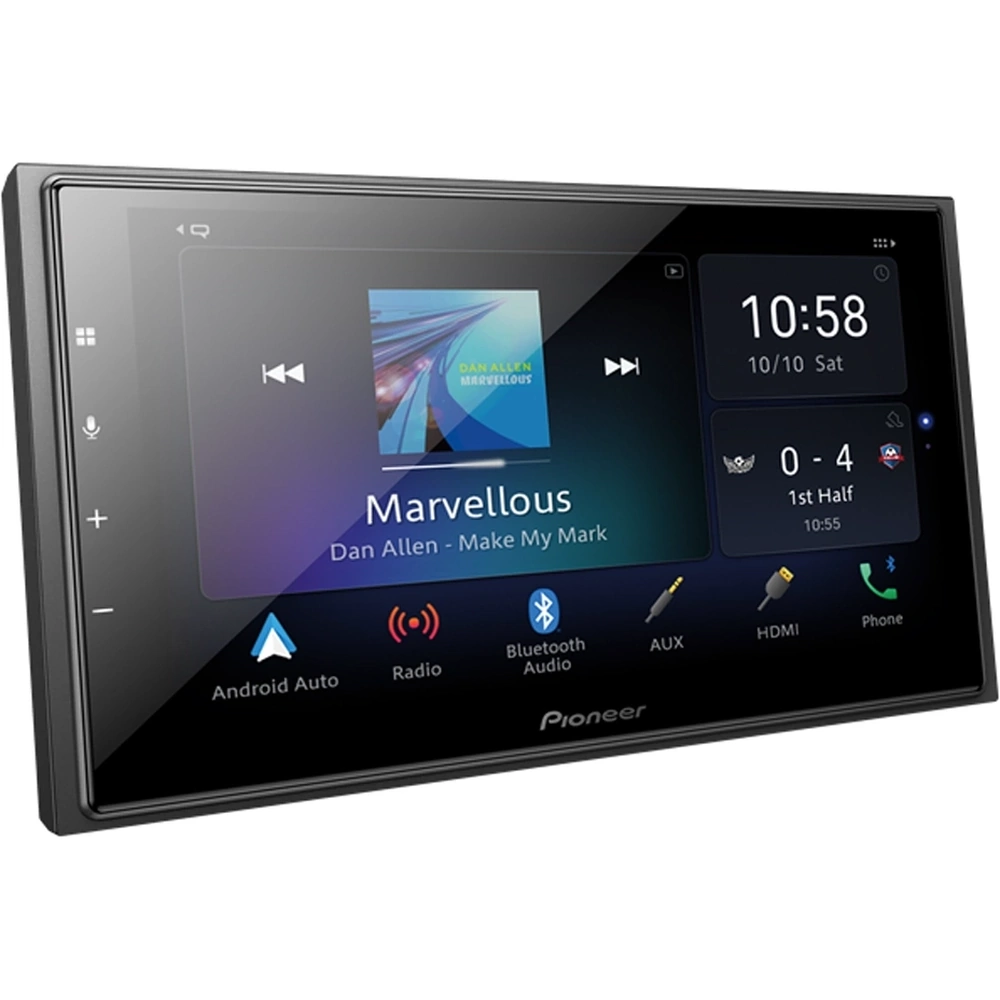

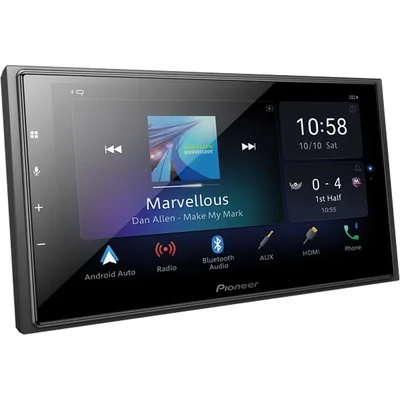

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver
The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.
- 6.8-inch capacitive touchscreen display
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Alexa Built-In for voice control
- Built-in Bluetooth with dual phone connection
- Hi-Res Audio playback via USB
- AM/FM tuner with station presets
- MOSFET 4 x 50W built-in amplifier
- 13-band graphic equalizer and time alignment
- 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
- Dual camera inputs with parking assist guidelines
- Rear USB Type-C connection with included adaptor
- HDMI input and rear audio/video AUX input
- Short 87mm chassis for easier installation
- Screen size: 6.8 inches
- Resolution: WVGA 800 x 480
- Touchscreen: Capacitive
- Bluetooth pairing memory: 5 devices
- USB: Single rear Type-C
- RCA pre-outs: 3 pair, 4V
- Amplifier: MOSFET 4 x 50W
- Chassis size: 2 DIN short chassis, 87mm deep
- Warranty: 1 year

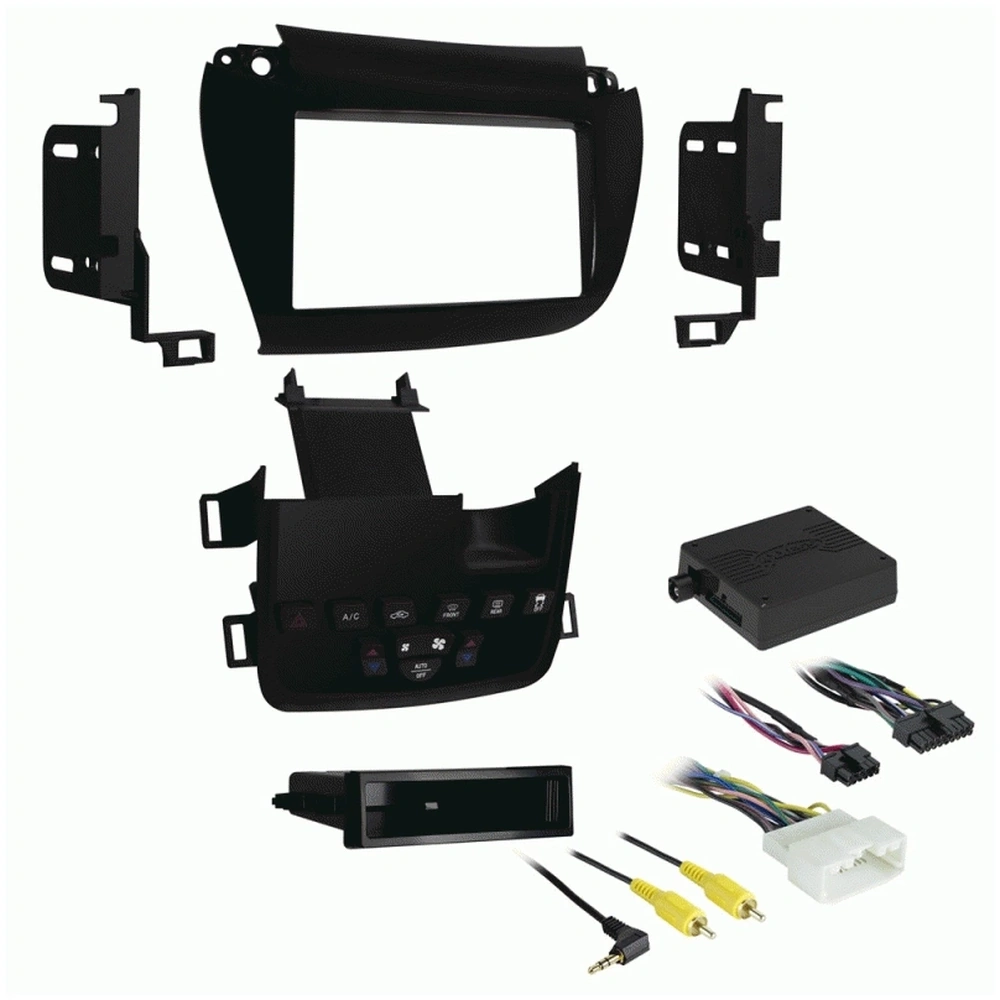

Fascia Kit Features:
- Suitable for single or double din aftermarket headunit installation
- High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
- To retain steering wheel control functionality, AXSWC interface is required (sold separately)
- To retain FM/AM radio reception, APA58 Antenna adaptor required (sold separately)
- Suitable for vehicles with 4.3" OEM factory display only
- Retains the factory display screen for vehicle information and AC display
- Allows an aftermarket reverse camera to connect to the factory display screen
- Replaces and relocates A/C buttons with new button panel
- Provides output feeds for park brake, speed pulse, reverse gear, amp remote and illumination
- Fitted with a vehicle specific plug, no cutting of wires required
- Vehicle harness included in kit does not use standard ISO connector system, this harness requires soldering to the aftermarket headunits wiring loom
Fascia Kit Specs:
- APPLICATION: SINGLE OR DOUBLE DIN
- COLOUR: MATTE BLACK
- INTERNAL DIMENSIONS: XXXmm (W) x XXXmm (H)
- EXTERNAL DIMENSIONS: XXXmm (W) x XXXmm (H)
- INCLUSIONS:
- DOUBLE DIN FACIA KIT
- POCKET (FOR SINGLE DIN INSTALLATION)
- CONSOLE BRACKET
- MOUNTING BRACKETS
- FACTORY SCREEN RETENTION INTERFACE
- WIRING HARNESS (BARE WIRE)
- NOTES:
- Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- To retain steering wheel controls AXSWC Steering Wheel Control Interface is required (sold separately). Aftermarket headunit must be SWC compatible. Functions may vary from the OEM Functions.
- APA58 Antenna adaptor required to retain radio reception (sold separately).
- Bare wire harness included, this kit is not compatible with Aerpro APP8 or APP9 Harnesses.
- Does not retain sound from Driver Convenience Group.
- Suitable for vehicles with 4.3" OEM factory display only.
Vehicle Compatibility:
- Dodge Journey 2012-2016 (Headunit Dependant)
- Fiat Freemont 2012-2016 (Headunit Dependant)
| SKU | DMH-Z6350BT_FP8533K |
| Brand | PIONEER |
