Pioneer DMH-Z6350BT + Aerpro FP8492K - black Head Unit Upgrade Kit Fits Various Audi Vehicles
Complete Double-DIN Upgrade Kit
SKU:DMH-Z6350BT_FP8492K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

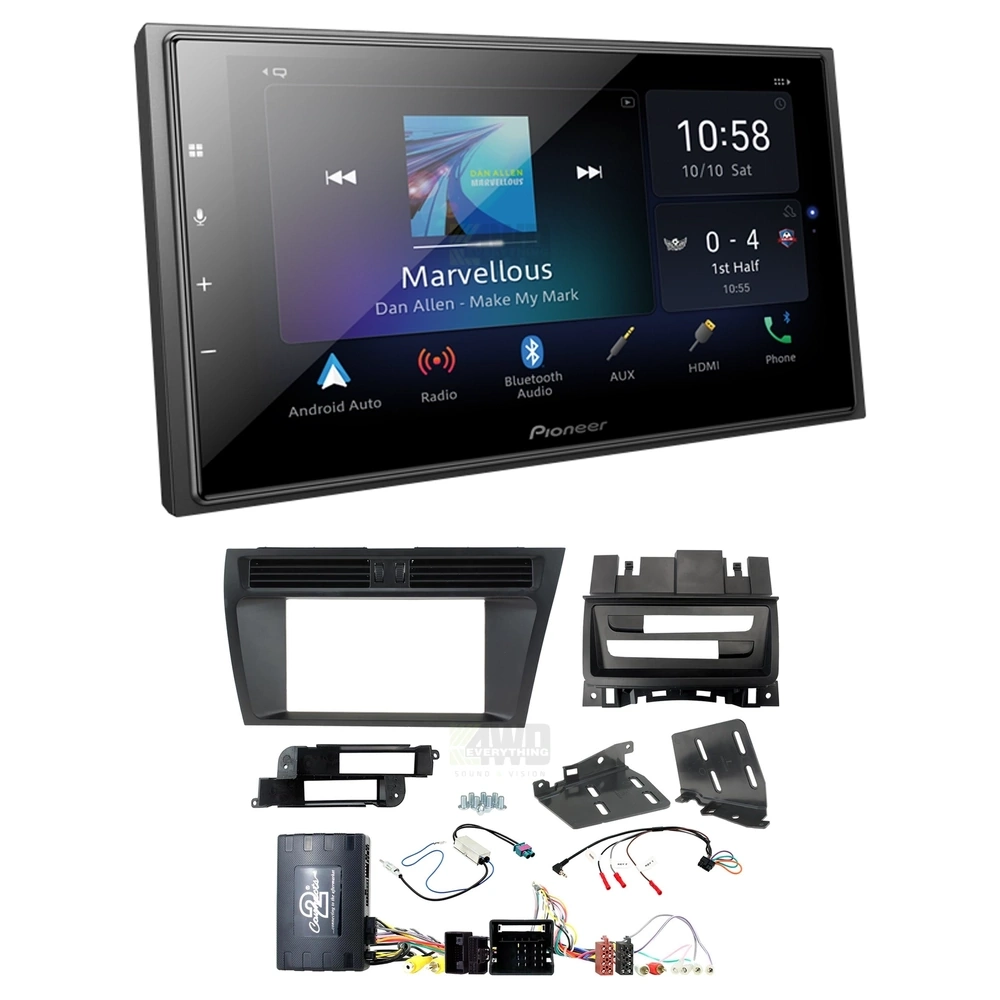

Bundle Includes:
- Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8492K black install kit Fits Audi - a4 & a5 non amplified & mmi - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration
Pioneer DMH-Z6350BT 6.8” Multimedia Receiver
The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.
- 6.8-inch capacitive touchscreen display
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Alexa Built-In for voice control
- Built-in Bluetooth with dual phone connection
- Hi-Res Audio playback via USB
- AM/FM tuner with station presets
- MOSFET 4 x 50W built-in amplifier
- 13-band graphic equalizer and time alignment
- 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
- Dual camera inputs with parking assist guidelines
- Rear USB Type-C connection with included adaptor
- HDMI input and rear audio/video AUX input
- Short 87mm chassis for easier installation
- Screen size: 6.8 inches
- Resolution: WVGA 800 x 480
- Touchscreen: Capacitive
- Bluetooth pairing memory: 5 devices
- USB: Single rear Type-C
- RCA pre-outs: 3 pair, 4V
- Amplifier: MOSFET 4 x 50W
- Chassis size: 2 DIN short chassis, 87mm deep
- Warranty: 1 year

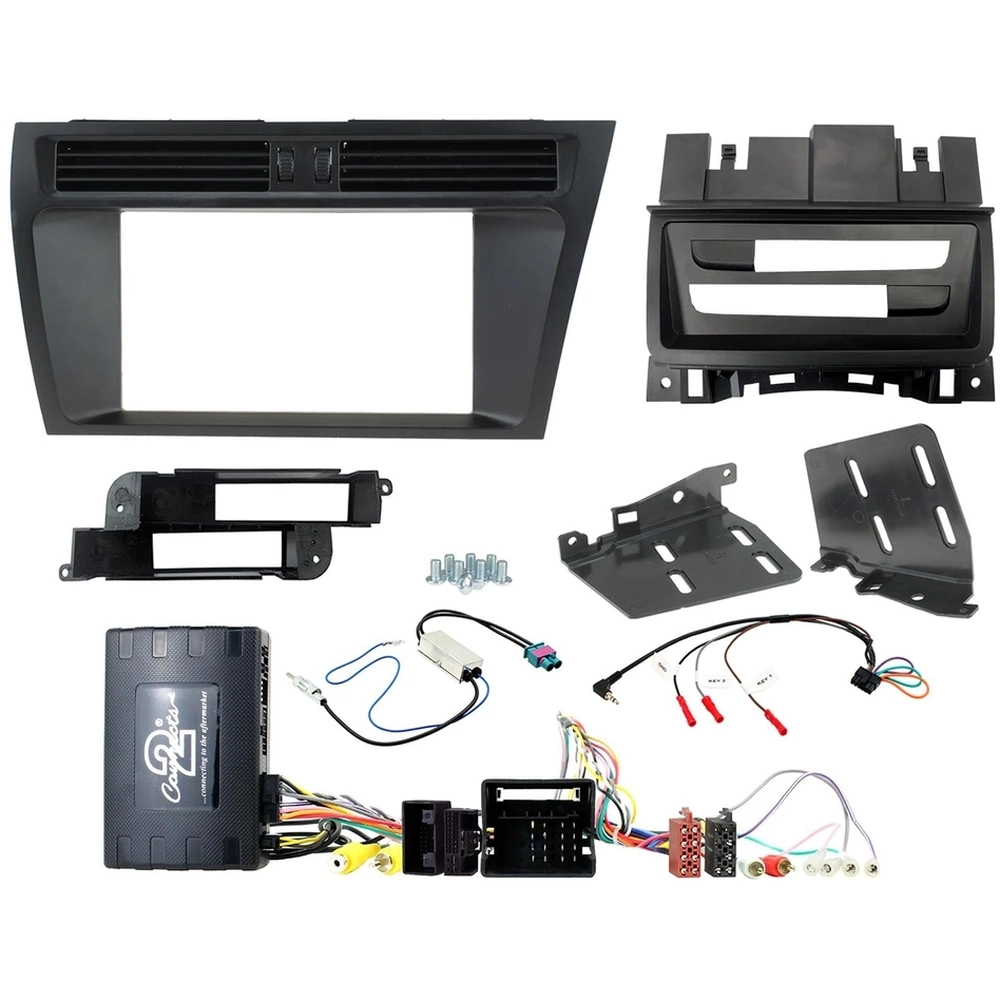

Fascia Kit Features:
- Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
- Suitable for double din aftermarket headunit installation
- High quality black finish on facia kit to suit the style of the dashboard in the vehicle
- Built-in adjustable air vents with factory style finish
- Retains steering wheel control functionality including phone button
- The existing steering wheel controls can be used for navigation of the Infodapter menus
- Retains the vehicle's settings menus and parking sensor graphics and displays them on the new aftermarket stereo screen
- Suitable for vehicles with CD or Multimedia head units (MMI vehicles)
- Includes button relocation panel
- CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
- Provides output feeds for park brake, speed pulse and reverse gear
Fascia Kit Specs:
- APPLICATION: DOUBLE DIN
- COLOUR: BLACK
- INTERNAL DIMENSIONS: XXX mm W x XXX mm H
- EXTERNAL DIMENSIONS: XXX mm W x XXX mm H
- INCLUSIONS:
- FACIA KIT WITH BUILT IN ADJUSTABLE AIR VENTS
- BUTTON RELOCATION PANEL
- MOUNTING BRACKETS
- INFODAPTER INTERFACE
- UNIVERSAL PATCH LEAD
- ANTENNA ADAPTER
- NOTES:
- Compatible with models with OEM CD or Multimedia head units (MMI vehicles).
- Not Suitable for OEM Amplified vehicles.
- Long press of source/mode button to enter infodapter menu.
- Aftermarket headunit requires a rear camera input.
- To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
- Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
Vehicle Compatibility:
- Audi A4 2008-2013 (B8)
- Audi A4 2012-2016 (B8)
- Audi A5 2007-2016 (8T)
| SKU | DMH-Z6350BT_FP8492K |
| Brand | PIONEER |
