Pioneer DMH-Z6350BT + Aerpro FP8417K - Head Unit Upgrade Kit Fits Chevrolet Silverado 2014-2019 (Headunit Dependant)

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP8417K

RRP $1,370.00
$1,096.00
SAVE $274.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

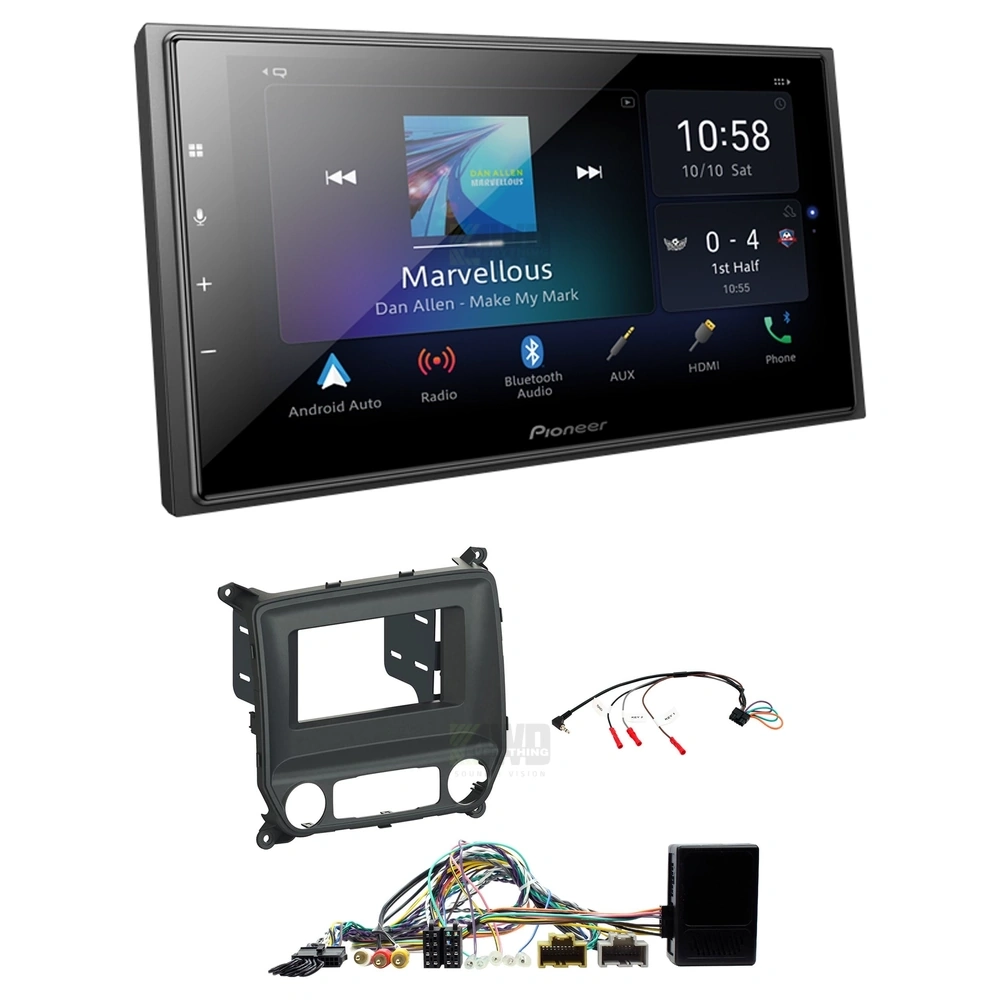

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8417K install kit Fits Chevrolet silverado wt- mylink 7" black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

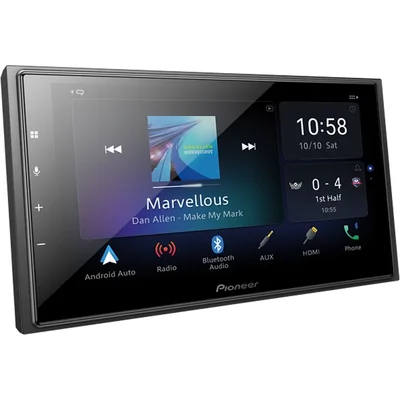

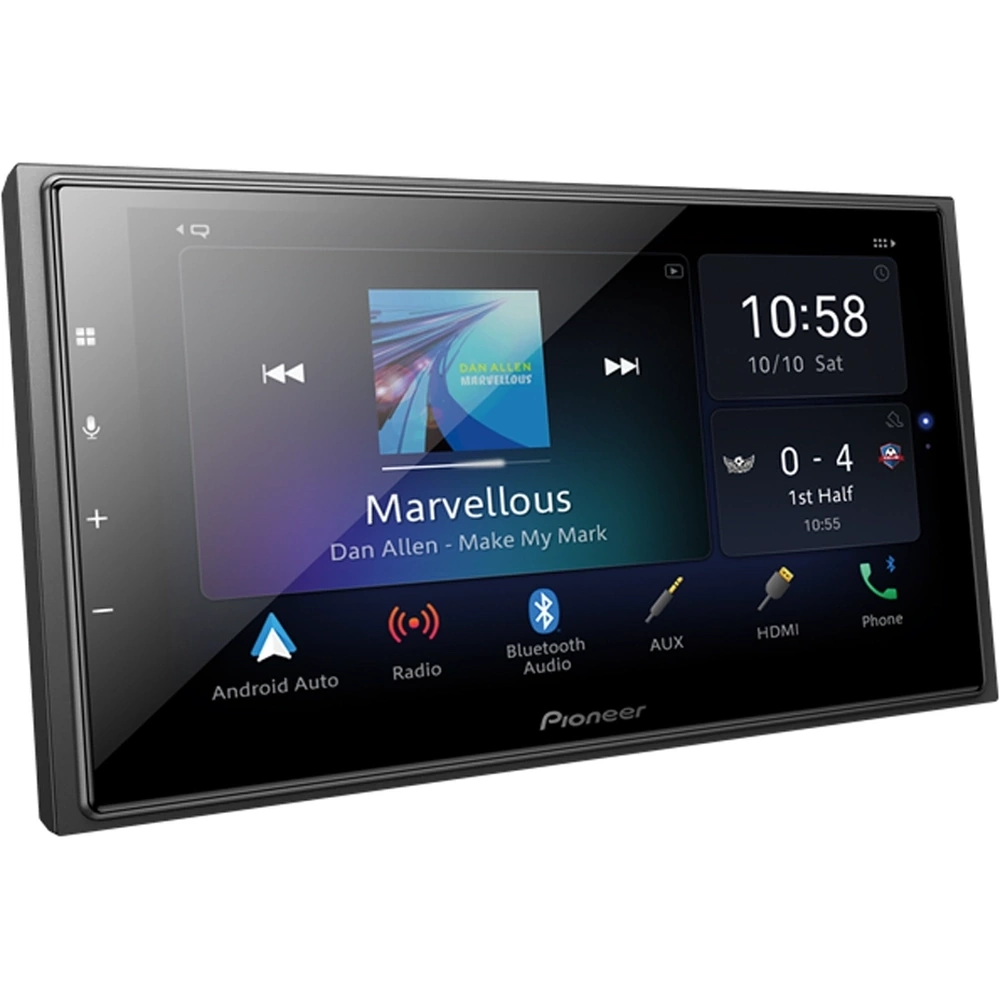

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

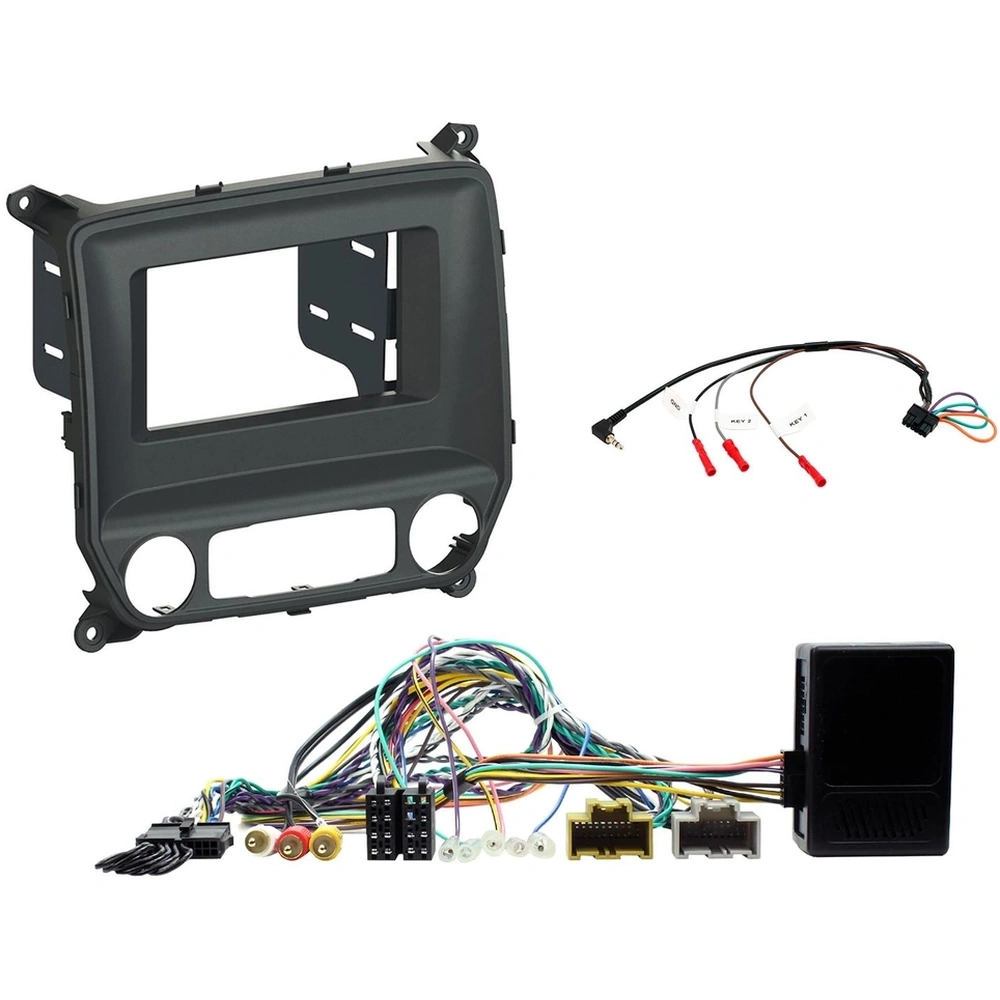

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Compatible with vehicles that have Mylink 7" OEM factory headunits
  • Retains warning chimes
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse, reverse gear and illumination

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: 173mm (W) x 99mm (H)
  • EXTERNAL DIMENSIONS: 285mm (W) TOP / 220mm (W) BASE x 247mm (H)
  • INCLUSIONS:
    • FACIA KIT
    • MOUNTING BRACKETS
    • VEHICLE INTERFACE HARNESS (CHCV5C)
    • ANTENNA ADAPTER
  • NOTES:
    • Suitable for vehicles with a factory Mylink 7" headunit
    • Warning chime speaker built into vehicle interface harness
    • The included vehicle interface harness does not retain the factory display of vehicle comfort settings. These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in
    • As the WT does not feature steering wheel control buttons, the patch lead is not used.

Vehicle Compatibility:

  • Chevrolet Silverado 2014-2019 (Headunit Dependant)
SKU DMH-Z6350BT_FP8417K
Brand PIONEER
