Pioneer DMH-Z6350BT + Aerpro FP8416K - Head Unit Upgrade Kit Fits Chevrolet Silverado 2014-2019 (Headunit Dependant)

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP8416K

RRP $1,370.00
$1,096.00
SAVE $274.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

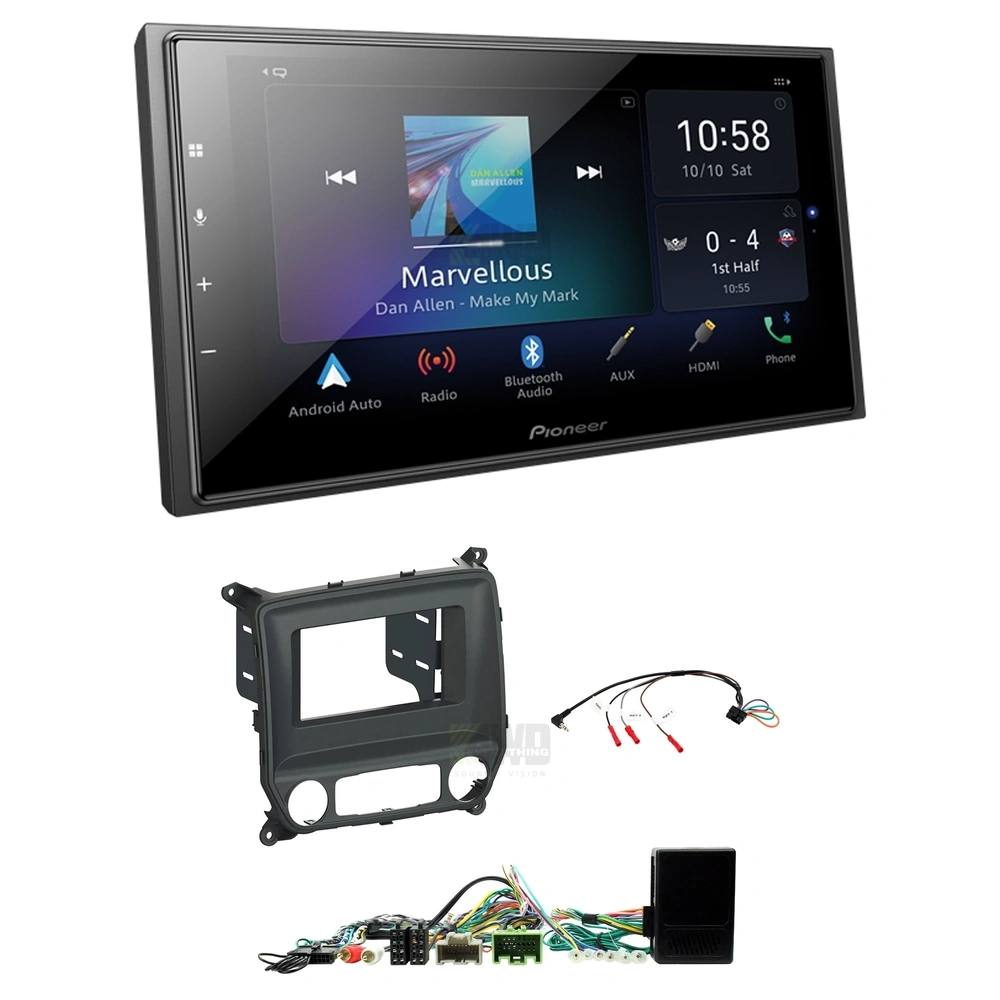

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8416K install kit Fits Chevrolet silverado ltz - mylink 8" black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

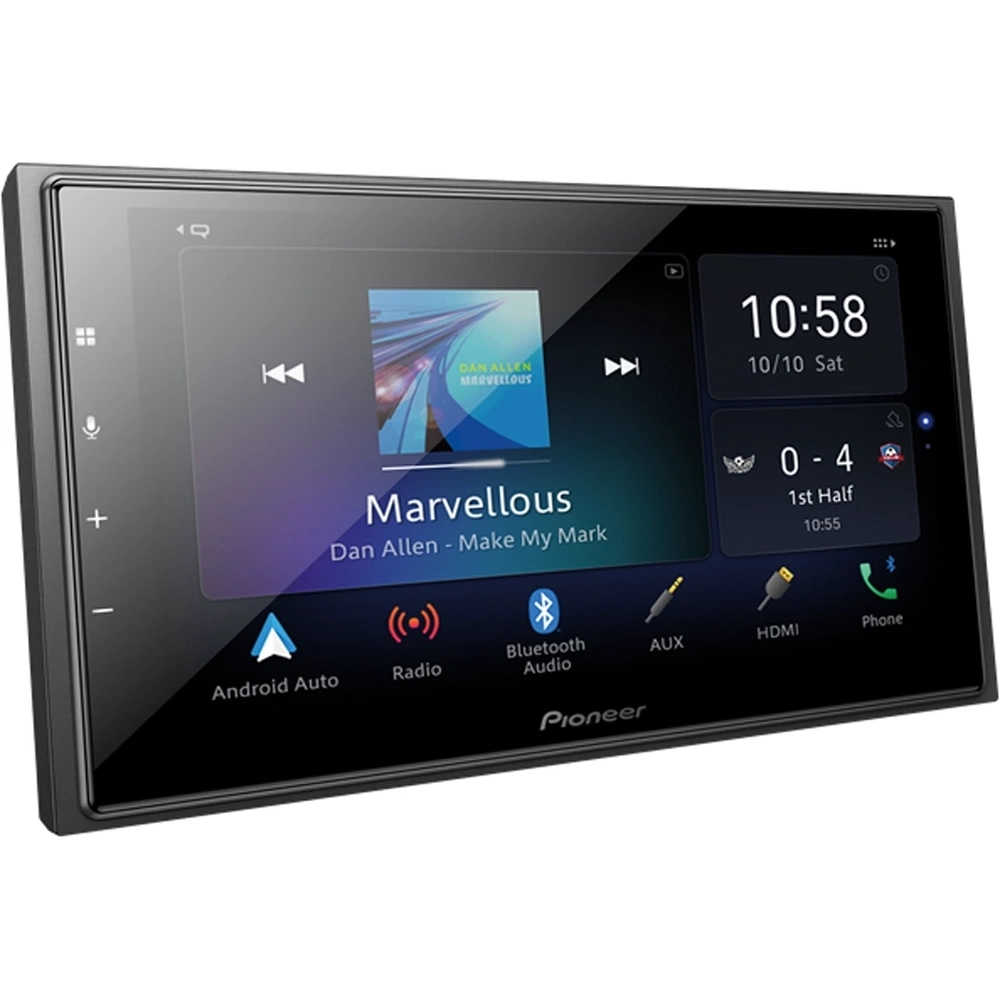

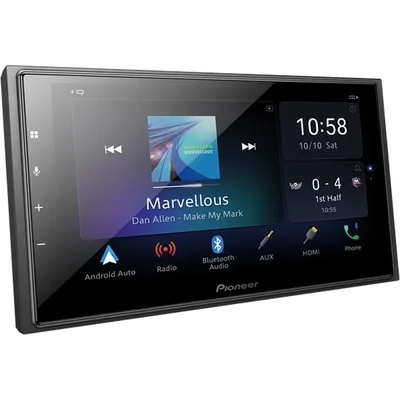

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

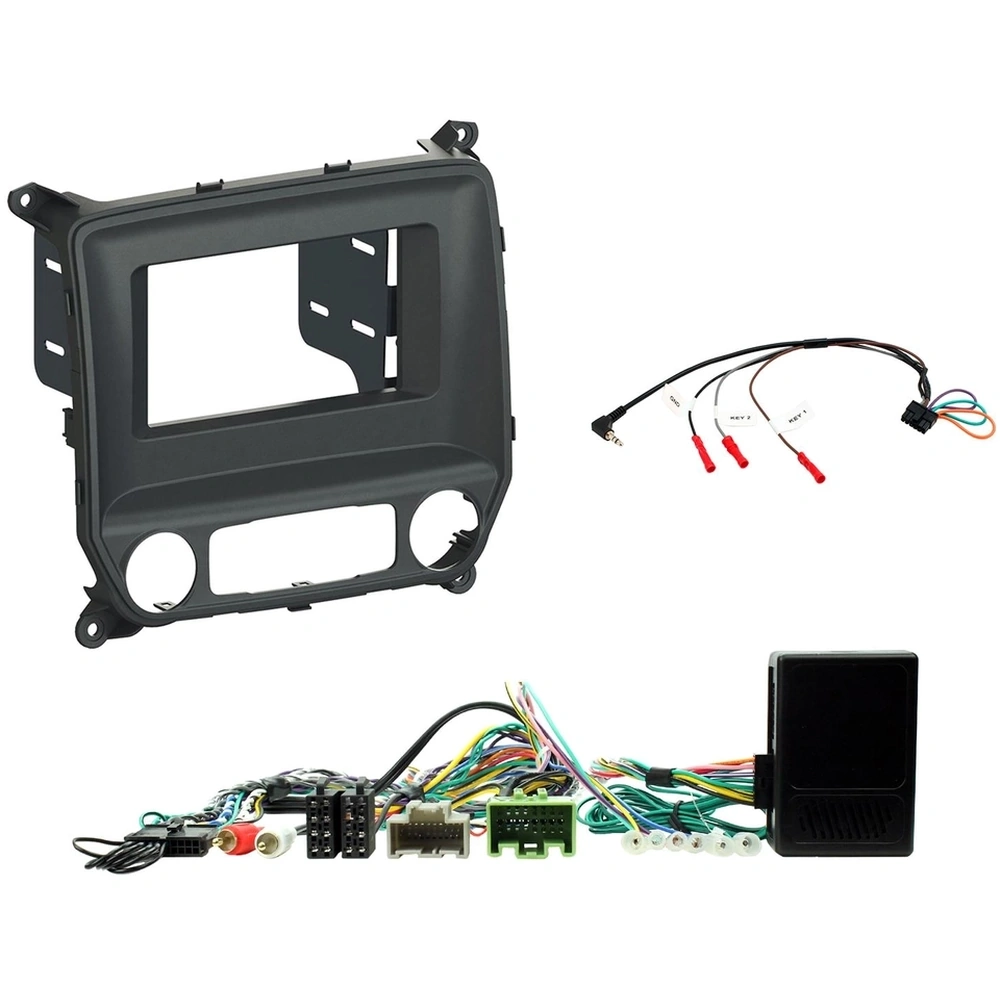

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Compatible with vehicles that have Mylink 8" OEM factory headunits
  • Allows use of steering wheel controls including phone button
  • Retains warning chimes
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse, reverse gear and illumination

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: 173mm (W) x 99mm (H)
  • EXTERNAL DIMENSIONS: 285mm (W) TOP / 220mm (W) BASE x 247mm (H)
  • INCLUSIONS:
    • FACIA KIT
    • MOUNTING BRACKETS
    • VEHICLE INTERFACE HARNESS (CHCV4C)
    • ANTENNA ADAPTER
  • NOTES:
    • Suitable for vehicles with a factory Mylink 8" headunit
    • Warning chime speaker built into vehicle interface harness
    • The included vehicle interface harness does not retain the factory display of vehicle comfort settings (to retain these use the infodapter version - Aerpro FP8416KC); these settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in

Vehicle Compatibility:

  • Chevrolet Silverado 2014-2019 (Headunit Dependant)
SKU DMH-Z6350BT_FP8416K
Brand PIONEER
