Pioneer DMH-Z6350BT + Aerpro FP8125K - black Head Unit Upgrade Kit Fits Fiat 500X 2014-

Complete Double-DIN Upgrade Kit

SKU:DMH-Z6350BT_FP8125K

RRP $1,425.00
$1,140.00
SAVE $285.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

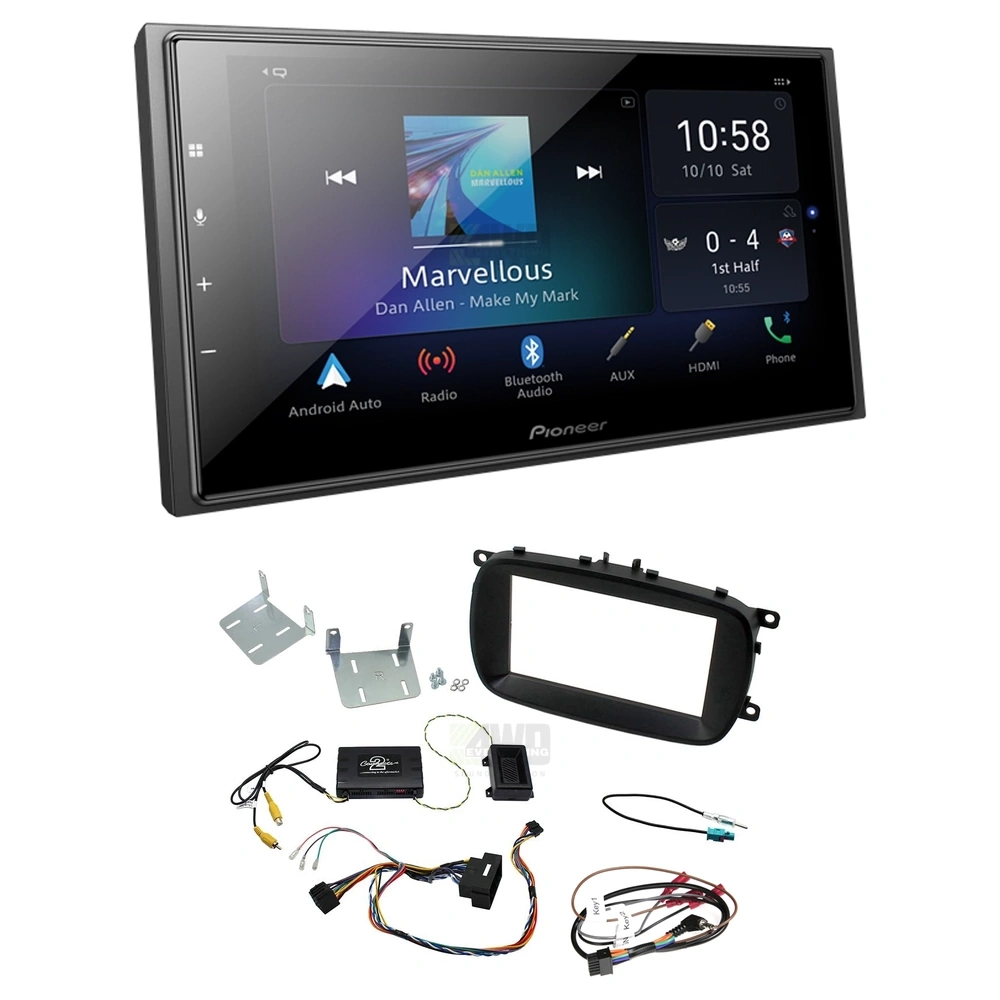

Bundle Includes:

  • Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8125K black install kit Fits Fiat - 500x - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

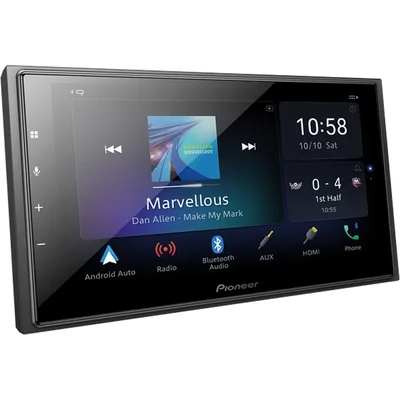

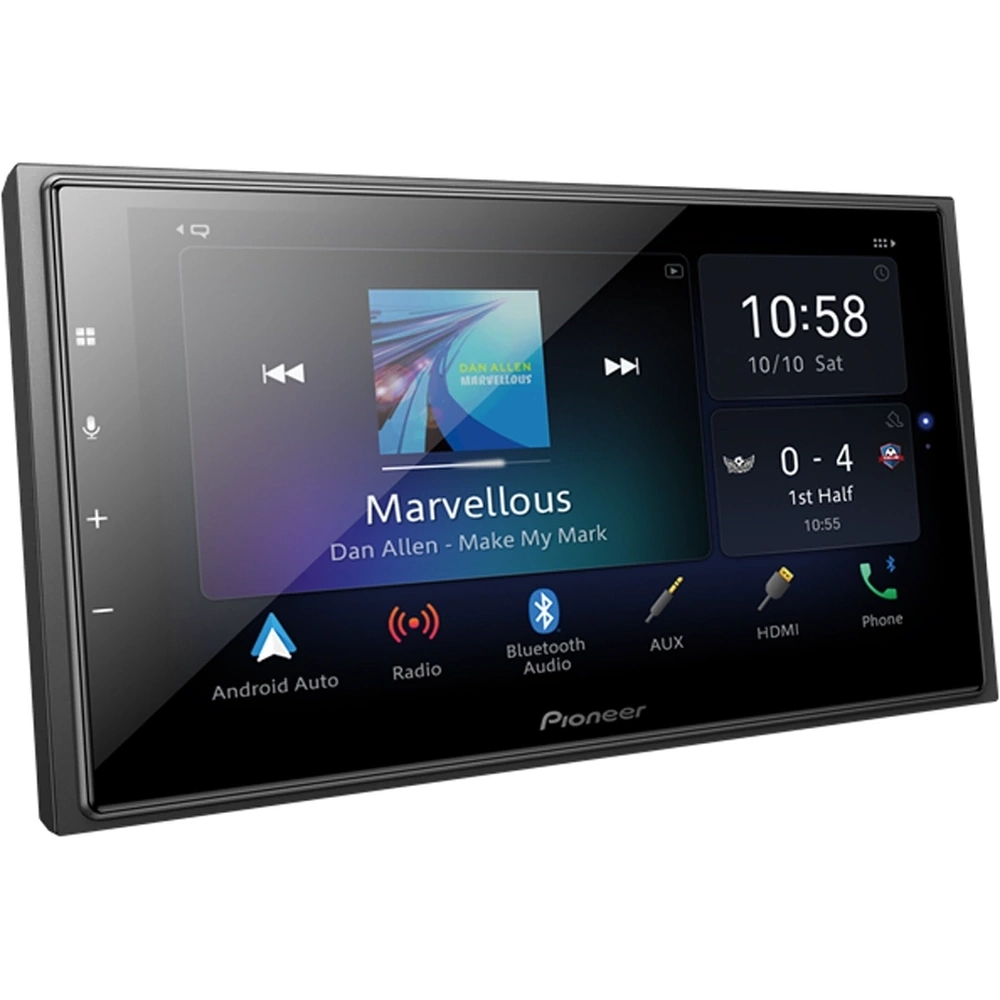

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver

The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.

  • 6.8-inch capacitive touchscreen display
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Alexa Built-In for voice control
  • Built-in Bluetooth with dual phone connection
  • Hi-Res Audio playback via USB
  • AM/FM tuner with station presets
  • MOSFET 4 x 50W built-in amplifier
  • 13-band graphic equalizer and time alignment
  • 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
  • Dual camera inputs with parking assist guidelines
  • Rear USB Type-C connection with included adaptor
  • HDMI input and rear audio/video AUX input
  • Short 87mm chassis for easier installation
  • Screen size: 6.8 inches
  • Resolution: WVGA 800 x 480
  • Touchscreen: Capacitive
  • Bluetooth pairing memory: 5 devices
  • USB: Single rear Type-C
  • RCA pre-outs: 3 pair, 4V
  • Amplifier: MOSFET 4 x 50W
  • Chassis size: 2 DIN short chassis, 87mm deep
  • Warranty: 1 year

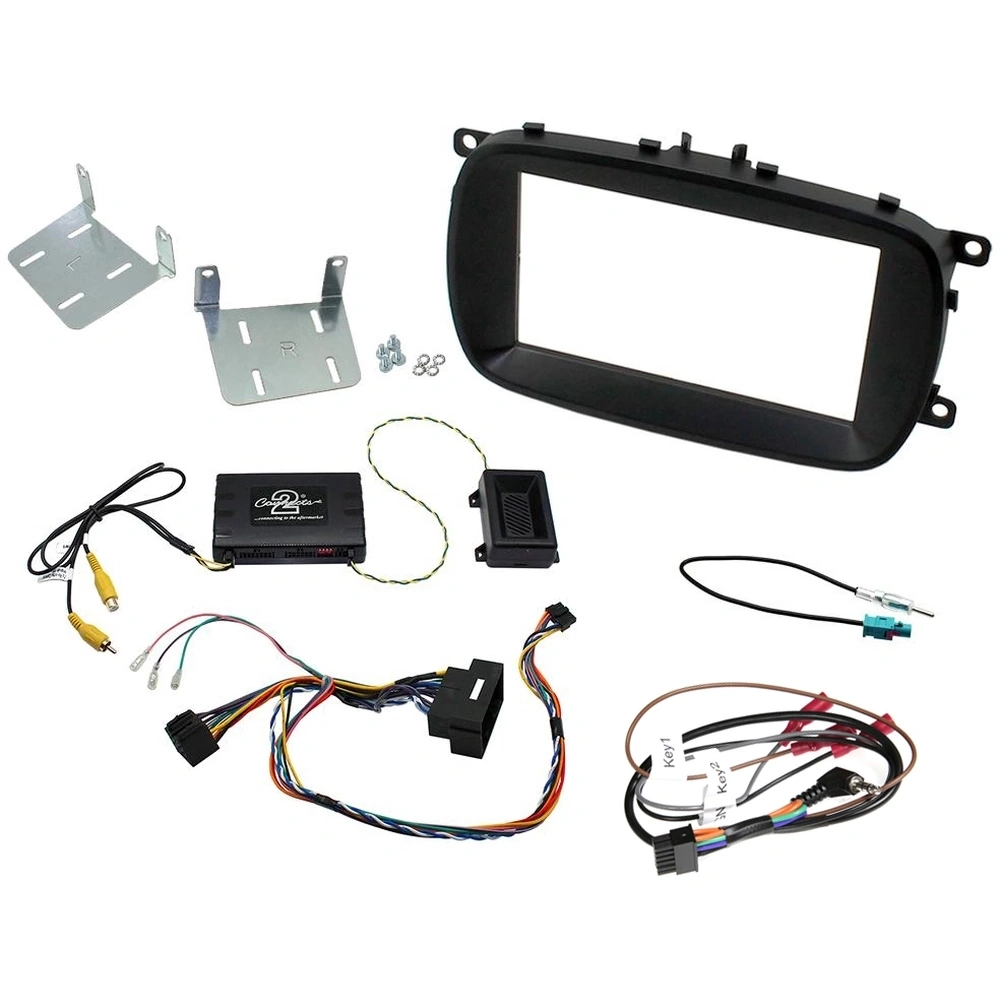

Fascia Kit Features:

  • The kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket AV headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Retains steering wheel control functionality in the vehicle including phone button
  • Allows vehice information and vehicle settings to be displayed on compatible aftermarket AV headunits
  • Displays parking sensor information on compatible aftermarket AV headunits and reproduces parking sensor audio through the included chime speaker (for vehicles with OEM parking sensors)
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for reverse trigger, park brake, speed pulse and illumination
  • Fitted with a vehicle specific plug, no cutting of wires required

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: 174mm (W) x 97mm (H)
  • EXTERNAL DIMENSIONS: N/A
  • INCLUSIONS:
    • DOUBLE DIN FACIA KIT
    • METAL MOUNTING BRACKETS
    • INFODAPTER INTERFACE
    • CHIME SPEAKER
    • ANTENNA ADAPTOR
    • UNIVERSAL SWC PATCH LEAD
  • NOTES:
    • Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
    • Aftermarket headunit must be SWC compatible.
    • Aftermarket headunit requires a rear camera input.
    • Only compatible with listed vehicles that have a speech button on the steering wheel.
    • Maximum aftermarket headunit mounting depth - 145mm.

Vehicle Compatibility:

  • Fiat 500X 2014-
