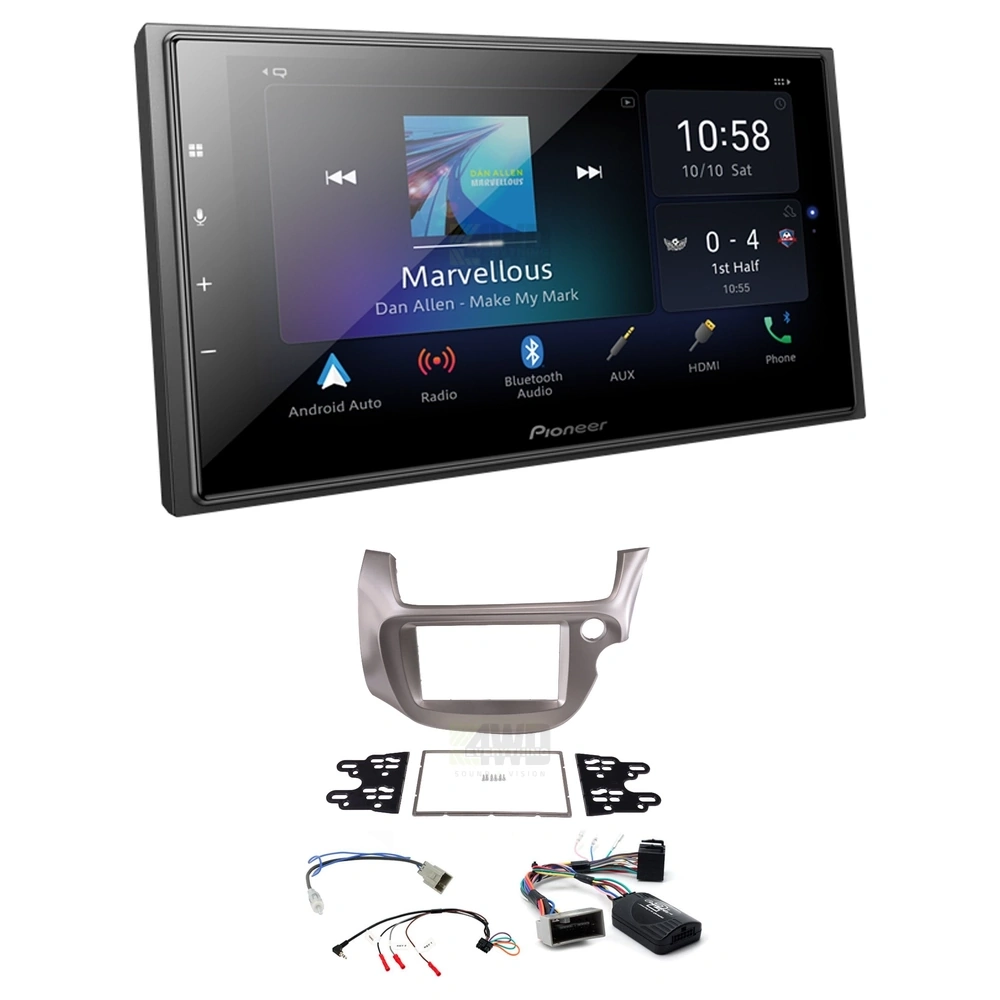

Pioneer DMH-Z6350BT + Aerpro FP8075K - grey Head Unit Upgrade Kit Fits Honda Jazz (Fit) 2008-2013 GE
Complete Double-DIN Upgrade Kit
SKU:DMH-Z6350BT_FP8075K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Pioneer DMH-Z6350BT pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.
Bundle Includes:
- Pioneer DMH-Z6350BT 7" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8075K grey install kit Fits Honda - jazz ge - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP9PIO8 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

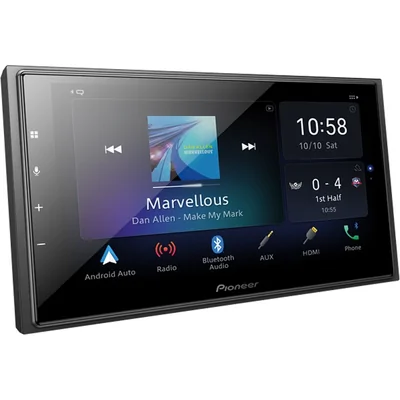

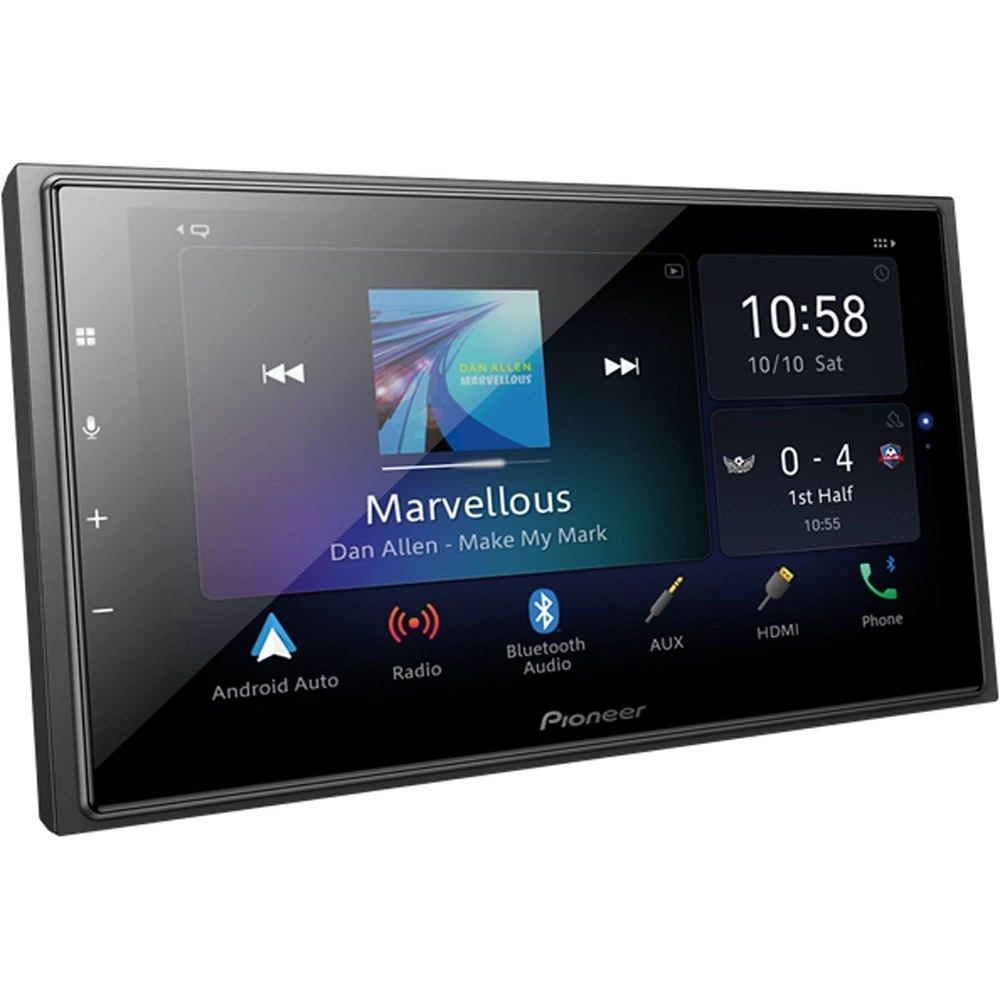

Pioneer DMH-Z6350BT 6.8” Multimedia Receiver
The Pioneer DMH-Z6350BT is a compact multimedia head unit with a 6.8-inch capacitive touchscreen, wireless smartphone connectivity and strong audio features.
- 6.8-inch capacitive touchscreen display
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Alexa Built-In for voice control
- Built-in Bluetooth with dual phone connection
- Hi-Res Audio playback via USB
- AM/FM tuner with station presets
- MOSFET 4 x 50W built-in amplifier
- 13-band graphic equalizer and time alignment
- 3 pairs of 4V RCA pre-outs for front, rear and subwoofer
- Dual camera inputs with parking assist guidelines
- Rear USB Type-C connection with included adaptor
- HDMI input and rear audio/video AUX input
- Short 87mm chassis for easier installation
- Screen size: 6.8 inches
- Resolution: WVGA 800 x 480
- Touchscreen: Capacitive
- Bluetooth pairing memory: 5 devices
- USB: Single rear Type-C
- RCA pre-outs: 3 pair, 4V
- Amplifier: MOSFET 4 x 50W
- Chassis size: 2 DIN short chassis, 87mm deep
- Warranty: 1 year

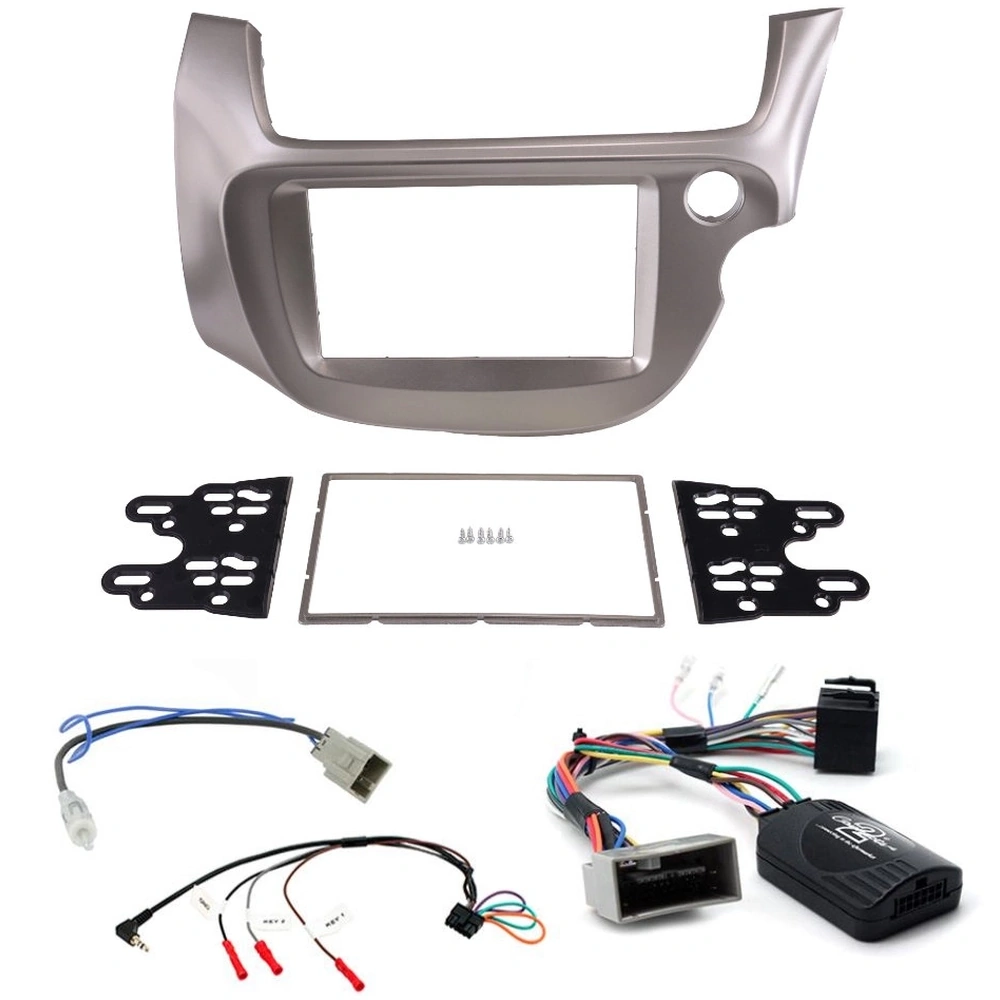

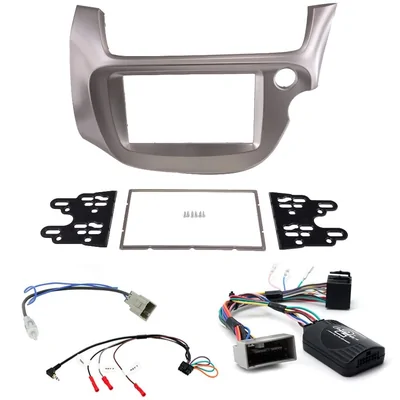

Fascia Kit Features:
- The kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
- Suitable for double din aftermarket headunit installation
- High quality grey finish on facia kit to suit the style of the dashboard in the vehicle
- Retains steering wheel control functionality in the vehicle
- Maintains the original features of the vehicle such as date, time and temperature display - controlled via the steering wheel controls
- Provides output feeds for speed pulse, park brake & amp remote
- Fitted with a vehicle specific plug, no cutting of wires required
Fascia Kit Specs:
- APPLICATION: DOUBLE DIN
- COLOUR: GREY
- INTERNAL DIMENSIONS: 177mm (W) x 100mm (H)
- EXTERNAL DIMENSIONS: 375mm TOP / 200mm BASE (W) x 235mm (H)
- INCLUSIONS:
- DOUBLE DIN FACIA KIT
- METAL MOUNTING BRACKETS
- STEERING WHEEL CONTROL INTERFACE
- ANTENNA ADAPTOR
- UNIVERSAL SWC PATCH LEAD
- NOTES:
- Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately).
- Aftermarket headunit must be SWC compatible.
- Maintains the original features of the vehicle such as date, time and temperature display - controlled via the steering wheel controls.
Vehicle Compatibility:
- Honda Jazz (Fit) 2008-2013 GE
| SKU | DMH-Z6350BT_FP8075K |
| Brand | PIONEER |
