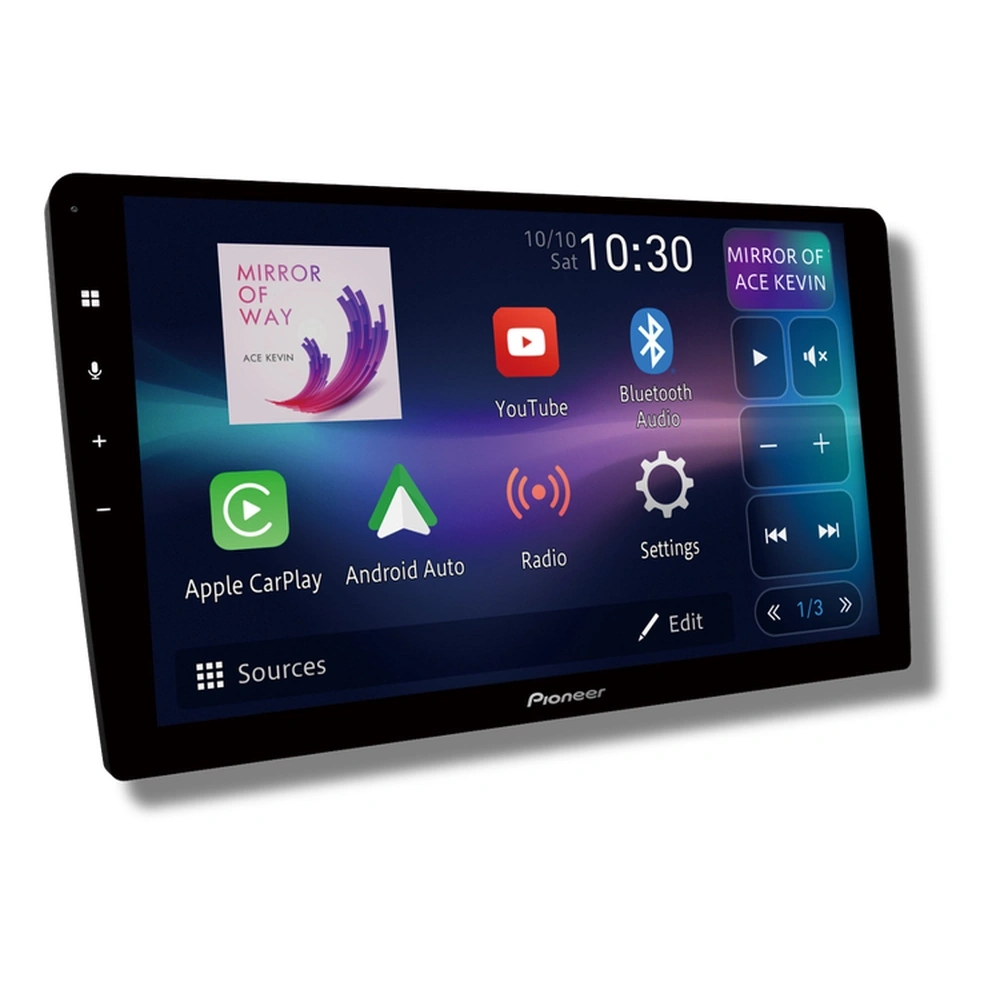

Pioneer DMH-AP8850BT 10-Inch Trapezoid Wireless Apple CarPlay Android Auto Head Unit
SKU:DMH-AP8850BT
Kenwood CMOS-10 Reverse Parking Camera
+ $102.00
Pioneer RCAMAVIC Reversing Camera
+ $89.00
Gator G35CL Flush Mount Camera with Loop System
+ $117.00
Gator G55CL Butterfly Loop Parking Camera
+ $84.00
DNA Audio RCL170-AHD AHD Reverse Camera Large Butterfly Mount
+ $104.00
The Pioneer DMH-AP8850BT combines modern smartphone connectivity, advanced audio adjustment and a large 10-inch display in a sleek Perfect Fit Design.
Its 10-inch WSVGA capacitive touchscreen provides a 1,024 × 600-pixel display with a flat-panel design, capacitive touch buttons and Pioneer shortcut keys for convenient access to key features and controls.
Certified Apple CarPlay and Android Auto can be connected either wirelessly or through a wired connection. The DMH-AP8850BT also features Bluetooth 5.4, wired or wireless WebLink, WebLink Cast smartphone mirroring for iOS and Android, and WebLink Browser for Android. Full-HD video playback is supported through USB.
For vehicle integration, the unit includes dual AHD 1.0 camera inputs and OEM CAN BUS support for HiWorld, Raise, SimpleSoft and Pioneer systems. Its ultra-shallow chassis is complemented by a Perfect Fit panel design compatible with a wide range of vehicle-specific dash fascias.
For enhanced sound control, the DMH-AP8850BT features a built-in MOSFET 50W × 4-channel amplifier, 3-way network mode, manual time alignment and a premium 48-bit dual-core DSP. Additional audio functions include low-pass and high-pass filters, subwoofer control and three 4V RCA pre-outs.
The built-in tuner supports AM/FM radio, RDS and Best Station Memory.
Key Features
- 10-inch WSVGA capacitive display
- 1,024 × 600-pixel screen resolution
- Perfect Fit panel design
- Certified Apple CarPlay — wired or wireless
- Certified Android Auto — wired or wireless
- Bluetooth version 5.4
- WebLink — wired or wireless
- WebLink Cast smartphone mirroring — wired or wireless
- WebLink Cast support for iOS and Android
- WebLink Browser for Android
- Pioneer shortcut keys
- Full-HD video playback through USB
- Dual camera inputs with AHD 1.0 support
- OEM CAN BUS support
- Ultra-shallow chassis
- MOSFET 50W × 4-channel amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- LPF — Low-Pass Filter
- HPF — High-Pass Filter
- Subwoofer control
- 3 × RCA pre-outs
- 4V pre-out level
- AM/FM tuner
- RDS — Radio Data Service
- BSM — Best Station Memory
| SKU | DMH-AP8850BT |
| Brand | PIONEER |
