Pioneer DMH-AP6850BT + Aerpro AKVW14 Bundle 9 Inch Trapezoid Head Unit with install kit to suit volkswagen various 2015-2020
Plug & Play Solution with Direct Fit Install
SKU:DMH-AP6850BT_AKVW14
Kenwood CMOS-10 Reverse Parking Camera
+ $102.00
Gator G35CL Flush Mount Camera with Loop System
+ $117.00
Gator G55CL Butterfly Loop Parking Camera
+ $84.00

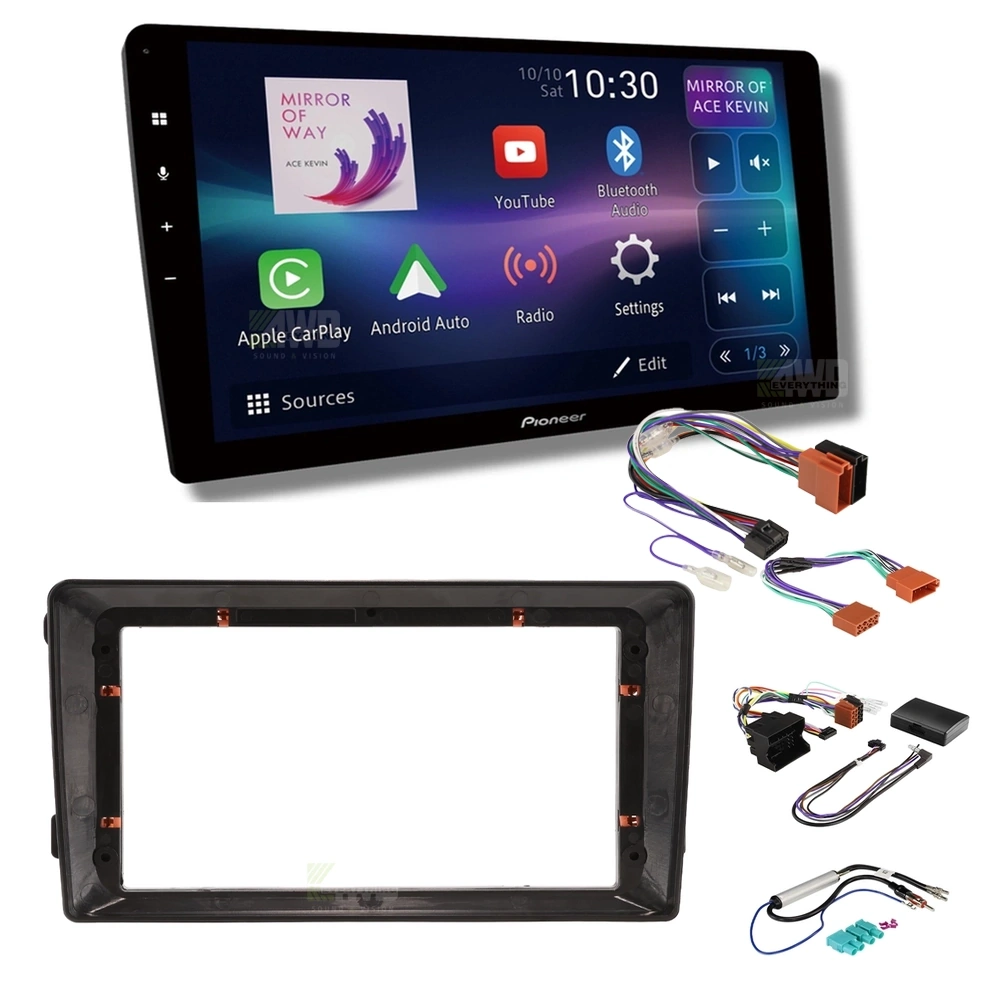

This complete bundle includes the head unit with installation kit & Head Unit ISO Harness for easy installation.

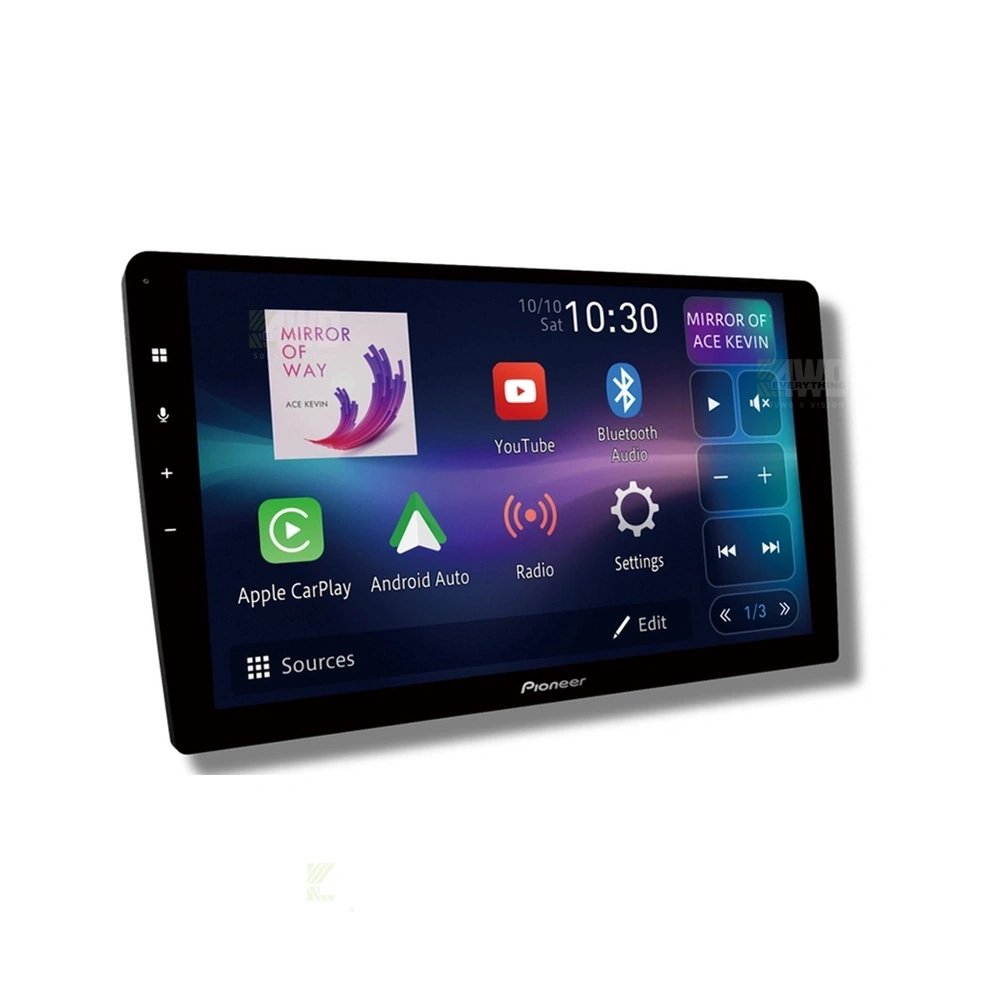

- Head Unit: Pioneer DMH-AP6850BT 9 Inch Trapezoid Head Unit Wireless CarPlay Android Auto

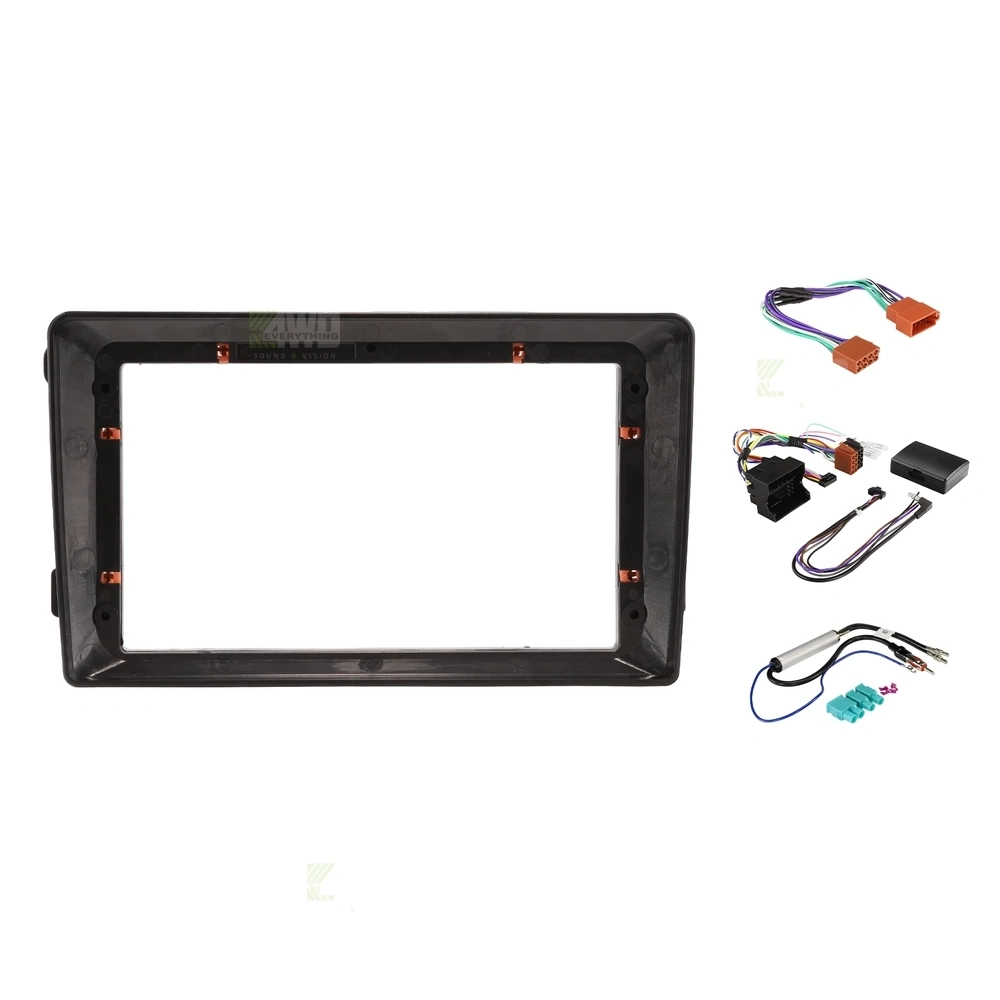

- Installation Kit: Aerpro AKVW14 9 Inch install kit to suit Volkswagen various 2015-2020
- Head Unit ISO Harness: Aerpro APP8PIO9 Head Unit ISO Harness
Everything 4WD Curated Bundle:Pack ID DMH-AP6850BT_AKVW14
Head Unit Features
The Pioneer DMH-AP6850BT delivers modern smartphone connectivity, advanced audio controls and a large 9-inch display in a sleek, perfect-fit panel design.
Its 9-inch WSVGA capacitive touchscreen features a clear 1024 × 600-pixel resolution, capacitive touch buttons and convenient Pioneer shortcut keys for quick access to key features and controls.
Bluetooth 5.4 provides wireless connectivity, while dual camera input with AHD 1.0 support allows compatible cameras to be connected.
For enhanced sound performance, the receiver includes a built-in MOSFET 50W × 4-channel amplifier, premium 48-bit dual-core DSP, manual time alignment, 3-way network mode, low-pass and high-pass filters, subwoofer control and three 4V RCA pre-outs
- 9-inch WSVGA capacitive display
- Certified wired and wireless Apple CarPlay
- Certified wired and wireless Android Auto
- 1024 × 600-pixel display resolution
- Capacitive touch buttons
- Pioneer shortcut keys
- Bluetooth version 5.4
- Wired and wireless WebLink
- Wired and wireless WebLink Cast smartphone mirroring
- WebLink Browser for Android
- WebLink Cast support for compatible iOS and Android devices
- Dual camera input with AHD 1.0 support
- Full HD video playback via USB
- OEM CAN BUS support
- Supports HiWorld, Raise, SimpleSoft and Pioneer CAN BUS systems
- Ultra-shallow chassis
- Perfect-fit panel design
- AM/FM tuner
- RDS Radio Data Service
- BSM Best Station Memory
- MOSFET 50W × 4-channel amplifier
- Premium 48-bit dual-core DSP
- Manual time alignment
- 3-way network mode
- LPF low-pass filter
- HPF high-pass filter
- Subwoofer control
- Three 4V RCA pre-outs
With this much choice you will never want to leave your car!
Vehicle Feature Retention:
- Steering Wheel Controls: Yes (including phone button^)
- Factory Reverse Camera: No
- AUX Input: No
- USB Input: No
- Parking Tones: N/A
- Factory Amplifier: No
- Vehicle Menu: No
- Other: ^Vehicles with MIB-PQ units from factory may need to remove fuse from factory Bluetooth module for phone button to work
Vehicles known to work with this product:
Volkswagen Amarok 2017-2022
Volkswagen Caddy 2015-2020
Volkswagen Multivan 2016-2019
Volkswagen Tiguan 2015-2016
Volkswagen Transporter T6 2016-2019
| SKU | DMH-AP6850BT_AKVW14 |
| Brand | PIONEER |
