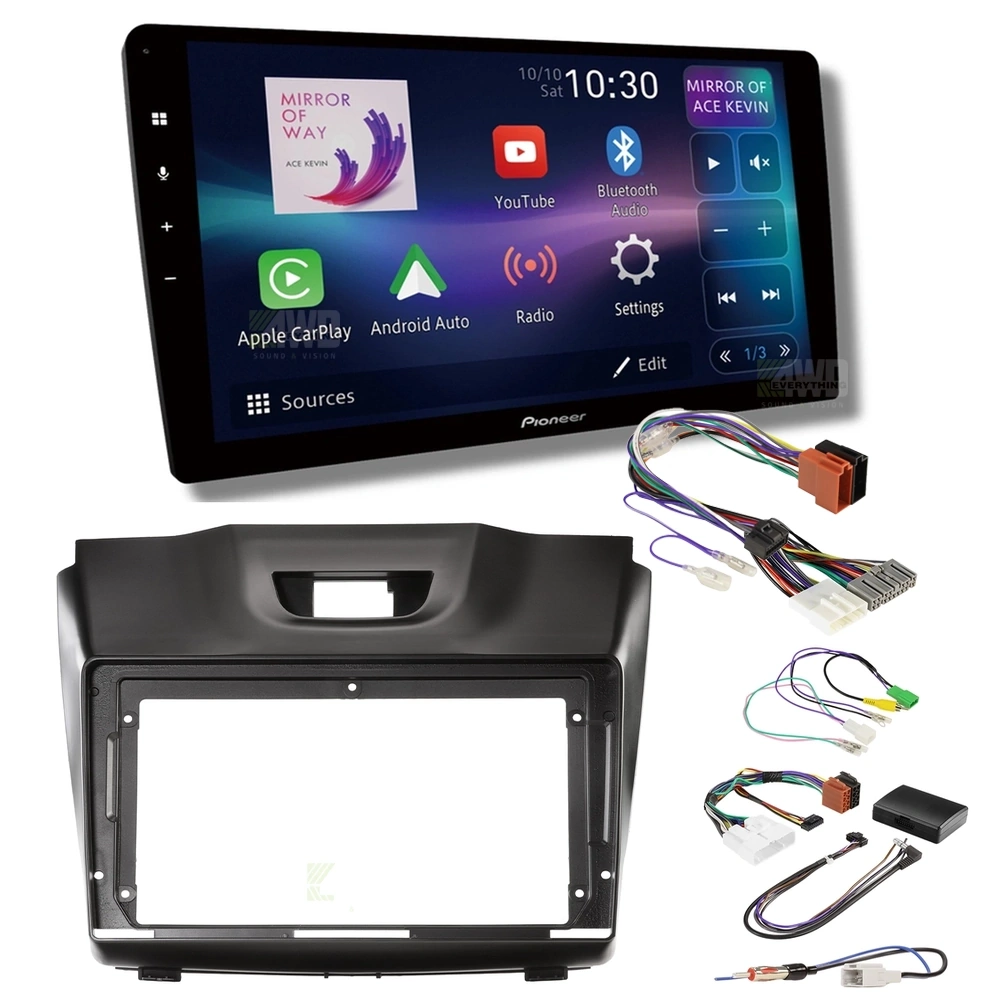

Pioneer DMH-AP6850BT + Aerpro AKIZ1B Bundle 9 Inch Trapezoid Head Unit with install kit to suit holden isuzu 2012-2020

This complete bundle includes the head unit with installation kit & Head Unit ISO Harness for easy installation.

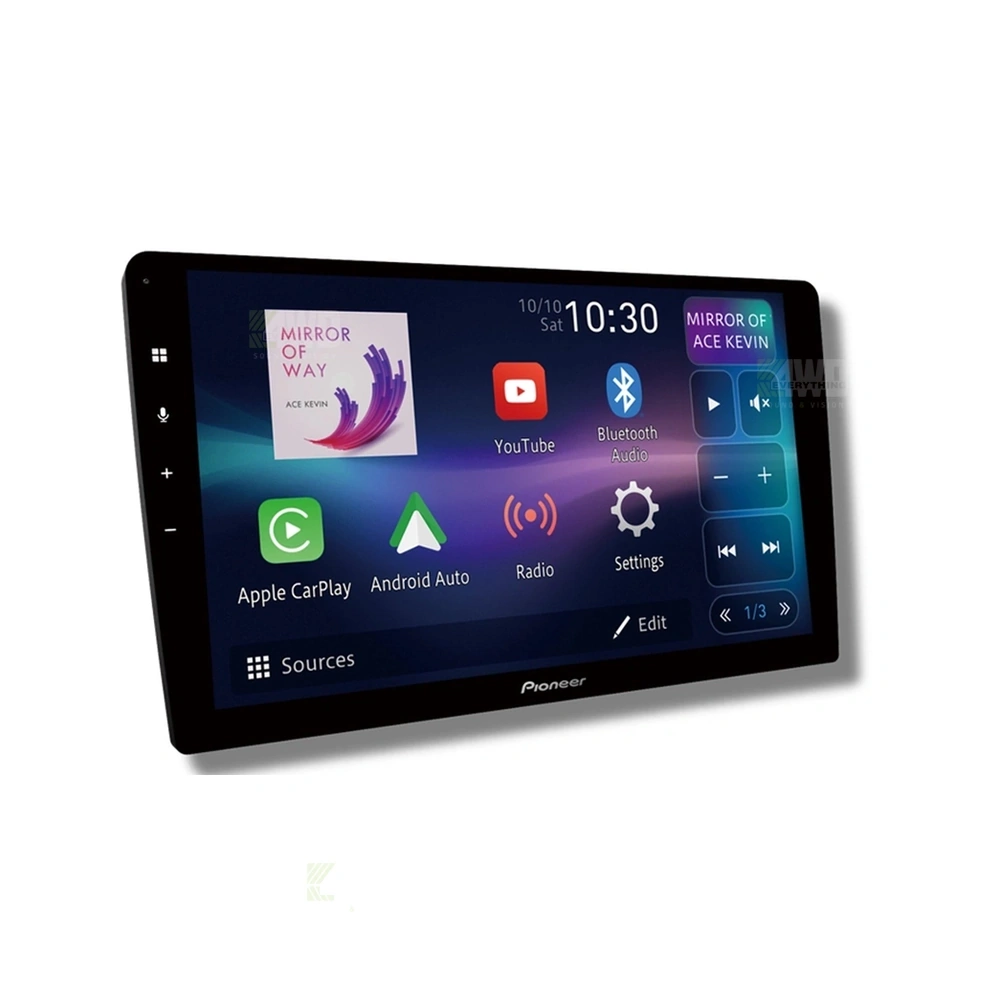

• Head Unit: Pioneer DMH-AP6850BT 9 Inch Trapezoid Head Unit Wireless CarPlay Android Auto

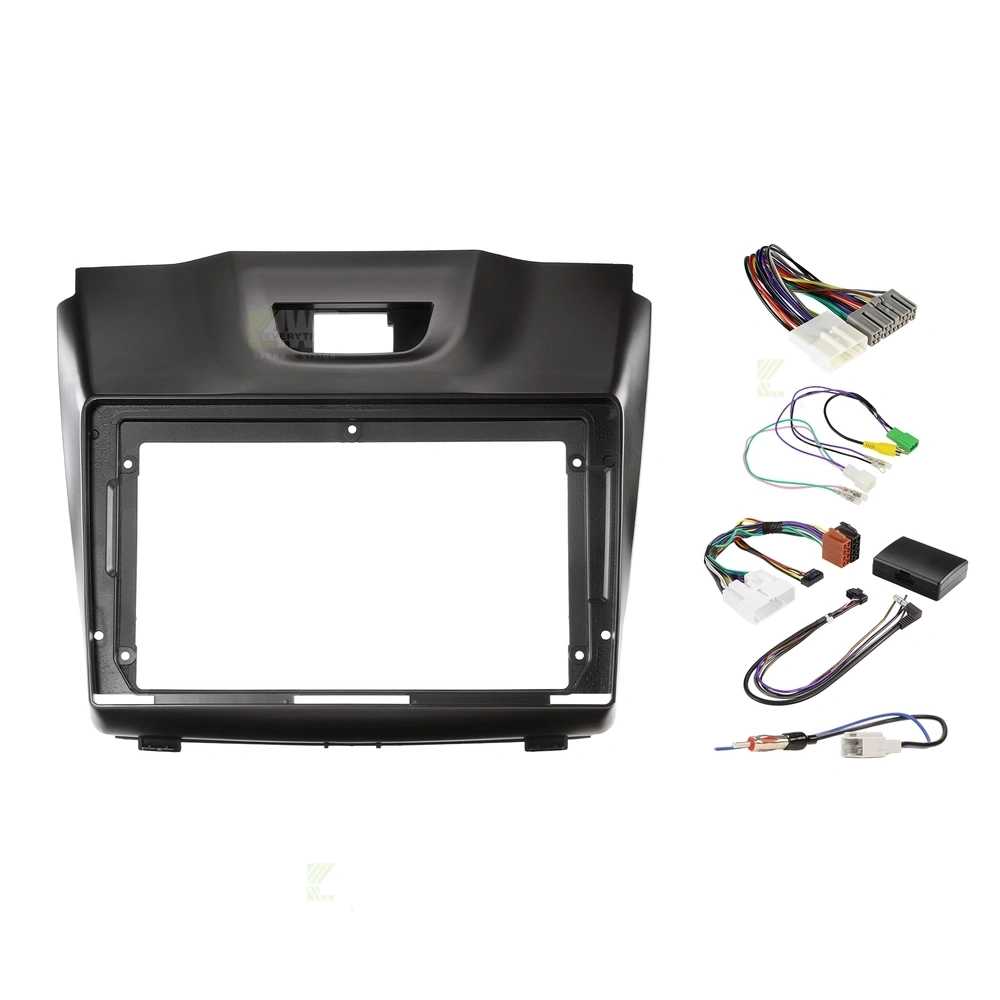

• Installation Kit: Aerpro AKIZ1B 9 Inch install kit to suit Holden Isuzu 2012-2020
• Head Unit ISO Harness: Aerpro APP8PIO9 Head Unit ISO Harness

Everything 4WD Curated Bundle:Pack ID DMH-AP6850BT_AKIZ1B

Head Unit Features

The Pioneer DMH-AP6850BT delivers modern smartphone connectivity, advanced audio controls and a large 9-inch display in a sleek, perfect-fit panel design.

Its 9-inch WSVGA capacitive touchscreen features a clear 1024 × 600-pixel resolution, capacitive touch buttons and convenient Pioneer shortcut keys for quick access to key features and controls.

Bluetooth 5.4 provides wireless connectivity, while dual camera input with AHD 1.0 support allows compatible cameras to be connected.

For enhanced sound performance, the receiver includes a built-in MOSFET 50W × 4-channel amplifier, premium 48-bit dual-core DSP, manual time alignment, 3-way network mode, low-pass and high-pass filters, subwoofer control and three 4V RCA pre-outs

• 9-inch WSVGA capacitive display
• Certified wired and wireless Apple CarPlay
• Certified wired and wireless Android Auto
• 1024 × 600-pixel display resolution
• Capacitive touch buttons
• Pioneer shortcut keys
• Bluetooth version 5.4
• Wired and wireless WebLink
• Wired and wireless WebLink Cast smartphone mirroring
• WebLink Browser for Android
• WebLink Cast support for compatible iOS and Android devices
• Dual camera input with AHD 1.0 support
• Full HD video playback via USB
• OEM CAN BUS support
• Supports HiWorld, Raise, SimpleSoft and Pioneer CAN BUS systems
• Ultra-shallow chassis
• Perfect-fit panel design
• AM/FM tuner
• RDS Radio Data Service
• BSM Best Station Memory
• MOSFET 50W × 4-channel amplifier
• Premium 48-bit dual-core DSP
• Manual time alignment
• 3-way network mode
• LPF low-pass filter
• HPF high-pass filter
• Subwoofer control
• Three 4V RCA pre-outs

With this much choice you will never want to leave your car!

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: N/A
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu
• Other: Not compatible with Holden Mylink Systems

Vehicles known to work with this product:

Isuzu D-Max 2012-2020 has 5 different product configurations depending on the headunit in the car.

Isuzu MU-X 2013-2021 has 5 different product configurations depending on the headunit in the car.

Holden Colorado 2012-2014 RG

Holden Colorado 7 2012-2014
