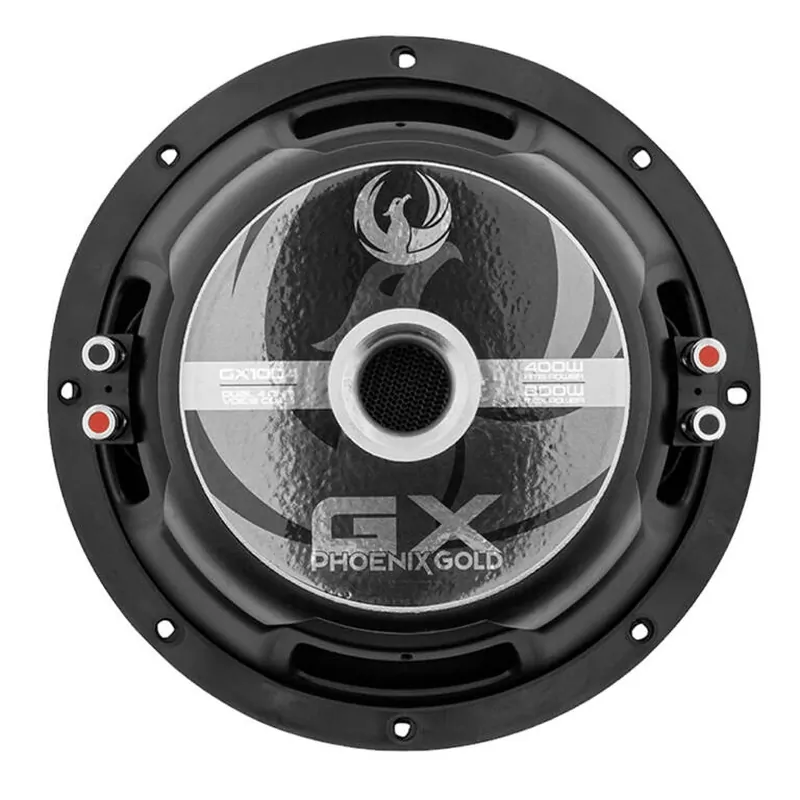

Phoenix Gold Gx Series 10" Dual 4Ohm Subwoofer

The GX10D4 is a 10 High Performance Dual 4-Ohm Subwoofer engineered for heart pounding performance and a breath-taking sound experience. These subwoofers feature advanced MLB and CFL3 technologies. Pair GX subwoofers with the GX amplifiers and create an unbeatable combination of sound quality and dynamic performance.

GX10D4 Product Specifications:

• Dual Cone Design: To strengthen the rigidity of the woofers cone body to minimize the distortion while increasing the handling of high pressure produced in the subwoofer enclosure
• Magnetic FEA High Efficiency Motor: provides highest possible, efficient motor design

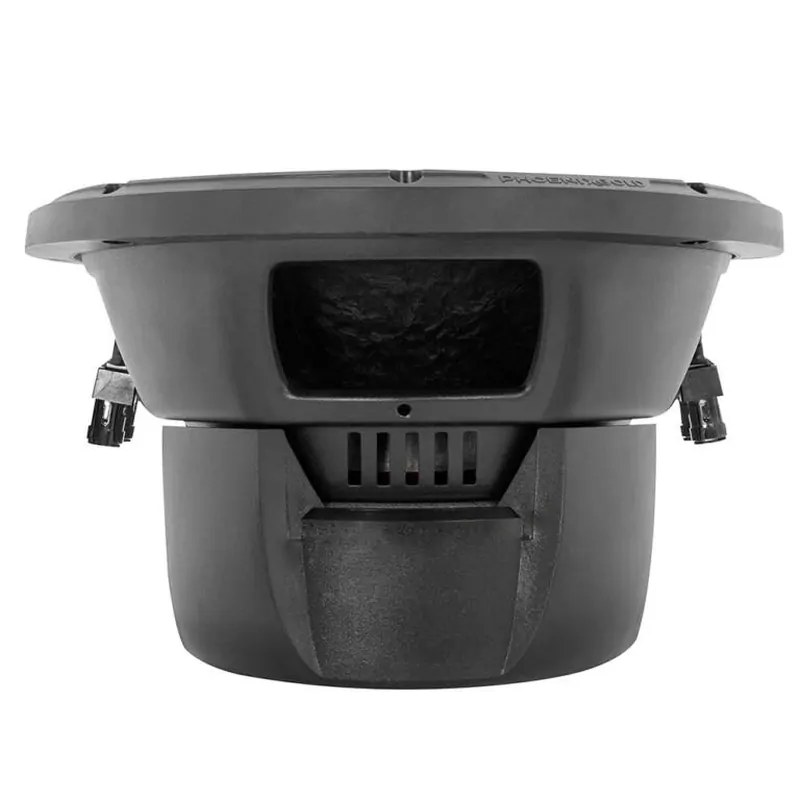

• Thermal Efficient Design via Vented Motor: providing better thermal efficiency, reduces motor compression and extended low frequency response
• Reduced Motor Compression via Vented Motor
• Double Looped and Sleeved Lead Wires for High Excursion: reduces wire roping and allows high excursion, increased flexibility and long life

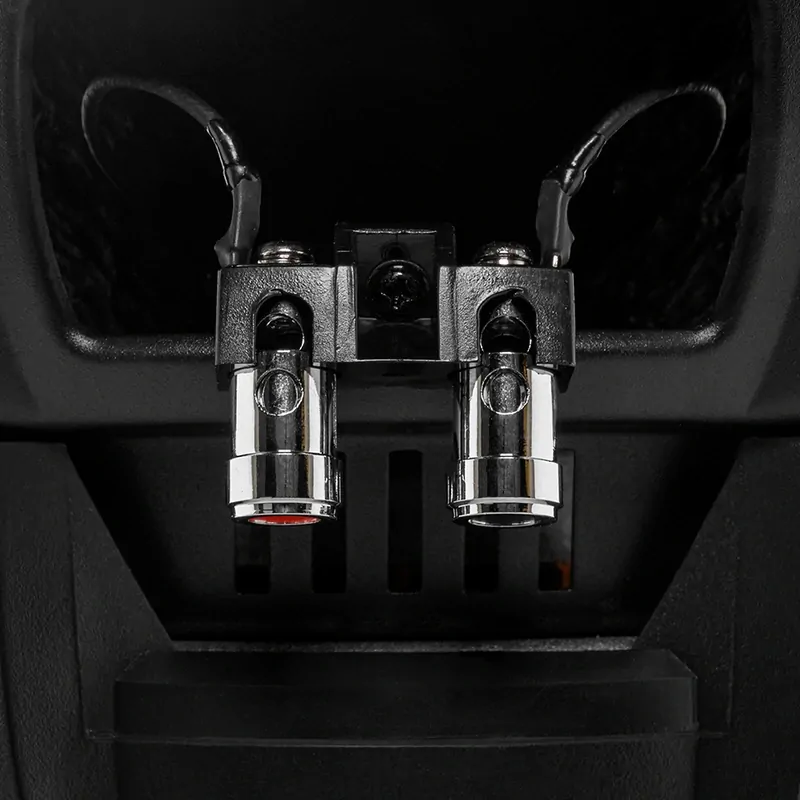

• Special Push Type Terminals with Short Prevention
• BEEFed Up: Bent Edge Enhanced Frame- minimizes overall resonance and provides accurate sound with less distortion
• Linear Surround Technology: for high excursion
• Black Anodized Voice Coil Former: heat dissipation
• CFL Technology Voice Coil: 3x more structurally rigid, prolonging the life of voice coil
• MLB Collar Technology: enables micro level bonding with cone & spider for increased strength
• Linear Long Throw Spider Suspension: for increased output and power handling
• Large 2.5 Voice Coil: GX12D4, GX12D4, GX10D4, GX10D2 and 2 Voice Coil for GX8D4, GX8D2
• Removable Gasket for adding grills: G112 Grill for (GX12D4 / GX12D2) or G110 for (GX10D4 / GX10D2)

Woofer Size
10" Woofer

Inputs
12 Gauge Terminals

Rated Continuous (RMS) Power:
400 W RMS

Maximum Power Rating:
800 W RMS

Voice Coil Design
Dual 4 Ω

Enclosure Applications
Sealed
Ported

Performance

• Frequency Response: 30 Hz – 500 Hz
• Signal to Noise: CEA Standard >86.78dB
• Resonance Frequency (FS) – 27.53Hz
• Voice Coil Diameter – 2.5Inch (63.5mm)
• Mounting Depth – 5.47inch (139mm)
