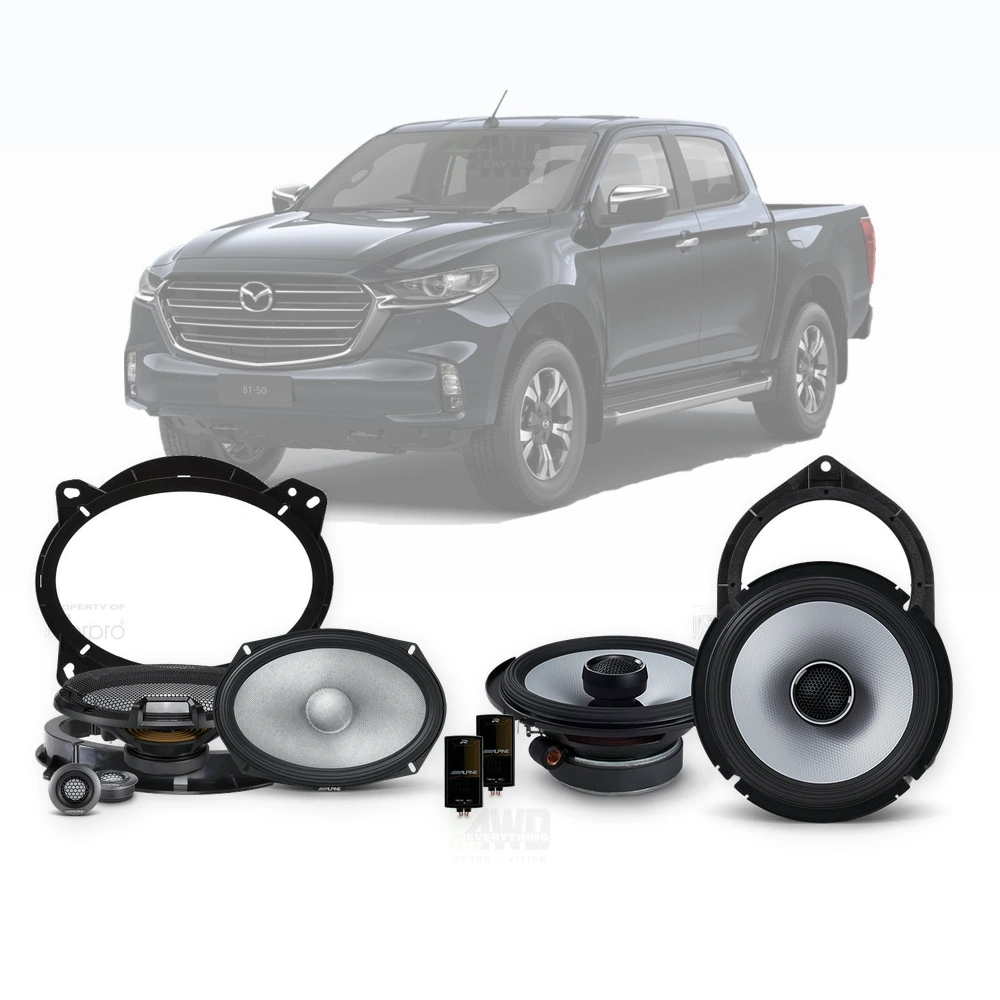

Mazda BT-50 TF Alpine 6x9-Inch Front and 6.5-Inch Rear Speaker Upgrade Bundle 2020-Onwards

This is a custom front and rear speaker upgrade package tailored by Everything 4WD to suit the Mazda BT-50 TF 2020-Onwards.

Speaker Package Range: Alpine Speaker Upgrade

Package Includes:

• Alpine R2-S69C - 6x9-Inch component speakers for the front
• Alpine S2-S65 - 6.5-Inch coaxial speakers for the rear

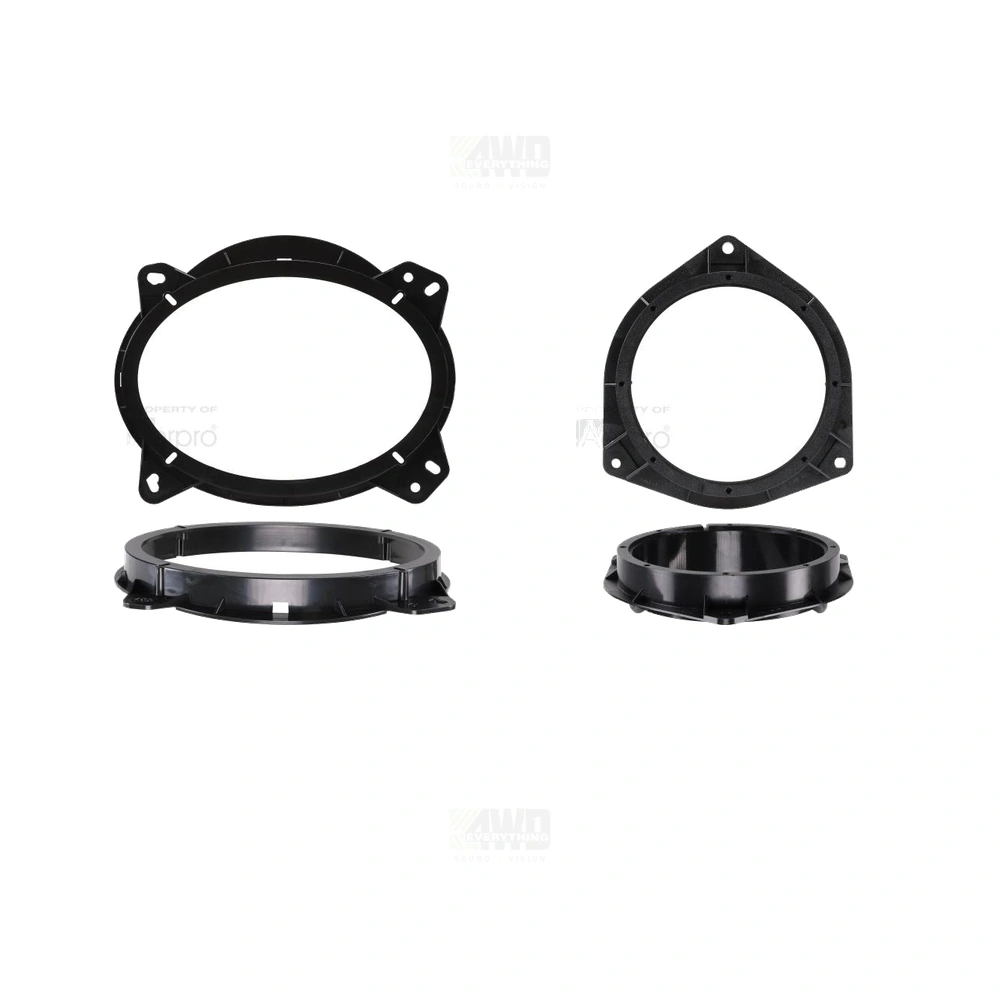

• Aerpro APS333 Speaker Spacer Pair (Front) - Speaker spacer to suit Mazda BT-50 TF
• Aerpro APS331 Speaker Spacer Pair (Rear) - Speaker spacer to suit Mazda BT-50 TF

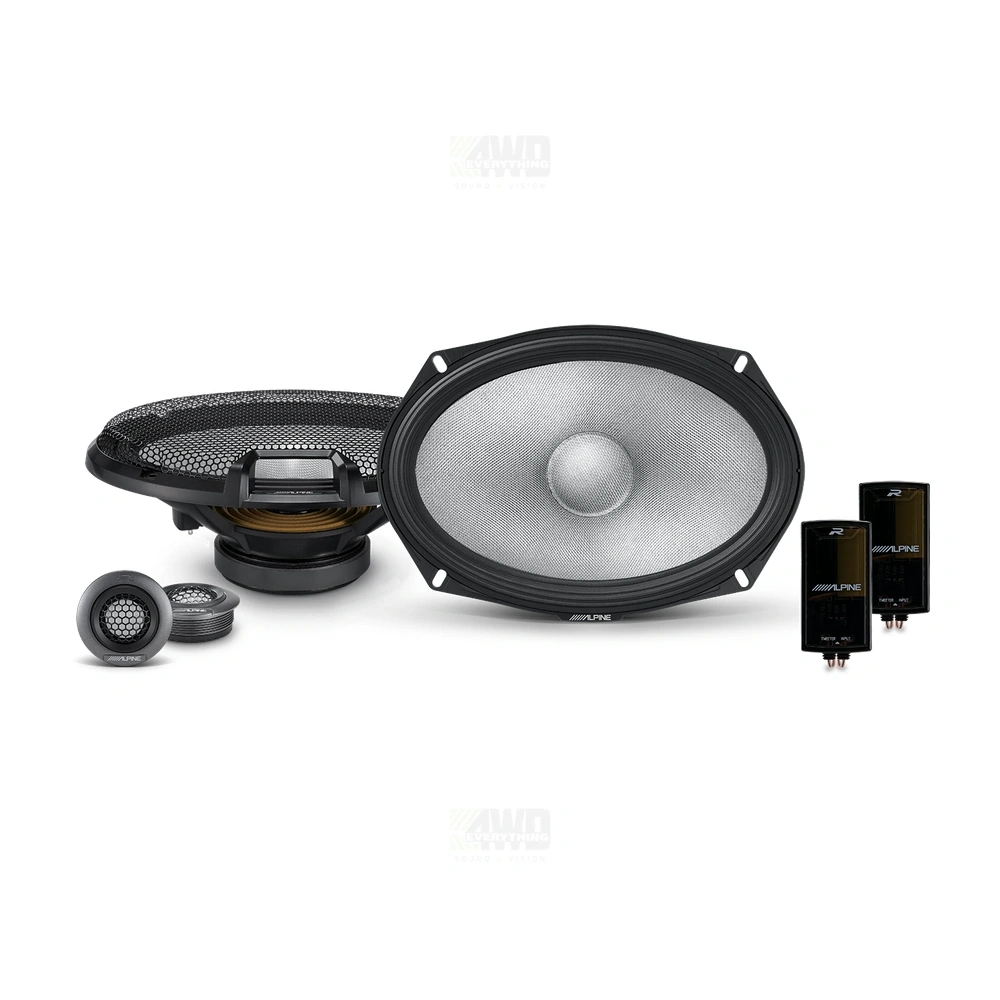

Alpine R2-S69C Specifications:

• Features 16 x 24cm (6x9) Door Woofer (2pcs) / 4.3cm Hard-Dome Tweeter (2pcs) Composite Baskets (Door Woofer) Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options) Glass-Fiber Reinforced Cone (Door Woofer) High-Pass X-Over Networks Included Speaker Grills
• 16 x 24cm (6x9) Door Woofer (2pcs) / 4.3cm Hard-Dome Tweeter (2pcs)
• Composite Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options)
• Glass-Fiber Reinforced Cone (Door Woofer)
• High-Pass X-Over Networks
• Included Speaker Grills
• Specifications Maximum Peak Power: 300 Watts Maximum RMS Power: 100 Watts Nominal Impedance: 4 Ohm Frequency Response: 60Hz-40kHz Sensitivity: 88dB SPL (1W @ 1m) Woofer Mounting Depth: 7.6cm Woofer Cutout Diameter: 14.9 x 22cm
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 60Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 7.6cm
• Woofer Cutout Diameter: 14.9 x 22cm

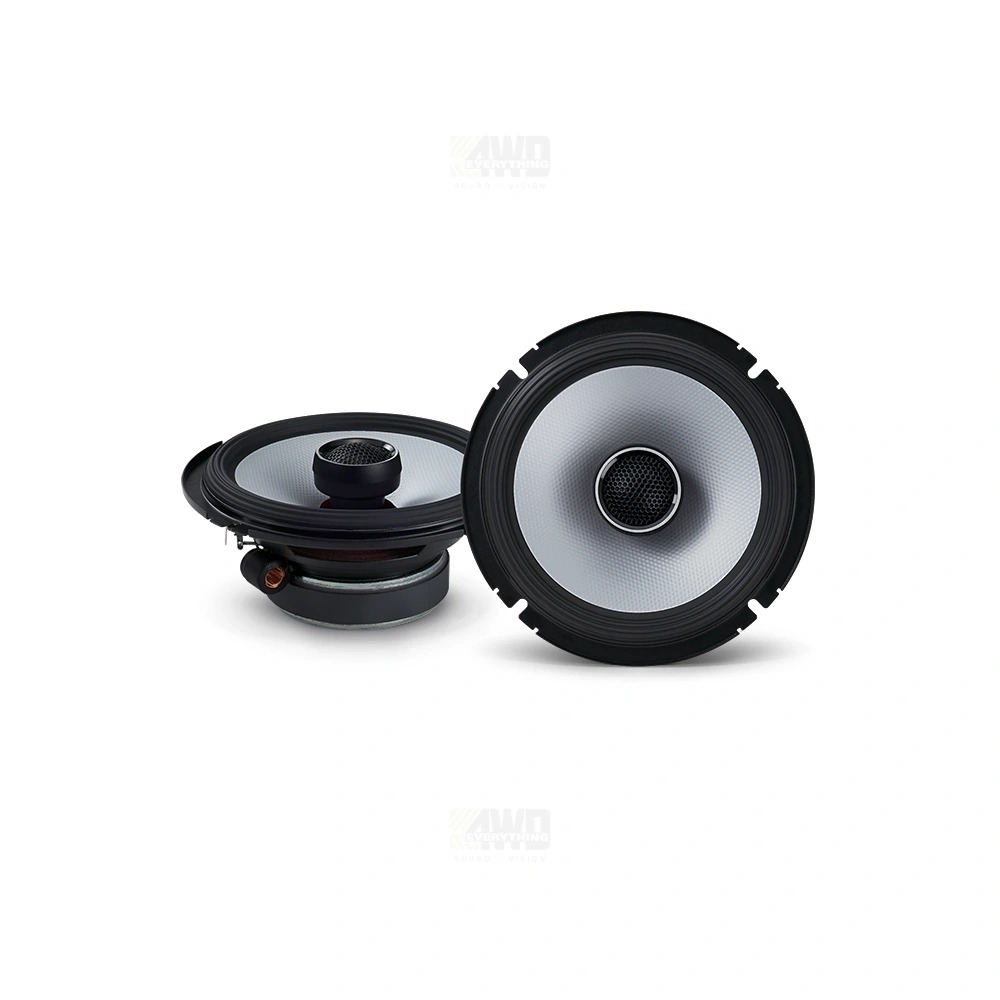

Alpine S2-S65 Specifications:

• Features Woofer 6.5 (165mm) Lightweight Glass Fiber Composite Component Speaker HAMR (High Amplitude Multi-Roll) Surround Large 35mm Voice Coil Magnet Material: Strontium Ferrite Grill sold separately: KTE-S65G Tweeter 1 Extended-Range Soft Dome Magnet Material: Ferrite Application Type: Fixed Tweeter Grill: Perforated Net Crossover Network Woofer: Copper Air-Coiled Wound Inductor Tweeter: High Grade Audio Poly Capacitor
• 6.5 (165mm) Lightweight Glass Fiber Composite Component Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large 35mm Voice Coil
• Magnet Material: Strontium Ferrite
• Grill sold separately: KTE-S65G
• 1 Extended-Range Soft Dome
• Magnet Material: Ferrite
• Application Type: Fixed Tweeter
• Grill: Perforated Net
• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor
• Specifications Power Handling Peak Power: 240 Watts RMS Power: 80 Watts (CTA-2031 Compliant) Dimensions Woofer Frame 165 mm Cutout Diameter: 129mm Mounting Depth: 57.7 mm Mounting Height: 19.5 mm Magnet: 90.0 mm Dimensions Tweeter Frame: 58mm Mounting Diameter: 51mm Mounting Depth: 17.6mm Height: 25.6 mm General Frequency Range: 55 Hz 40 kHz Impedance: 4 Ohms Sensitivity: 88 dB/W Recommended Amplification: up to 80W RMS per channel
• Peak Power: 240 Watts
• RMS Power: 80 Watts (CTA-2031 Compliant)
• Frame 165 mm
• Cutout Diameter: 129mm
• Mounting Depth: 57.7 mm
• Mounting Height: 19.5 mm
• Magnet: 90.0 mm
• Frame: 58mm
• Mounting Diameter: 51mm
• Mounting Depth: 17.6mm
• Height: 25.6 mm
• Frequency Range: 55 Hz 40 kHz
• Impedance: 4 Ohms
• Sensitivity: 88 dB/W
• Recommended Amplification: up to 80W RMS per channel

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Vehicle Fitment:

• Mazda BT-50 TF 2020-Onwards
• Front: 6x9-Inch
• Rear: 6.5-Inch
