Mazda 3 Axela BM Alpine 6.5-Inch Front Speaker Upgrade Bundle 2013-2016

This is a custom front speaker upgrade package tailored by Everything 4WD to suit the Mazda 3 (Axela) 2013-2016 BM.

Speaker Package Range: Alpine HDZ 165mm Series

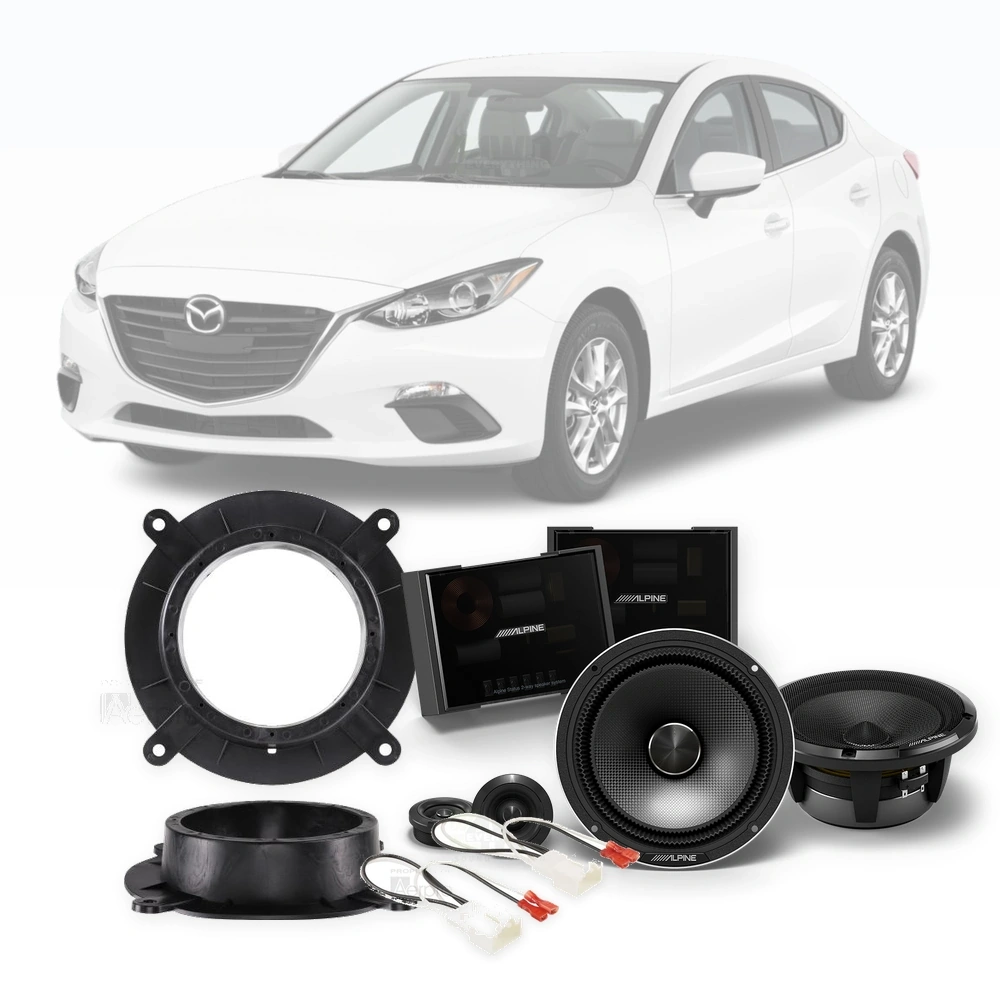

Package Includes:

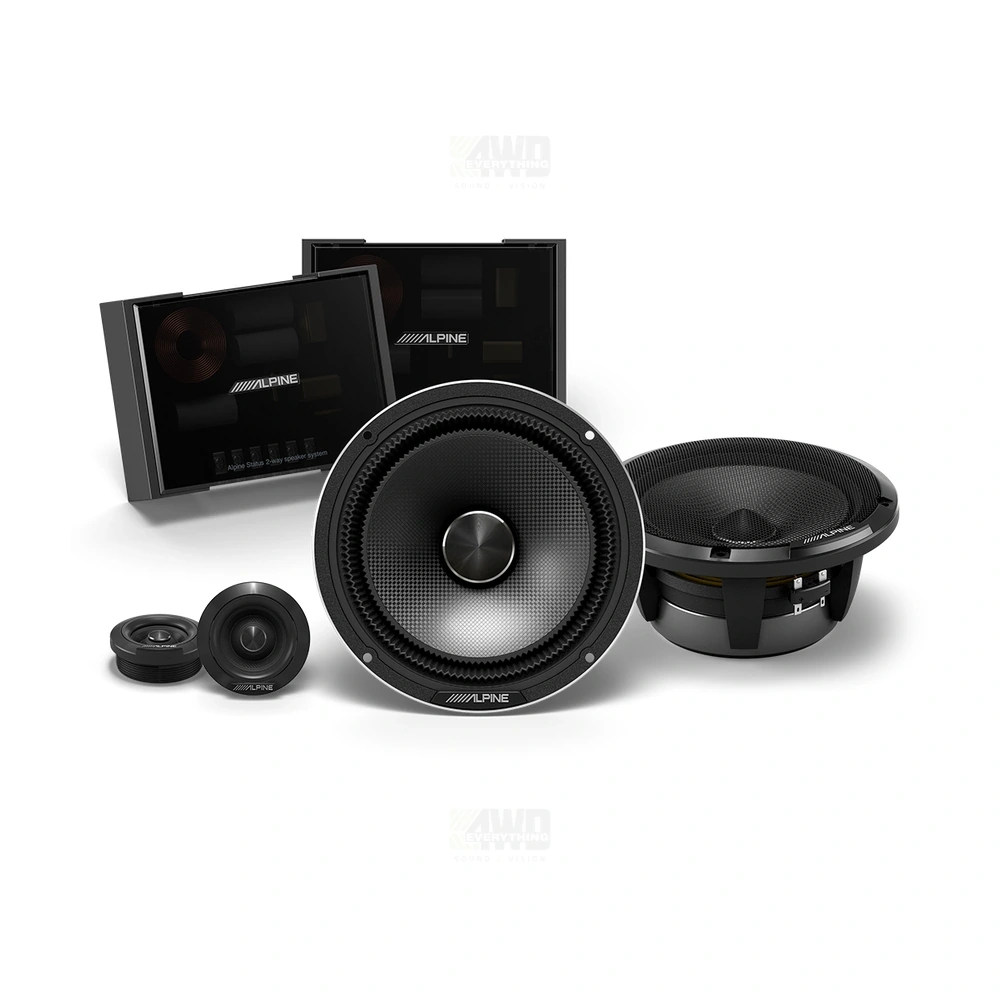

• Alpine HDZ-65CS - 6.5-Inch component speakers for the front

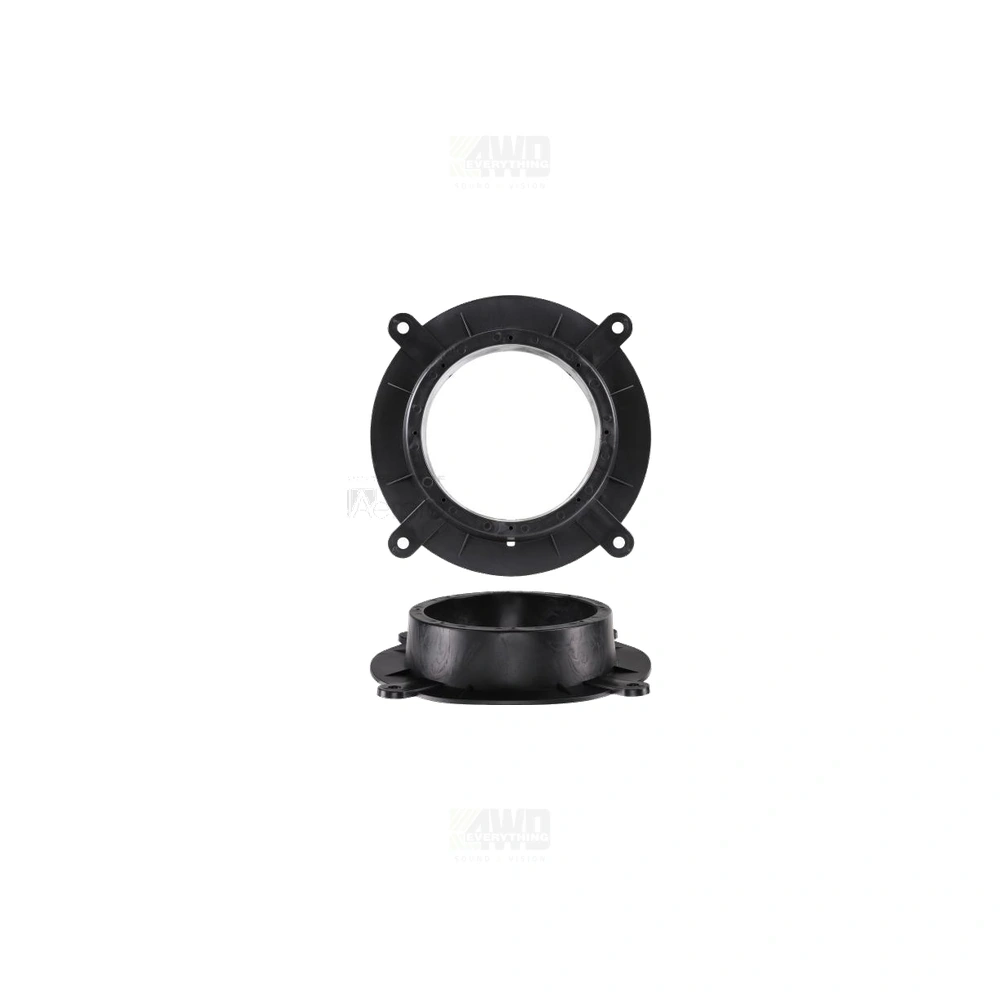

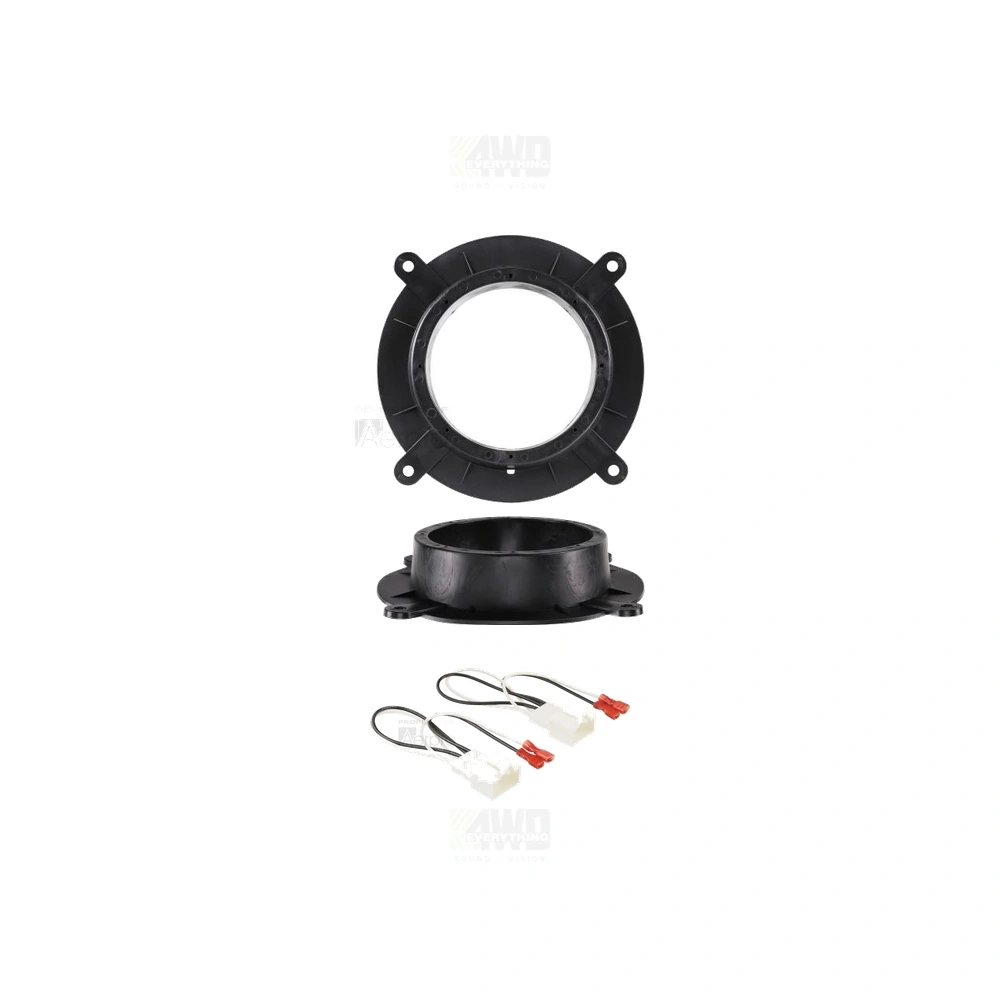

• Aerpro APS313 Speaker Spacer Pair (Front) - Speaker spacer to suit Mazda 3 (Axela) BM
• Aerpro APS21 OEM Speaker Adapter Pair - Speaker plug adaptors to suit Mazda 3 (Axela) BM

Alpine HDZ-65CS Specifications:

• Features Hi-Res Audio certified 2-Way speaker system AlpineF#1Status speaker trickle-down technology Maximum Peak Power: 300 Watts Maximum RMS Power: 100 Watts Woofer diameter: 170mm (177mm with attached grill) Tweeter diameter: 70mm (25mm voice coil) Aluminum die-cast baskets Ring-radiator tweeters Backed carbon fiber cones Double-gathered edge High-end X-Over networks Included speaker grills Integrated Wave Guide on all speakers
• Hi-Res Audio certified 2-Way speaker system
• AlpineF#1Status speaker trickle-down technology
• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Woofer diameter: 170mm (177mm with attached grill)
• Tweeter diameter: 70mm (25mm voice coil)
• Aluminum die-cast baskets
• Ring-radiator tweeters
• Backed carbon fiber cones
• Double-gathered edge
• High-end X-Over networks
• Included speaker grills
• Integrated Wave Guide on all speakers
• Specifications Impedance 4Ohms Sensitivity 88dB SPL (2.83 V @ 1 m) Frequency Response: 55Hz 40kHz Mounting depth: woofer 67mm Cutout diameter: woofer 142mm Recommended amplification: up to 100W RMS per channel Ferrite magnet (woofer) Neodymium magnet (mid-range speaker and tweeter)
• Impedance 4Ohms
• Sensitivity 88dB SPL (2.83 V @ 1 m)
• Frequency Response: 55Hz 40kHz
• Mounting depth: woofer 67mm
• Cutout diameter: woofer 142mm
• Recommended amplification: up to 100W RMS per channel
• Ferrite magnet (woofer)
• Neodymium magnet (mid-range speaker and tweeter)

We recommend checking the speaker location in the vehicle before installation/purchase to ensure this product will suit your application.

Aerpro APS21 OEM Speaker Adapter:

The Aerpro APS21 Speaker Plug Adaptors suit various Ford and Mazda vehicles, converting the original speaker plugs into standard size aftermarket speaker terminals. The plug and play design enables speakers to be installed into the vehicle without the need to cut the original vehicle wiring loom, resulting in a simple yet professional installation that can be reversed at any time. The 4 pin plug is wired for coaxial aftermarket speakers and can also be cut for installing aftermarket component (splits) speakers.

• HARNESS TYPE: SPEAKER ADAPTORS
• SOLD AS: PAIRS
• NOTES:
  • The 4 pin plug is wired for coaxial aftermarket speakers and can also be cut for installing aftermarket component (splits) speakers.

Vehicle Fitment:

• Mazda 3 (Axela) 2013-2016 BM
• Front: 6.5-Inch
