LightForce LFDLHBEAST-MBT50 BEAST Driving Light Wiring Harness to suit Mazda BT50 3rd Gen & Isuzu D-Max 3rd Gen

SKU:LFDLHBEAST-MBT50

$223.00


Calculate Shipping

Utilise the full potential of your BEAST Driving Lights by Lightforce, with this dedicated Plug & Play Wiring Harness. This harness is specifically designed to make BEAST’s 3-mode operation compatible with both Mazda BT50 and Isuzu D-Max.

The harness kit comes complete with a dedicated headlight adaptor for simple integration into your vehicle’s headlight circuit.

A very small (8mm in diameter) single moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall, and connects directly to the BEAST 3-Mode Smart Switch. The smart switch illumination has been colour matched to the factory backlight colour, to ensure an OEM look and feel.

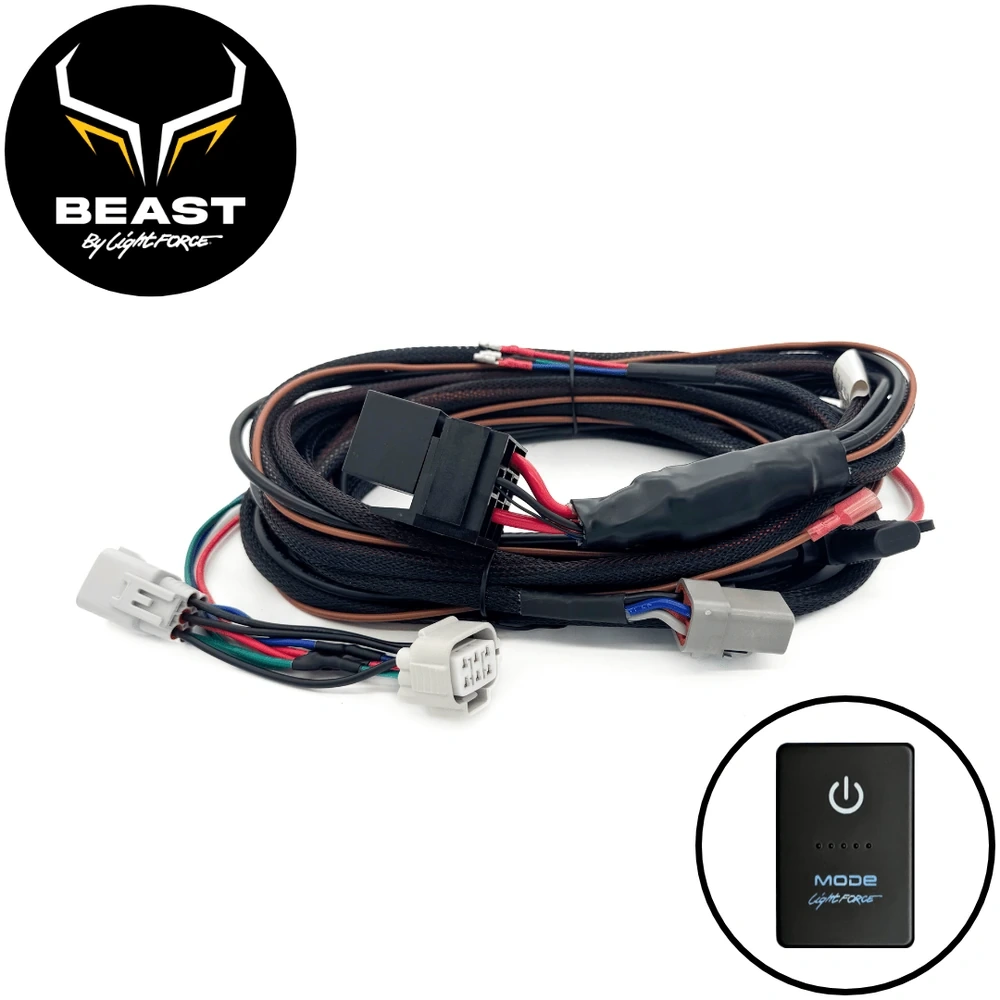

Kit contents

  • 1x Beast driving light harness including relay
  • 1x 3-mode Smart Rocker Switch with BT50/D-Max adaptor
  • 1x Dedicated headlight adaptor for BT50/D-Max
  • 1x Ignition pickup for BT50/D-Max
  • Cable ties and mounting hardware
  • User instructions via QR code

Specifications

  • 12V operation
  • 40 Amp relay
  • Positive or negative switching (controlled electronically)

Installation

Please refer to the user instructions here.

Compatibility Table

MakeModelYearVariant
IsuzuD-Max 3rd Gen2020 - 2024X-Terrain, LS-U, LS-M
MazdaBT50 3rd Gen2020 - 2024All

* Not compatible with 2024 facelift model.
