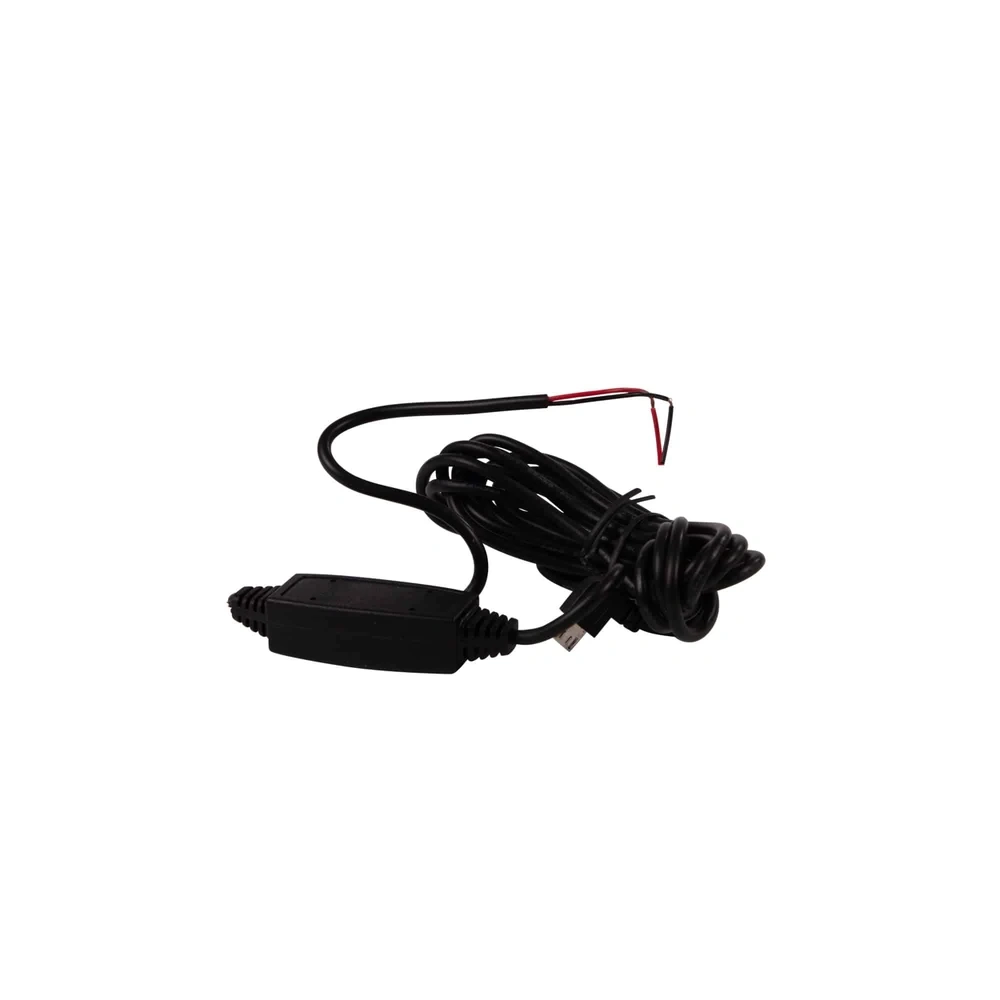

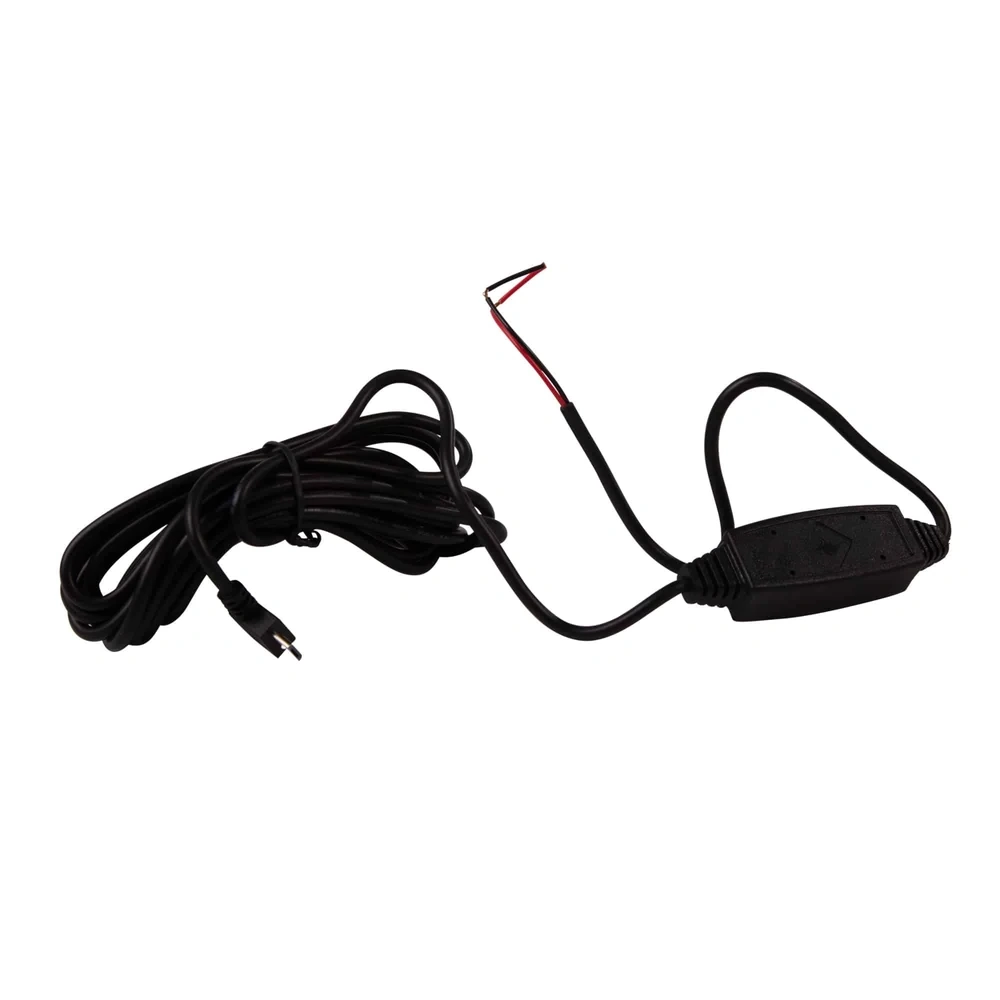

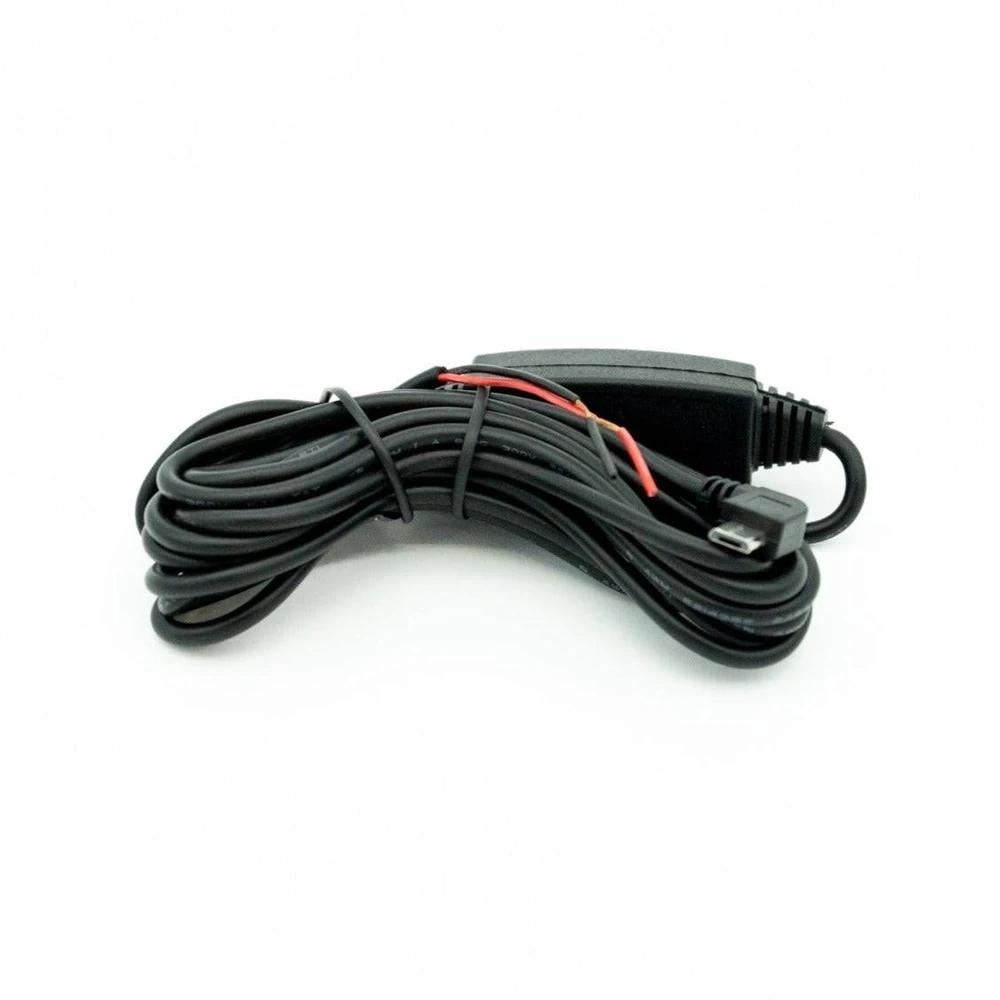

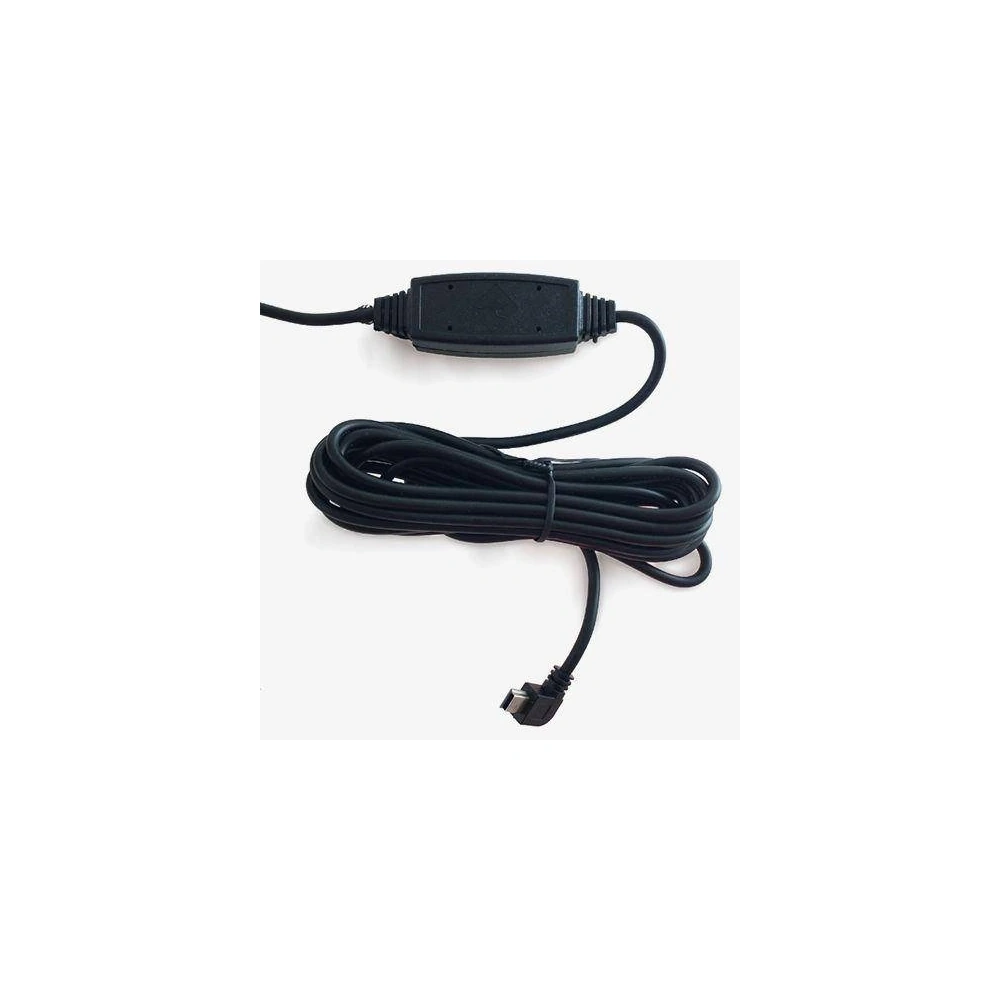

LightForce CBUSBMINI Hardwired Mini/Micro USB Charger

SKU:CBUSBMINI

$17.00


Calculate Shipping

Variant: Mini

Features:

  • Protection: Over-current, over-temperature, low voltage & short circuit protection (on output side)
  • Connector: Mini 5-Pin USB or Micro 5-Pin USB available
  • Low power consumption, high conversion rate (Maximum conversion rate 96%)
  • Fully encapsulated circuit board
  • Material: PVC
  • Colour: Black

Specifications:

  • Input voltage: 12V – 24V DC
  • Output voltage: 5V DC – 2.1 A
  • Low voltage cut off: 11.5V
  • Operating temperature: -40° Celsius to +85° Celsius
  • Dimensions: 74mm (L) x 22mm (W) x 16mm (H)
  • Cable length: Approximately 3.0M (300mm to voltage converter – 2700mm from voltage converter to USB connector)

Simple two wire hook up, red wire positive (+) black wire negative (-)

NOTE: All vehicle accessories should be wired through a fuse, recommended minimum fuse rating 2A (not included)
