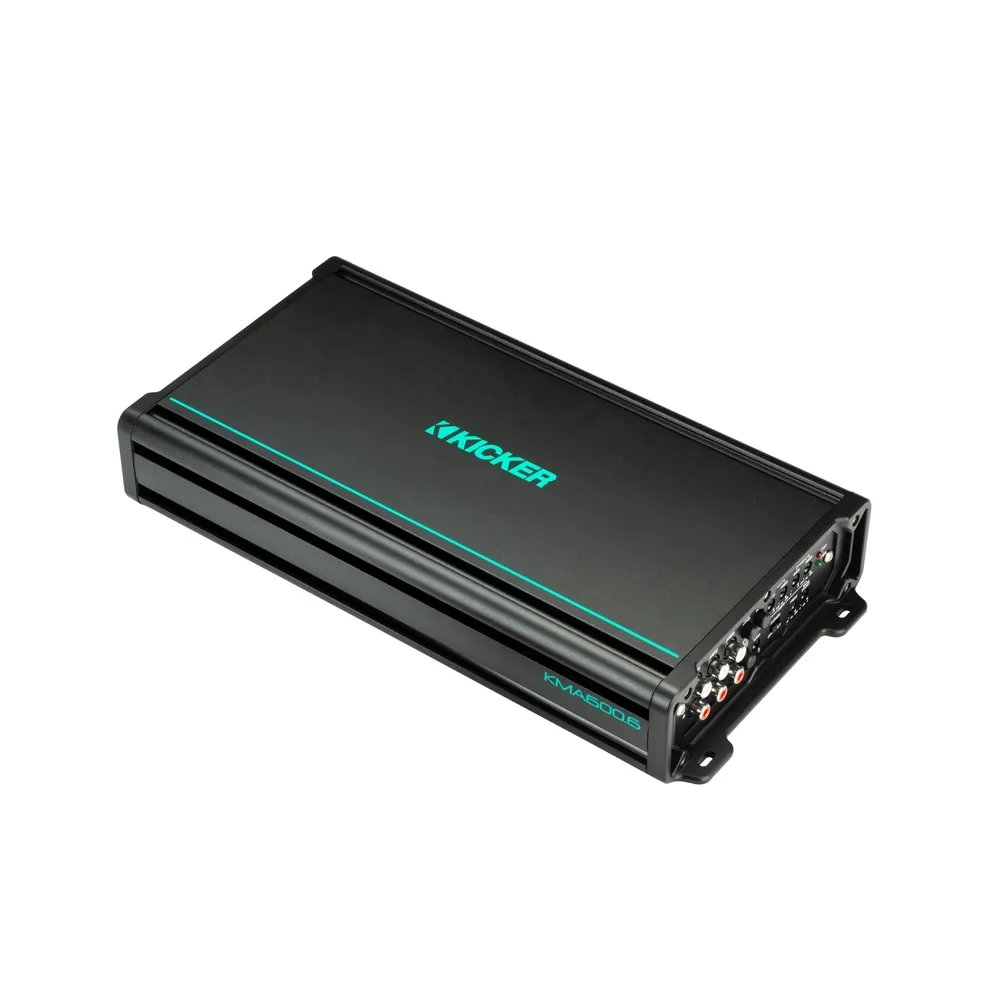

Kicker 48KMA600.6 – 6 x 50 watts RMS 6-Channel Amplifier

THREE ZONES OF FUN

Using a Class-D power plant, this amp features a variable bass boost with KickEQ™, giving you as much as 6dB of extra bump on the Amp 3 channels. Powering as many as 12 speakers, this amplifier makes your entire boat sound like a floating concert! A powerful 12dB crossover is also included, letting you quickly tune your system to perfection.

Ultra-Efficient Class D Design
750 Watts of Dynamic Power
Three Zones of Control
Six-Channel Amplifier with Bridging Capability
Conformal-Coated Circuit Board
Variable 12dB Crossover
KickEQ™ Variable 6dB Bass Boost
Real Marine™ ABYC/NMMA-Compliant Power Connections
316L Stainless-Steel Hardware Included
Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!

This KM-Series amplifier delivers 100 watts into six channels, or 200 watts bridged into three channels. See below for more details.

Specifications
POWER [watts/ch], 2 OHM STEREO
100 x 6
POWER [watts/ch], 4 OHM STEREO
50 x 6
POWER [watts/ch], 4 OHM BRIDGED MONO
200 x 3
DYNAMIC POWER [watts]
750
Dimensions [in] all models 2-5/16H x 7-1/8W x ___L
13-15/16
Dimensions [cm] all models 5.9H x 18.0W x ___L
35.3
FREQUENCY RESPONSE [Hz]
10-20k, +0/-1dB
INPUT SENSITIVITY
High Level 250mV-10V
Low Level 125mV-5V
SIGNAL-TO-NOISE RATIO
>95dB, a-weighted, re: rated power
ACTIVE CROSSOVER
(amp 1 and amp 2) 12dB/octave, variable 0-200Hz, HP only; (amp 3) 12dB/octave, variable 50-200Hz, Off/HP/LP
SUBSONIC FILTER
(amp 3 only) 24dB/octave, high pass fixed @ 25Hz
KickEQ™ BOOST
(amp 3 only) Variable 0-6dB, centered @ 40Hz
RMS Power test @ 14.4v @ </- 1% THD+N, Audio Precision® APx500 analyzer, see www.kicker.com/amp-power-testing for details.

Dynamic Power test @ 14.4v @ </- 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.

Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
