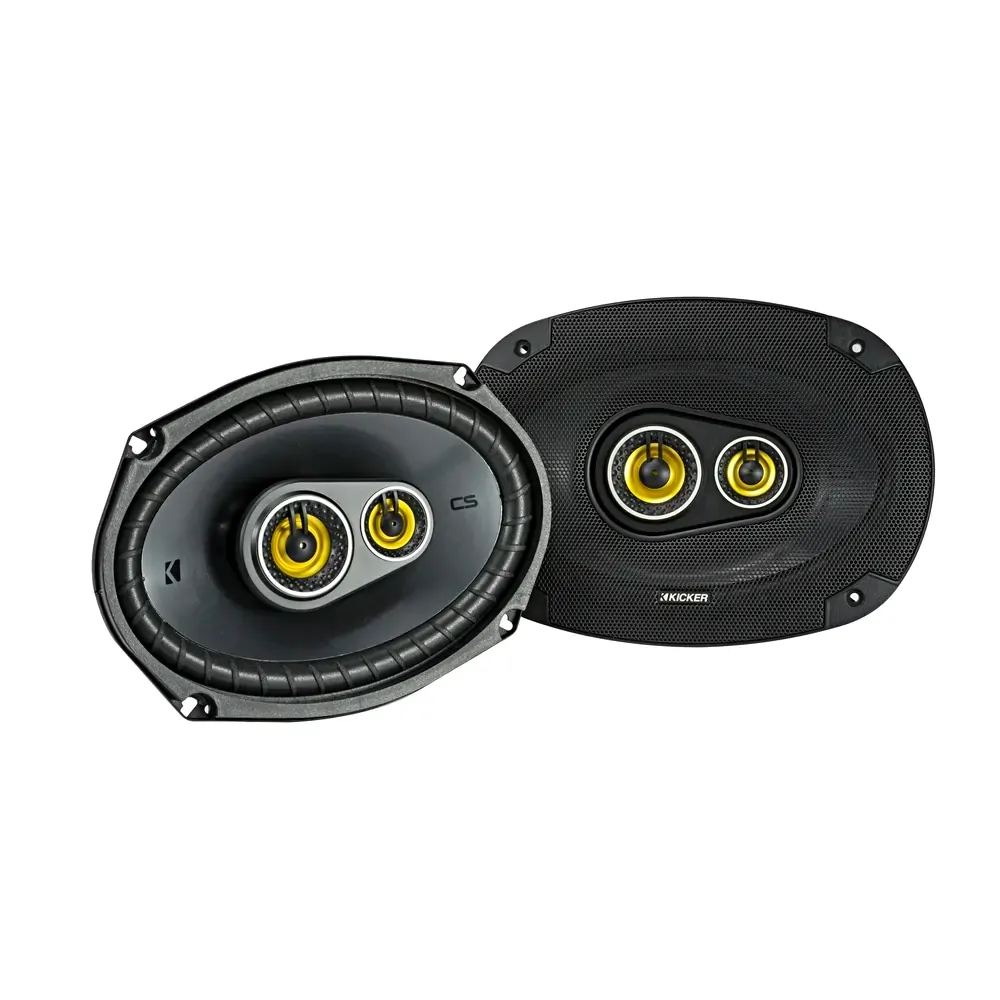

Kicker 46CSC6934 – 6″ X 9″ (160mm X 230mm) 150 Watts RMS 3-way Coaxial Speakers

CS-Series 6×9-inch 3-Way Speakers are the perfect way to upgrade your factory system.

CS-Series 3-Ways deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.

The rugged 6×9-inch, 3-way speaker is especially cool. With a massive 300-watt peak power rating, this triaxial driver gives you extraordinary volume, while the integrated 2-inch midrange driver and dedicated tweeter give you crisp, accurate details for the realism you crave.

These CS speakers work best with 150 watts of recommended power. See below for more details.

Fits nearly every car made
Zero-protrusion tweeters to fit nearly any factory depth
Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
UV-treated poly-foam surround resists heat or direct sunlight
Large woofer magnet in a heavy-duty motor for ultra-clean bass
Integrated 2-inch (50mm) midrange drivers gives detailed attention to mid frequencies
PEI-tweeter construction provides superb clarity
Neodymium tweeter magnets allow for increased volume in high frequencies
Steel mesh grilles included for speaker protection

Specifications
Speaker Design
3 – way
Woofer Size | in [mm]
6×9 [160×230]
Mid Size | in [mm]
2 [50]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.5
Peak Power | Watts
450
Continuous Power | Watts, RMS
150
Sensitivity [SPLo] | dB @ 1W, 1m
92
Effective Frequency Range | Hz
30-20k
Mounting Hole Diameter | in [mm]
5 5/8 x 8 7/16 [143×215]
Top Mount Depth | in [mm]
7/16 [12]
Bottom Mount Depth | in [mm]
3 3/16 [81]
Tweeter Protrusion | in [mm]
1/16 [1]
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Materia
PEI [polyether imide
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
