Kenwood DMX80AXS 9" Trapezoid Head Unit Upgrade Bundle to Suit Toyota Prado 2013–2017 Factory OEM Amplified Models Only

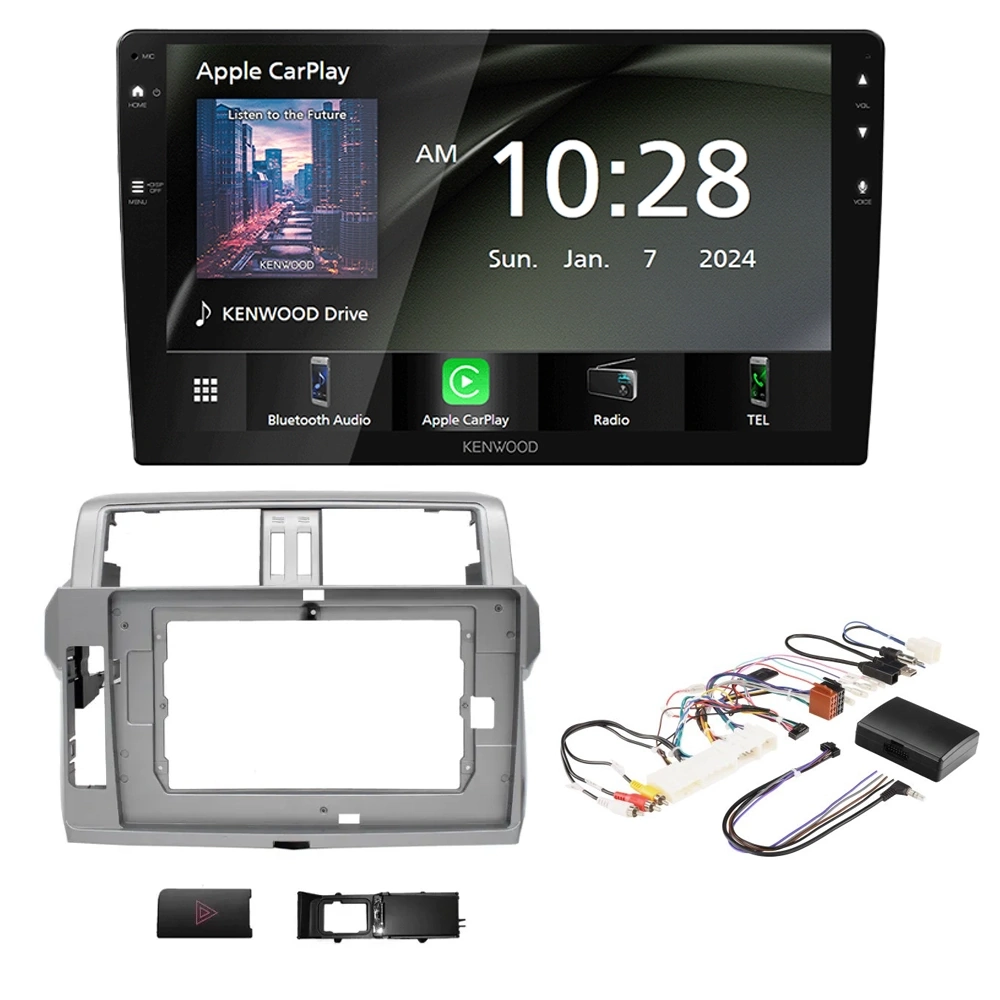

This complete bundle includes the head unit, installation kit, and ISO harness for easy installation.

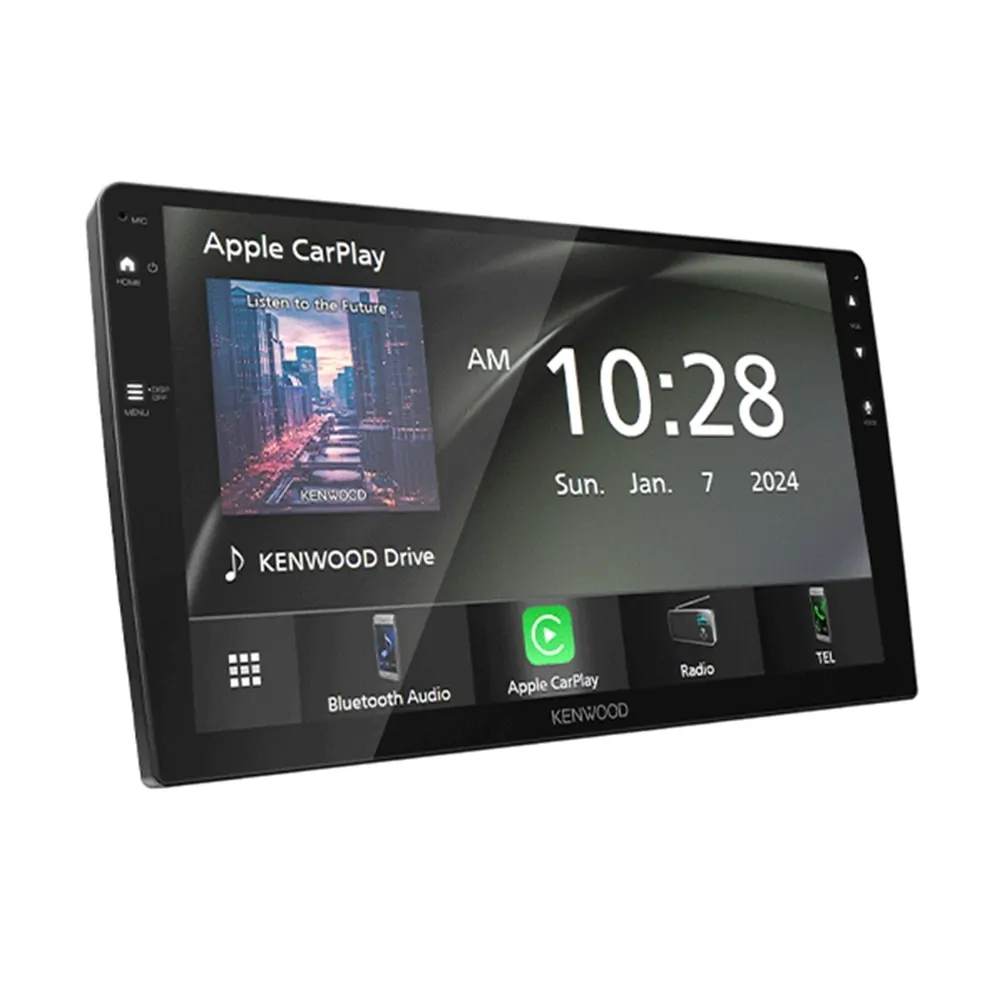

• Head Unit: Kenwood DMX80AXS  9-Inch Custom-Fit Wireless Apple CarPlay & Android Auto Head Unit

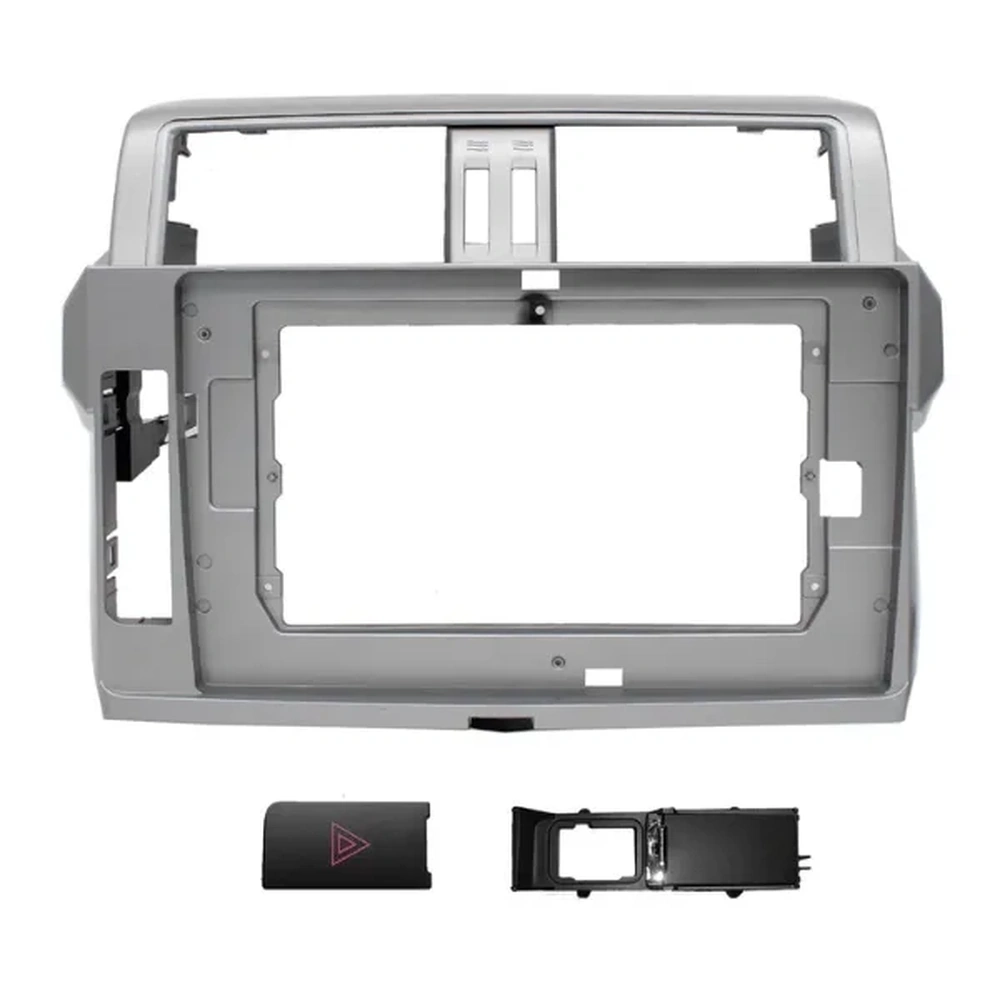

• Installation Kit: Fascia designed for compatible 9″ and 10″ trapezoid-shaped head units with steering wheel control interface to suit Toyota Prado 2013–2017 factory OEM amplified models only.

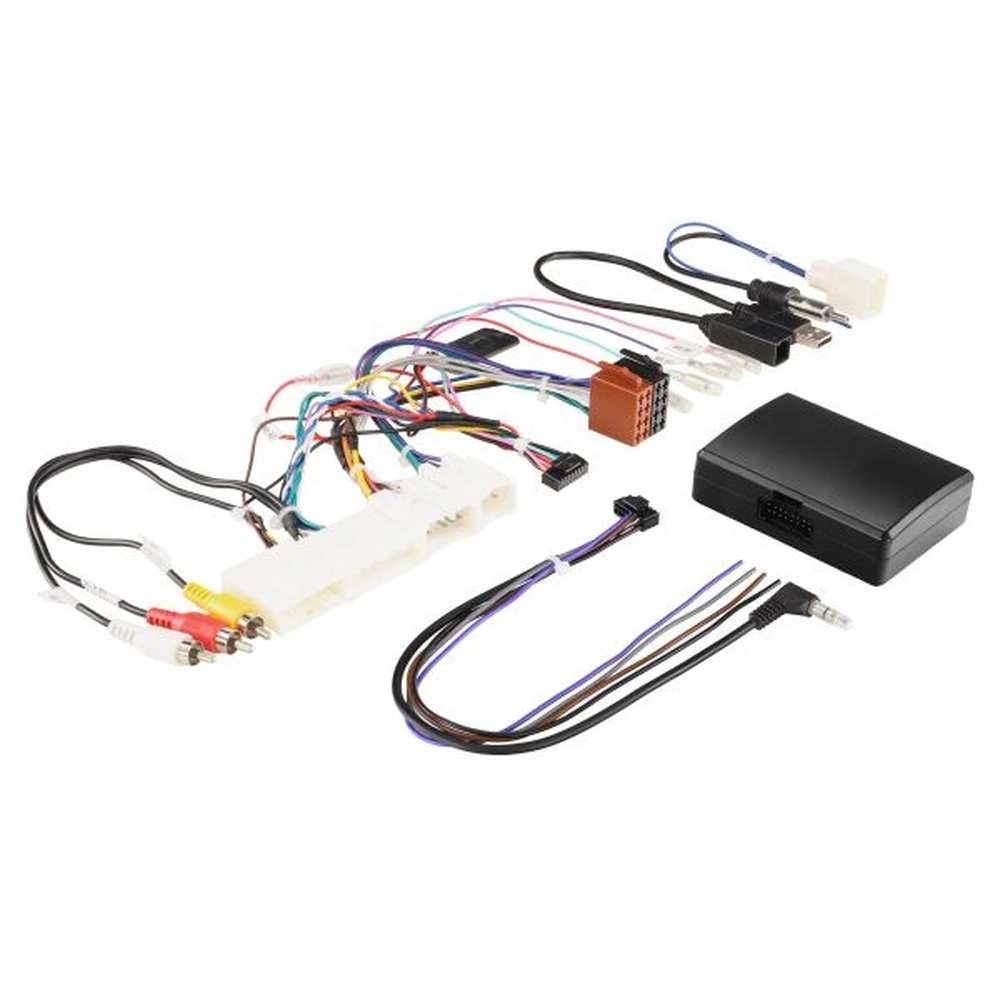

• ISO Harness: Aerpro APP8KE8  22 Pin ISO Radio Harness for Kenwood

Head Unit Features
The Kenwood DMX80AXS Monitor with Receiver blends cutting-edge connectivity and uncompromising audio performance into a sleek, universal-fit chassis that works with a wide range of dash facias available from Australian Car Audio. Key highlights include a brilliant 9" WSVGA (1024 × 600) capacitive touchscreen, low-profile “short chassis” design, and dedicated “Direct” key for instant access to Apple CarPlay or Android Auto wired or wireless, your choice.

Built for both style and substance, the DMX80AXS features an intuitive capacitive touch panel with high-contrast text and swipe-friendly widgets. Customizable “Light and Dark” display modes and high-proximity panel construction ensure crisp, clear visuals from any angle. Shortcut keys let you jump straight to your favourite functions, while the included 13-band graphic EQ and Digital Time Alignment let you tailor the soundstage to perfection.

It’s not just about looks either Kenwood’s advanced audio architecture delivers true fidelity. High-voltage 2.5 V preouts plus a dedicated subwoofer output ensure powerful, noise-free signal paths to your amplifiers, and built-in Bluetooth® (dual-phone pairing) keeps hands-free calls and music streaming both simple and reliable.

Supported entertainment and infotainment services include:

• 9.0? WSVGA capacitive touchscreen display
• Universal-shape, short-chassis receiver body
• Apple CarPlay™ (wired or wireless)
• Android Auto™ (wired or wireless)
• Wireless smartphone mirroring via MirrorApp+ (iPhone & selected Android devices)
• WebLink® Cast for compatible iOS/Android handsets
• Bluetooth® (dual-phone connect) with audio streaming & hands-free calling
• Rear-view camera input with adjustable parking guidelines
• 2 × 2.5 V preamp outputs + mono subwoofer output
• 13-band graphic EQ & Digital Time Alignment
• High-current USB charging (2.1 A max)
• Direct OEM steering-wheel remote control compatibility

With so many ways to connect, customise and enjoy premium in-car entertainment, the Kenwood DMX80AXS makes every drive more fun and keeps you focused on the road.

Vehicle Feature Retention:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
• Retains OEM USB and AUX Inputs (if equipped), when connected to compatible aftermarket headunits
• Retains OEM Reverse Camera (excludes 360-degree cameras) when connected to a compatible aftermarket AV headunit
• Retains OEM amplifier, does not support fade
• CAN-BUS integration compatible, no additional modules required
• Provides output feeds for reverse, park brake and speed pulse
• Fitted with a vehicle specific plug, for simple installation

Vehicle Compatibility

• Toyota Prado 2014-2017 150 Series (150 Series)
• Toyota Prado 2017-2020 150 Series (150 Series)

This Kenwood head unit includes a built-in microphone. For enhanced call quality, you can optionally purchase an external Kenwood microphone.
