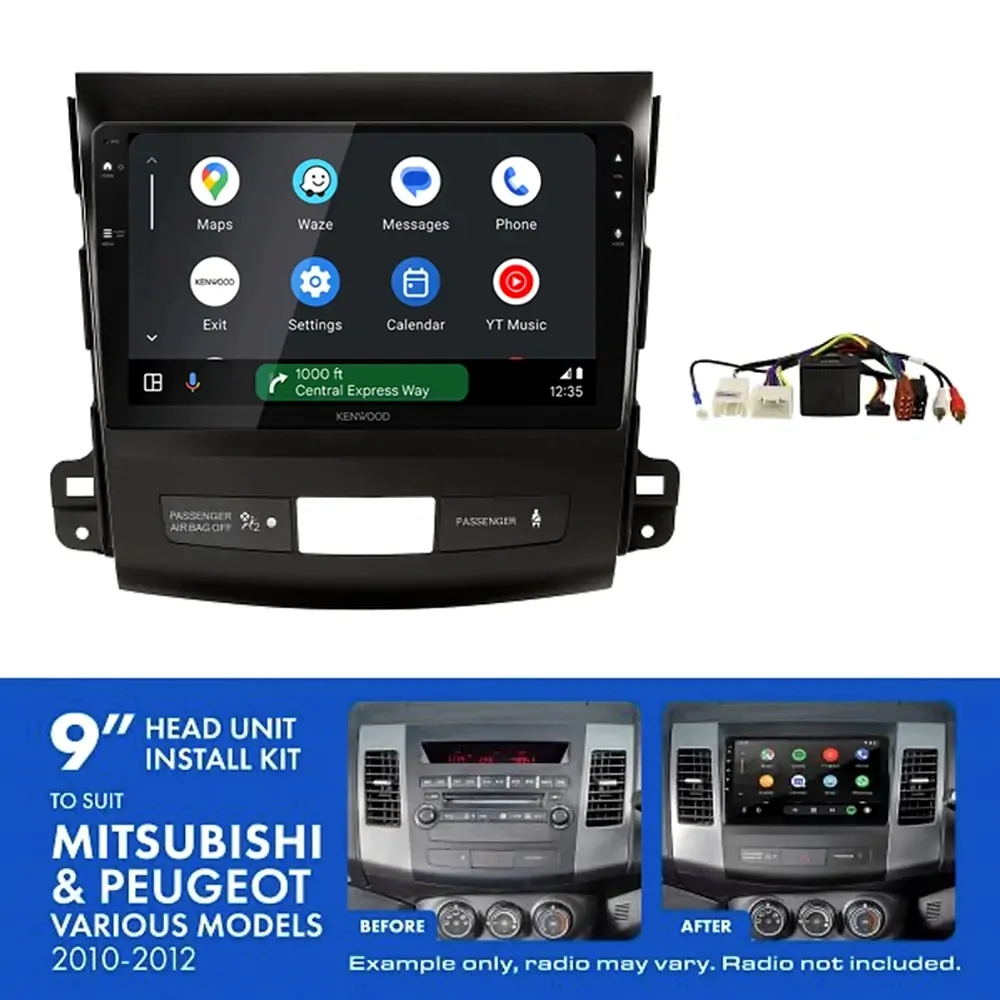

Kenwood DMX80AXS 9" Trapezoid Head Unit Wireless CarPlay Android Auto + AKMB11 Install Kit Fits Mitsubishi Peugeot 2010-2012

This complete bundle includes the head unit, installation kit, and ISO harness for easy installation.

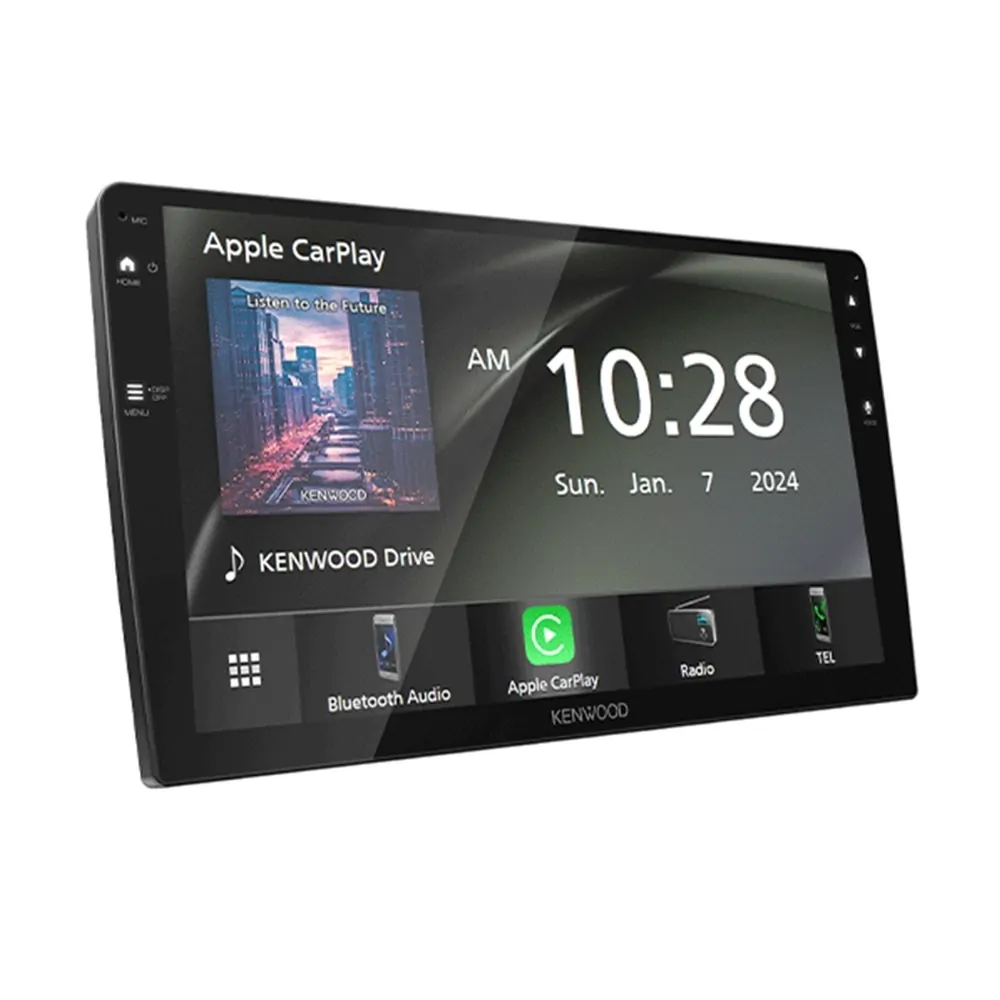

• Head Unit: Kenwood DMX80AXS  9-Inch Custom-Fit Wireless Apple CarPlay & Android Auto Head Unit

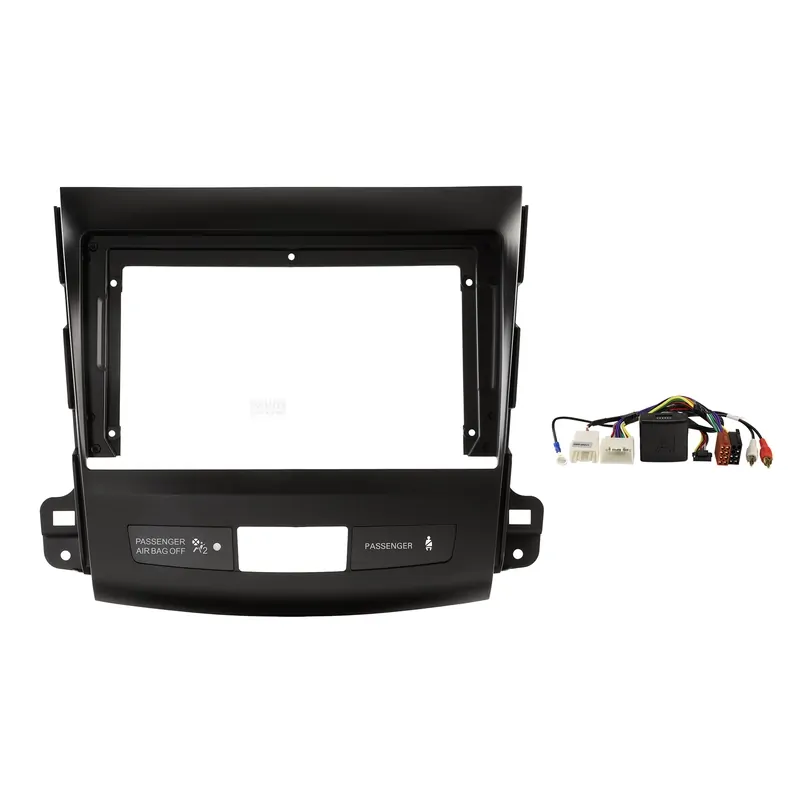

• Installation Kit: Aerpro AKMB11 9-Inch Install Kit (compatible with Mitsubishi Peugeot 2010-2012, suits DMX80AXS and DMH-AP6650BT)
• ISO Harness: Aerpro APP8KE8  22 Pin ISO Radio Harness for Kenwood

Head Unit Features
The Kenwood DMX80AXS Monitor with Receiver blends cutting-edge connectivity and uncompromising audio performance into a sleek, universal-fit chassis that works with a wide range of dash facias available from Australian Car Audio. Key highlights include a brilliant 9" WSVGA (1024 × 600) capacitive touchscreen, low-profile “short chassis” design, and dedicated “Direct” key for instant access to Apple CarPlay or Android Auto wired or wireless, your choice.

Built for both style and substance, the DMX80AXS features an intuitive capacitive touch panel with high-contrast text and swipe-friendly widgets. Customizable “Light and Dark” display modes and high-proximity panel construction ensure crisp, clear visuals from any angle. Shortcut keys let you jump straight to your favourite functions, while the included 13-band graphic EQ and Digital Time Alignment let you tailor the soundstage to perfection.

It’s not just about looks either Kenwood’s advanced audio architecture delivers true fidelity. High-voltage 2.5 V preouts plus a dedicated subwoofer output ensure powerful, noise-free signal paths to your amplifiers, and built-in Bluetooth® (dual-phone pairing) keeps hands-free calls and music streaming both simple and reliable.

Supported entertainment and infotainment services include:

• 9.0? WSVGA capacitive touchscreen display
• Universal-shape, short-chassis receiver body
• Apple CarPlay™ (wired or wireless)
• Android Auto™ (wired or wireless)
• Wireless smartphone mirroring via MirrorApp+ (iPhone & selected Android devices)
• WebLink® Cast for compatible iOS/Android handsets
• Bluetooth® (dual-phone connect) with audio streaming & hands-free calling
• Rear-view camera input with adjustable parking guidelines
• 2 × 2.5 V preamp outputs + mono subwoofer output
• 13-band graphic EQ & Digital Time Alignment
• High-current USB charging (2.1 A max)
• Direct OEM steering-wheel remote control compatibility

With so many ways to connect, customise and enjoy premium in-car entertainment, the Kenwood DMX80AXS makes every drive more fun and keeps you focused on the road.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: No
• AUX Input: No
• USB Input: No
• Parking Tones: No
• Factory Amplifier: No
• Vehicle Menu: No
• Other:

Vehicle Compatibility

• Peugeot 4007 2009-2012
• Mitsubishi Outlander 2007-2012 ZG, ZH (Headunit Dependant)

This Kenwood head unit includes a built-in microphone. For enhanced call quality, you can optionally purchase an external Kenwood microphone.
