Kenwood DMX7525S + Aerpro FP8574K - matte black Head Unit Upgrade Kit Fits Audi Q5 2009-2016 (8R)

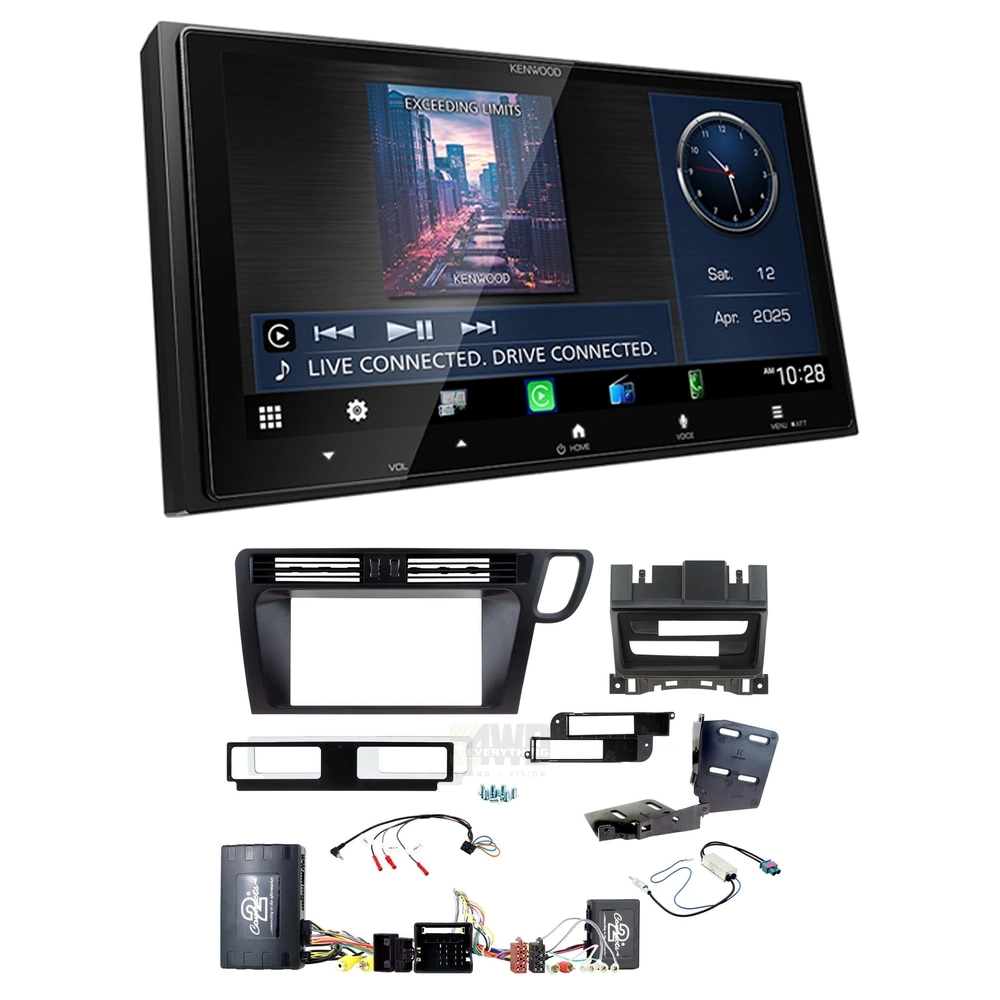

Complete Double-DIN Upgrade Kit
SKU:DMX7525S_FP8574K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Kenwood DMX7525S pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.
Bundle Includes:
- Kenwood DMX7525S 6.8" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8574K matte black install kit Fits Audi - q5 mmi, most amplified - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP8KE5 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration
Kenwood DMX7525S 6.92” Digital Multimedia Receiver
The Kenwood DMX7525S is a 6.92-inch multimedia receiver with a high-definition touchscreen, wireless smartphone connectivity and flexible audio and camera features.
- 6.92-inch high-definition capacitive touchscreen
- HD 1280 x 720 display with wide viewing angles
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Wireless smartphone mirroring with compatible devices
- HDMI input for smartphone or device mirroring
- Built-in Bluetooth and Wi-Fi
- 13-band graphic equalizer and time alignment
- USB audio and video playback
- iDatalink Maestro ready for supported vehicle integration
- 2 camera inputs with adjustable parking guide lines
- HD rear camera ready with compatible Kenwood cameras
- Direct OEM steering remote control support
- High-current 2.1A smartphone charging via USB
- Screen size: 6.92 inches
- Display resolution: 1280 x 720 HD
- Touchscreen: Capacitive
- Camera inputs: 2
- HDMI input: Yes
- Pre-outs: 3 x 3V

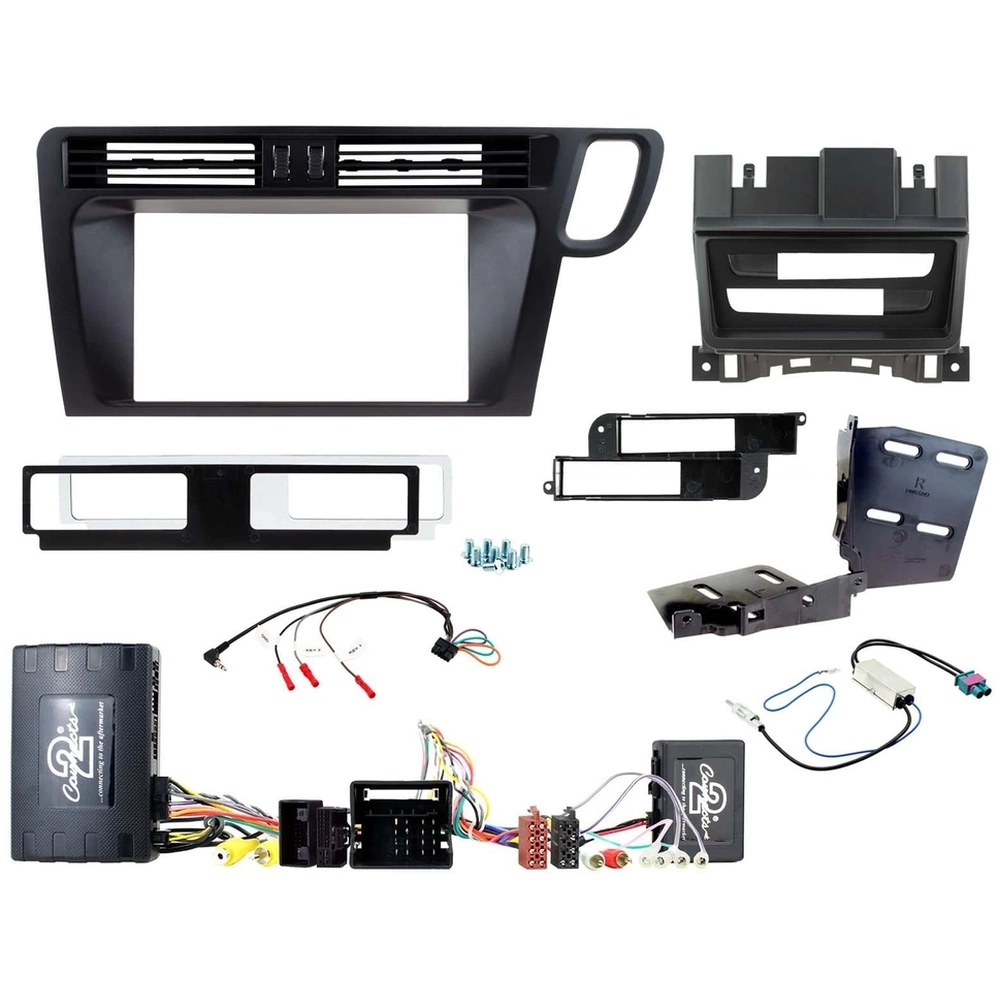

Fascia Kit Features:
- Kit includes all the parts required to complete an installation of an aftermarket head unit conveniently in one box
- Suitable for double din aftermarket head unit installation
- High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
- Suitable for MMI vehicles with a factory MOST amplified system only
- Retains steering wheel control functionality including phone button
- Park assist visualisation (if equipped)
- Retains access to vehicle settings, menus and controls
- CAN-BUS integration compatible
- Provides output feeds for park brake, speed pulse and reverse gear
Fascia Kit Specs:
- APPLICATION: DOUBLE DIN
- COLOUR: MATTE BLACK
- FACIA INTERNAL DIMENSIONS: 172mm (W) x 98mm (H)
- FACIA EXTERNAL DIMENSIONS: 310mm TOP / 239mm BASE (W) x 141mm (H)
- INCLUSIONS:
- DOUBLE DIN FACIA KIT
- MOUNTING BRACKETS
- AIR VENT BRACKET AND MOUNT
- MMI BUTTON AND BRACKET
- MOUNTING HARDWARE
- STEERING WHEEL CONTROL INTERFACE
- MAIN WIRING HARNESS
- ANTENNA ADAPTER
- UNIVERSAL SWC PATCH LEAD
- IMPORTANT INFORMATION:
- Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- This kit is intended for MMI vehicles with a factory MOST amplified system only.
- This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC compatible.
- To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
Vehicle Compatibility:
- Audi Q5 2009-2016 (8R)
| SKU | DMX7525S_FP8574K |
| Brand | KENWOOD |
