Kenwood DMX7525S + Aerpro FP8533K - Single / matte black Head Unit Upgrade Kit Fits Various Dodge Vehicles
Complete Double-DIN Upgrade Kit
SKU:DMX7525S_FP8533K
This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Kenwood DMX7525S pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

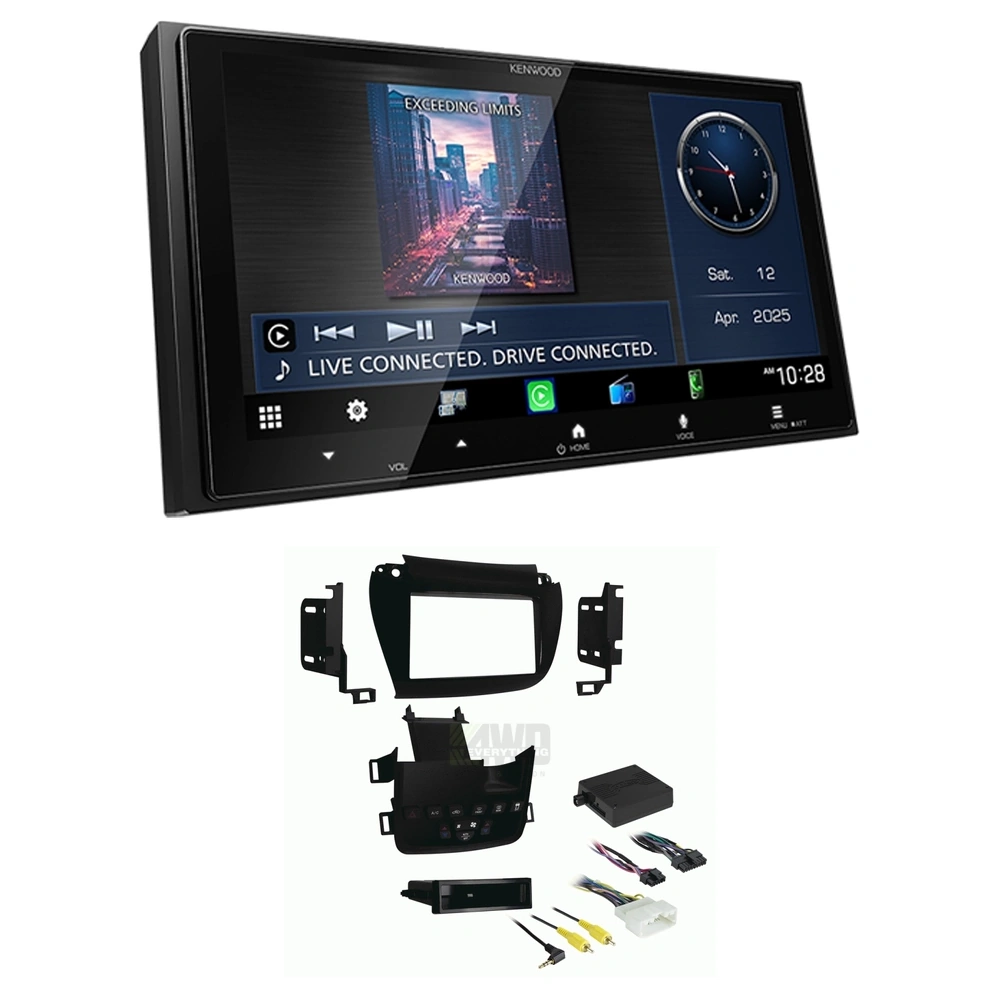

Bundle Includes:
- Kenwood DMX7525S 6.8" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
- Aerpro FP8533K Single / matte black install kit Fits Dodge & Fiat - various models - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
- Aerpro APP8KE5 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration
Kenwood DMX7525S 6.92” Digital Multimedia Receiver
The Kenwood DMX7525S is a 6.92-inch multimedia receiver with a high-definition touchscreen, wireless smartphone connectivity and flexible audio and camera features.
- 6.92-inch high-definition capacitive touchscreen
- HD 1280 x 720 display with wide viewing angles
- Wireless and wired Apple CarPlay
- Wireless and wired Android Auto
- Wireless smartphone mirroring with compatible devices
- HDMI input for smartphone or device mirroring
- Built-in Bluetooth and Wi-Fi
- 13-band graphic equalizer and time alignment
- USB audio and video playback
- iDatalink Maestro ready for supported vehicle integration
- 2 camera inputs with adjustable parking guide lines
- HD rear camera ready with compatible Kenwood cameras
- Direct OEM steering remote control support
- High-current 2.1A smartphone charging via USB
- Screen size: 6.92 inches
- Display resolution: 1280 x 720 HD
- Touchscreen: Capacitive
- Camera inputs: 2
- HDMI input: Yes
- Pre-outs: 3 x 3V

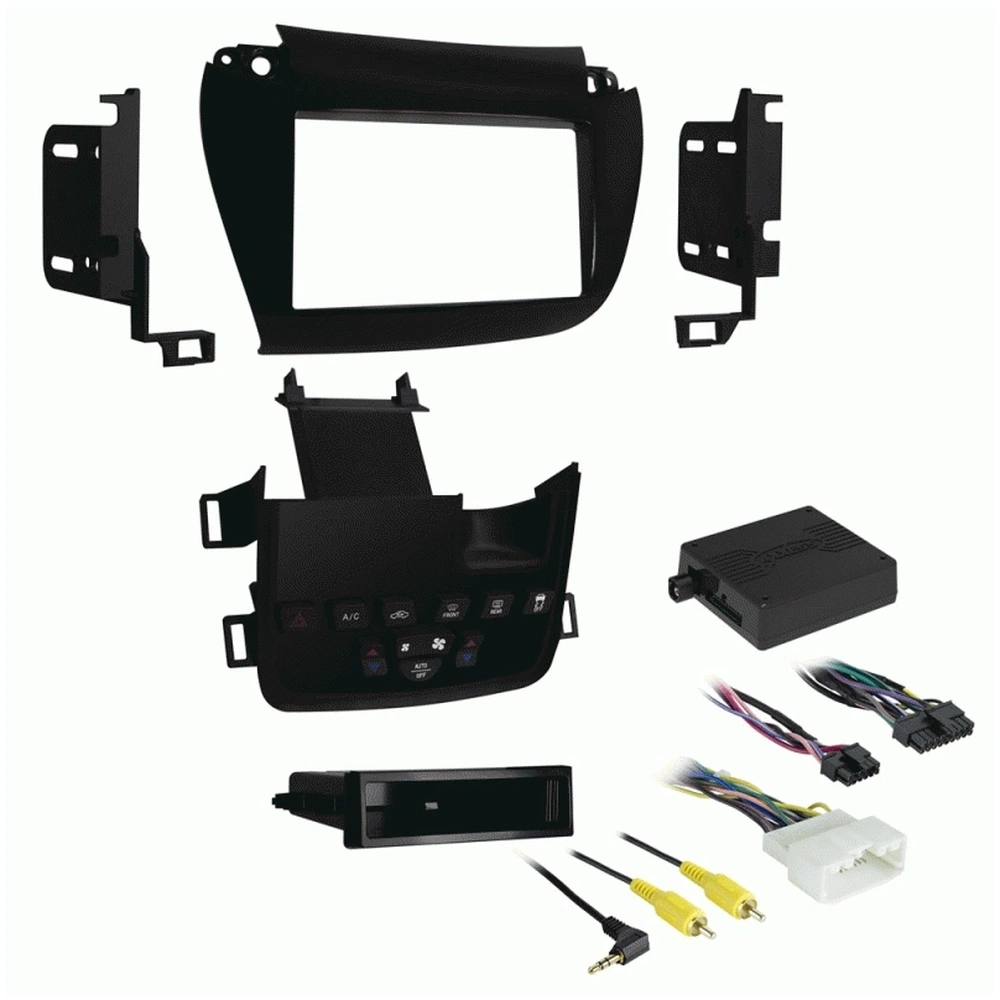

Fascia Kit Features:
- Suitable for single or double din aftermarket headunit installation
- High quality matte black finish on facia kit to suit the style of the dashboard in the vehicle
- To retain steering wheel control functionality, AXSWC interface is required (sold separately)
- To retain FM/AM radio reception, APA58 Antenna adaptor required (sold separately)
- Suitable for vehicles with 4.3" OEM factory display only
- Retains the factory display screen for vehicle information and AC display
- Allows an aftermarket reverse camera to connect to the factory display screen
- Replaces and relocates A/C buttons with new button panel
- Provides output feeds for park brake, speed pulse, reverse gear, amp remote and illumination
- Fitted with a vehicle specific plug, no cutting of wires required
- Vehicle harness included in kit does not use standard ISO connector system, this harness requires soldering to the aftermarket headunits wiring loom
Fascia Kit Specs:
- APPLICATION: SINGLE OR DOUBLE DIN
- COLOUR: MATTE BLACK
- INTERNAL DIMENSIONS: XXXmm (W) x XXXmm (H)
- EXTERNAL DIMENSIONS: XXXmm (W) x XXXmm (H)
- INCLUSIONS:
- DOUBLE DIN FACIA KIT
- POCKET (FOR SINGLE DIN INSTALLATION)
- CONSOLE BRACKET
- MOUNTING BRACKETS
- FACTORY SCREEN RETENTION INTERFACE
- WIRING HARNESS (BARE WIRE)
- NOTES:
- Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- To retain steering wheel controls AXSWC Steering Wheel Control Interface is required (sold separately). Aftermarket headunit must be SWC compatible. Functions may vary from the OEM Functions.
- APA58 Antenna adaptor required to retain radio reception (sold separately).
- Bare wire harness included, this kit is not compatible with Aerpro APP8 or APP9 Harnesses.
- Does not retain sound from Driver Convenience Group.
- Suitable for vehicles with 4.3" OEM factory display only.
Vehicle Compatibility:
- Dodge Journey 2012-2016 (Headunit Dependant)
- Fiat Freemont 2012-2016 (Headunit Dependant)
| SKU | DMX7525S_FP8533K |
| Brand | KENWOOD |
