Kenwood DMX7525S + Aerpro FP8417K - Head Unit Upgrade Kit Fits Chevrolet Silverado 2014-2019 (Headunit Dependant)

Complete Double-DIN Upgrade Kit

SKU:DMX7525S_FP8417K

RRP $1,169.00
$936.00
SAVE $233.00 (20%)
Available Options

Calculate Shipping

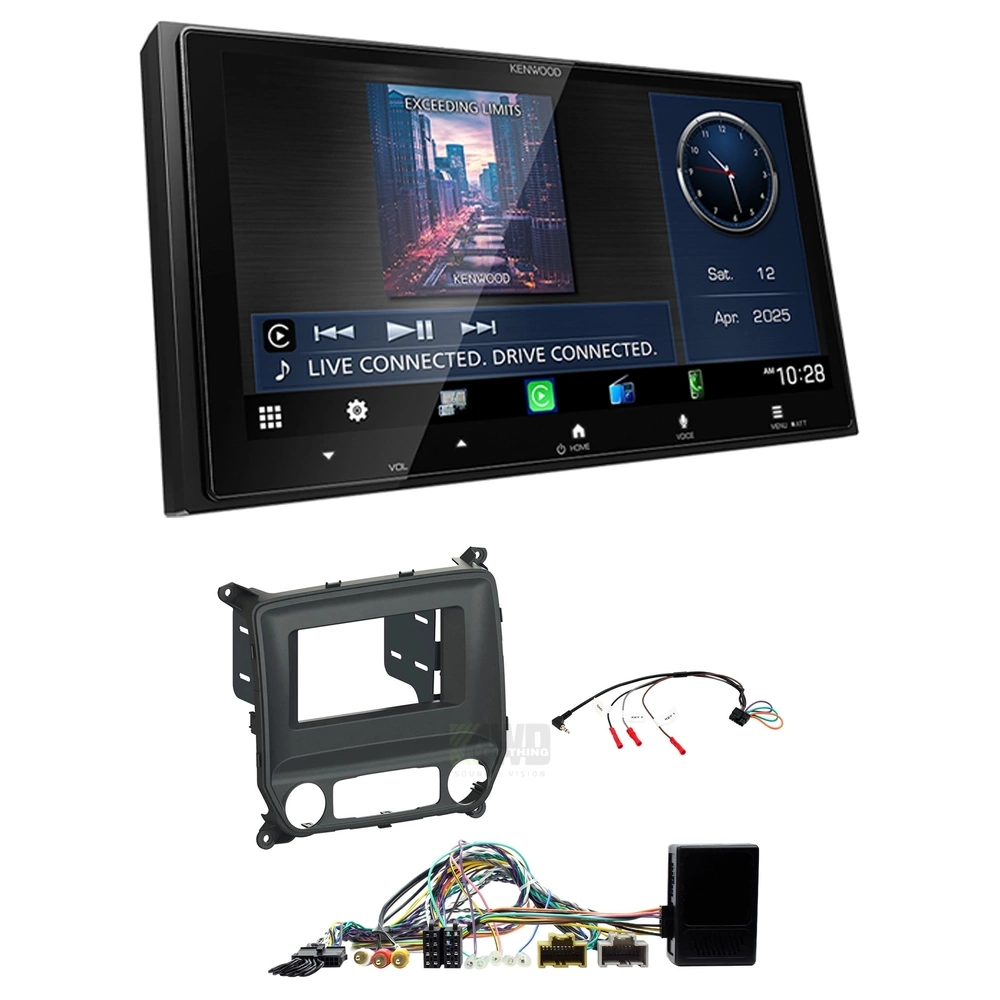

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Kenwood DMX7525S pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

Bundle Includes:

  • Kenwood DMX7525S 6.8" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8417K install kit Fits Chevrolet silverado wt- mylink 7" black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP8KE5 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

Kenwood DMX7525S 6.92” Digital Multimedia Receiver

The Kenwood DMX7525S is a 6.92-inch multimedia receiver with a high-definition touchscreen, wireless smartphone connectivity and flexible audio and camera features.

  • 6.92-inch high-definition capacitive touchscreen
  • HD 1280 x 720 display with wide viewing angles
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Wireless smartphone mirroring with compatible devices
  • HDMI input for smartphone or device mirroring
  • Built-in Bluetooth and Wi-Fi
  • 13-band graphic equalizer and time alignment
  • USB audio and video playback
  • iDatalink Maestro ready for supported vehicle integration
  • 2 camera inputs with adjustable parking guide lines
  • HD rear camera ready with compatible Kenwood cameras
  • Direct OEM steering remote control support
  • High-current 2.1A smartphone charging via USB
  • Screen size: 6.92 inches
  • Display resolution: 1280 x 720 HD
  • Touchscreen: Capacitive
  • Camera inputs: 2
  • HDMI input: Yes
  • Pre-outs: 3 x 3V

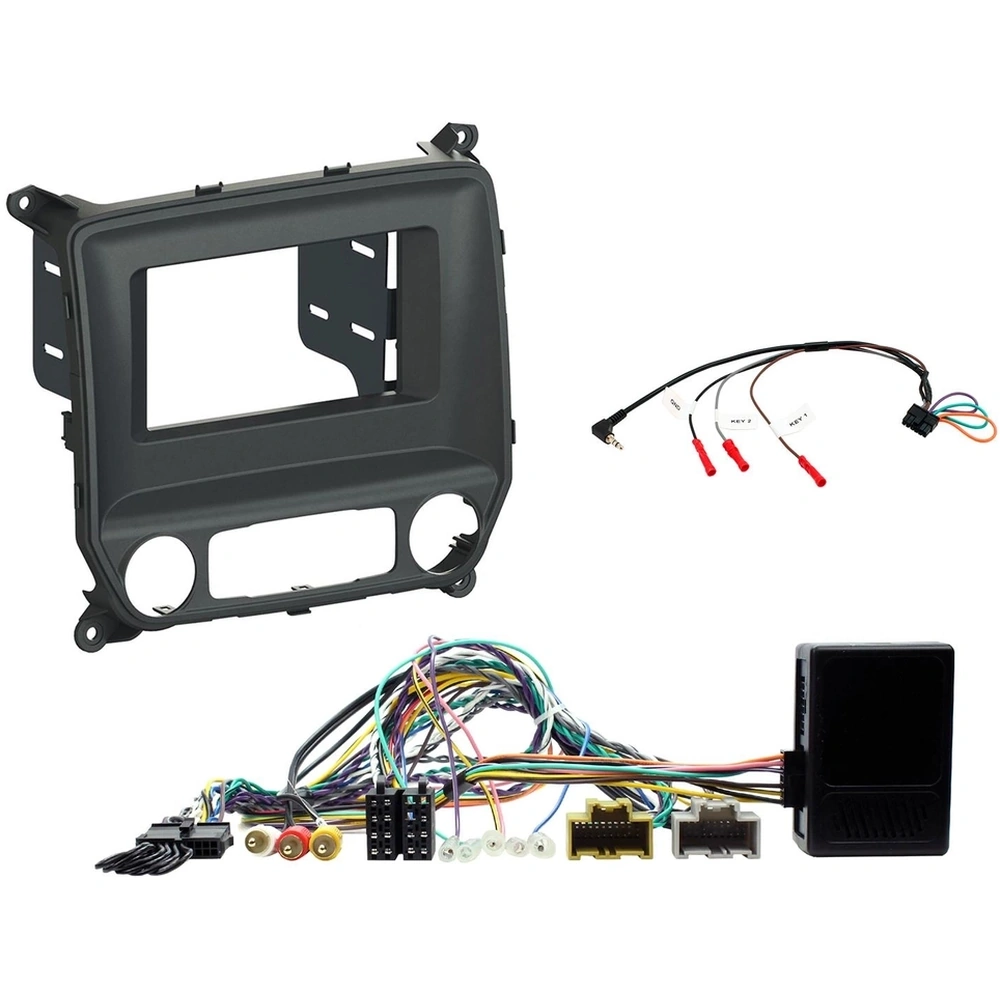

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Compatible with vehicles that have Mylink 7" OEM factory headunits
  • Retains warning chimes
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse, reverse gear and illumination

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: 173mm (W) x 99mm (H)
  • EXTERNAL DIMENSIONS: 285mm (W) TOP / 220mm (W) BASE x 247mm (H)
  • INCLUSIONS:
    • FACIA KIT
    • MOUNTING BRACKETS
    • VEHICLE INTERFACE HARNESS (CHCV5C)
    • ANTENNA ADAPTER
  • NOTES:
    • Suitable for vehicles with a factory Mylink 7" headunit
    • Warning chime speaker built into vehicle interface harness
    • The included vehicle interface harness does not retain the factory display of vehicle comfort settings. These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in
    • As the WT does not feature steering wheel control buttons, the patch lead is not used.

Vehicle Compatibility:

  • Chevrolet Silverado 2014-2019 (Headunit Dependant)
SKU DMX7525S_FP8417K
Brand KENWOOD
