Kenwood DMX7525S + Aerpro FP8415K - Head Unit Upgrade Kit Fits Holden Equinox 2017- EQ (Headunit Dependant)

Complete Double-DIN Upgrade Kit

SKU:DMX7525S_FP8415K

RRP $1,359.00
$1,088.00
SAVE $271.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Kenwood DMX7525S pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

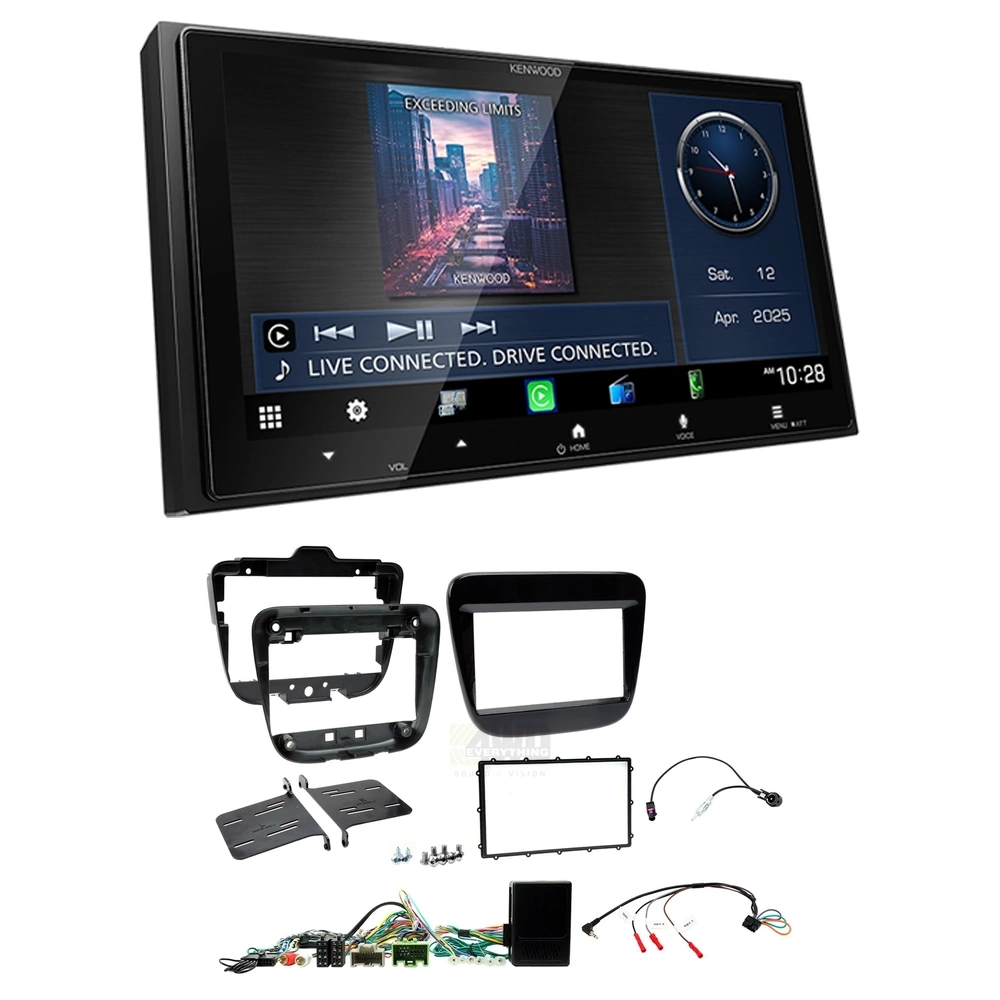

Bundle Includes:

  • Kenwood DMX7525S 6.8" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8415K Install kit Fits Holden equinox lt, ltz, ltz-v - mylink 8" gloss black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP8KE5 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

Kenwood DMX7525S 6.92” Digital Multimedia Receiver

The Kenwood DMX7525S is a 6.92-inch multimedia receiver with a high-definition touchscreen, wireless smartphone connectivity and flexible audio and camera features.

  • 6.92-inch high-definition capacitive touchscreen
  • HD 1280 x 720 display with wide viewing angles
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Wireless smartphone mirroring with compatible devices
  • HDMI input for smartphone or device mirroring
  • Built-in Bluetooth and Wi-Fi
  • 13-band graphic equalizer and time alignment
  • USB audio and video playback
  • iDatalink Maestro ready for supported vehicle integration
  • 2 camera inputs with adjustable parking guide lines
  • HD rear camera ready with compatible Kenwood cameras
  • Direct OEM steering remote control support
  • High-current 2.1A smartphone charging via USB
  • Screen size: 6.92 inches
  • Display resolution: 1280 x 720 HD
  • Touchscreen: Capacitive
  • Camera inputs: 2
  • HDMI input: Yes
  • Pre-outs: 3 x 3V

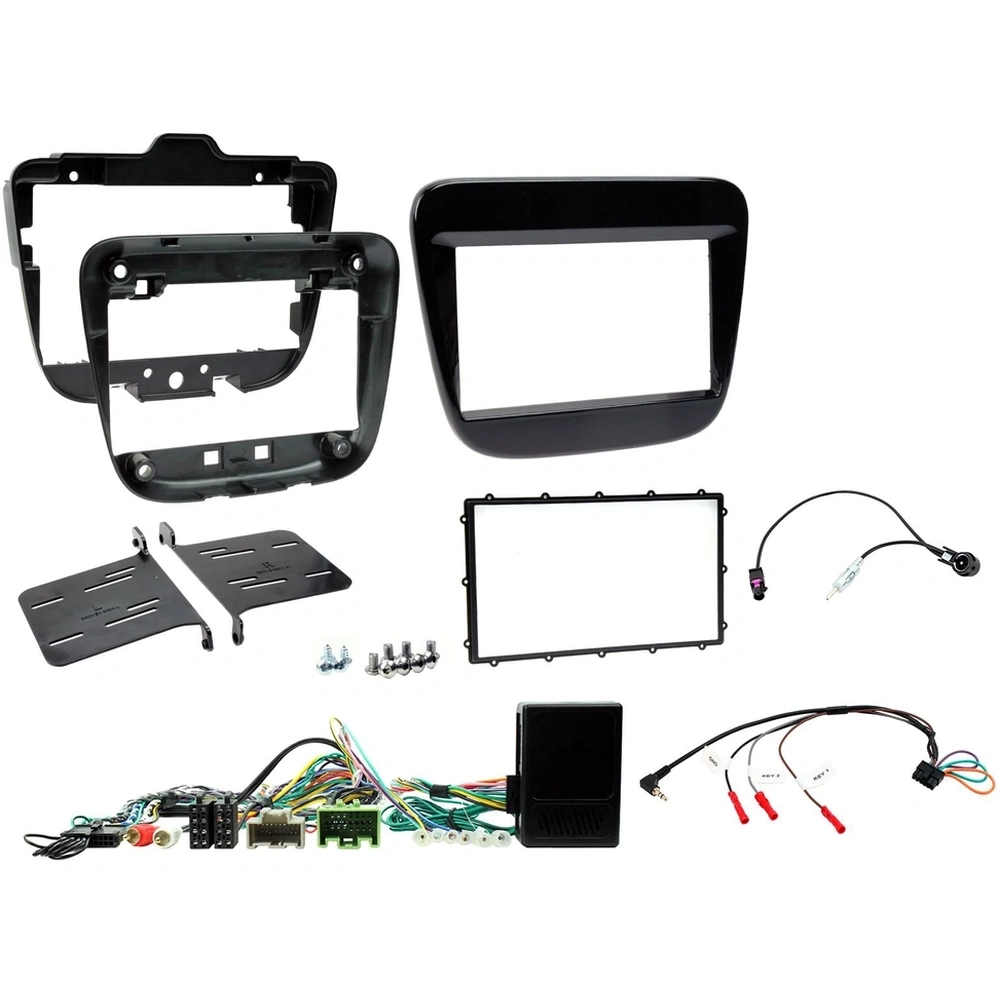

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality gloss black finish on facia kit to suit the style of the dashboard in the vehicle
  • Compatible with vehicles that have Mylink 8" OEM factory headunits
  • Retains steering wheel control functionality including phone button
  • Also retains warning chimes
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse, reverse gear and illumination

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: GLOSS BLACK
  • INTERNAL DIMENSIONS: 181mm (W) x 104mm (H) - (without trim)
  • EXTERNAL DIMENSIONS: 235mm TOP / 130mm BASE (W) x 180mm (H)
  • INCLUSIONS:
    • FACIA KIT
    • MOUNTING BRACKETS
    • STEERING WHEEL CONTROL INTERFACE (CHCV4C)
    • ANTENNA ADAPTER
    • UNIVERSAL PATCH LEAD
  • NOTES:
    • Factory unit: Mylink 8"
    • Warning chime speaker built into steering wheel control interface
    • The included steering wheel control module does not retain the factory display of vehicle comfort settings (to retain these use the infodapter version - Aerpro FP8415KC). These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in.

Vehicle Compatibility:

  • Holden Equinox 2017- EQ (Headunit Dependant)
