Kenwood DMX7525S + Aerpro FP8346K - Head Unit Upgrade Kit Fits Holden Astra 2014-2016 PJ

Complete Double-DIN Upgrade Kit

SKU:DMX7525S_FP8346K

RRP $1,329.00
$1,064.00
SAVE $265.00 (20%)
Available Options

Calculate Shipping

This complete double-DIN bundle provides everything you need for a seamless, factory-fit head unit upgrade in your vehicle. The Kenwood DMX7525S pairs with a dedicated Aerpro installation kit engineered for your specific make and model. Professional installation is recommended from your nearest car audio installer.

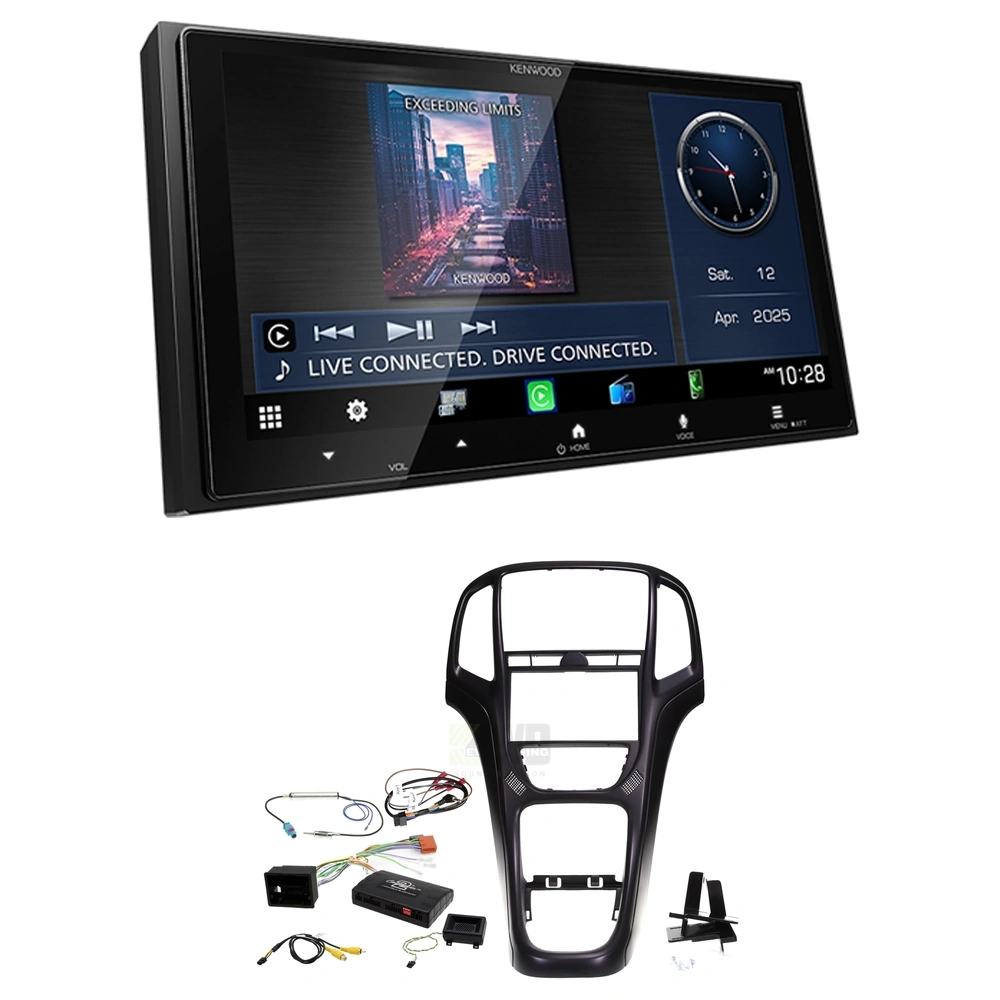

Bundle Includes:

  • Kenwood DMX7525S 6.8" Double-DIN Multimedia Receiver - Wireless & wired Apple CarPlay | Wireless & wired Android Auto | Built-in Bluetooth | AM/FM Tuner
  • Aerpro FP8346K Install kit Fits Holden astra pj; Opel astra as black - Vehicle-specific facia panel, wiring harnesses and all required mounting hardware for a direct-fit installation
  • Aerpro APP8KE5 Matching ISO Harness - Direct-plug ISO wiring harness for seamless head unit integration

Kenwood DMX7525S 6.92” Digital Multimedia Receiver

The Kenwood DMX7525S is a 6.92-inch multimedia receiver with a high-definition touchscreen, wireless smartphone connectivity and flexible audio and camera features.

  • 6.92-inch high-definition capacitive touchscreen
  • HD 1280 x 720 display with wide viewing angles
  • Wireless and wired Apple CarPlay
  • Wireless and wired Android Auto
  • Wireless smartphone mirroring with compatible devices
  • HDMI input for smartphone or device mirroring
  • Built-in Bluetooth and Wi-Fi
  • 13-band graphic equalizer and time alignment
  • USB audio and video playback
  • iDatalink Maestro ready for supported vehicle integration
  • 2 camera inputs with adjustable parking guide lines
  • HD rear camera ready with compatible Kenwood cameras
  • Direct OEM steering remote control support
  • High-current 2.1A smartphone charging via USB
  • Screen size: 6.92 inches
  • Display resolution: 1280 x 720 HD
  • Touchscreen: Capacitive
  • Camera inputs: 2
  • HDMI input: Yes
  • Pre-outs: 3 x 3V

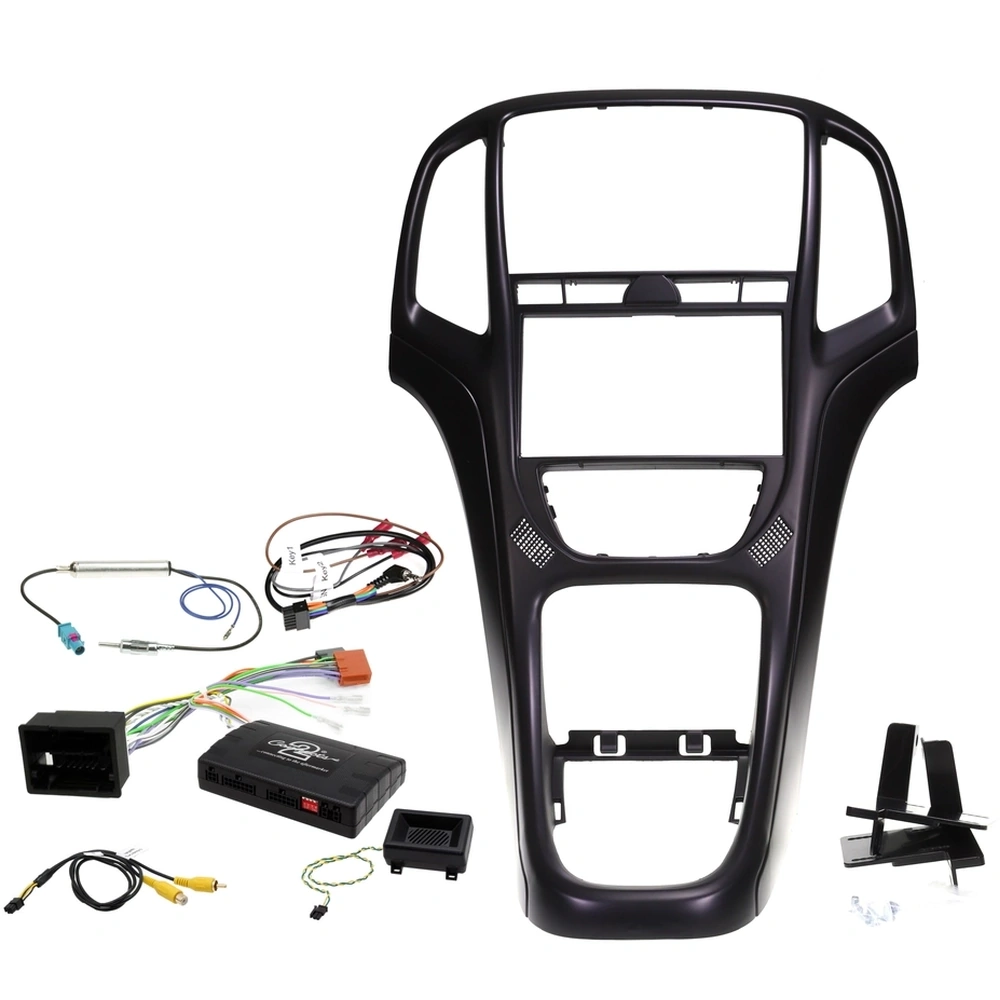

Fascia Kit Features:

  • Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
  • Suitable for double din aftermarket headunit installation
  • High quality black finish on facia kit to suit the style of the dashboard in the vehicle
  • Allows use of steering wheel controls (including phone button) & extensive vehicle settings
  • Displays OEM climate control, parking sensors & heated seats visualization on compatible aftermarket AV headunits
  • Retains OEM audible warnings
  • CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
  • Provides output feeds for park brake, speed pulse and reverse gear
  • To retain a factory fitted camera, an additional vehicle specific camera retention harness is required (sold separately)

Fascia Kit Specs:

  • APPLICATION: DOUBLE DIN
  • COLOUR: BLACK
  • INTERNAL DIMENSIONS: 173mm (W) x 100mm (H)
  • EXTERNAL DIMENSIONS: XXXmm TOP / XXXmm BASE (W) x XXXmm (H)
  • INCLUSIONS:
    • FACIA KIT
    • MOUNTING BRACKETS
    • INFODAPTER INTERFACE (CAGM01)
    • CHIME SPEAKER
    • RCA VIDEO/CAMERA SPLITTER CABLE
    • ANTENNA ADAPTER
    • UNIVERSAL PATCH LEAD
  • NOTES:
    • Aftermarket headunit requires a rear camera input.
    • To retain a factory fitted camera, an additional vehicle specific camera retention harness is also required (if available, sold separately).
    • Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.

Vehicle Compatibility:

  • Holden Astra 2014-2016 PJ
SKU DMX7525S_FP8346K
Brand KENWOOD
