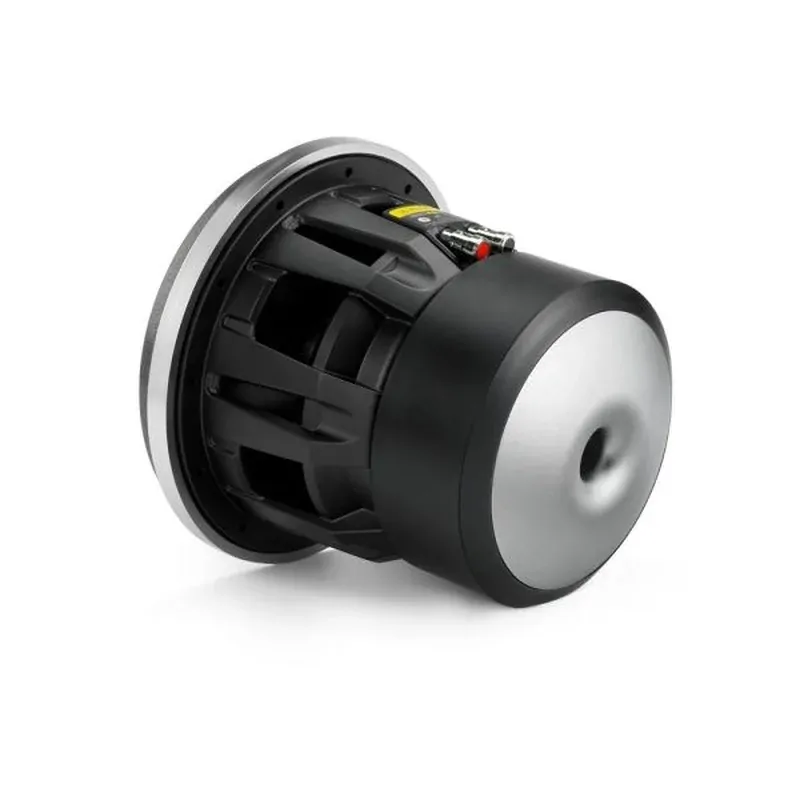

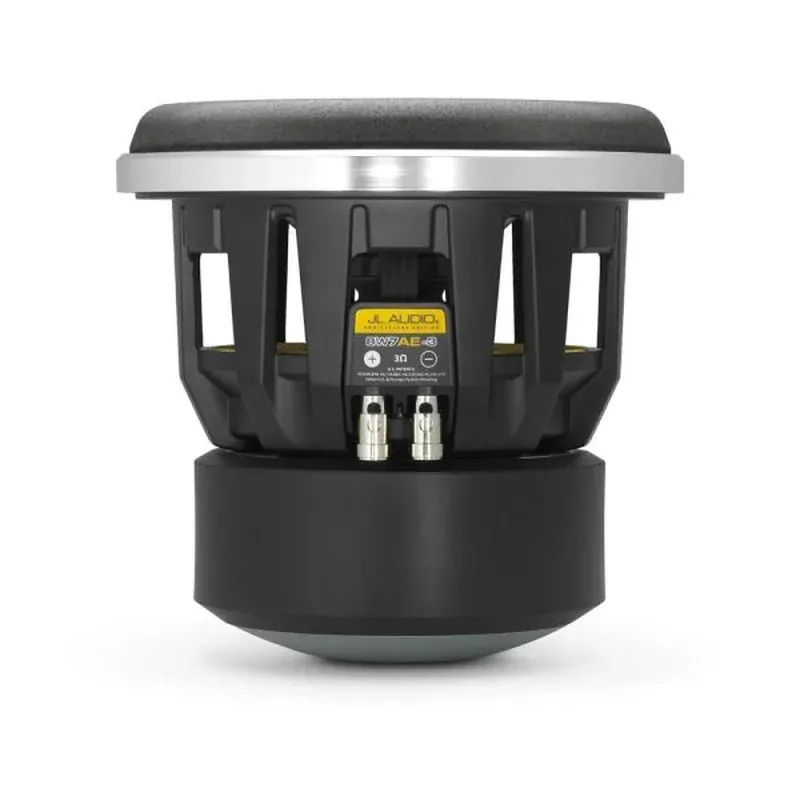

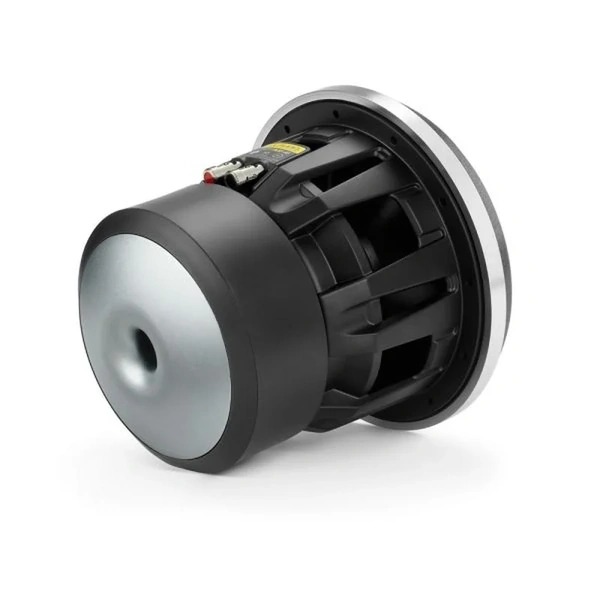

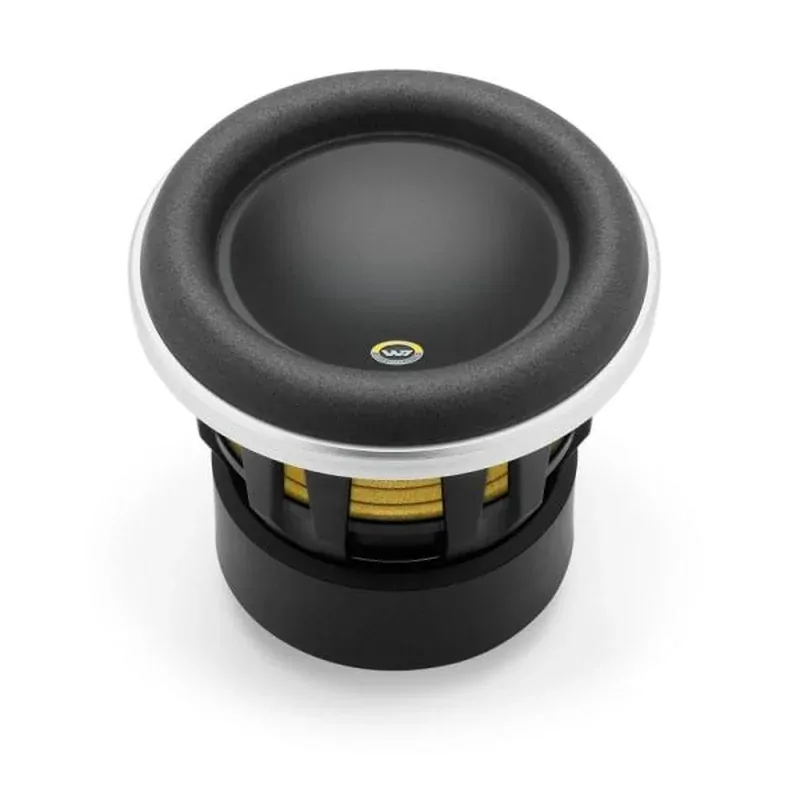

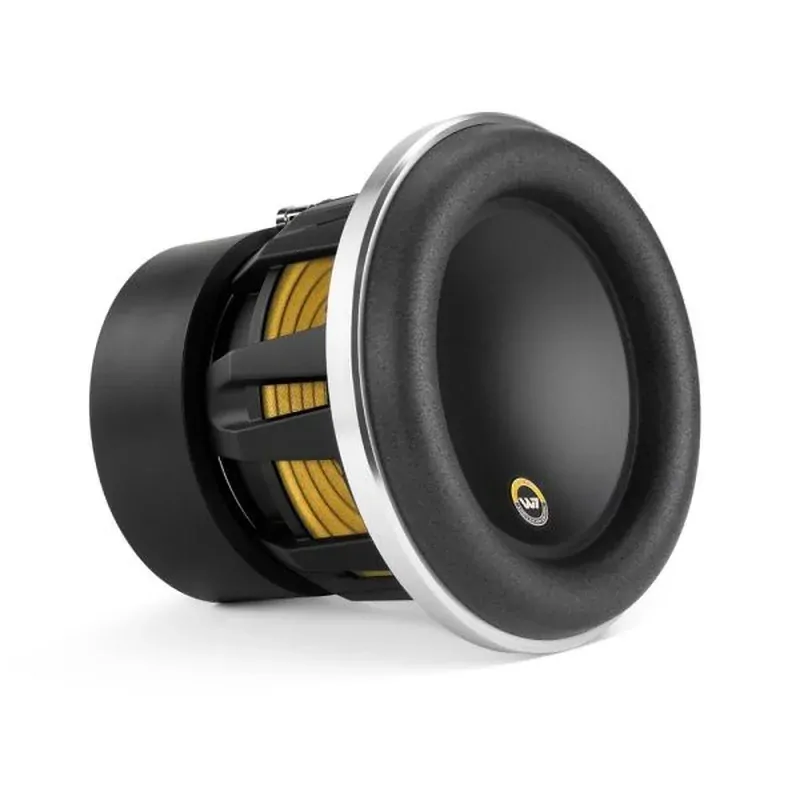

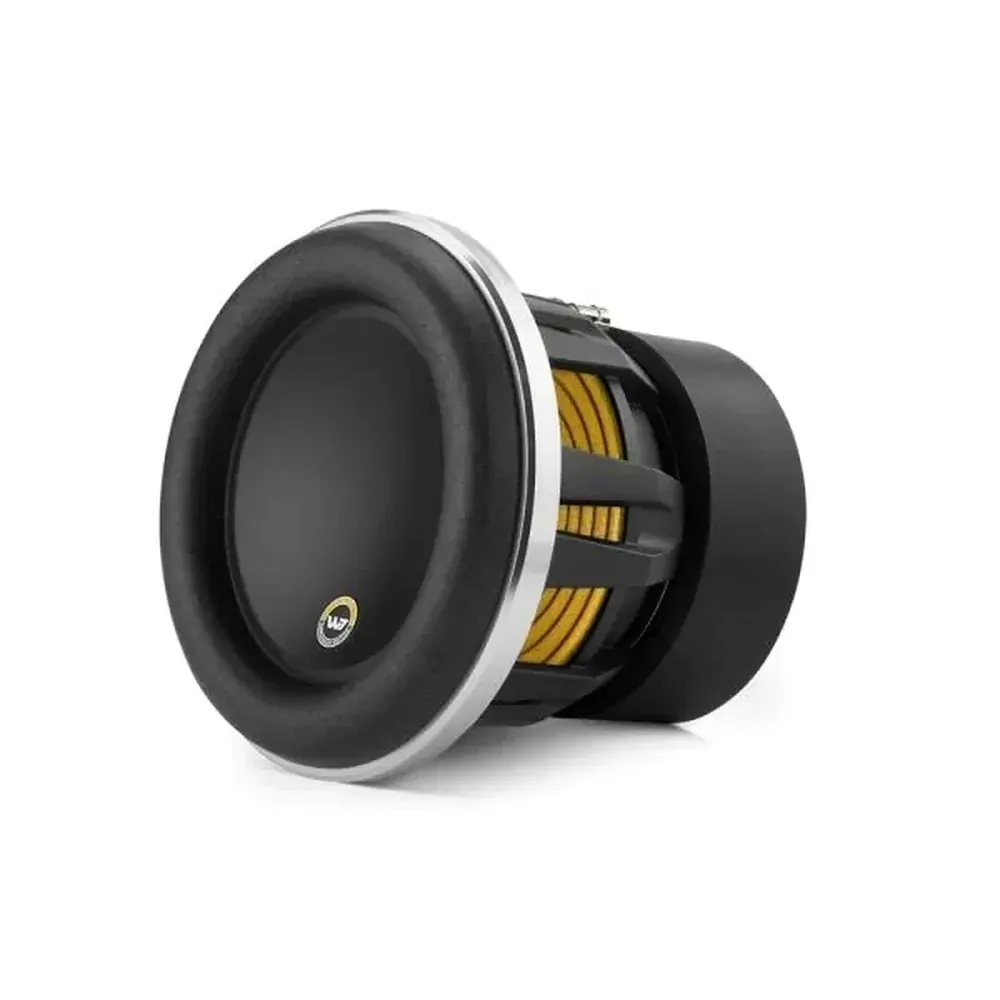

JL Audio W7AE Series 8" Subwoofer 3-Ohm 8W7AE-3

SKU:8W7AE-3

RRP $1,419.00
$1,363.00
SAVE $56.00 (4%)

Calculate Shipping

The reference for high-performance automotive sub-bass.

A W7’s unique proposition is its ability to deliver extreme output, accurate dynamics and sublime sound quality...all at the same time. The keys to these performance capabilities lie at the very core of loudspeaker design, where electromagnetic and mechanical behavior combine in fiendishly complex ways. JL Audio’s intense research into these behaviors allow us to optimize motor and suspension systems to faithfully reproduce every bass detail with unparalleled linearity and accuracy. As a result, eight U.S. Patents have been issued for motor, suspension and assembly technologies used in W7 subwoofers.

To commemorate the W7's tenth anniversary, each model features special “Anniversary Edition” (AE) trim, with a satin black frame finish, a bright-anodized trim ring and special badging.

In recent years, the W7 platform has also become a reference standard in the high-end home audio world. Variants of the W7 are used in our ultra-premium Fathom® and Gotham® powered home subwoofers, which have received top ratings and recommendations from the world’s leading reviewers and are in daily use at some of the world’s top recording and mastering studios.

10th Anniversary Edition - W7 8-inch Subwoofer (500 W, 3 ?)

This Subwoofer has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch Subwoofers.

The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. (28.3 l) ported enclosure.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

Features

  • Continuous Power Handling (RMS): 500 W
  • Recommended Amplifier Power (RMS): 200 - 500 W
  • Nominal Impedance (Znom): 3 Ω
  • Nominal Diameter: 8.0 in / 200 mm
  • Overall Diameter (A): 8.5 in / 216 mm
  • Mounting Hole Diameter (B): 6.94 in / 176 mm
  • Bolt Hole Circle Diameter (C): 7.39 in / 188 mm
  • Motor Outer Diameter (D): 5.79 in / 147 mm
  • Mounting Depth (E): 6.83 in / 173 mm
  • Driver Displacement: 0.06 cu ft / 1.7 L
  • Net Weight: 17 lb / 7.8 kg
  • Free Air Resonance (Fs): 35.2 Hz
  • Electrical “Q” (Qes): 0.654
  • Mechanical “Q” (Qms): 9.5
  • Total Speaker “Q” (Qts): 0.612
  • Equivalent Compliance (Vas): 0.61 cu ft / 17.4 L
  • One-Way Linear Excursion (Xmax)*: 0.75 in / 19 mm
  • Reference Efficiency (no): 0.11%
  • Efficiency (1 W / 1 m)**: 82.7 dB SPL
  • Effective Piston Area (Sd): 38 sq in / 0.0245 sq m
  • DC Resistance (Re): 2.78 Ω
More Information
Woofer Diameter (mm) 200mm
Woofer Diameter (Inch) 8 Inch
Mounting Diameter 176mm
Shallow Mount No
Woofer Mounting Depth 173mm
RMS Power 500WRMS
Voice Coil Single Voice Coil
Impedance 3 Ohm
Sensitivity (dB) 82.7dB
Sealed Box Volume 0.875 cu/ft (24.8-litres)
SKU 8W7AE-3
Brand JL AUDIO
