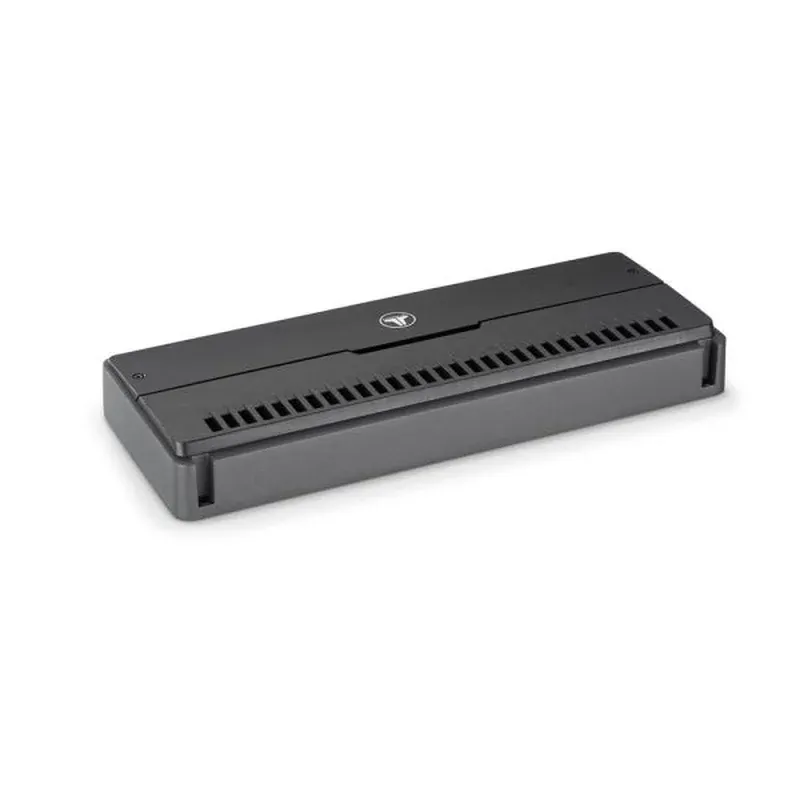

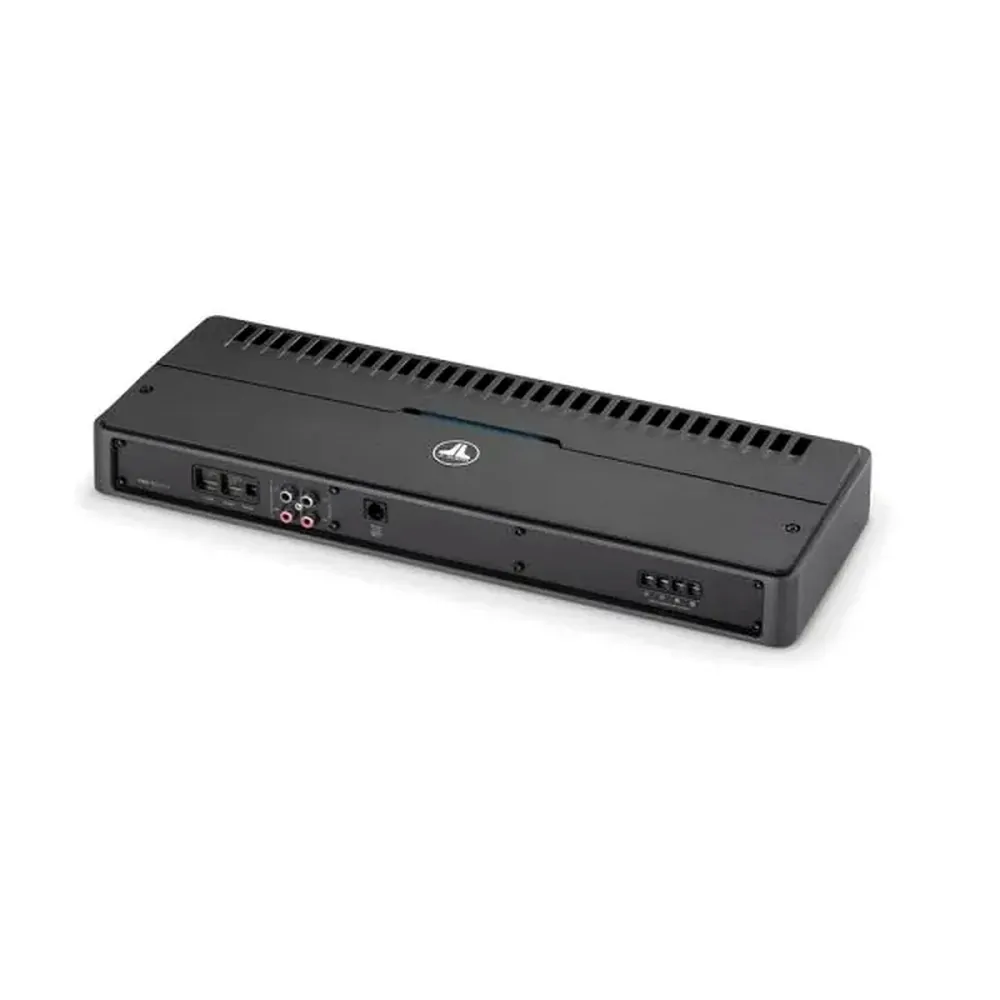

JL Audio RD Series Monoblock Class-D Subwoofer Amplifier 1500W RD1500/1

SKU:RD15001

$1,239.00

Calculate Shipping

Monoblock Class D Subwoofer Amplifier, 1500 W x 1 @ 1 - 2 Ω / 750 W x 1 @ 4 Ω - 14.4V

Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audios exclusive NexD Class D technology, permitting high power output with exceptional efficiency and low distortion.

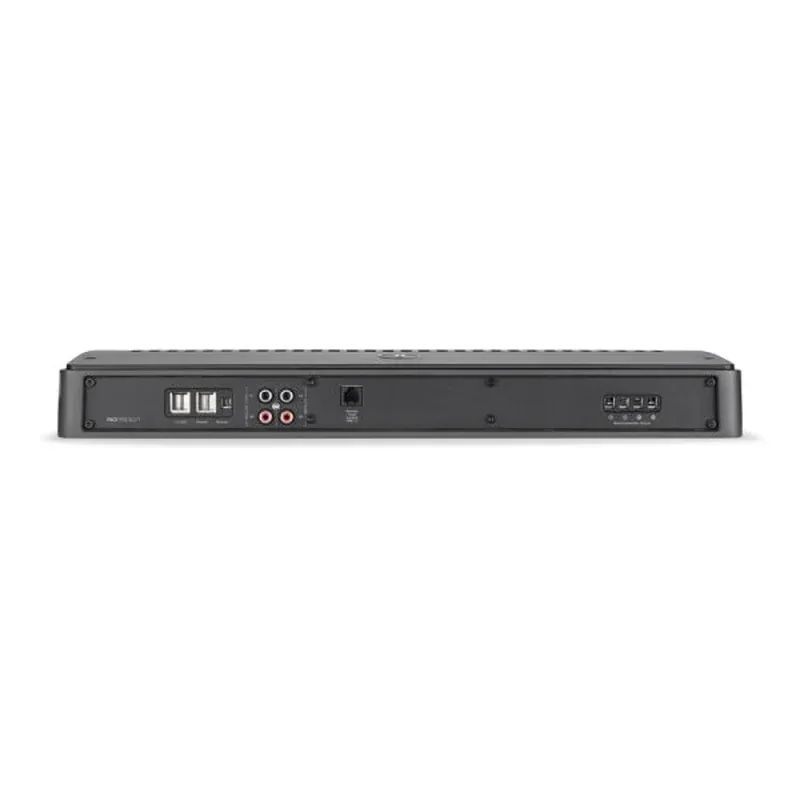

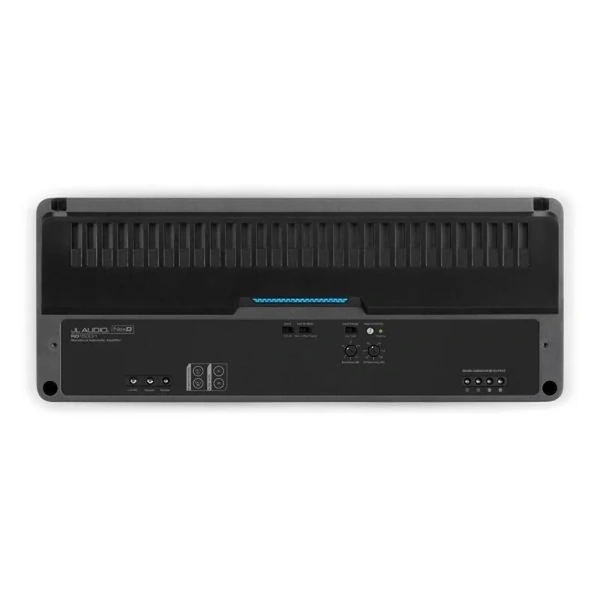

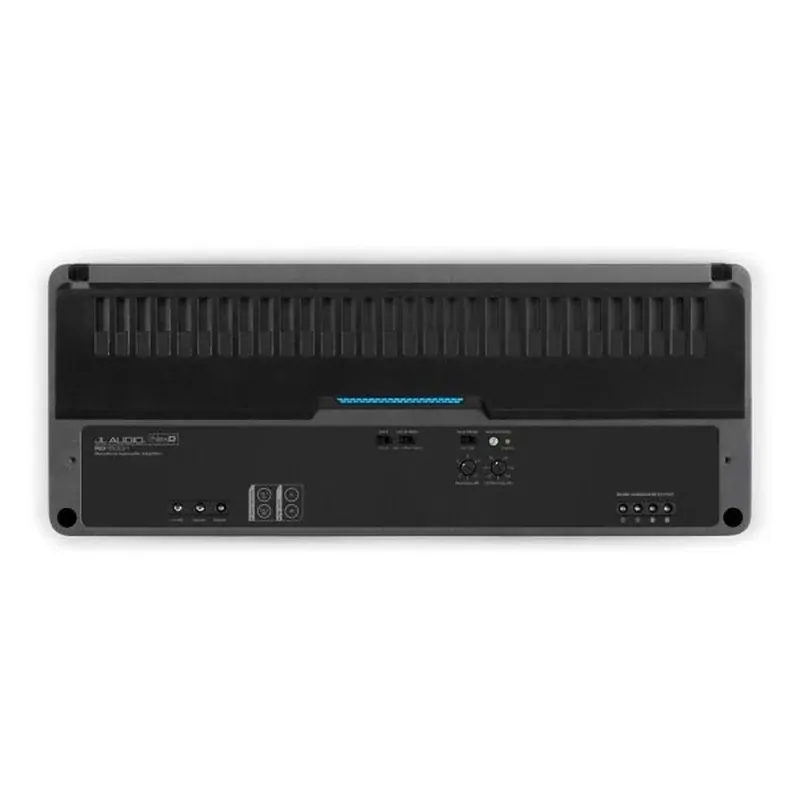

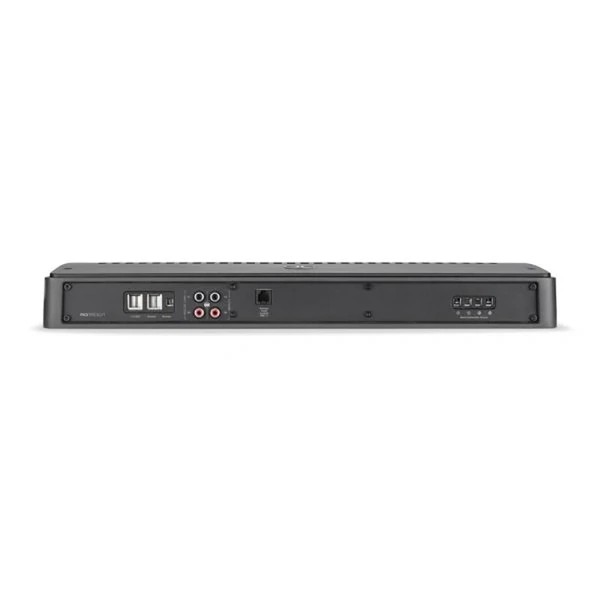

For your convenience, all of the RD1500/1s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

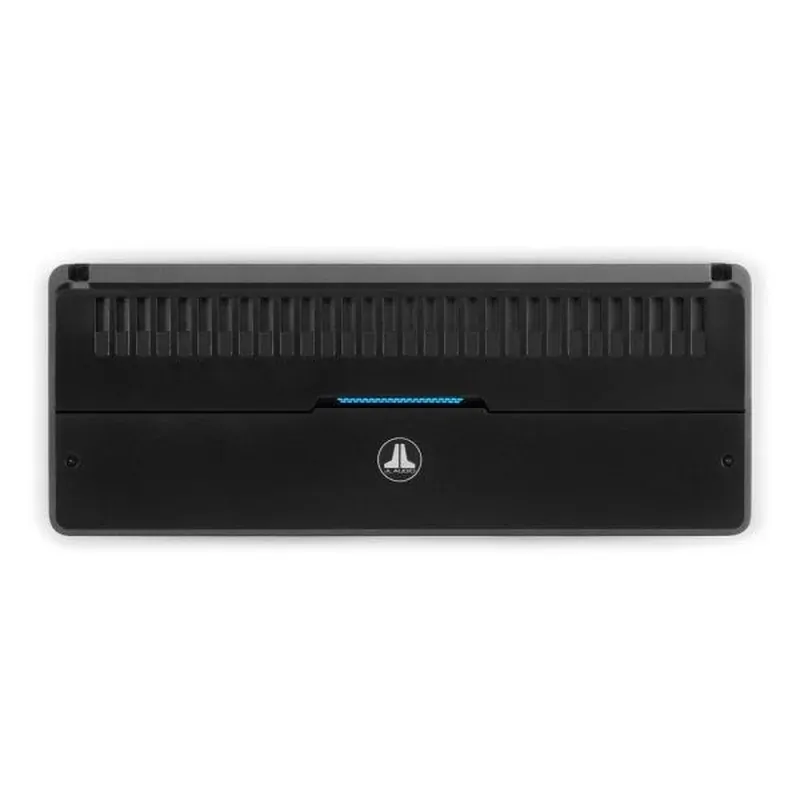

The RD1500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifiers input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the drivers seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).

Features

  • Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 750 W RMS x 1*
  • Rated Continuous (RMS) Power @ 14.4 V @ 3 Ω: 1000 W RMS x 1*
  • Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 1500 W RMS x 1*
  • Rated Continuous (RMS) Power @ 14.4 V @ 1 Ω: 1500 W RMS x 1**
  • Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 750 W RMS x 1*
  • Rated Continuous (RMS) Power @ 12.5 V @ 3 Ω: 1000 W RMS x 1*
  • Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 1200 W RMS x 1*
  • Rated Continuous (RMS) Power @ 12.5 V@ 1 Ω: 1500 W RMS x 1**
  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: >82 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >1100 / 50 Hz
  • Damping Factor @ 2 Ω: >550 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 2 AWG wire
  • Fuse Rating: 150A (AFS or AGU)
  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered
  • Height (H): 2.13 in / 54 mm
  • Width (W): 18.05 in / 458 mm
  • Depth (D): 6.96 in / 177 mm
More Information
Channels 1/MONO
RMS Power @ 4 Ohm 750W x 1
RMS Power @ 2 Ohm 1500W x 1
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 LP 50-500Hz @ 12dB/oct
Subsonic Filter No
Bass Boost 0-12dB @ 45Hz
Speaker Level Input Yes (via RCA)
Auto Turn-On Yes
Remote Sub Controller Optional (RBC)
Dimensions 54 x 458 x 177mm
SKU RD15001
Brand JL AUDIO
