JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL Audio C2 Series 5.25" Coaxial Speakers C2-525x
JL AUDIO

JL Audio C2 Series 5.25" Coaxial Speakers C2-525x

SKU:C2-525X

RRP $469.00
$446.00
SAVE $23.00 (5%)

Calculate Shipping

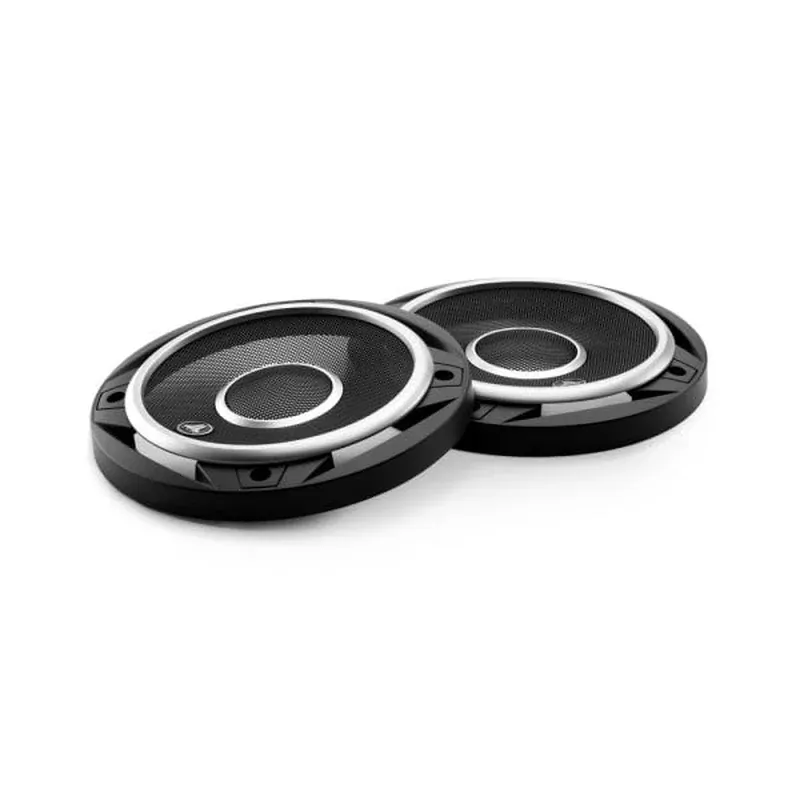

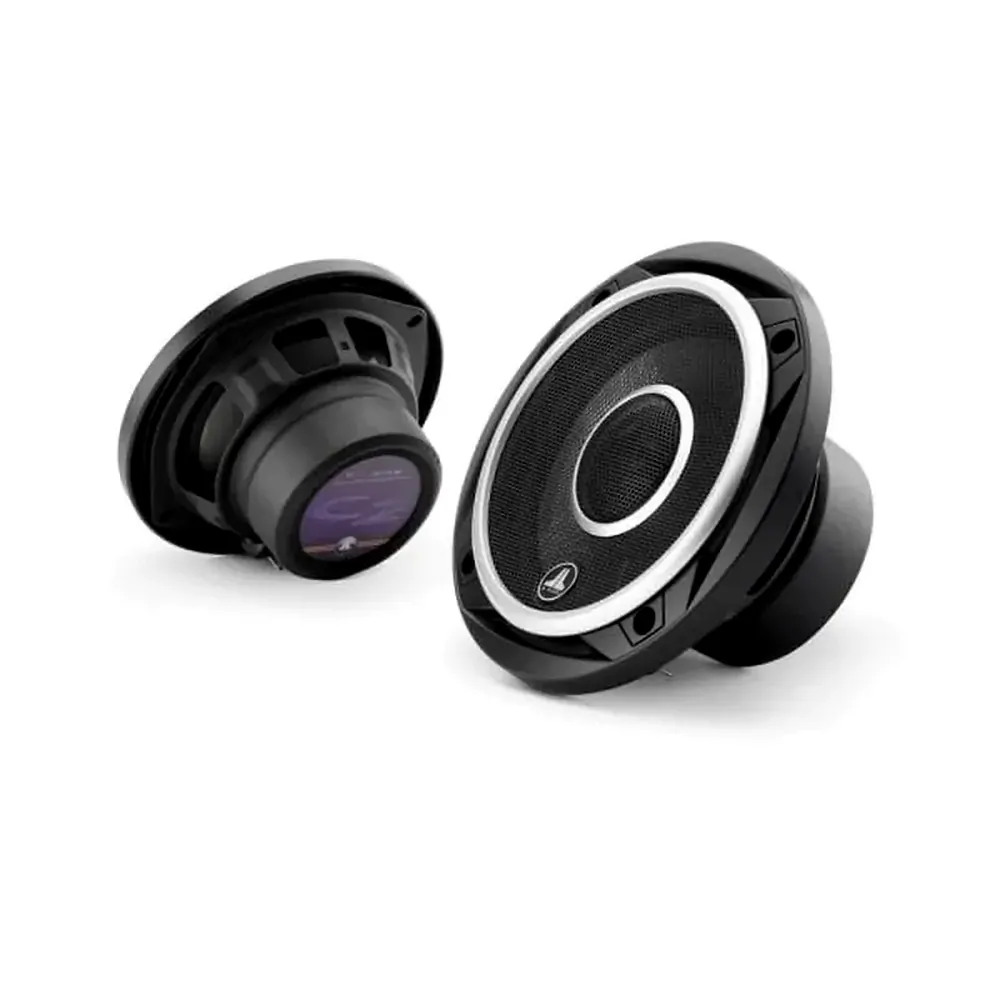

Coaxial Speaker System: 5.25-inch (130 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold as a pair.

Features

  • Continuous Power Handling (RMS): 60 W
  • Recommended Amplifier Power (RMS): 15 - 100 W / Ch.
  • System Efficiency: 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 63 Hz - 22 KHz ± 3 dB
  • Frame Outer Diameter* (A): 5.80 in / 147 mm
  • Grille Tray Outer Diameter (B): 6.01 in / 153 mm
  • Motor Outer Diameter (C): 2.76 in / 70 mm
  • Frontal Coaxial Tweeter Protrusion** (D): 0.46 in / 12 mm
  • Frontal Grille Protrusion*** (E): 0.72 in / 18 mm
  • Mounting Hole Diameter (F): 4.56 in / 116 mm
  • Mounting Depth (G): 2.50 in / 64 mm
More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 2-Way
Woofer Diameter (mm) 130mm
Woofer Diameter (Inch) 5.25 Inch
Mounting Diameter 115.9mm
Woofer Mounting Depth 63.5mm
Tweeter Diameter (mm) 19mm
Tweeter Diameter (Inch) 0.75 Inch
RMS Power 60W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 89dB
Frequency Response 63Hz - 22kHz
SKU C2-525X
Barcode # 699440996136
Brand JL AUDIO
