iTechworld Off Grid System 10.24kWh Complete 12V Solution for Caravans and 4WDs with 8x 150W Hard Fr
SKU:ITECH-DB-OFF-GRID-8XSP
$13,239.00

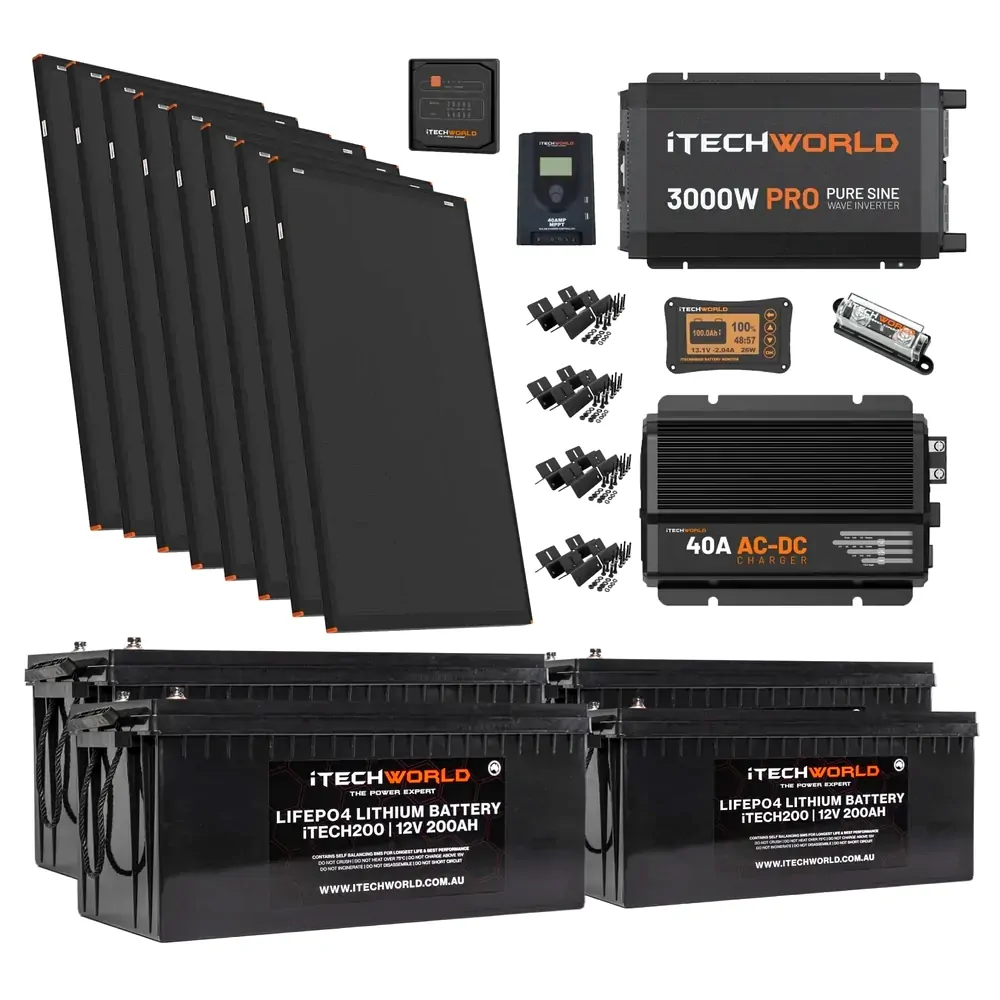

In this iTechworld 10.24 KWH Platinum lithium caravan kit you will receive:
- 4x iTECH200
- 8x 150W Hard Frame Solar Panels
- 1x iTECHBC40 charger
- 1x iTECHBM500 battery monitor with shunt
- 1x 40 Amp MPPT Solar Charge Controller
- 1x iTechworld 3000w pure sine wave inverter
- 1x iTechworld 450A Maxi Fuse with Fuse Holder
| iTECH200 | |
|---|---|
| Nominal voltage: | 12.8V |
| C20 rating usable Amps: | 200Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 0°C ~ 45°C |
| BMS operational temperature range: | -20°C ~ 60°C |
| Safety protection isolator: | 60°C |
| Recommended charge current: | 1-100A |
| Maximum charge current: | 200A |
| Recommended charge voltage: | 14.4V |
| BMS charge cutoff voltage: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Continuous discharge: | 250A |
| Peak discharge: | 500A (5 seconds) |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 100%: | 5000+ |
| Life cycles @ 50%: | 10,000+ |
| Dimensions (LxWxH): | 525 x 240 x 220mm (235 H including terminals) |
| Weight: | 25.4kg |
| Terminals: | M8 |
| Case material: | ABS |
| 150W Solar Panel | |
|---|---|
| Rated maximum power (Pm): | 150W |
| Power tolerance: | ±3% |
| Voltage at Pmax (Vmp): | 36.56V |
| Current at Pmax (Imp): | 4.1A |
| Open-circuit voltage (Voc): | 42V |
| Short circuit current: | 4.36A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Dimensions (LxWxH): | 1160 x 670 x 30mm |
| Weight: | 9.32kg |
| iTECHBC40 | |||||
|---|---|---|---|---|---|
| AC input voltage: | 220-240V | ||||
| AC input frequency: | 50-60Hz | ||||
| Maximum input current: | 4.8A | ||||
| Maximum input power: | 700W | ||||
| Continuous output current: | Up to 40A | ||||
| Output fuse rating: | 60A (2 x 30A) | ||||
| Minimum auxiliary battery charge start voltage | 0V | ||||
| Standby current: | <2mA | ||||
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 | ||||
| Operating temperature: | -20°C ~ 60°C | ||||
| IP rating: | IP20 | ||||
| Dimensions | 275 x 190 x 72mm | ||||
| Weight: | 2kg | ||||
| Output | |||||
| Charge type: | 4-Stage | ||||
| Charging profile: | STD | Gel | AGM | Calcium | LiFePO4 |
| Bulk: | 40A | ||||
| Absorption: | 14.4V | 14.1V | 14.7V | 15.5V | 14.4V |
| Float voltage: | 13.4V | 13.5V | 13.4V | 13.6V | |

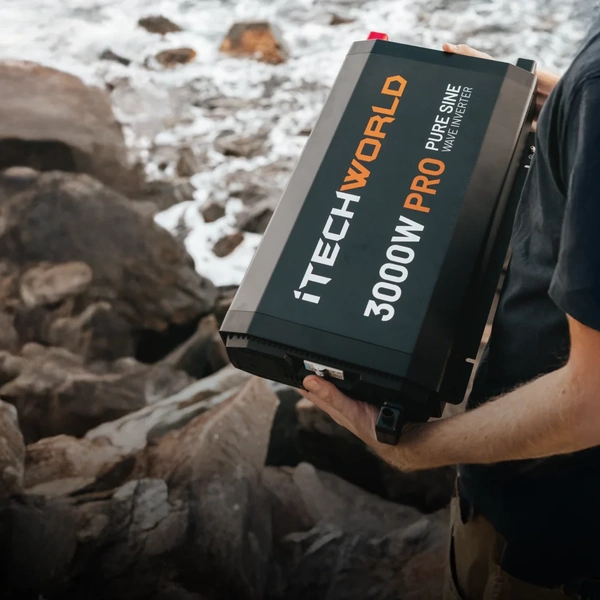

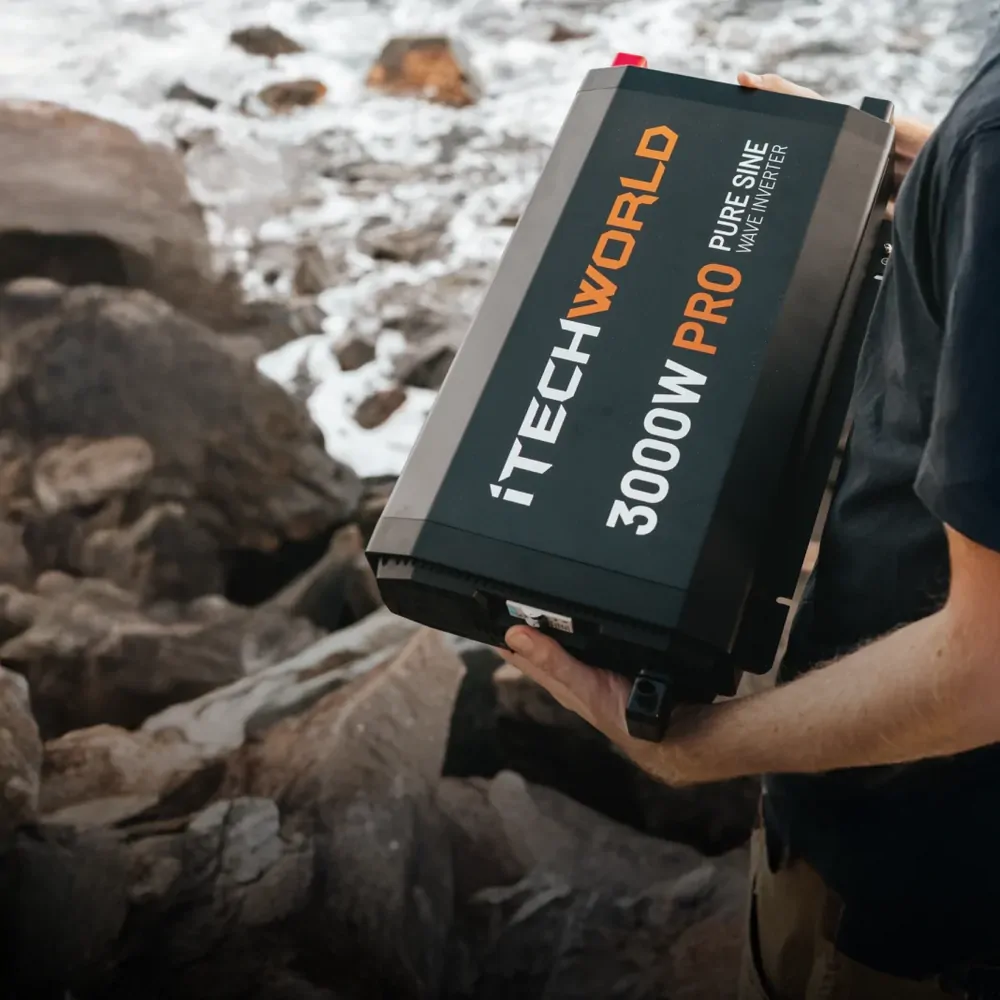

| 3000W PRO inverter | |
|---|---|
| Maximum continuous output: | 3000W |
| Peak output: | 6000W |
| Battery compatibility: | Standard lead-acid, AGM, Gel or LiFePO4 |
| Input voltage range: | 10.5-15.5V |
| Output plug rating: | 15A |
| Output voltage & current: | 240V - 50Hz |
| No load draw: | <1.6A |
| Efficiency: | 89-92% |
| Output waveform: | Pure Sine Wave |
| Total Harmonic Distotion (THD): | <3% |
| IP rating: | IP22 |
| Operating temperature: | -10°C ~ 50°C |
| Storage temperature: | -30°C ~ 70°C |
| Over voltage protection: | 15.5±0.2V DC |
| Under voltage protection: | 10.5±0.2V DC |
| Short circuit protection: | 1 second |
| Dimensions (LxWxH): | 494 x 289 x 105mm |
| AC transfer switch: | 30ms |
| Remote terminal: | RJ12 |
| Remote dimensions (LxWxH): | 86 x 86 x 19mm |
| Safety certifications: | The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations |
| iTECHBM500 | |
|---|---|
| Supply voltage: | 10-100V |
| Battery capacity: | 10-999Ah |
| Maximum measured current:: | 500A |
| Power consumption (screen off): | <2mA |
| Power consumption (screen brightness @ 10%): | <20mA |
| Power consumption (screen brightness @ 100%) | <60mA |
| Voltage accuracy: | ±1% |
| Current accuracy: | ±1% |
| Capacity accuracy: | ±1% |
| Operating temperature: | -20°C ~ 80°C |
| Exterior bracket dimensions (LxWxH): | 106 x 81 x 18mm |
| Mounting bracket dimensions (LxW): | 95 x 70mm |
| Monitor backing dimensions (LxWxH): | 80 x 59 x 16mm |
| IP rating: | IP20 |
| 000AWG inverter cable w/ 450A fuse | |
|---|---|
| Cable gauge: | 000AWG/90mm² |
| Cable length: | 1m |
| Fuse type: | 450A ANS |
| Terminals: | M8 |
| 40A MPPT Solar Charge Controller | ||
|---|---|---|
| System rated voltage: | 12/24V DC automatic sensing | |
| Maximum open voltage of solar panel: | 100V DC (at the lowest temperature) 92V DC (at standard temperature of 25°C) |
|
| Maximum solar input power: | 12V DC system | 520W |
| 24V DC system | 1040W | |
| Battery voltage range: | 8 - 32V DC | |
| Rated charge current: | 40A | |
| Battery types: | Sealed lead-acid, flooded lead-acid, gel, LiFePO4, LiNiMnCoO₂ | |
| Static loss: | ≤50mA | |
| Temperature compensation coefficient: | -4mV/°2V(25°C) | |
| LCD temperature: | -20° ~ 70°C | |
| Operating temperature: | -20°C + 55°C | |
| Storage temperature: | -30°C ~ 80°C | |
| Working humidity: | ≤90% non-condensing | |
| Grounding: | Common positive | |
| Dimensions (LxWxH): | 215 x 145 x 75mm | |
| Wire terminal size: | 16mm²/6AWG | |
| Weight: | 1.3kg | |
| SKU | ITECH-DB-OFF-GRID-8XSP |
| Brand | ITECHWORLD |
