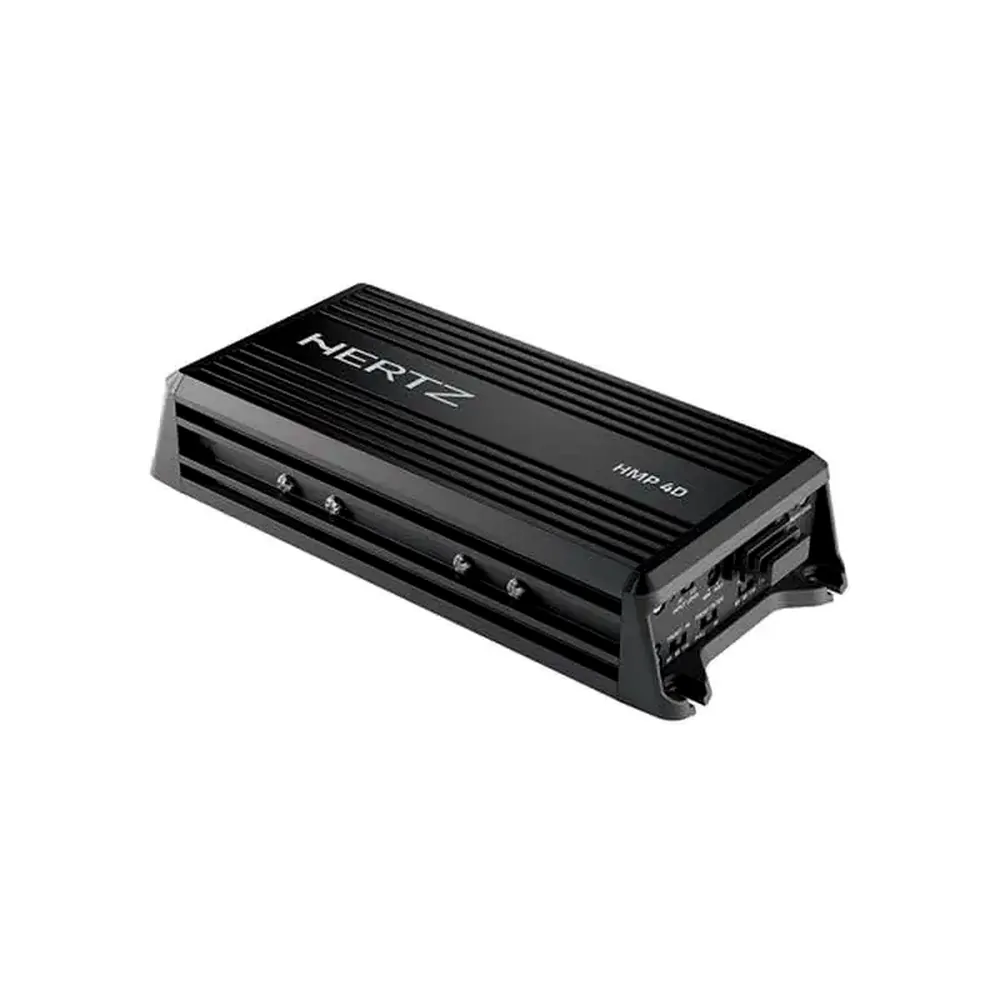

Hertz HMP4D Power Sports 600W 4CH Marine / Powersports Amplifier

For any purchase enquiries, please contact us

SKU:HMP4D

$594.99

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.

  • Water Jet Tested: the protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
  • Corrosion protection: Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
  • Salt fog tested: To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

Features

General specifications:

  • Channels: 4 - 2
    • POWER SUPPLY:
      • Power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 15 A
      • Idling current (power ON/OFF): 1.2 A / 0.04 mA
      • Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 15 A
      • Remote In: 4 ÷ 15 VDC - 1 mA
      • ART: Automatic Remote Turn-On/Off
    • AMPLIFIER STAGE:
      • Distortion - THD (100 Hz @ 4Ω): 0.2 %
      • Bandwidth: 10 ÷ 30K Hz
      • S/N Ratio (A weighted @ 1 V): 95 dB
      • Damping factor (100 Hz @ 4Ω): 45
      • Pre-In sensitivity:
        • LO: 0.2 ÷ 5 V
        • HI: 0.8 ÷ 20 V
      • Load impedance (MIN)
        • @ 4 Ch: 2Ω
        • @ 2 Ch: 4Ω
      • Max size (mm/in): 223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71
      • Weight (kg/lb): 1.35 / 2.97

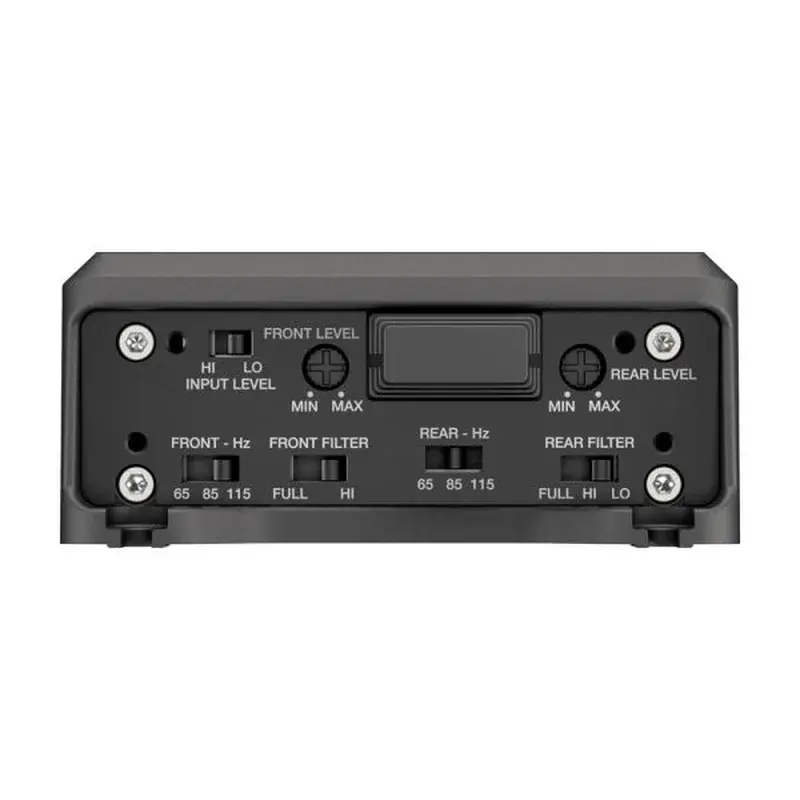

      • Adjustable Crossovers: yes

Inputs/Filters:

  • Inputs: PRE IN
    • FRONT Channel filters FULL: Yes
      • Lo-Pass: 65-85-115 Hz @ 12 dB/Oct
    • REAR Channel filters FULL: Yes
      • Hi-Pass: 65-85-115 Hz @ 12 dB/Oct
      • Lo-Pass: 65-85-115 Hz @ 12 dB/Oct.

Output Power:

  • OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
    • 4 Ch: 50 W x 4 (4 Ω)
    • 4 Ch: 65 W x 4 (2 Ω)
    • 3 Ch: 50 W x 2 (4 Ω) + 130 W x 1 (4 Ω)
    • 3 Ch: 65 W x 2 (2 Ω) + 130 W x 1 (4 Ω)
    • 2 Ch: 130 W x 2 (4 Ω)
  • OUTPUT POWER (RMS) @ 14.4 VDC, THD 10%:
    • 4 Ch: 60 W x 4 (4 Ω)
    • 4 Ch: 75 W x 4 (2 Ω)
    • 3 Ch: 60 W x 2 (4 Ω) + 150 W x 1 (4 Ω)
    • 3 Ch: 75 W x 2 (2 Ω) + 150 W x 1 (4 Ω)
    • 2 Ch: 150 W x 2 (4 Ω)
  • Total Power: 600 W

More Information

More Information
Channels 4 Channel
RMS Power @ 4 Ohm 50W x 4 or 130W x 2
RMS Power @ 2 Ohm 65W x 4
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 HP 65/85/115Hz @ 12dB/oct
Crossover Channel 3/4 HP/LP 65/85/115Hz @ 12dB/oct
Subsonic Filter No
Bass Boost No
Speaker Level Input Yes (via RCA)
Auto Turn-On Yes
Remote Sub Controller No
Dimensions 223 x 101 x 44mm
SKU HMP4D
Barcode # 8018823122146
Brand HERTZ
