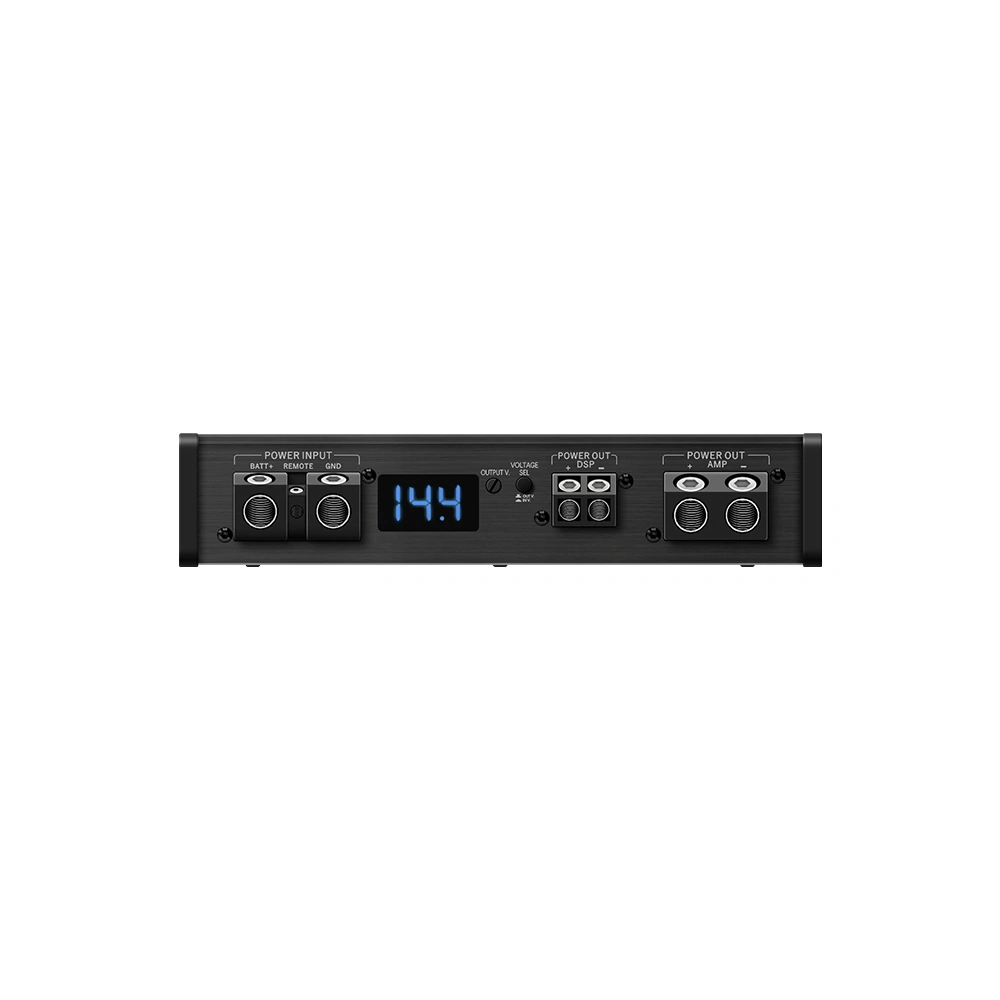

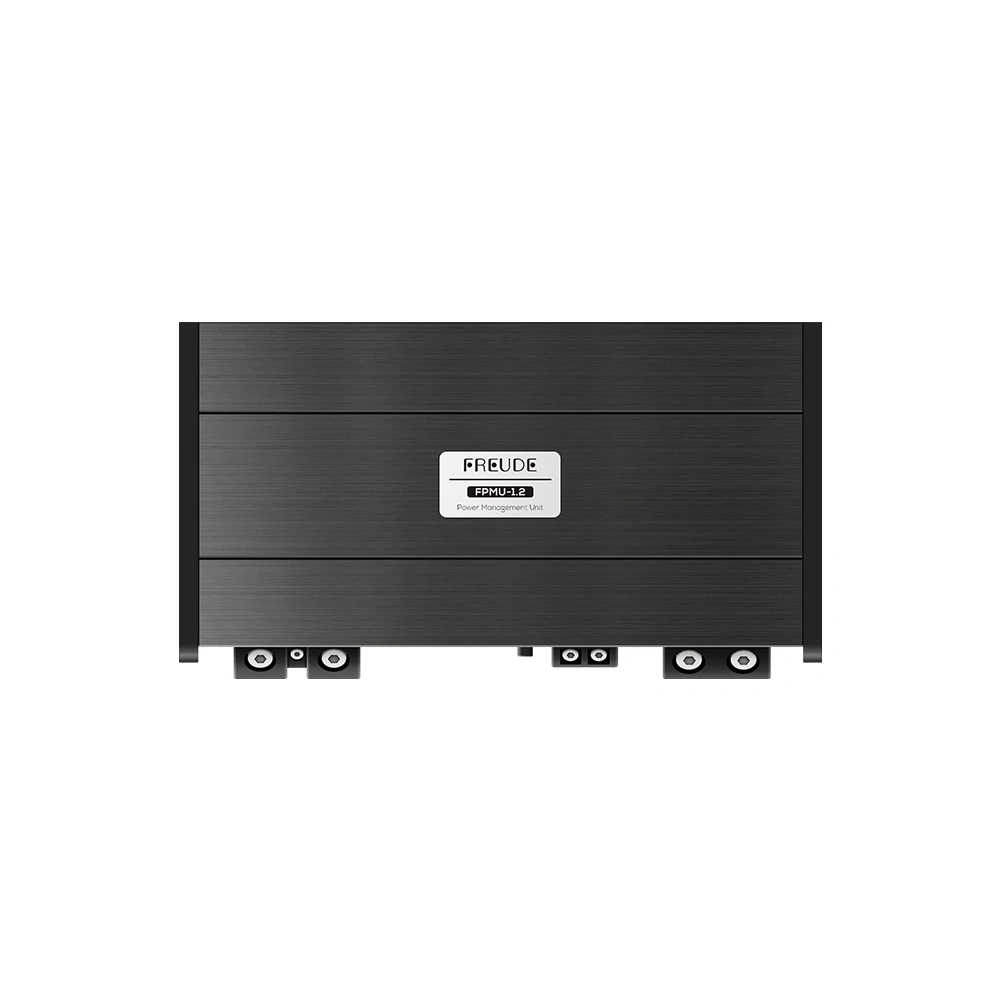

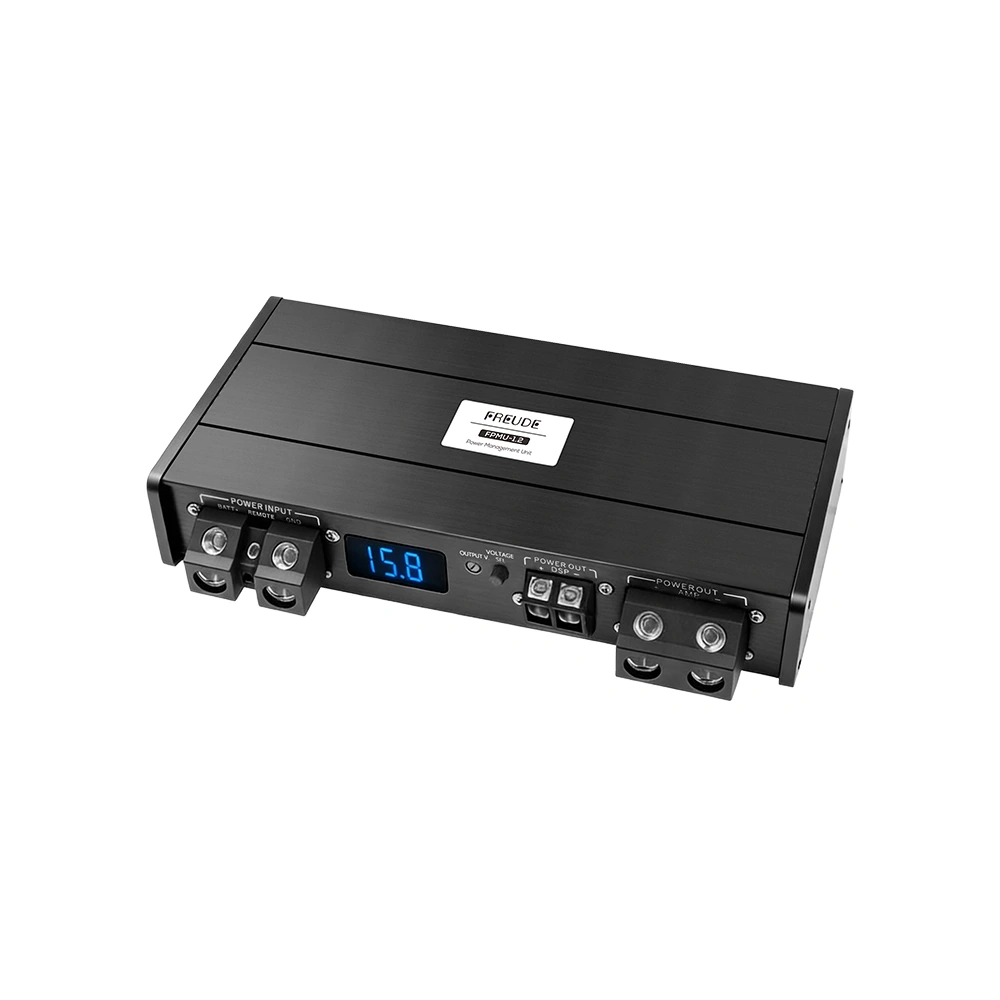

Freude FPMU-1.2 Power Management Unit

SKU:FPMU-1.2

$1,299.00


Calculate Shipping

Power Management Unit

  • Freely adjustable output voltage.
  • Instant high-power delivery: Max output up to 2000W.
  • Built-in intelligent voltage regulation module for reliable operation under complex conditions.
  • Interference and ripple filtering capability eliminates waveform distortion in the power supply and filters out interference components mixed with the current.
  • Connect to a DSP or amplifier to instantly enjoy Hi-Fi level high-definition sound quality.

Specifications

Model: FPMU-1.2
Type: Power Management Unit
Quiescent Current: 24mA (13.8V)
Input Voltage: DC10-16V
Output Voltage: DC 13.8-16.0V adjustable (±0.5%);
When input voltage >16V,
Output voltage automatically follows input voltage
Maximum Output Current: 130A/2000W (Max)
Conversion Efficiency: >92% (at full load)
Protection Temperature: +85°C
Protection Functions: Undervoltage/Overcurrent/Short Circuit/Reverse Connection Protection
Weight: 2.7Kg
Dimensions (LxWxH): 273 x 143 x 56.5mm
SKU FPMU-1.2
Brand FREUDE
