FREUDE

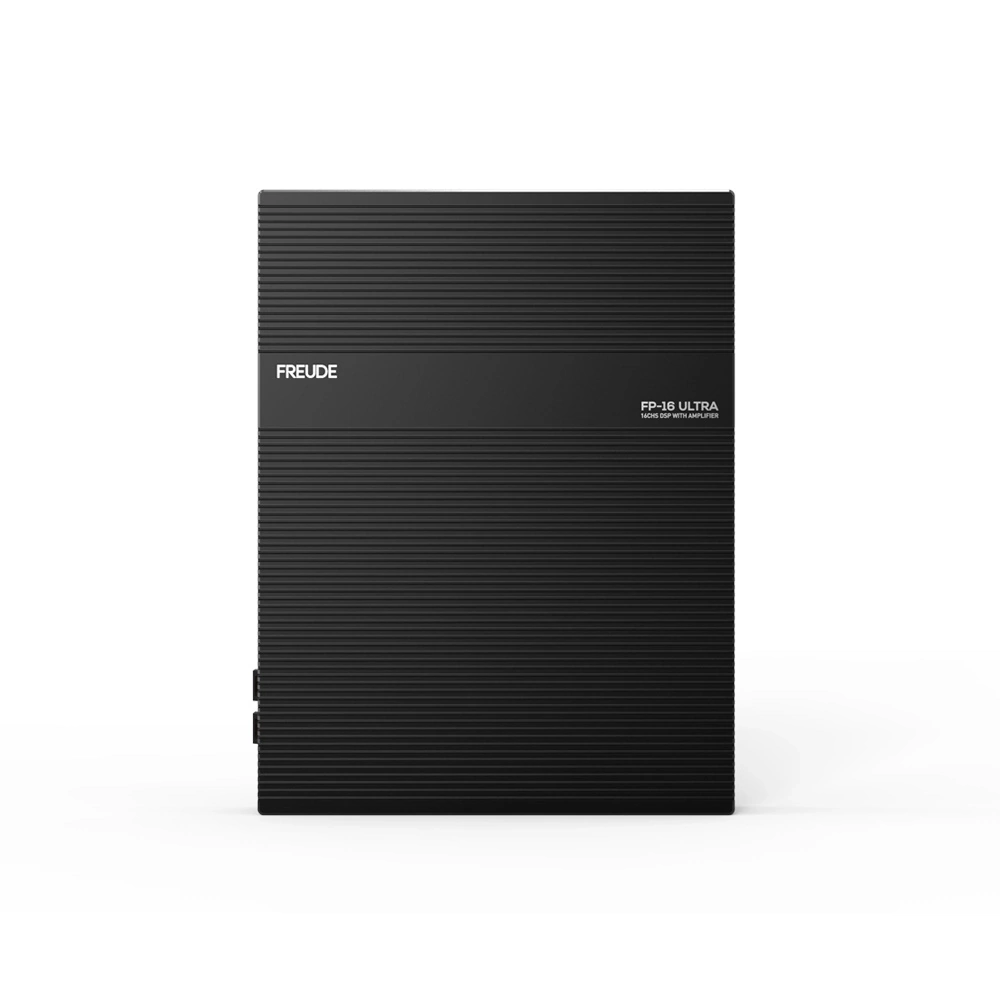

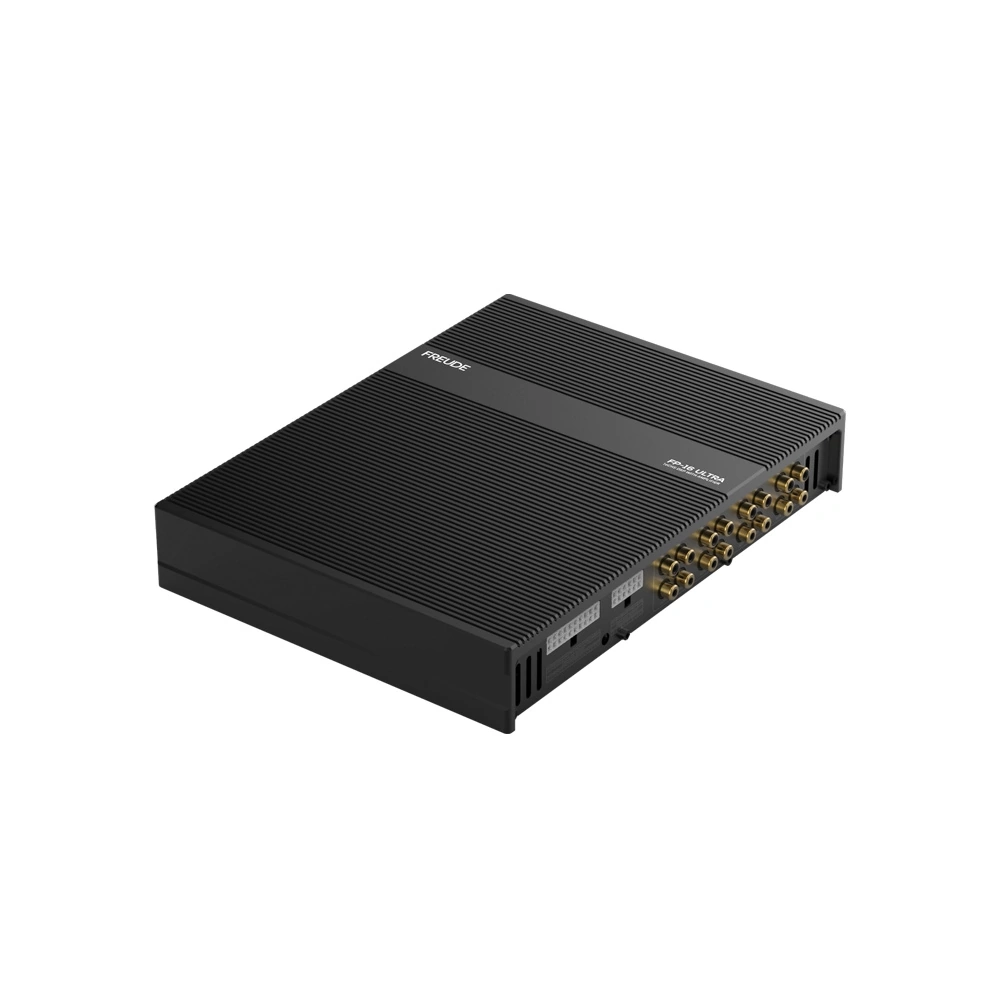

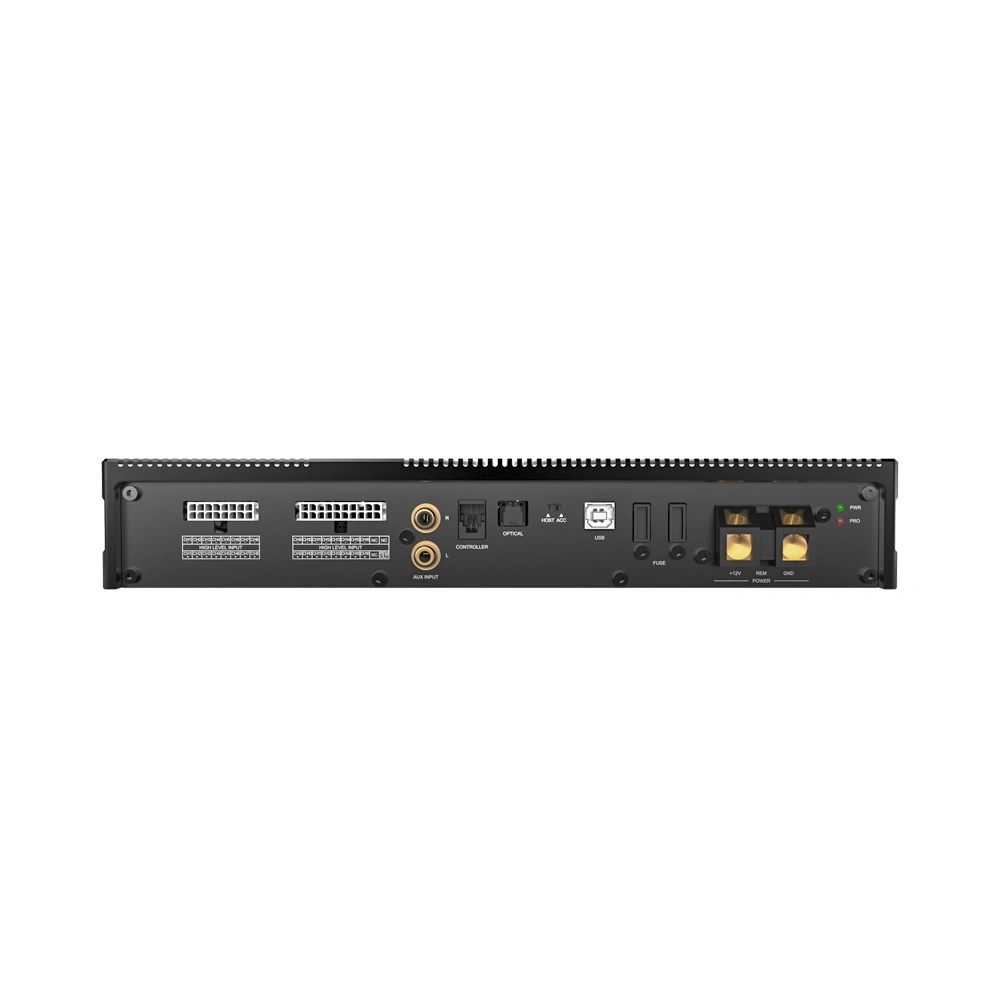

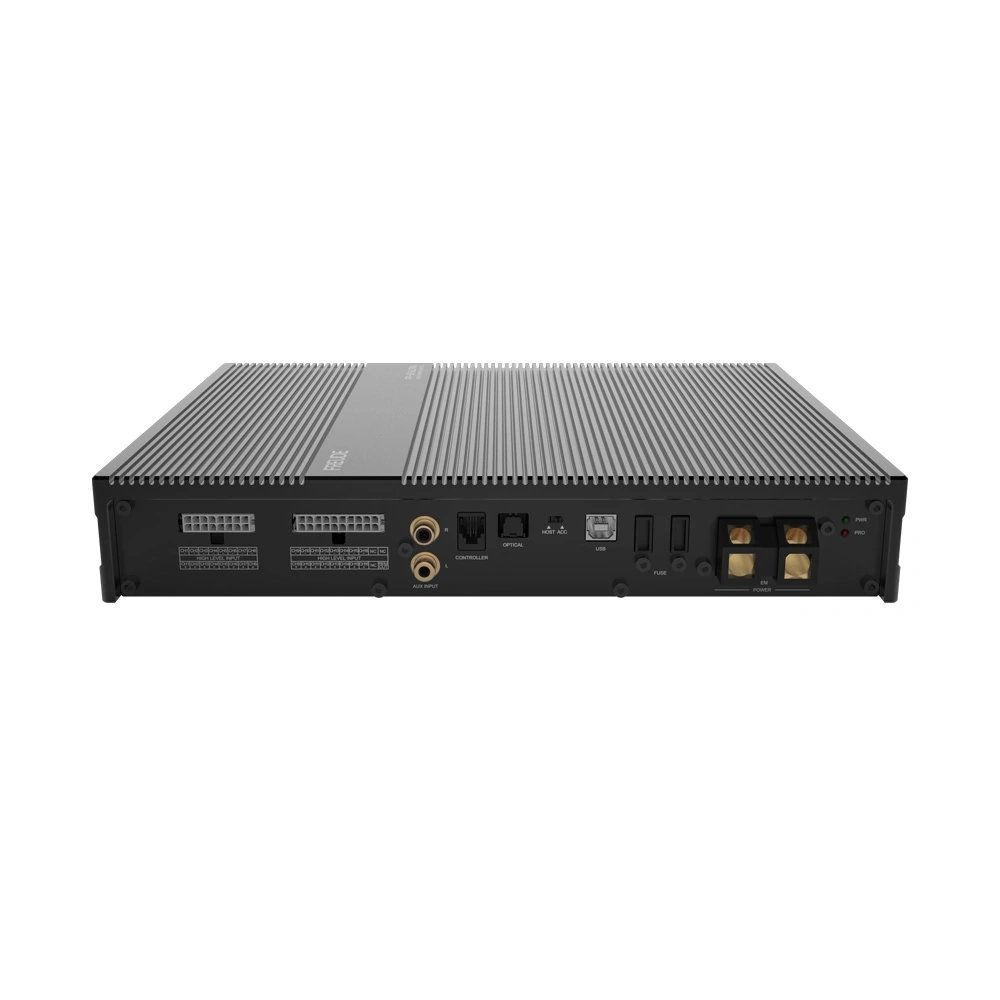

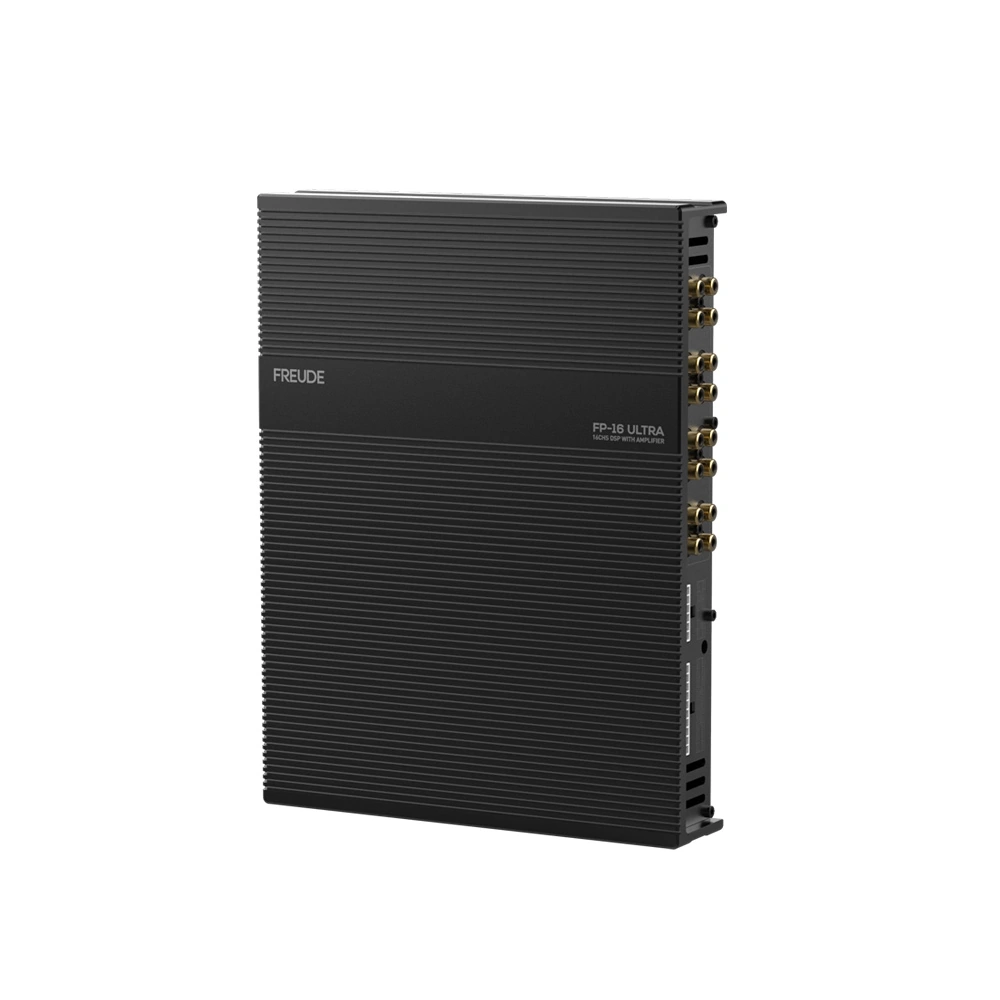

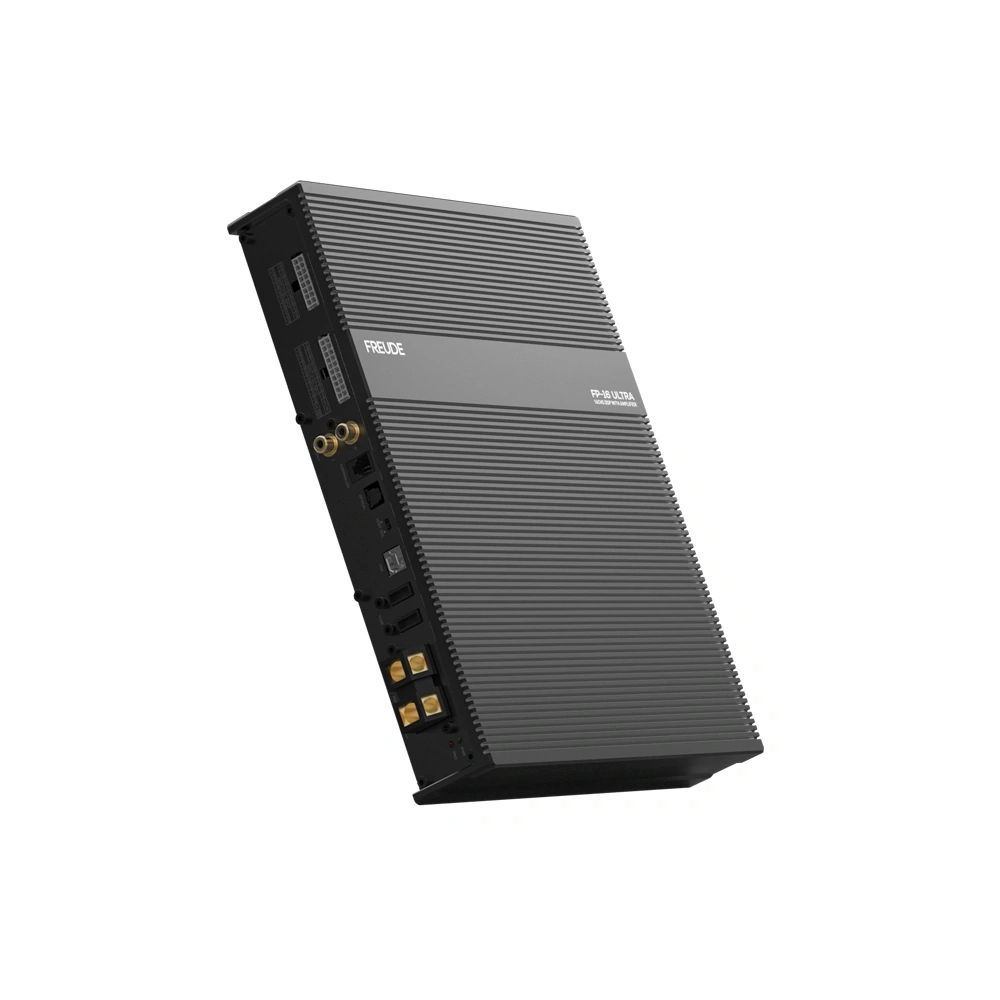

Freude FP-16 Ultra 16-Channel DSP Amplifier

SKU:FP-16ULTRA

$3,299.00


Calculate Shipping

16ch DSP with 16ch Amplifier

8x64W(CH1~8)+4x450W(CH9~16 PBTL) @2Ω Max Output

  • 16-Channel Professional Performance DSP Amplifier
  • Class-AB + Class-D high-power amplifier, 8x45W(CH1~8)+8x225W(CH9~16) @4Ω;
  • Hi-End Decoding Chip with Ultra-High Computing Power
  • Equipped with AK5704 x 5pcs High-Performance ADC Professional Chip
  • Equipped with PCM1681 x 2pcs High-Performance Low-Distortion Audio DAC Decoding Chip
  • Ultra-High Dynamic Range, Supports High Resolution, Supports Multiple Sampling Rates

Specifications

Model: FP-16 Ultra
Type: 16ch DSP with 16ch Amplifier
Power: DC 9 V~17 V
Input Signal Type: 16ch High Level, 2ch AUX, Optical Fibre, Digital BT
Dynamic Range: ≥110dB
S/N: ≥105dB
Frequency Response: 20Hz ~ 20kHz
Decoding Capability: 24Bit/192kHz(Optical Fibre); 32Bit/96kHz(Digital BT)
Max Power: 8x45W(CH1~8)+8x225W(CH9~16) @4Ω
8x64W(CH1~8)+4x450W(CH9~16 PBTL) @2Ω
Nom Power: 8x25W(CH1~8)+8x120W(CH9~16) @4Ω
8x44W(CH1~8)+4x240W(CH9~16 PBTL) @2Ω
Output Signal Type: 16ch AUX Output, 16ch High Level Output
Output Signal EQ: 31 Levels EQ
Net Weight: 3.02 kg
Dimension(LxWxH): 295 x 225 x 48.5 mm
Wired Remote Control Adaptable, sold separately (FRC‑02)
SKU FP-16ULTRA
Brand FREUDE
