Enerdrive Tank Module 3 x Volt 4 x Tank/Temp SI-ST107

Fresh, Gray or Black - keep your waters under control with ST107 module.

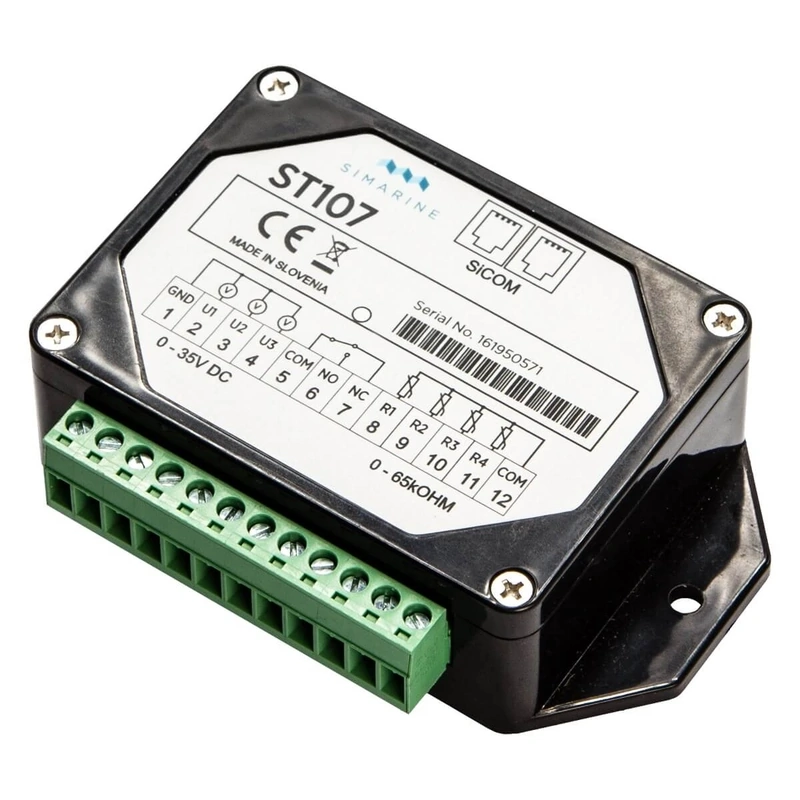

ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring tank levels (up to 7x), battery voltages (up to 3x), temperatures (up to 4x).

Operating

Power source voltage range 6 - 35 V

Temperature range -20 - +70 °C

Power consumption at 12 V

Operating 3,5 mA

Voltage measuring channels 3

Resistive measuring channels 4

Relay (monostable)

Maximum Operating Current 1 A

Maximum Common Input Voltage 6 - 30V

Voltage inputs

Range 0 - 75 V

Resolution 1 mV

Accuracy ± 0,2 %

Sampling rate 100 ms

Resistance inputs

Range 0 Ohm - 65 kOhm

Accuracy ± 3,0%

Connectivity Up to

Voltage sensors (voltage drop/tank level) 3

Resistive inputs (tank level/temperature) 4

Relay Common Input (COM) 1

Relay Output Normally Open (NO) 1

Relay Output Normally Closed (NC) 1

SiCOM RJ9 Sockets 2

Installation and Dimension

Dimensions (length x width x depth) 110 x 70 x 30 mm

Battery Connection M 10 bolts

Specifications:

Model

Simarine Tank Level and Voltage Module

SI-ST107

Tank Level and Voltage Module

Power Source Voltage Range

6-35V

Temperature Range

-20 - +70°C

Power Consumption at 12V

3.5mA

Voltage Measuring Channels

3

Resistive Measuring Channels

4

Maximum Operating Current

1A

Maximum Common Input Voltage

6 - 30V

Voltage Inputs

Range

0 - 75 V

Resolution

1 mV

Accuracy

± 0.2 %

Sampling Rate

100ms

0 Ohm - 65 kOhm

± 3.0%

0 Ohm - 65kOhm

Connectivity

Up to

Voltage Sensors (voltage drop/tank level)

Resistive Inputs (tank level/temperature)

Relay Common Input (COM)

1

Relay Output Normally Open (NO)

Relay Output Normally Closed (NC)

SiCOM RJ9 Sockets

2

Dimensions (length x width x depth)

110 x 70 x 30 mm

Battery Connection

M 10 bolts
