Enerdrive Simarine NMEA 2000 Gateway Module SI-SN01

SKU:SI-SN01

RRP $360.00
$324.00
SAVE $36.00 (10%)


Calculate Shipping

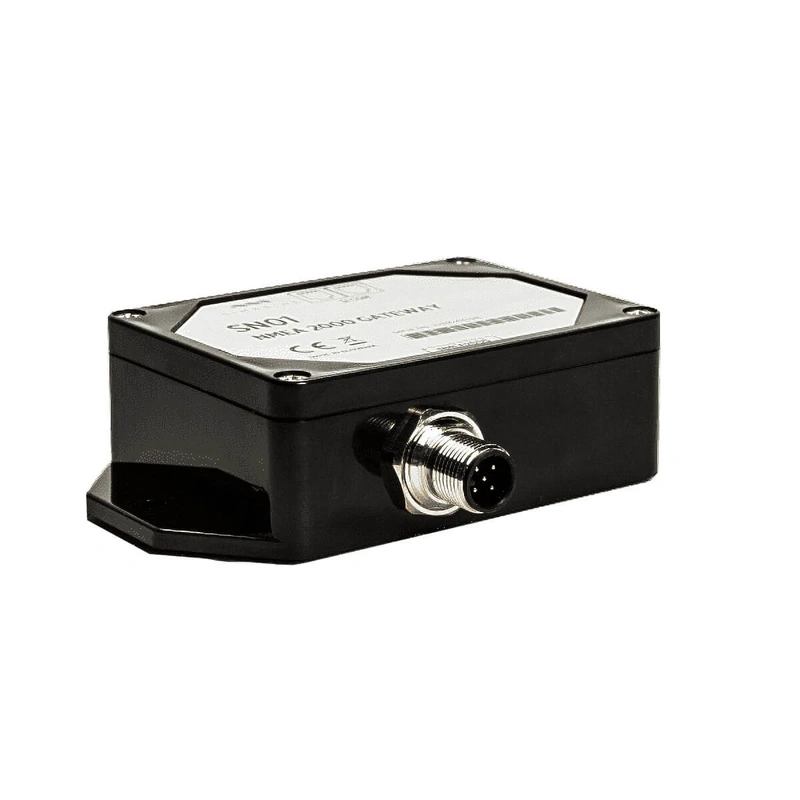

Simarine SN01 SiCOM NMEA 2000 gateway module allows your PICO to transmit and receive information from certain devices connected to an existing NMEA 2000 network. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.

Operating

Power source voltage range 6 – 35 V

Temperature range -20 – +70 °C

Power consumption at 12 V

Operating 0.8 mA

Dimensions 183x91x34 mm

Connectivity Up to

NMEA 2000 backbone 1

SICOM port 2

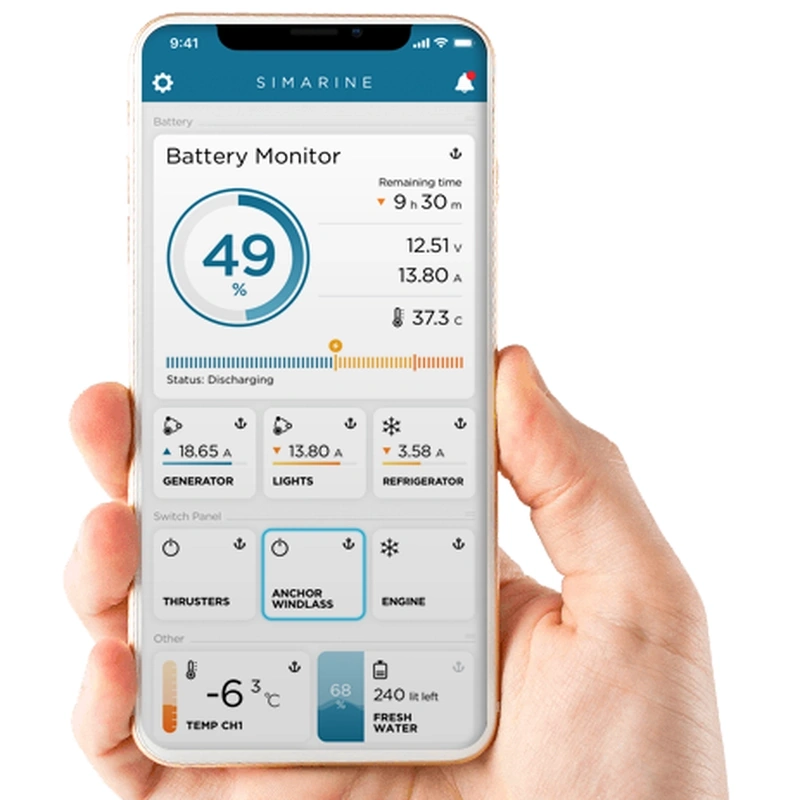

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications:

Model Simarine NMEA 2000 Gateway Module SI-SN01 Simarine NMEA 2000 Gateway Module Operating Power Source Voltage Range 6-35V Temperature Range -20 - +70°C Power Consumption at 12V Operating 0.8mA Connectivity Up To NMEA 2000 backbone 1 SiCOM RJ9 Sockets 2 Below is a list of supported NMEA 2000 PGN’s. PICO allows transmitting or receiving of certain PGN’s according to the table below.

PGN PGN Name Receiving Transmitting 59904 ISO Request Yes No 60928 ISO Address Claim Yes Yes 126996 Product Information No Yes 127257 Attitude No Yes 127502 Switch Bank Control No Yes 127505 Fluid Level No Yes 127506 DC Detailed Status No Yes 127508 Battery Status No Yes 130310 Environmental Parameters No Yes 130314 Actual Pressure No Yes

SKU SI-SN01
Barcode # 9342616002797
Brand ENERDRIVE
