Enerdrive Quad Shunt Mod 4 x 50A Input Current & 1 x Relay Output 1A SI-SCQ50

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.

Operating

Power source voltage range 6 - 35 V

Temperature range -20 - +70 °C

Power consumption at 12 V

Operating 3,5 mA

Current measuring channels 4

Relay (monostable)

Maximum Operating Current 1 A

Maximum Common Input Voltage 6 - 30V

Voltage inputs

Per channel 0,01 - 50 A

Resolution 0,01 A

Accuracy ± 0,6 %

Sampling rate 100 ms

Maximal current

Continuous 50 A

Peak current (<1 min) 60 A

Peak current (<5 sec) 60 A

Voltage drop at 50 A 35 mV

Maximum voltage on connections 35 V

Connectivity Up to

Current sensors 4

Relay Common Input (COM) 1

Relay Output Normaly Open (NO) 1

Relay Output Normaly Closed (NC) 1

SiCOM RJ9 Sockets 2

Installation and Dimension

Dimensions (length x width x depth) 182 x 80 x 37 mm

Weight 230 g

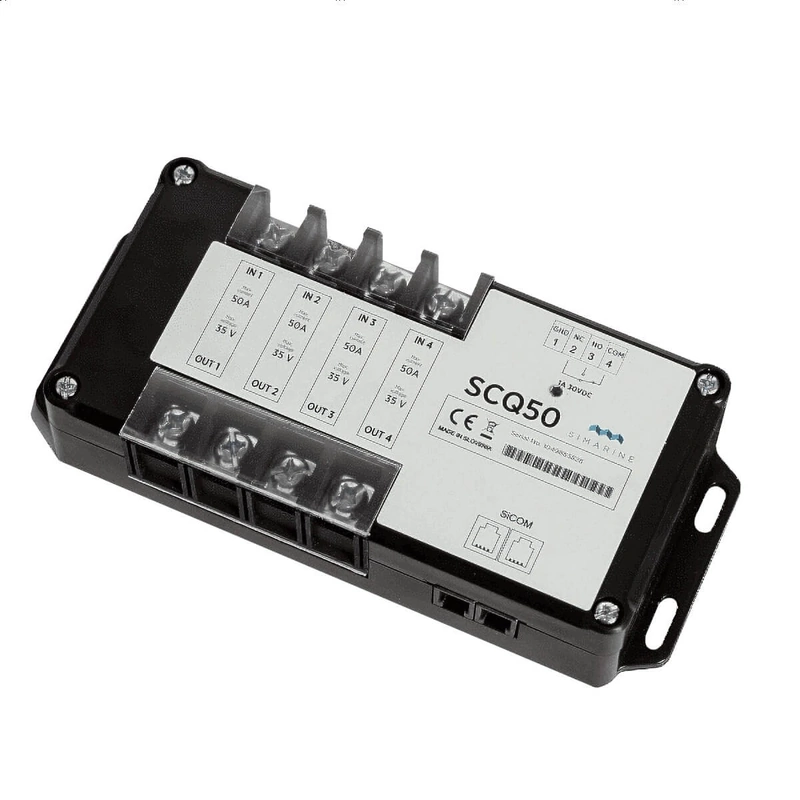

SCQ50 is an innovative shunt module for monitoring individual consumers and generators with;

4 x 50A Current Sensors

For 12v and 24v Systems

Connection Possibilities;

Up To 4 x Consumer Devices

Up To 4 x Generators

Combination of 4 of both

1 x Relay Input

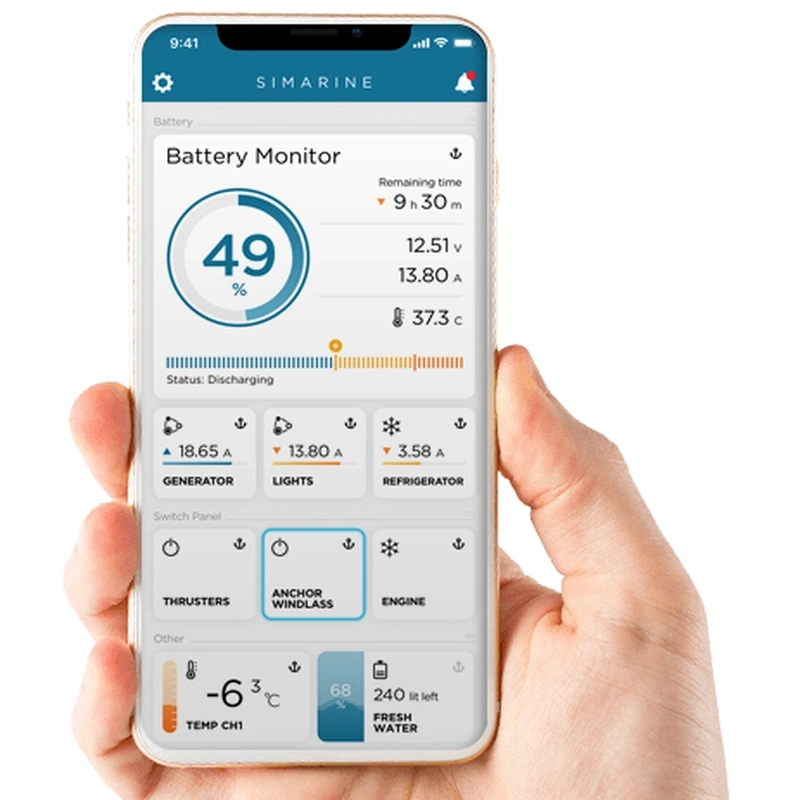

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications:

Model

Simarine Quadro Shunt Module

SI-SCQ50

Quad Shunt 4 x 50A Circuits Module

Power Source Voltage Range

6-35V

Temperature Range

-20 - +70°C

Power Consumption at 12V

3.5mA

Current Measuring Channels

4

Maximum Operating Current

1A

Maximum Common Input Voltage

6 - 30V

Voltage Inputs

Per Channel

0.01 - 50A

Resolution

0.01A

Accuracy

± 0.6 %

Sampling Rate

100ms

Maximum Currents

Continuous

50A

Peak Current (<1 min)

60A

Peak Current (<5 sec)

Voltage Drop at 25 A

35mV

Maximum voltage on connections

35V

Connectivity

Up To

Current Sensors

Relay Common Input (COM)

1

Relay Output Normally Open (NO)

Relay Output Normally Closed (NC)

SiCOM RJ9 Sockets

2

Dimensions (length x width x depth)

182 x 80 x 37 mm

Weight

230g
