Simarine: Active shunt for PICO battery monitor with 4x current sensors up to 25A each, combined with 3x voltage and 4x resistance inputs. For 12V and 24V system.

Looking for a highly versatile digital shunt module for monitoring smaller consumers like refrigerator and/or generators like solar, wind, hydro or shore power?

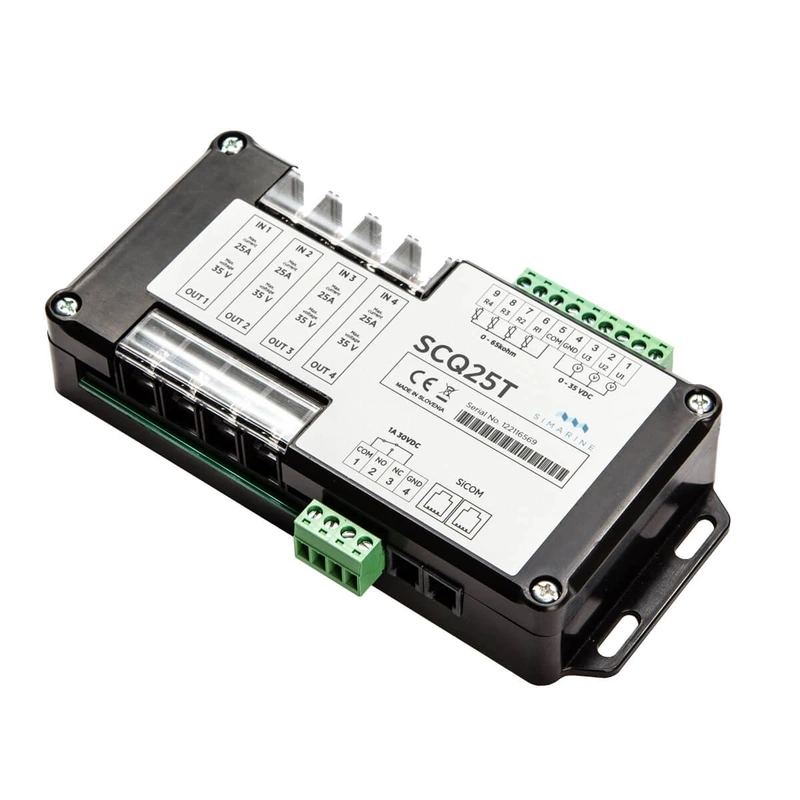

SCQ25T its an innovative combination of shunt, tank interface and voltage module with wide range of monitoring possibilities.

Operating

Voltage range 6 - 35 V

Temperature range -20 - +70 °C

Power consumption at 12 V

Operating 2.5 mA

Current measuring channels 4

Current measuring range

Per channel 0,01 - 25 A

Accuracy ± 0,6 %

Resolution 0,01 A

Sampling rate 100 ms

Maximal current

Continuous 25 A

Peak current (<1 min) 35 A

Peak current (<5 min) 50 A

Voltage drop at 300 A 35 mV

Maximal voltage on connections 35 V

Voltage inputs

Range 0 - 75 V

Resolution 1 mV

Accuracy ± 0,2 %

Resistance inputs 4

Range 0 Ohm - 65 kOhm

Accuracy ± 3,0%

Relay (monostable) 1

Maximum operating current 1 A

Maximum Common Input Voltage (COM) 6 - 30 V

Connectivity Up to

Current sensors 4

Voltage sensors (voltage drop/tank level) 3

Resistive inputs (tank level/temperature) 4

Relay Common Input 1

Relay Output Normaly Open (NO) 1

Relay Output Normaly Closed (NC) 1

SiCOM RJ9 Sockets 2

Installation and Dimension

Dimensions (length x width x depth) 182 x 80 x 32 mm

Weight 230 g

Features:

4 x 25A Current Sensors

For 12v and 24v Systems

Connection Possibilities;

Up To 4 x Consumer Devices

Up To 4 x Generators

Up to 3 x Voltage Inputs

Up to 7 x Resitive Inputs

1 x Relay Input

With Monitoring Possibilities;

Up To 3 X Batteries

Up To 7 x Tanks

Up To 4 x Temperatures

Free SIMARINE Android and iOS Apps:

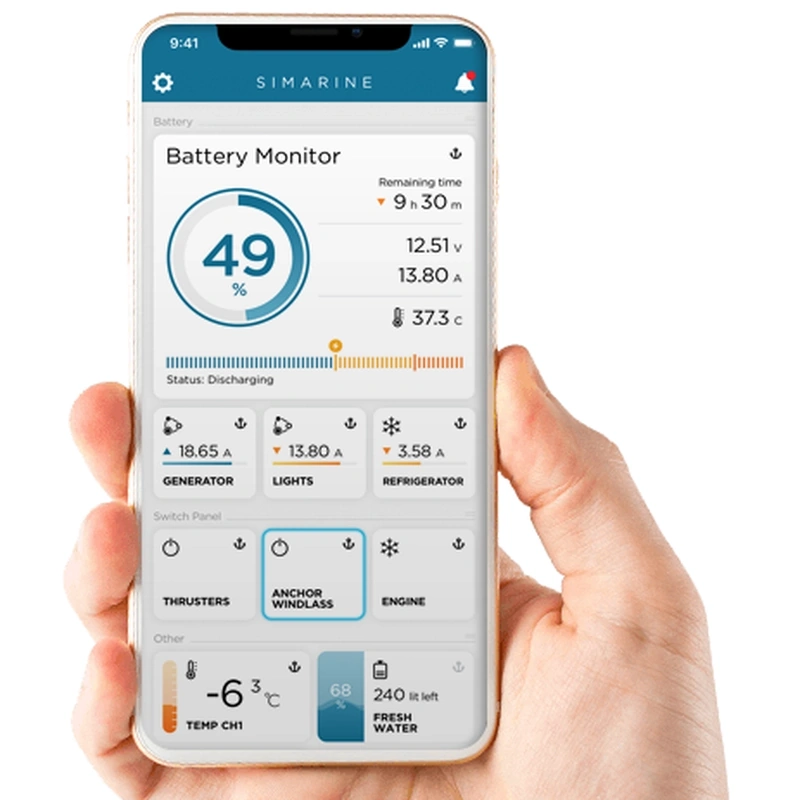

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Specifications:

Model Simarine Quadro Shunt Module SI-SCQ25T Quad Shunt 4 x 25A Circuits Module Operating Power Source Voltage Range 6-35V Temperature Range -20 - +70°C Power Consumption at 12V Operating 2.5mA Current Measuring Channels 4 Current measuring range Per Channel 0.01 - 25A Accuracy ± 0.6 % Resolution 0.01A Sampling Rate 100ms Maximum Currents Continuous 25A Peak Current (<1 min) 35A Peak Current (<5 sec) 50A Voltage Drop at 200 A 35mV Maximum voltage on connections 35V Voltage Inputs Range 0 - 75 V Resolution 1mV Accuracy ± 0.2 % Sampling Rate 100ms Resistance Inputs Range 0 Ohm - 65 kOhm Accuracy ± 3.0% Relay (Monostable) 1 Maximum Operating Current 1A Maximum Common Input Voltage (COM) 6 - 30 V Connectivity Up To Current Sensors 4 Voltage Sensors (voltage drop/tank level) 3 Resistive Inputs (tank level/temperature) 4 Relay Common Input (COM) 1 Relay Output Normally Open (NO) 1 Relay Output Normally Closed (NC) 1 SiCOM RJ9 Sockets 2 Installation and Dimension Dimensions (length x width x depth) 182 x 80 x 32 mm Weight 230g
