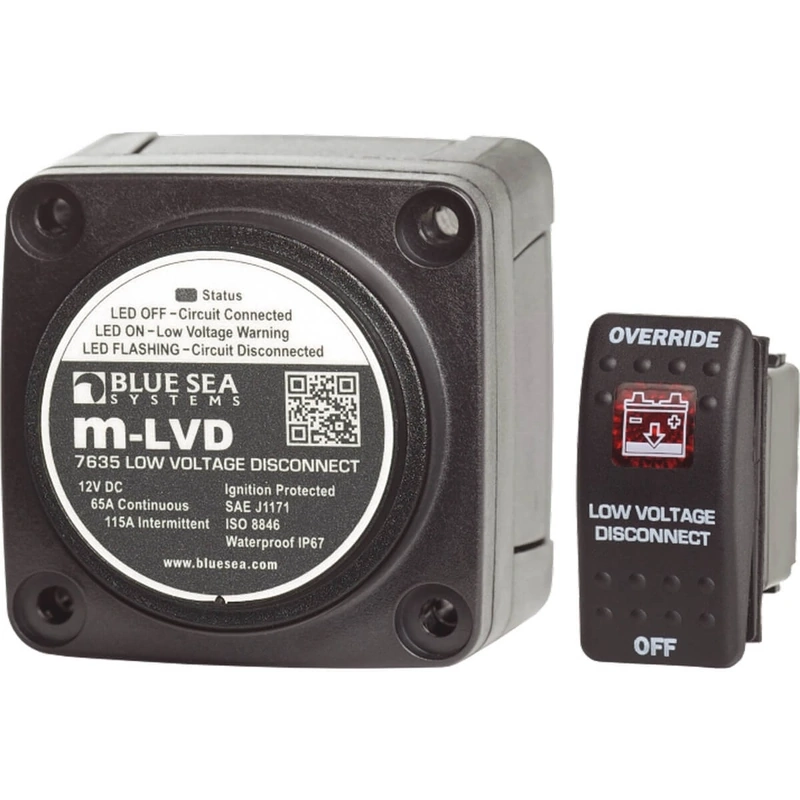

Enerdrive Low Voltage Disconnect BS-7635

SKU:BS-7635

$181.00


Calculate Shipping

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life

A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect

Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

Remote Control Switch Functions: Disconnect Voltage Adjustment - Sets desired disconnect voltage

Override - Temporarily delays circuit disconnect for 10 minutes

OFF - Temporarily disconnects circuits until voltage rises

Override or OFF - Silences alarm (optional alarm required)

Case design allows surface, front panel, or rear panel mounting

Rear insulating cover protects rear contacts

Waterproof - rated IP67 for temporary immersion

Specifications:

m-LVD Low Voltage Disconnect Nominal Voltage 12V DC Amperage Operating Current 95mA (Connected) 4mA (Open) Terminal Stud Torque 60 in-lb (6.78 Nm) Continuous Rating 65A Intermittent Rating 115A (5 Min) Maximum Cable Size 1/0 AWG (50mm2) Terminal Stud Length 7/16 in (11.11 mm) Terminal Stud Size 1/4? - 20 (M6) Weight 0.77lb (0.35 kg)

SKU BS-7635
Barcode # 9342616011966
Brand ENERDRIVE
