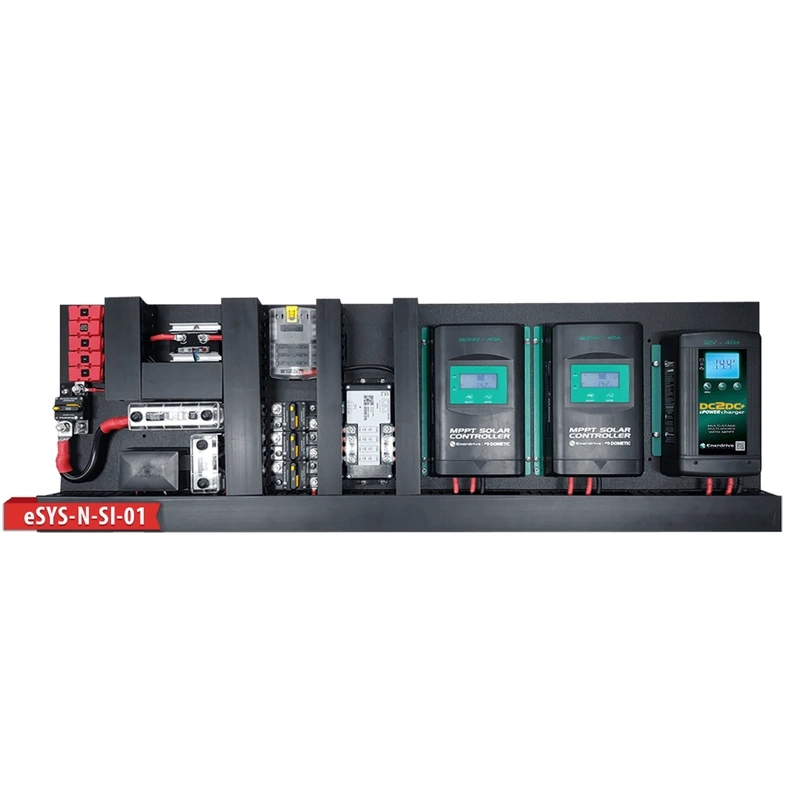

Enerdrive eSYSTEM 40 DCDC, DUAL MPPT-40, SIMARINE ESYS-N-SI-01

Enerdrive’s range of preassembled eSYSTEM portable power systems kits are purpose built with caravans, camper trailers, 4WD canopies and commercial work vehicles in mind. With over 18 variants to choose from, Enerdrive have considered every angle and have a kit to suit just about any conceivable combination of needs.

Neatly laid out onto a 12mm backing plate, each kit is designed to allow you to make good use of spare spaces and dead voids. Thanks to their compact and well resolved form factors, the layouts and dimensions of which vary from kit to kit, you are sure to find an option to suit the unique confines of your recreational vehicle, camper or work truck/van.

Board dimensions: 1190 x 380 x 111mm.

ePOWER DC2DC+ 12V 40A Battery Charger

Part Number : EN3DC40+

The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

Simarine PICO Battery Monitor

Part Number : SI-PICO-3

SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use. The IP67 casing of the main unit is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof). The 3.5-inch IPS LCD display is optically bonded with Anti-Reflective Gorilla Glass. The unique Real Time Battery Health algorithm ensures very precise battery state of charge and health measurements.

Simarine Tank Level & Voltage Module

Part Number : SI-ST107

ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring up to;

7 x Tank Levels

3 x Battery Voltages

4 x Temperature Sensors

Fresh, Gray or Black Water, Petrol or Diesel – keep your fluids under control with an ST107 module. Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

Dual MPPT40 Solar Controllers

Part Number : EN43540

The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.
