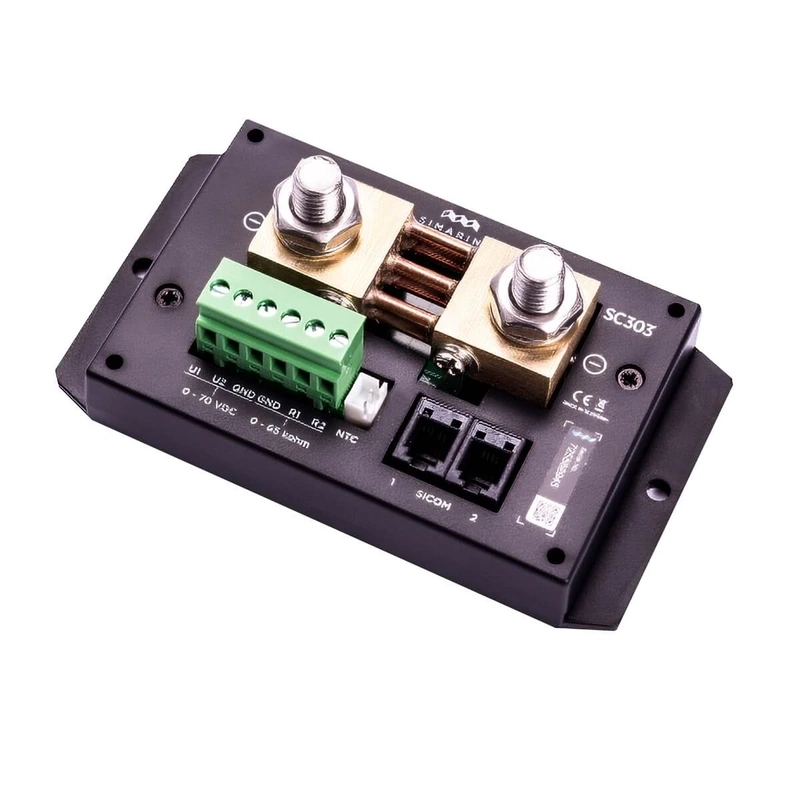

Enerdrive Battery Shunt 500A 2 x Volt, 2 x Resist, 1 x Temp SI-SC503

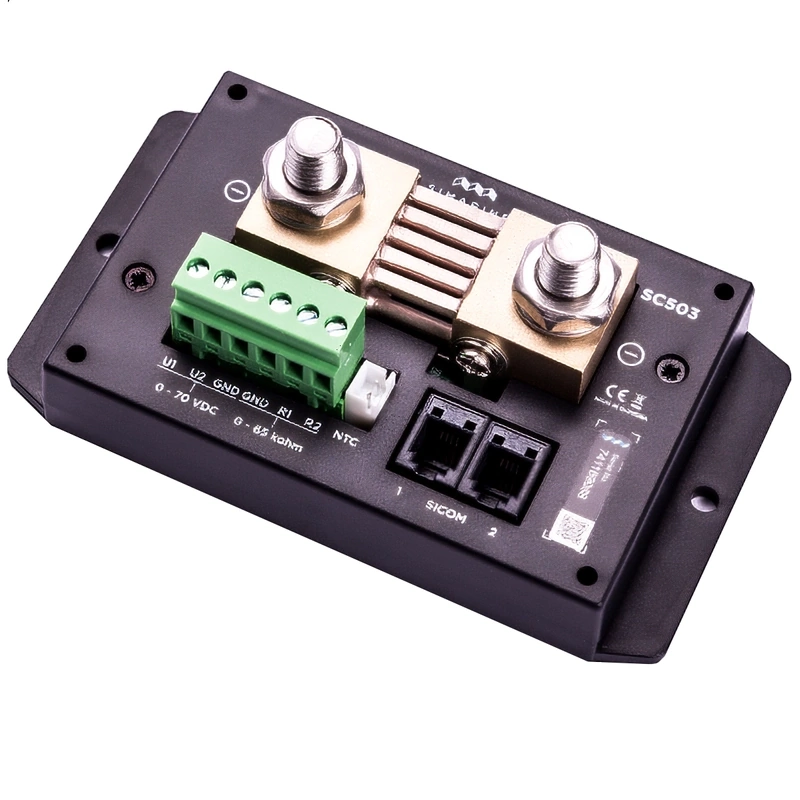

Innovative combination of shunt and tank level module. SC503 is a high precision combo shunt for PICO battery monitor with 2x voltage, 2x temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 500A for up to 75V systems.

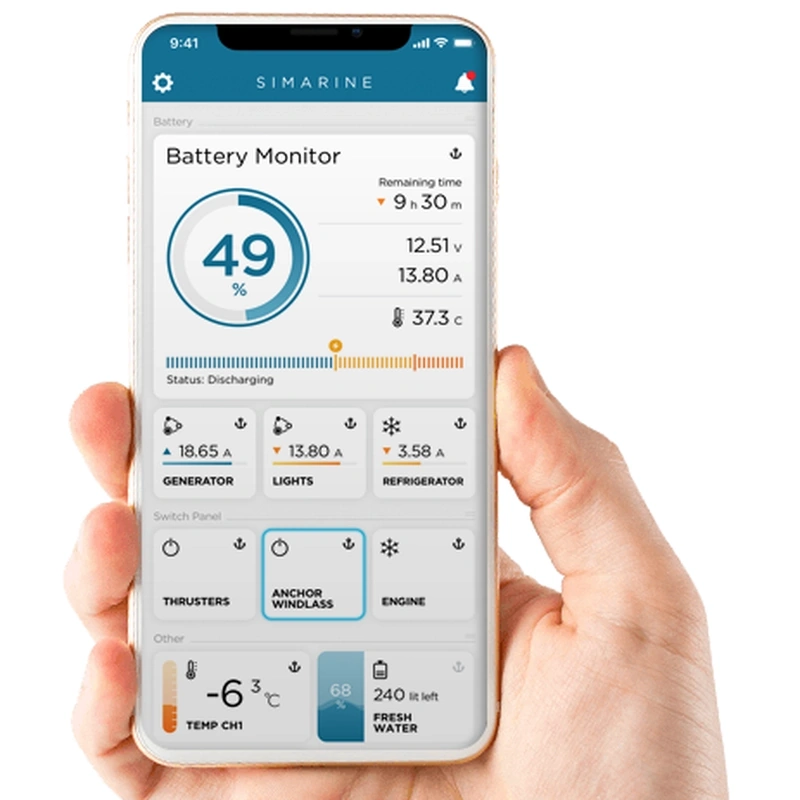

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

Operating

Voltage range 6 - 35 V

Temperature range -20 - +70 °C

Power consumption at 12 V

Operating 1.2 mA

Current measuring range Per channel 0,01 - 700 A

Accuracy ± 0,6 %

Resolution 0,01 A

Sampling rate 100 ms

Maximal current Continuous 500 A

Peak current (<1 min) 700 A

Peak current (<5 min) 1000 A

Voltage drop at 300 A 50 mV

Maximal voltage on connections 35 V

Voltage inputs Range 0 - 75 V

Resolution 1 mV

Accuracy ± 0,2 %

Resistance inputs Range 0 Ohm - 65 kOhm

Accuracy ± 3,0%

Temperature sensor - NTC 10k

Range -15 - +80 °C

Accuracy (-10 - 60 °C, 14 - 140 °F) ± 3,0%

Connectivity Up to Batteries 1

Temperature sensors 3

Voltage sensors 2

SiCOM RJ9 Sockets 2

Installation and Dimension Dimensions (length x width x depth) 120 x 120 x 60 mm

Battery Connection M 10 bolts

Specifications:

Model Simarine Combo Quadro Shunt Module SI-SC303 300A Active Shunt SI-SC503 500A Active Shunt Voltage Range 6-35V Temperature Range -20 - +70°C Power Consumption at 12V Operating 1.2mA Current Measuring Range Per Channel - SC303 0.01 - 320A Per Channel - SC503 0.01 - 700A Accuracy ± 0,6 % Resolution 0,01 A Sampling rate 100 ms Maximum Current Continuous - SC303 300A Continuous - SC503 500A Peak current (<1 min) - SC303 400 A Peak current (<1 min) - SC503 700A Peak current (<5 min) - SC303 700 A Peak current (<5 min) - SC503 1000A Voltage drop at 300 A 50 mV Maximum Voltage on Connections 35V Voltage Inputs Range 0-75V Resolution 1mV Accuracy ±0.2% Sampling Rate 100ms Resistance inputs Range 0 Ohm - 65kOhm Accuracy ± 3.0% Temperature Sensor - NTC 10k Range -15 - +80 °C Accuracy (-10 - 60 °C, 14 - 140 °F) ± 3.0% Connectivity Up to Batteries 1 Temperature Sensors 3 Voltage and/or Resistance Sensors 2 SiCOM RJ9 Sockets 2 Installation and Dimension Dimensions (length x width x depth) 120 x 120 x 60 mm Battery Connection M 10 bolts
