ENERDRIVE

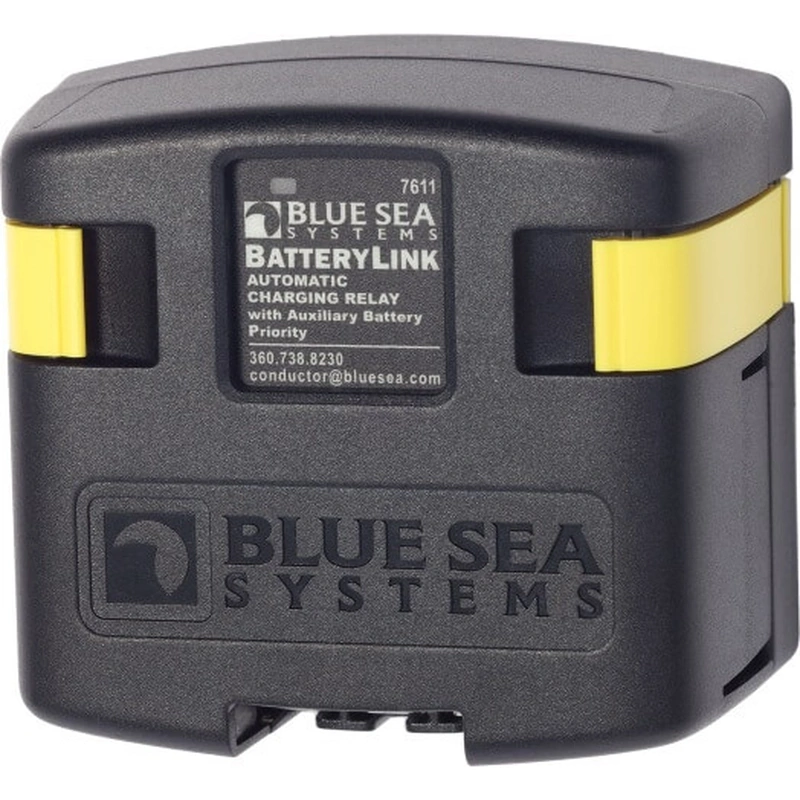

Enerdrive Automatic Charge Relays 120amp BS-7611B

SKU:BS-7611B

$216.00


Calculate Shipping

Automatically shares single source of charge with Auxiliary Battery

Features

120 Amp continuous rating

12/24V DC auto ranging voltage input

Senses charging on two battery banks

Side and bottom knockouts for cable connections

Clip-on cover insulates terminal connections

7?8 (22 mm) stud length to accept multiple cable terminals

Integrated LED indicates ACR status

1?4" x .032" male quick connect terminals for ground and optional features

Largest battery bank cannot exceed Group 27

Optional Features

Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads or an extended period of time

Remote LED remotely indicates ACR states - requires optional LED

Specifications:

BatteryLink™ Automatic Charging Relay - 12V/24V DC 120A Nominal Voltage 12V DC

24V DC Auxiliary Battery Priority Yes Amperage Operating Current 175mA @ 12V (Combine)

115mA @ 24V (Combine)

15mA (Open) Continuous Rating 120A Intermittent Rating 210A (5 min) Maximum Cable Size 1/0 AWG Maximum Torque 140 in-lb (15.82 Nm) Terminal Stud Size 3/8? - 16 (M10) Relay Contact Position Combine 30 sec 13.6V @ 12V

27.2V @ 24V Combine 2 Min 13.0V @ 12V DC

26.0V @ 24V DC Over Voltage Lockout 16.0V @ 12 V

32.0V @ 24 V Open Low 12.75V @ 12 V

25.5V @ 24 V Auxiliary Priority Open Low 12.25V @ 12V

24.5V @ 24V Weight 0.57 kg Note: Specifications subject to change without notice.
