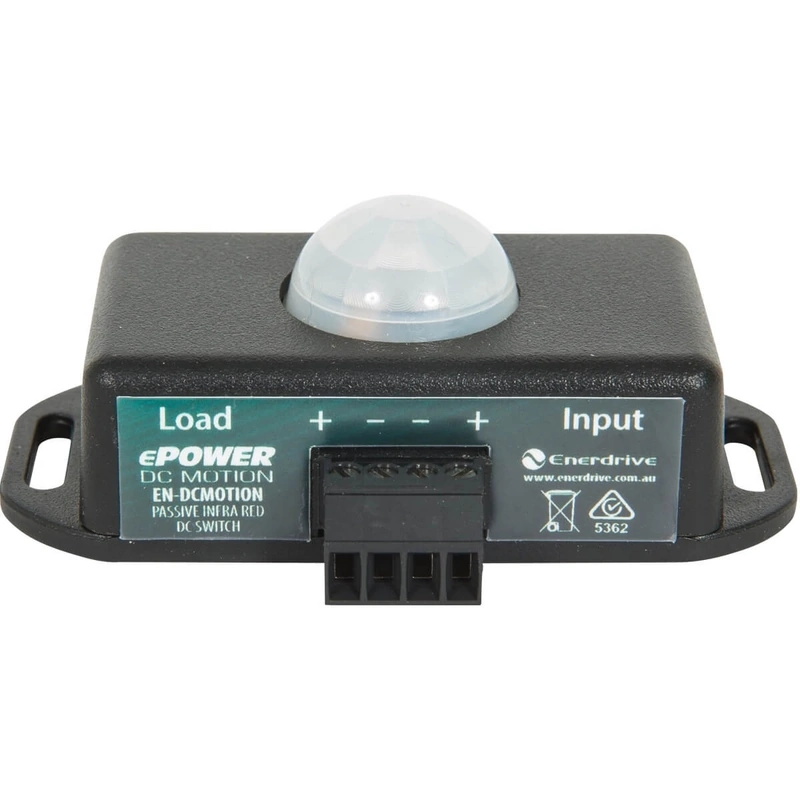

Enerdrive 12/24V Motion Sensor Switch EN-DCMOTION

The EN-DCMOTION is a motion activated switch for 12 and 24 Volt systems for which a Passive Infra-Red Detector (PIR) is used.

P.I.R. Sensor Motion Switch

The DCMotion can be used in a number of situations like yacht or ship engine rooms, undercover truck loading bays or RV applications.

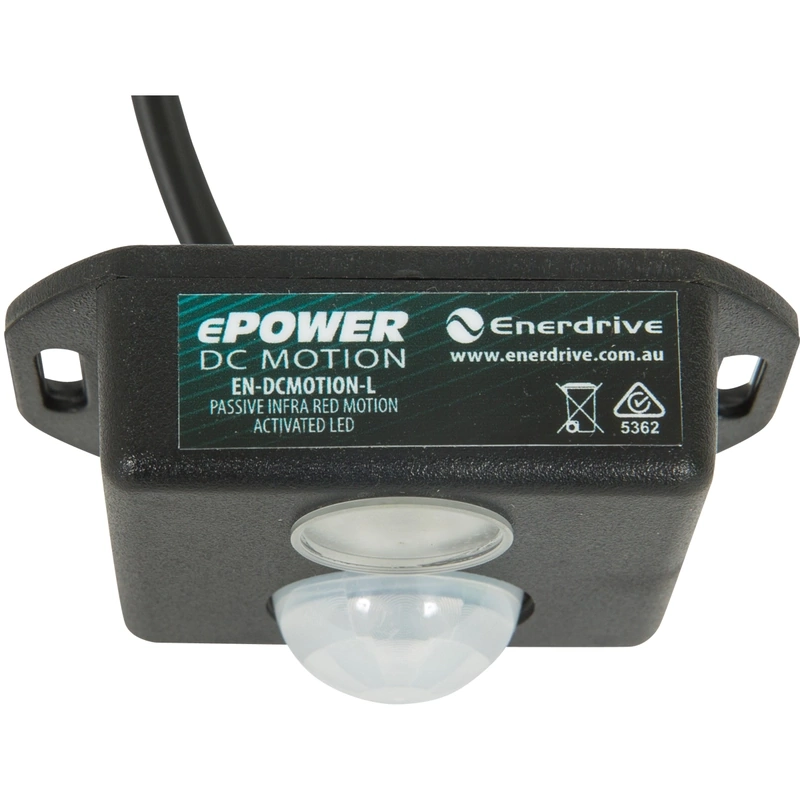

The ePOWER DCMotion-L is a motion activated LED lamp for 12v and 24v systems for which a Passive Infra-Red Detector (PIR) is used. This unit has a built in high efficiency Power CREE LED (1 Watt). The DCMotion-L switches the load as soon as motion is detected. If no motion is detected any more the DCMotion-L switches off with a delay. The delay time can be set by way of an internal potentiometer. This is done in steps of 5 seconds. The minimum delay time is 5 seconds and the maximum delay time is 60 seconds. Default is a delay time of about 30 seconds. The load will be disconnected 30 seconds after the last motion is detected.

Applications

Recreational vehicles

Industrial systems

Service vehicles

Maritime applications

Specifications:

Model Number Auto Voltage Switch Off Time Power up delay Detection Angle Detection Parameter LED Light Weight Dimension LxWxH EN-DCMOTION 12VDC / 24VDC 5 min. * #ERROR! 60° H – 60° V 5 meters No 30g 76.5 x 48.5 x 30mm EN-DCMOTION-L 12VDC / 24VDC 5 min. * #ERROR! 60° H – 60° V 5 meters Yes 107g 67 x 50 x 30mm * Switch Off time is adjustable between 1 – 10 min.

Note: Specifications subject to change without notice.
