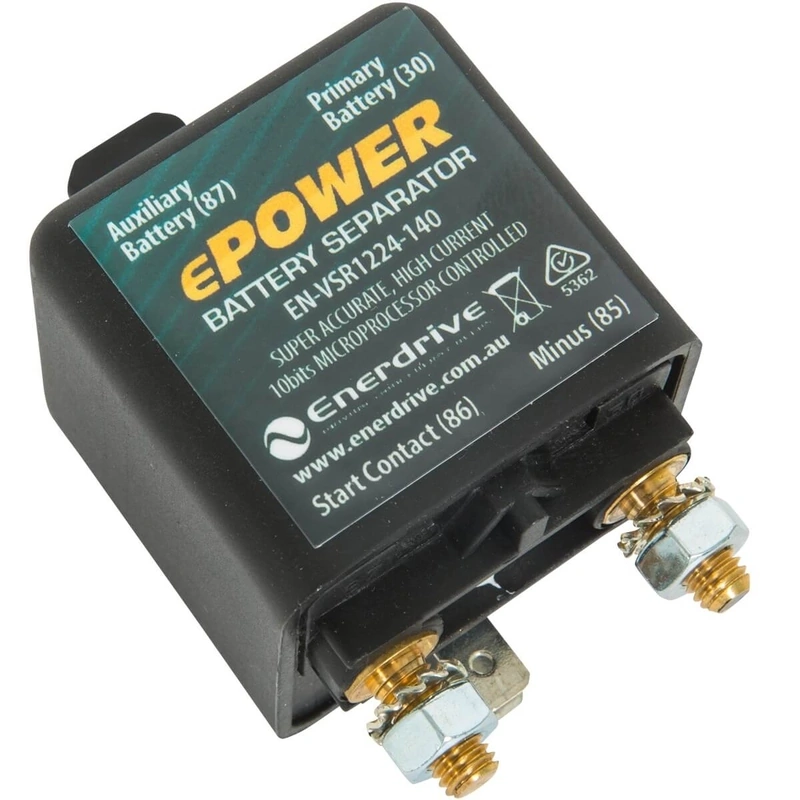

Enerdrive 12/24v-140A Dual Sense VSR Relay IP54 EN-VSR1224-140

SKU:EN-VSR1224-140

$107.00


Calculate Shipping

When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.

Additionally, the ePOWER VSR range offers features like :

No voltage loss

Intelligent battery monitoring to prevent unwanted switching

Starter battery priority

Bipolar switching

Voltage dependent switching

Applications

Marine

Caravans

Camper vans

RV's

Specifications:

EN-VSR1224-140 10-bits precise microProcessor Power supply Auto detect 12 / 24V Connection batteries M6 Other connections 6.3mm faston Cable suggestion 20mm2 Current consumption in OFF state 12V 1.5mA / 24V 1.5mA Current consumption in ON state 13.5V 360mA / 27V 160mA Minimum Charge time 60 sec. Fast OFF < 11.8V (12V) / < 23.6V (24V) after 4 sec. Weight (kg) 0.11 Dimensions L x W x H (mm) 46 x 46 x 80 Note: Specifications subject to change without notice.

Accessories

Enerdrive Part # Description EN-DCMOTION EN-DCMOTION Motion Sensor Switch

SKU EN-VSR1224-140
Barcode # 9342616015889
Brand ENERDRIVE
