DNA Audio SWLUNI Universal Head Unit Patch Lead For SWCs

Universal Head Unit Patch Lead For SWCs

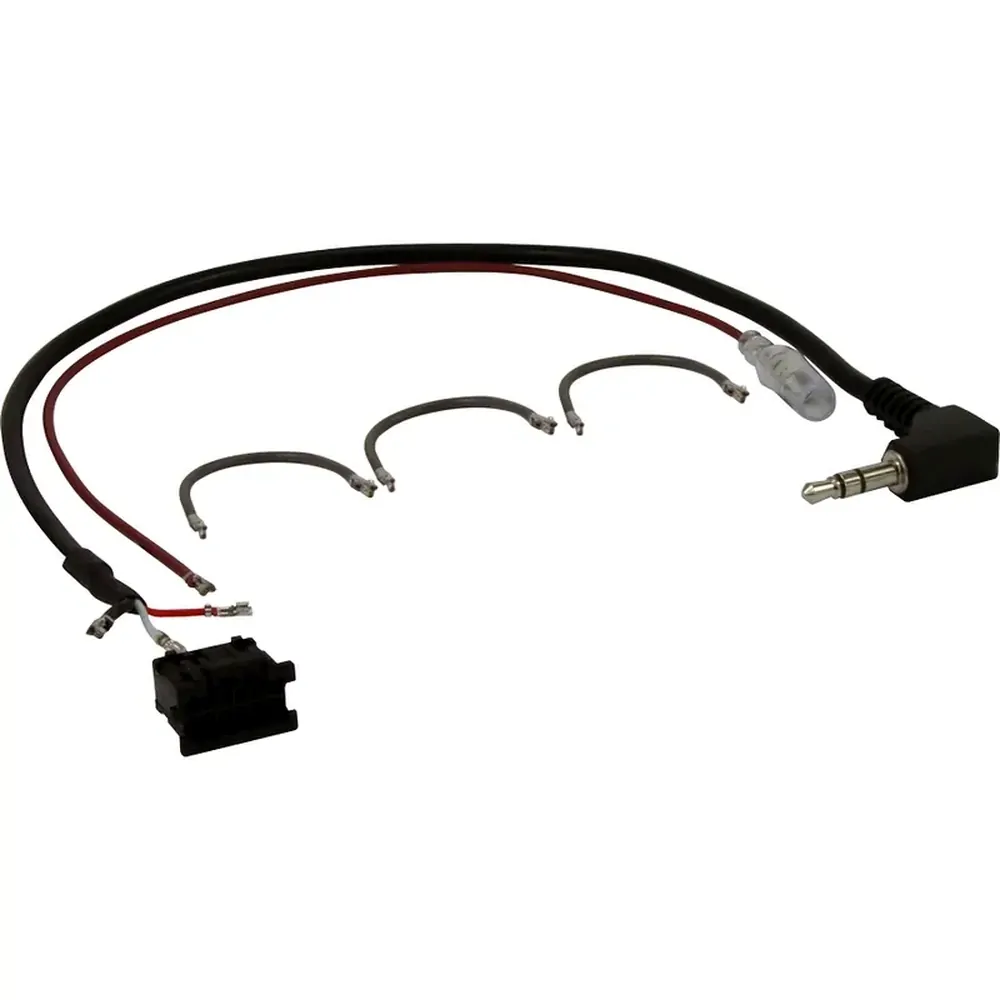

Universal head unit patch lead for connection to the DNA range of EVO SWC series of steering wheel controllers.

Use either the 3.5mm jack plug or the single brown wire in locations 1,2 & 3.
Then use the grey leads to create links as needed.

This patch lead must be plugged into the SWC controller box and aftermarket head unit before power is connected.
To remove a wire from the connector carefully lift the latch on the plastic housing.

Packaging: Poly bag and header card

Self Learning Specifications:
The head units these connect to normally have 2 input wires and 1 ground wire.
The brown connects to one of the input wires, normally labelled KEY1 or SWC1. And the green to the ground, normally labelled KEY GND or SWC GND.
